Click Straight 10

Click Straight 10

https://onoklighting.com/web/image/product.template/7324/image_1920?unique=6bd9e32

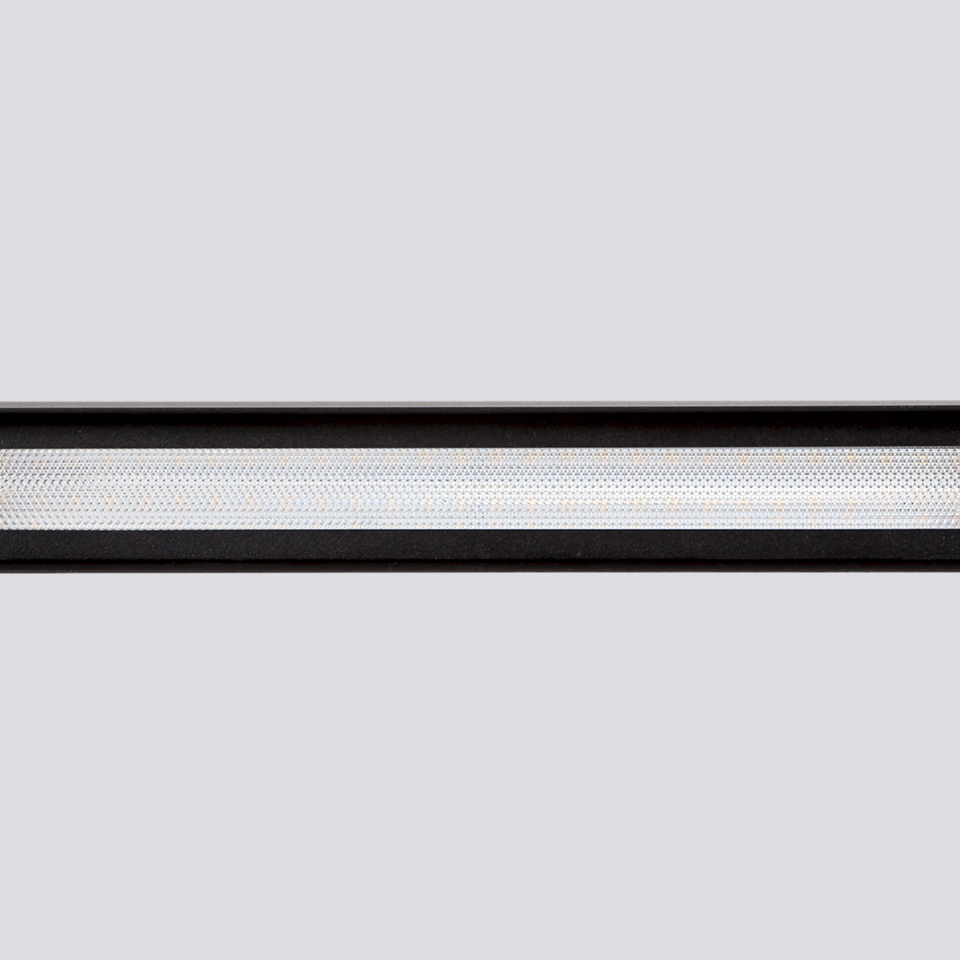

Suspended linear profile for continuous lighting. Integration in architectural projects
  • Socket
  • Output
  • Control
  • Colour Temperature
  • Beam Angle
  • Complements
  • Finish

This combination does not exist.

Contact Us
Click Straight 10 Click Straight 10
Click Catalogue CE Declaration for Surface and Pendant CE Declaration for Recessed Technical Datasheet Bluetooth Catalogue Installation Instructions General Guarantee Conditions EXTENDED Guarantee Conditions LED Efficiency Label Driver technical datasheet LED technical datasheet CLICK STRAIGHT - LDT files
Technical drawing
LED flux—
LED power consumption—
Luminous efficiency—
CRI—
Driver LED—
Light temperature—
Beam angle—
IP protection—
Modelo Ref. Color Fuente Potencia Regulación Flujo lum. Temp. Ángulo CRI Eficiencia
Click Straight 10 3000K KST1A10D39CBS Satin Black LED ≈ 16W / >2500lm Dali 2.540 lm 3000K Expansiveº >90 160 lm/W
Click Straight 10 3000K KST1A10D39CWS Satin White LED ≈ 16W / >2500lm Dali 2.540 lm 3000K Expansiveº >90 160 lm/W
Click Straight 10 4000K KST1A10D49CBS Satin Black LED ≈ 16W / >2500lm Dali 2.730 lm 4000K Expansiveº >90 172 lm/W
Click Straight 10 4000K KST1A10D49CWS Satin White LED ≈ 16W / >2500lm Dali 2.730 lm 4000K Expansiveº >90 172 lm/W
Click Straight 10 3000K KST1A10K39CBS Satin Black LED ≈ 16W / >2500lm Casambi 2.540 lm 3000K Expansiveº >90 160 lm/W
Click Straight 10 3000K KST1A10K39CWS Satin White LED ≈ 16W / >2500lm Casambi 2.540 lm 3000K Expansiveº >90 160 lm/W
Click Straight 10 4000K KST1A10K49CBS Satin Black LED ≈ 16W / >2500lm Casambi 2.730 lm 4000K Expansiveº >90 172 lm/W
Click Straight 10 4000K KST1A10K49CWS Satin White LED ≈ 16W / >2500lm Casambi 2.730 lm 4000K Expansiveº >90 172 lm/W
Click Straight 10 3000K KST1A10N39CBS Satin Black LED ≈ 16W / >2500lm No Dimmable 2.540 lm 3000K Expansiveº >90 160 lm/W
Click Straight 10 3000K KST1A10N39CWS Satin White LED ≈ 16W / >2500lm No Dimmable 2.540 lm 3000K Expansiveº >90 160 lm/W
Click Straight 10 4000K KST1A10N49CBS Satin Black LED ≈ 16W / >2500lm No Dimmable 2.730 lm 4000K Expansiveº >90 172 lm/W
Click Straight 10 4000K KST1A10N49CWS Satin White LED ≈ 16W / >2500lm No Dimmable 2.730 lm 4000K Expansiveº >90 172 lm/W
