Click Tube 25

Click Tube 25

https://onoklighting.com/web/image/product.template/7333/image_1920?unique=6bd9e32

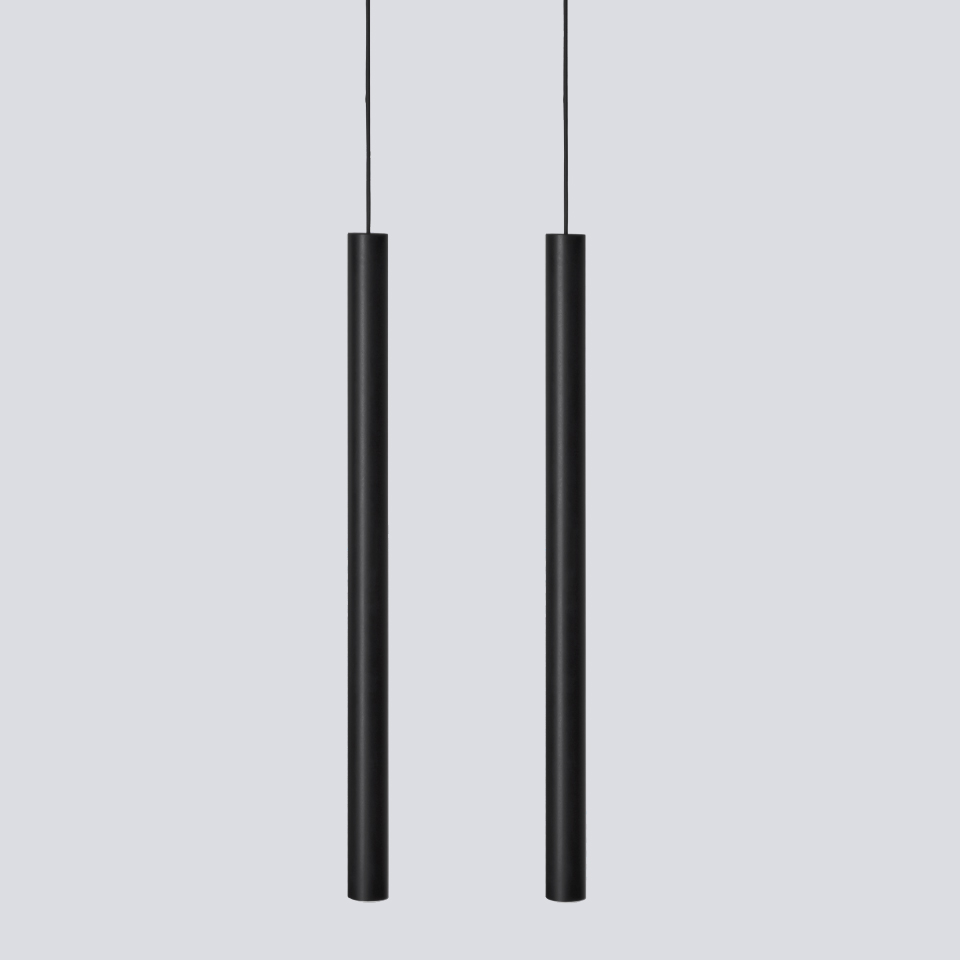

Luminaire in extruded aluminium available in various lengths and power outputs. Beam angles configurable according to project requirements
  • Socket
  • Output
  • Control
  • Colour Temperature
  • Beam Angle
  • Complements
  • Finish

This combination does not exist.

Contact Us
Click Tube 25 Click Tube 25
CE Declaration for Surface and Pendant Technical Datasheet Click Catalogue CE Declaration for Recessed Bluetooth Catalogue Installation Instructions General Guarantee Conditions EXTENDED Guarantee Conditions LED Efficiency Label Driver technical datasheet Test report certificate (Recessed profile) Test report (Recessed profile) Test report certificate (Surface profile) Test report (Surface profile) CLICK TUBE 25 - LDT files
Technical drawing
LED flux—
LED power consumption—
Luminous efficiency—
CRI—
Driver LED—
Light temperature—
Beam angle—
IP protection—
Modelo Ref. Color Fuente Potencia Regulación Flujo lum. Temp. Ángulo CRI Eficiencia
Click Tube 25 2700K KTB2A25D22ABS Satin Black LED Ø25 / ≈ 6W / >500 lm Dali 2x521 lm 2700K 25º >90 95 lm/W
Click Tube 25 2700K KTB2A25D22ACB Copper - black LED Ø25 / ≈ 6W / >500 lm Dali 2x521 lm 2700K 25º >90 95 lm/W
Click Tube 25 2700K KTB2A25D22APB Polished - black LED Ø25 / ≈ 6W / >500 lm Dali 2x521 lm 2700K 25º >90 95 lm/W
Click Tube 25 2700K KTB2A25D22AWS Satin White LED Ø25 / ≈ 6W / >500 lm Dali 2x521 lm 2700K 25º >90 95 lm/W
Click Tube 25 3000K KTB2A25D32ABS Satin Black LED Ø25 / ≈ 6W / >500 lm Dali 2x559 lm 3000K 25º >90 102 lm/W
Click Tube 25 3000K KTB2A25D32ACB Copper - black LED Ø25 / ≈ 6W / >500 lm Dali 2x559 lm 3000K 25º >90 102 lm/W
Click Tube 25 3000K KTB2A25D32APB Polished - black LED Ø25 / ≈ 6W / >500 lm Dali 2x559 lm 3000K 25º >90 102 lm/W
Click Tube 25 3000K KTB2A25D32AWS Satin White LED Ø25 / ≈ 6W / >500 lm Dali 2x559 lm 3000K 25º >90 102 lm/W
Click Tube 25 4000K KTB2A25D42ABS Satin Black LED Ø25 / ≈ 6W / >500 lm Dali 2x597 lm 4000K 25º >90 109 lm/W
Click Tube 25 4000K KTB2A25D42ACB Copper - black LED Ø25 / ≈ 6W / >500 lm Dali 2x597 lm 4000K 25º >90 109 lm/W
Click Tube 25 4000K KTB2A25D42APB Polished - black LED Ø25 / ≈ 6W / >500 lm Dali 2x597 lm 4000K 25º >90 109 lm/W
Click Tube 25 4000K KTB2A25D42AWS Satin White LED Ø25 / ≈ 6W / >500 lm Dali 2x597 lm 4000K 25º >90 109 lm/W
Click Tube 25 2700K KTB2A25K22ABS Satin Black LED Ø25 / ≈ 6W / >500 lm Casambi 2x521 lm 2700K 25º >90 95 lm/W
Click Tube 25 2700K KTB2A25K22ACB Copper - black LED Ø25 / ≈ 6W / >500 lm Casambi — 2700K 24º >90 —
Click Tube 25 2700K KTB2A25K22APB Polished - black LED Ø25 / ≈ 6W / >500 lm Casambi — 2700K 24º >90 —
Click Tube 25 2700K KTB2A25K22AWS Satin White LED Ø25 / ≈ 6W / >500 lm Casambi 2x521 lm 2700K 25º >90 95 lm/W
Click Tube 25 3000K KTB2A25K32ABS Satin Black LED Ø25 / ≈ 6W / >500 lm Casambi 2x559 lm 3000K 25º >90 102 lm/W
Click Tube 25 3000K KTB2A25K32ACB Copper - black LED Ø25 / ≈ 6W / >500 lm Casambi — 3000K 24º >90 —
Click Tube 25 3000K KTB2A25K32APB Polished - black LED Ø25 / ≈ 6W / >500 lm Casambi — 3000K 24º >90 —
Click Tube 25 3000K KTB2A25K32AWS Satin White LED Ø25 / ≈ 6W / >500 lm Casambi 2x559 lm 3000K 25º >90 102 lm/W
Click Tube 25 4000K KTB2A25K42ABS Satin Black LED Ø25 / ≈ 6W / >500 lm Casambi 2x597 lm 4000K 25º >90 109 lm/W
Click Tube 25 4000K KTB2A25K42ACB Copper - black LED Ø25 / ≈ 6W / >500 lm Casambi — 4000K 24º >90 —
Click Tube 25 4000K KTB2A25K42APB Polished - black LED Ø25 / ≈ 6W / >500 lm Casambi — 4000K 24º >90 —
Click Tube 25 4000K KTB2A25K42AWS Satin White LED Ø25 / ≈ 6W / >500 lm Casambi — 4000K 24º >90 —
Click Tube 25 2700K KTB2A25N22ABS Satin Black LED Ø25 / ≈ 6W / >500 lm No Dimmable 2x521 lm 2700K 25º >90 95 lm/W
Click Tube 25 2700K KTB2A25N22ACB Copper - black LED Ø25 / ≈ 6W / >500 lm No Dimmable 2x521 lm 2700K 25º >90 95 lm/W
Click Tube 25 2700K KTB2A25N22APB Polished - black LED Ø25 / ≈ 6W / >500 lm No Dimmable 2x521 lm 2700K 25º >90 95 lm/W
Click Tube 25 2700K KTB2A25N22AWS Satin White LED Ø25 / ≈ 6W / >500 lm No Dimmable 2x521 lm 2700K 25º >90 95 lm/W
Click Tube 25 3000K KTB2A25N32ABS Satin Black LED Ø25 / ≈ 6W / >500 lm No Dimmable 2x559 lm 3000K 25º >90 102 lm/W
Click Tube 25 3000K KTB2A25N32ACB Copper - black LED Ø25 / ≈ 6W / >500 lm No Dimmable 2x559 lm 3000K 25º >90 102 lm/W
Click Tube 25 3000K KTB2A25N32APB Polished - black LED Ø25 / ≈ 6W / >500 lm No Dimmable 2x559 lm 3000K 25º >90 102 lm/W
Click Tube 25 3000K KTB2A25N32AWS Satin White LED Ø25 / ≈ 6W / >500 lm No Dimmable 2x559 lm 3000K 25º >90 102 lm/W
Click Tube 25 4000K KTB2A25N42ABS Satin Black LED Ø25 / ≈ 6W / >500 lm No Dimmable 2x597 lm 4000K 25º >90 109 lm/W
Click Tube 25 4000K KTB2A25N42ACB Copper - black LED Ø25 / ≈ 6W / >500 lm No Dimmable 2x597 lm 4000K 25º >90 109 lm/W
Click Tube 25 4000K KTB2A25N42APB Polished - black LED Ø25 / ≈ 6W / >500 lm No Dimmable 2x597 lm 4000K 25º >90 109 lm/W
Click Tube 25 4000K KTB2A25N42AWS Satin White LED Ø25 / ≈ 6W / >500 lm No Dimmable 2x597 lm 4000K 25º >90 109 lm/W
