Click Point 4
Click Point 4

Click Point 4

https://onoklighting.com/web/image/product.template/8840/image_1920?unique=6bd9e32

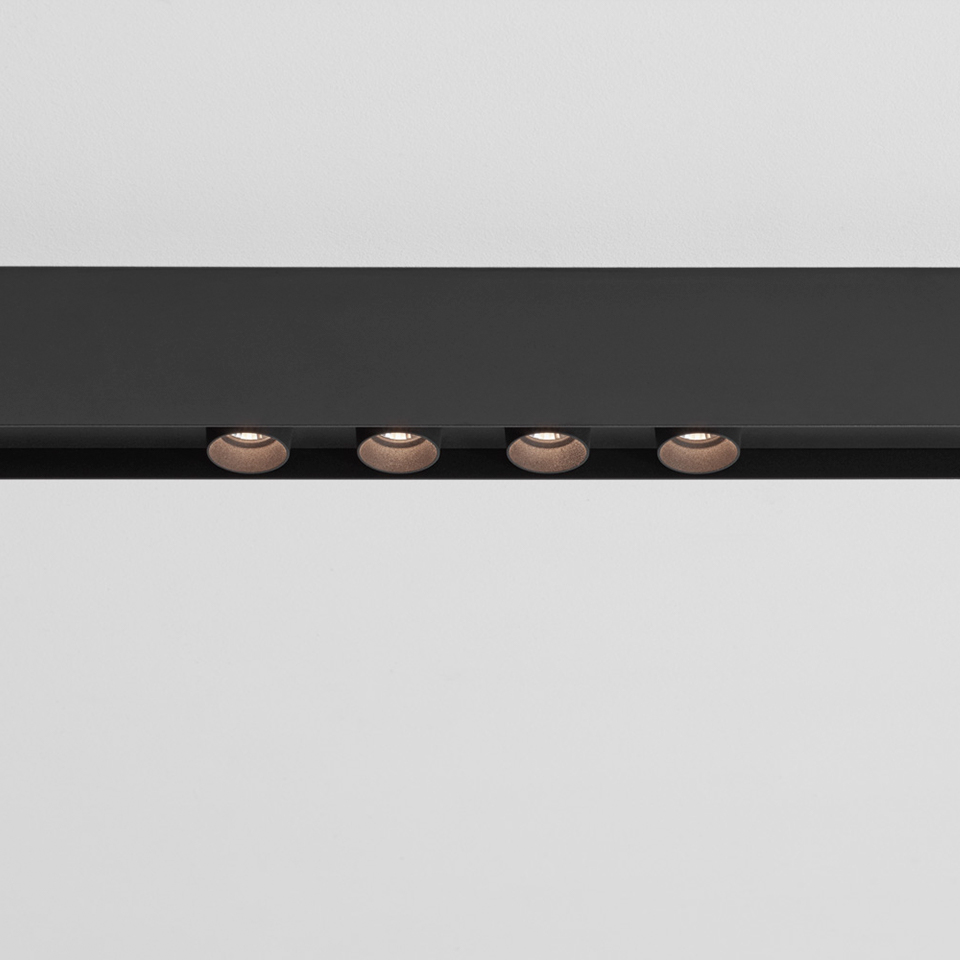

Linear profile with four integrated point modules. Precise emission with dimming options
  • Socket
  • Output
  • Control
  • Colour Temperature
  • Beam Angle
  • Position
  • Finish

This combination does not exist.

Contact Us
Click Point 4 Click Point 4
Technical Datasheet General Guarantee Conditions Extended Guarantee Conditions CE Declaration for Surface and Pendant CE Declaration for Recessed LED Efficiency Label Installation Instructions Driver technical datasheet LED technical datasheet CLICK POINT - LDT files
Technical drawing
LED flux—
LED power consumption—
Luminous efficiency—
CRI—
Driver LED—
Light temperature—
Beam angle—
IP protection—
Click Point 4
Modelo Ref. Color Fuente Potencia Regulación Flujo lum. Temp. Ángulo CRI Eficiencia
Click Point 4 2700K KPNTA04D24CBS Satin Black LED 4P / ≈ 13W / >1.400 lm Dali 1.440 lm 2700K 40 / CENTRALº >90 111 lm/W
Click Point 4 2700K KPNTA04D24CWS Satin White LED 4P / ≈ 13W / >1.400 lm Dali 1.440 lm 2700K 40 / CENTRALº >90 111 lm/W
Click Point 4 2700K KPNTA04D24SBS Satin Black LED 4P / ≈ 13W / >1.400 lm Dali 1.440 lm 2700K 40 / ESQUINADOº >90 111 lm/W
Click Point 4 2700K KPNTA04D24SWS Satin White LED 4P / ≈ 13W / >1.400 lm Dali 1.440 lm 2700K 40 / ESQUINADOº >90 111 lm/W
Click Point 4 3000K KPNTA04D34CBS Satin Black LED 4P / ≈ 13W / >1.400 lm Dali 1.640 lm 3000K 40 / CENTRALº >90 126 lm/W
Click Point 4 3000K KPNTA04D34CWS Satin White LED 4P / ≈ 13W / >1.400 lm Dali 1.640 lm 3000K 40 / CENTRALº >90 126 lm/W
Click Point 4 3000K KPNTA04D34SBS Satin Black LED 4P / ≈ 13W / >1.400 lm Dali 1.640 lm 3000K 40 / ESQUINADOº >90 126 lm/W
Click Point 4 3000K KPNTA04D34SWS Satin White LED 4P / ≈ 13W / >1.400 lm Dali 1.640 lm 3000K 40 / ESQUINADOº >90 126 lm/W
Click Point 4 4000K KPNTA04D44CBS Satin Black LED 4P / ≈ 13W / >1.400 lm Dali 1.700 lm 4000K 40 / CENTRALº >90 131 lm/W
Click Point 4 4000K KPNTA04D44CWS Satin White LED 4P / ≈ 13W / >1.400 lm Dali 1.700 lm 4000K 40 / CENTRALº >90 131 lm/W
Click Point 4 4000K KPNTA04D44SBS Satin Black LED 4P / ≈ 13W / >1.400 lm Dali 1.700 lm 4000K 40 / ESQUINADOº >90 131 lm/W
Click Point 4 4000K KPNTA04D44SWS Satin White LED 4P / ≈ 13W / >1.400 lm Dali 1.700 lm 4000K 40 / ESQUINADOº >90 131 lm/W
Click Point 4 2700K KPNTA04K24CBS Satin Black LED 4P / ≈ 13W / >1.400 lm Casambi 1.440 lm 2700K 40 / CENTRALº >90 111 lm/W
Click Point 4 2700K KPNTA04K24CWS Satin White LED 4P / ≈ 13W / >1.400 lm Casambi 1.440 lm 2700K 40 / CENTRALº >90 111 lm/W
Click Point 4 2700K KPNTA04K24SBS Satin Black LED 4P / ≈ 13W / >1.400 lm Casambi 1.440 lm 2700K 40 / ESQUINADOº >90 111 lm/W
Click Point 4 2700K KPNTA04K24SWS Satin White LED 4P / ≈ 13W / >1.400 lm Casambi 1.440 lm 2700K 40 / ESQUINADOº >90 111 lm/W
Click Point 4 3000K KPNTA04K34CBS Satin Black LED 4P / ≈ 13W / >1.400 lm Casambi 1.640 lm 3000K 40 / CENTRALº >90 126 lm/W
Click Point 4 3000K KPNTA04K34CWS Satin White LED 4P / ≈ 13W / >1.400 lm Casambi 1.640 lm 3000K 40 / CENTRALº >90 126 lm/W
Click Point 4 3000K KPNTA04K34SBS Satin Black LED 4P / ≈ 13W / >1.400 lm Casambi 1.640 lm 3000K 40 / ESQUINADOº >90 126 lm/W
Click Point 4 3000K KPNTA04K34SWS Satin White LED 4P / ≈ 13W / >1.400 lm Casambi 1.640 lm 3000K 40 / ESQUINADOº >90 126 lm/W
Click Point 4 4000K KPNTA04K44CBS Satin Black LED 4P / ≈ 13W / >1.400 lm Casambi 1.700 lm 4000K 40 / CENTRALº >90 131 lm/W
Click Point 4 4000K KPNTA04K44CWS Satin White LED 4P / ≈ 13W / >1.400 lm Casambi 1.700 lm 4000K 40 / CENTRALº >90 131 lm/W
Click Point 4 4000K KPNTA04K44SBS Satin Black LED 4P / ≈ 13W / >1.400 lm Casambi 1.700 lm 4000K 40 / ESQUINADOº >90 131 lm/W
Click Point 4 4000K KPNTA04K44SWS Satin White LED 4P / ≈ 13W / >1.400 lm Casambi 1.700 lm 4000K 40 / ESQUINADOº >90 131 lm/W
Click Point 4 2700K KPNTA04N24CBS Satin Black LED 4P / ≈ 13W / >1.400 lm No Dimmable 1.440 lm 2700K 40 / CENTRALº >90 111 lm/W
Click Point 4 2700K KPNTA04N24CWS Satin White LED 4P / ≈ 13W / >1.400 lm No Dimmable 1.440 lm 2700K 40 / CENTRALº >90 111 lm/W
Click Point 4 2700K KPNTA04N24SBS Satin Black LED 4P / ≈ 13W / >1.400 lm No Dimmable 1.440 lm 2700K 40 / ESQUINADOº >90 111 lm/W
Click Point 4 2700K KPNTA04N24SWS Satin White LED 4P / ≈ 13W / >1.400 lm No Dimmable 1.440 lm 2700K 40 / ESQUINADOº >90 111 lm/W
Click Point 4 3000K KPNTA04N34CBS Satin Black LED 4P / ≈ 13W / >1.400 lm No Dimmable 1.640 lm 3000K 40 / CENTRALº >90 126 lm/W
Click Point 4 3000K KPNTA04N34CWS Satin White LED 4P / ≈ 13W / >1.400 lm No Dimmable 1.640 lm 3000K 40 / CENTRALº >90 126 lm/W
Click Point 4 3000K KPNTA04N34SBS Satin Black LED 4P / ≈ 13W / >1.400 lm No Dimmable 1.640 lm 3000K 40 / ESQUINADOº >90 126 lm/W
Click Point 4 3000K KPNTA04N34SWS Satin White LED 4P / ≈ 13W / >1.400 lm No Dimmable 1.640 lm 3000K 40 / ESQUINADOº >90 126 lm/W
Click Point 4 4000K KPNTA04N44CBS Satin Black LED 4P / ≈ 13W / >1.400 lm No Dimmable 1.700 lm 4000K 40 / CENTRALº >90 131 lm/W
Click Point 4 4000K KPNTA04N44CWS Satin White LED 4P / ≈ 13W / >1.400 lm No Dimmable 1.700 lm 4000K 40 / CENTRALº >90 131 lm/W
Click Point 4 4000K KPNTA04N44SBS Satin Black LED 4P / ≈ 13W / >1.400 lm No Dimmable 1.700 lm 4000K 40 / ESQUINADOº >90 131 lm/W
Click Point 4 4000K KPNTA04N44SWS Satin White LED 4P / ≈ 13W / >1.400 lm No Dimmable 1.700 lm 4000K 40 / ESQUINADOº >90 131 lm/W
