Click Linear 1500mm
Click Linear 1500mm

Click Linear 1500mm

https://onoklighting.com/web/image/product.template/8399/image_1920?unique=6bd9e32

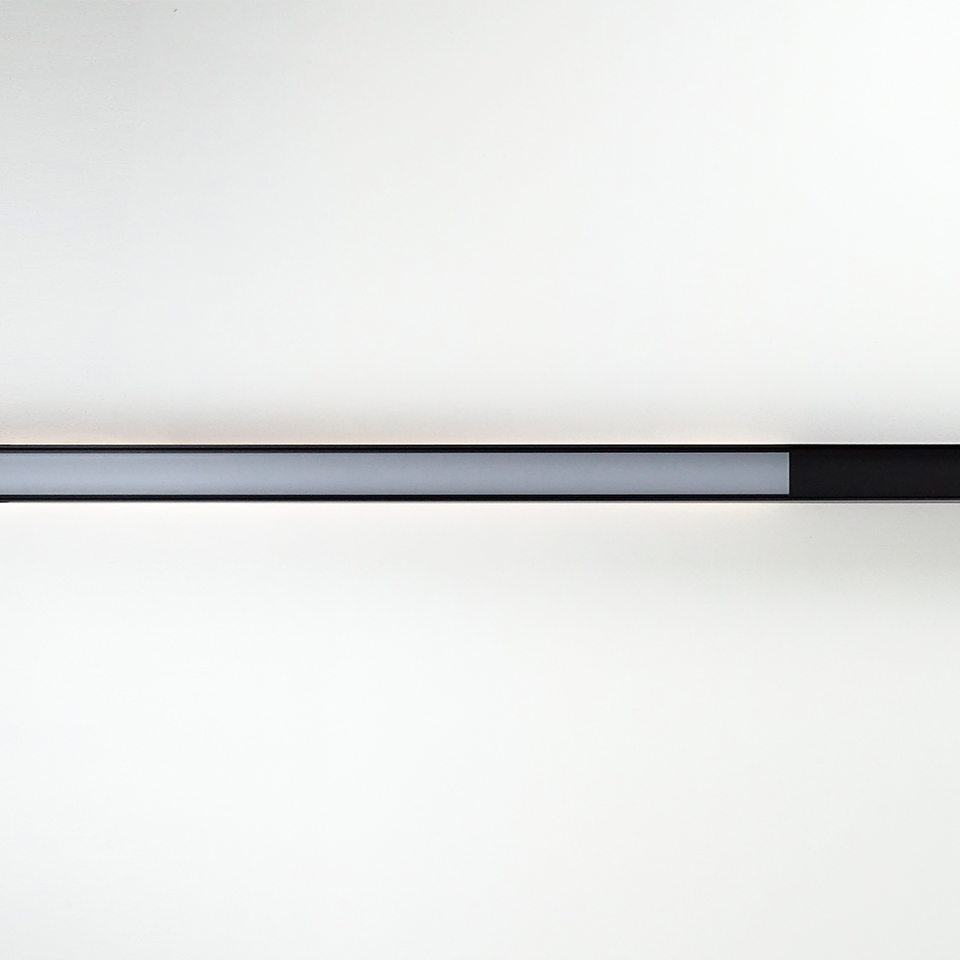

Linear profile with click fixing system. Continuous and uniform lighting for architectural integration
  • Socket
  • Output
  • Control
  • Colour Temperature
  • Beam Angle
  • Complements
  • Finish

This combination does not exist.

Contact Us
Click Linear 1500mm Click Linear 1500mm
Technical Datasheet General Guarantee Conditions Extended Guarantee Conditions CE Declaration for Surface and Pendant CE Declaration for Recessed LED Efficiency Label Driver technical datasheet LED technical datasheet Test report certificate (Recessed profile) Test report (Recessed profile) Test report certificate (Surface profile) Test report (Surface profile) CLICK LINEAR - LDT files
Technical drawing
LED flux—
LED power consumption—
Luminous efficiency—
CRI—
Driver LED—
Light temperature—
Beam angle—
IP protection—
Click Linear 1500mm
Modelo Ref. Color Fuente Potencia Regulación Flujo lum. Temp. Ángulo CRI Eficiencia
Click Linear 1500mm 3000K KLR2A14D39ABS Satin Black LED 140 cm / 28W Dali 4650 lm 3000K >90º >90 166 lm/W
Click Linear 1500mm 3000K KLR2A14D39AWS Satin White LED 140 cm / 28W Dali 4650 lm 3000K >90º >90 166 lm/W
Click Linear 1500mm 4000K KLR2A14D49ABS Satin Black LED 140 cm / 28W Dali 4998 lm 4000K >90º >90 179 lm/W
Click Linear 1500mm 4000K KLR2A14D49AWS Satin White LED 140 cm / 28W Dali 4998 lm 4000K >90º >90 179 lm/W
Click Linear 1500mm 3000K KLR2A14N39ABS Satin Black LED 140 cm / 28W No Dimmable 4650 lm 3000K >90º >90 166 lm/W
Click Linear 1500mm 3000K KLR2A14N39AWS Satin White LED 140 cm / 28W No Dimmable 4650 lm 3000K >90º >90 166 lm/W
Click Linear 1500mm 4000K KLR2A14N49ABS Satin Black LED 140 cm / 28W No Dimmable 4998 lm 4000K >90º >90 179 lm/W
Click Linear 1500mm 4000K KLR2A14N49AWS Satin White LED 140 cm / 28W No Dimmable 4998 lm 4000K >90º >90 179 lm/W
