530 PLUS
Socket:
LED
Beam Angle:
>90º
Complements:
Ice Diffuser
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
530 PLUS
Fixed recessed spotlight made of die-casted zamak, designed for high performance LED with different diffuser options. Remote LED driver included and optional dimmable
1-10V, PUSH or DALI version available.
| W | mA | Temp. | Lum. | CRI | |
|---|---|---|---|---|---|
| 530 PLUS | 11W | 350 mA | 2.7K | 1.675 lm | 92 |
| 11W | 350 mA | 3K | 1.870 lm | 92 | |
| 11W | 350 mA | 4K | 1.940 lm | 92 | |
| 530 PLUS | 17W | 500 mA | 2.7K | 2.455 lm | 92 |
| 17W | 500 mA | 3K | 2.640 lm | 92 | |
| 17W | 500 mA | 4K | 2.730 lm | 92 | |
| 530 PLUS | 23W | 700 mA | 2.7K | 3.260 lm | 92 |
| 23W | 700 mA | 3K | 3.505 lm | 92 | |
| 23W | 700 mA | 4K | 3.625 lm | 92 |
To help customizing this product, we have created a simple step by step configurator. Click on the button to start.
Technical Datasheet
LDT File

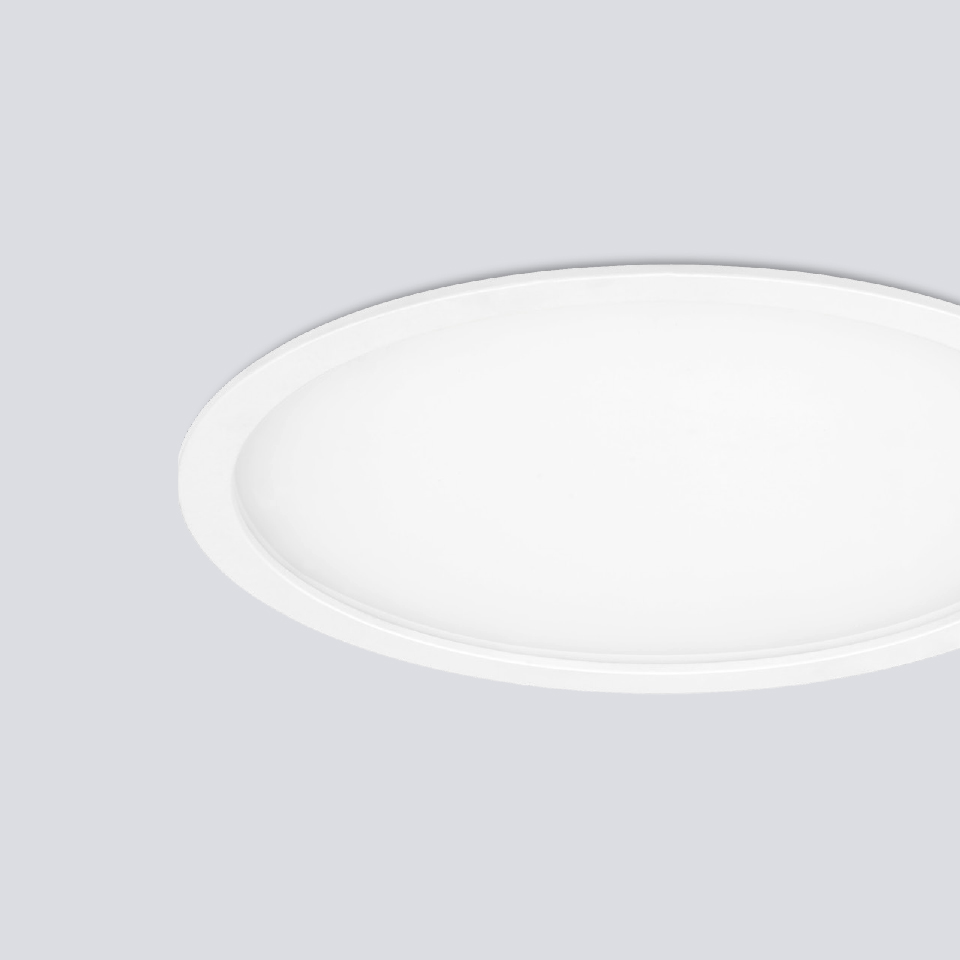

![[530XA20F23BBS] 530 LED PUSH 36º Clear Diffuser 2700K Satin Black ≈ 17W / >2500 lm](/web/image/product.product/391036/image_512/%5B530XA20F23BBS%5D%20530%20LED%20PUSH%2036%C2%BA%20Clear%20Diffuser%202700K%20Satin%20Black%20%E2%89%88%2017W%20-%20%3E2500%20lm?unique=9a7e131)

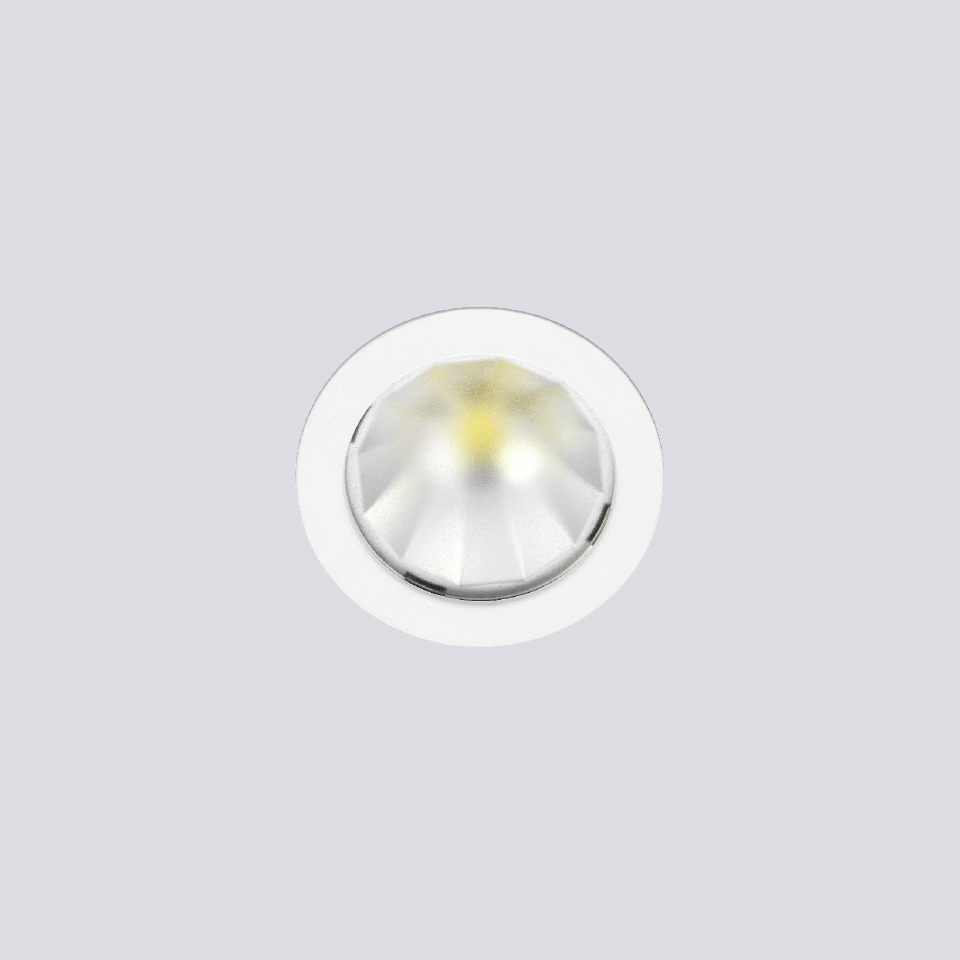

![[530MA06F24BBS] 530 MINI LED PUSH 40º Clear Diffuser 2700K Satin Black ≈ 6W / >600 lm](/web/image/product.product/372139/image_512/%5B530MA06F24BBS%5D%20530%20MINI%20LED%20PUSH%2040%C2%BA%20Clear%20Diffuser%202700K%20Satin%20Black%20%E2%89%88%206W%20-%20%3E600%20lm?unique=9a7e131)
