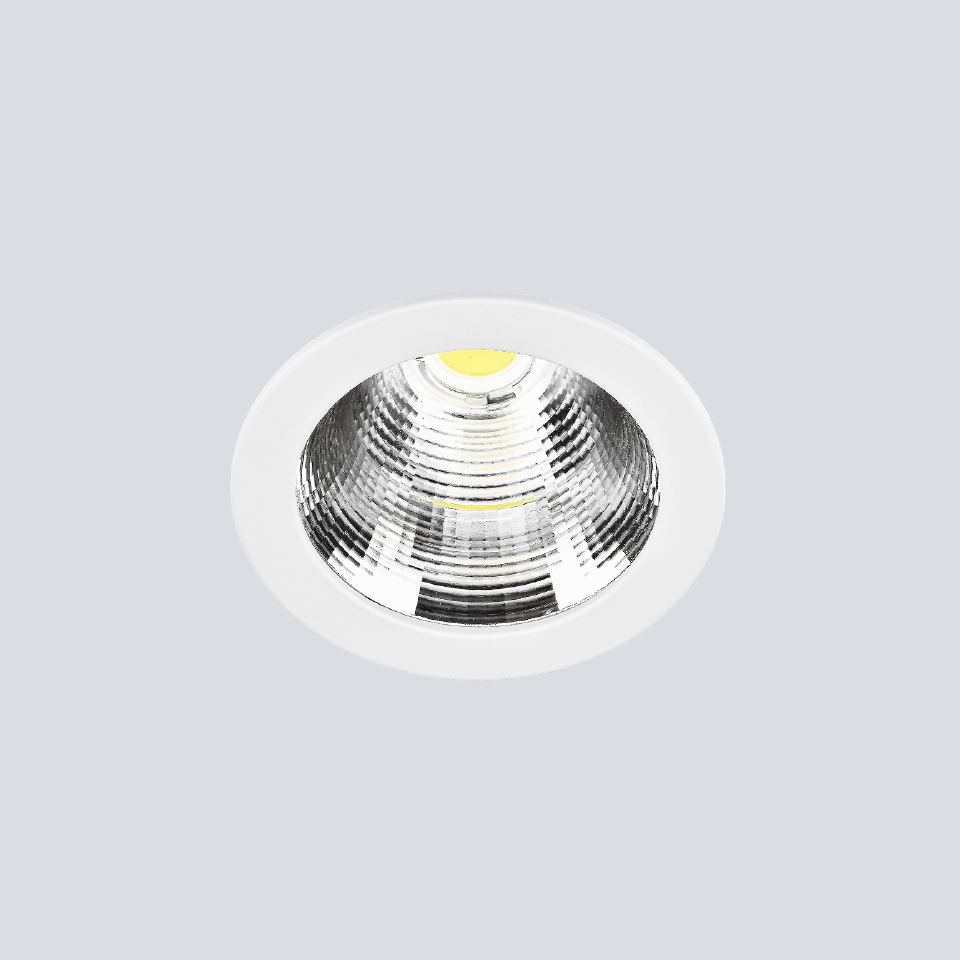

VULCANO 2
Adjustable steel recessed spotlight, designed for Ø50mm halogen lamps and high performance LED with different diffuser options. Available with single or twin lamps. Provides good visual comfort with light source integrated in installation area. Remote LED driver included and optional dimmable PUSH or DALI version available
Socket
GU10
,
GU5.3
,
LED
Output
≈ 6W / >600 lm
,
Max. 50W
,
≈ 10W / >1000 lm
Control
PUSH
,
Dali
,
Driver not included
,
No Dimmable
Colour Temperature
2700K
,
3000K
,
4000K
,
ºK not available
Beam Angle
40º
,
16º
,
Å not available (lamp not included)
,
24º
Complements
Clear Diffuser
,
Ice Diffuser
,
No Diffuser
Finish
W | mA | Temp. | Lum. | CRI | |
---|---|---|---|---|---|
VULCANO 2 | 6W | 150 mA | 2.7K | 570 lm | 92 |
6W | 150 mA | 3K | 595 lm | 92 | |
6W | 150 mA | 4K | 635 lm | 92 | |
VULCANO 2 | 10W | 300 mA | 2.7K | 1.005 lm | 92 |
10W | 300 mA | 3K | 1.070 lm | 92 | |
10W | 300 mA | 4K | 1.135 lm | 92 | |
VULCANO 2 | Max. 50W | No Lamp | X | No lamp | No lamp |
To help customizing this product, we have created a simple step by step configurator. Click on the button to start.
- Technical Datasheet
- Halogen Efficiency Label
- LED Efficiency Label
- General Guarantee Conditions
- Installation Instructions
- Extended Guarantee Conditions
- CE Declaration for GU 5.3
- CE Declaration for GU 10
- CE Declaration for LED
- Test report certificate
- LED 6W technical datasheet
- LED 10W technical datasheet
- Driver technical datasheet
