530

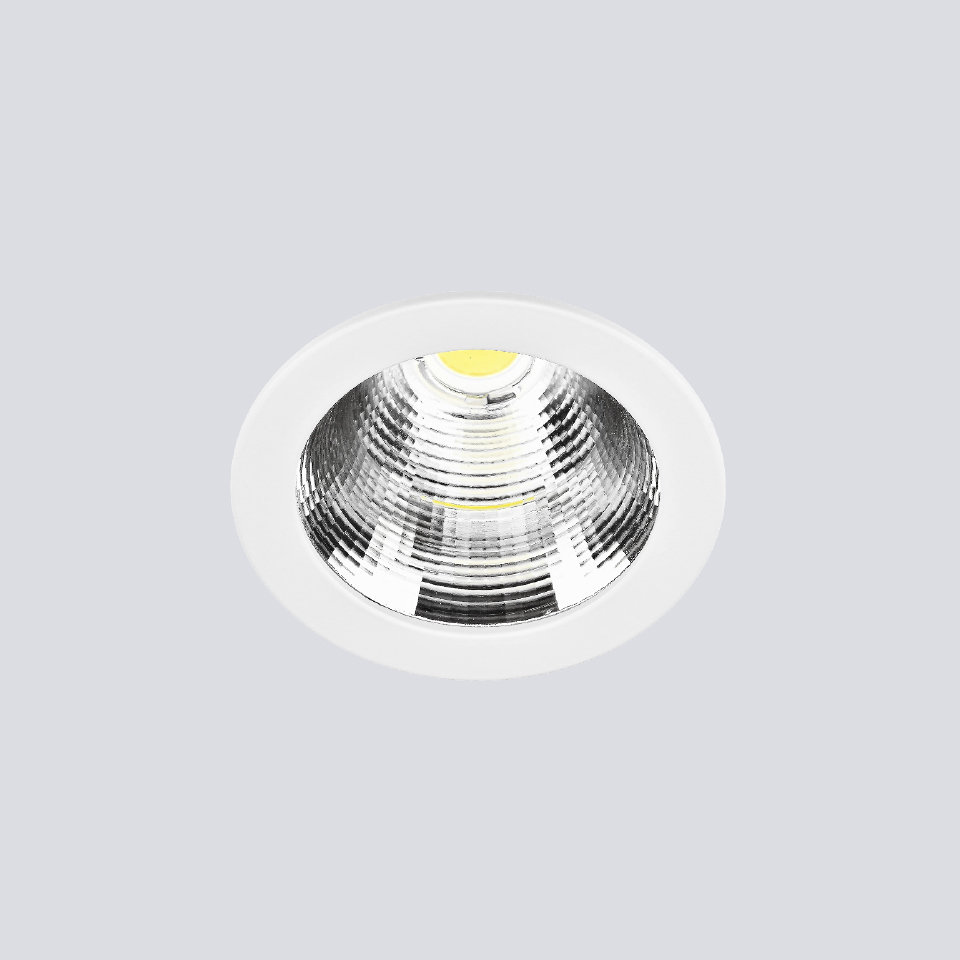

Fixed recessed spotlight made of die-casted zamak, designed for high performance LED with a choice of 3 different beam reflectors and various diffuser options. Remote LED driver included and optional dimmable PUSH or DALI version available.
Socket
LED
Output
≈ 17W / >2500 lm
,
≈ 23W / >3000 lm
,
≈ 11W / >1800lm
Control
PUSH
,
Dali
,
No Dimmable
Colour Temperature
2700K
,
3000K
,
4000K
Beam Angle
36º
,
24º
,
>60º
Complements
Clear Diffuser
,
Ice Diffuser
,
Prismatic Diffuser
Finish
| W | mA | Temp. | Lum. | CRI | |
|---|---|---|---|---|---|
| 530 | 11W | 350 mA | 2.7K | 1.675 lm | 92 |
| 11W | 350 mA | 3K | 1.870 lm | 92 | |
| 11W | 350 mA | 4K | 1.940 lm | 92 | |
| 530 | 17W | 500 mA | 2.7K | 2.455 lm | 92 |
| 17W | 500 mA | 3K | 2.640 lm | 92 | |
| 17W | 500 mA | 4K | 2.730 lm | 92 | |
| 530 | 23W | 700 mA | 2.7K | 3.260 lm | 92 |
| 23W | 700 mA | 3K | 3.505 lm | 92 | |
| 23W | 700 mA | 4K | 3.625 lm | 92 |
To help customizing this product, we have created a simple step by step configurator. Click on the button to start.
Technical Datasheet
LDT File
