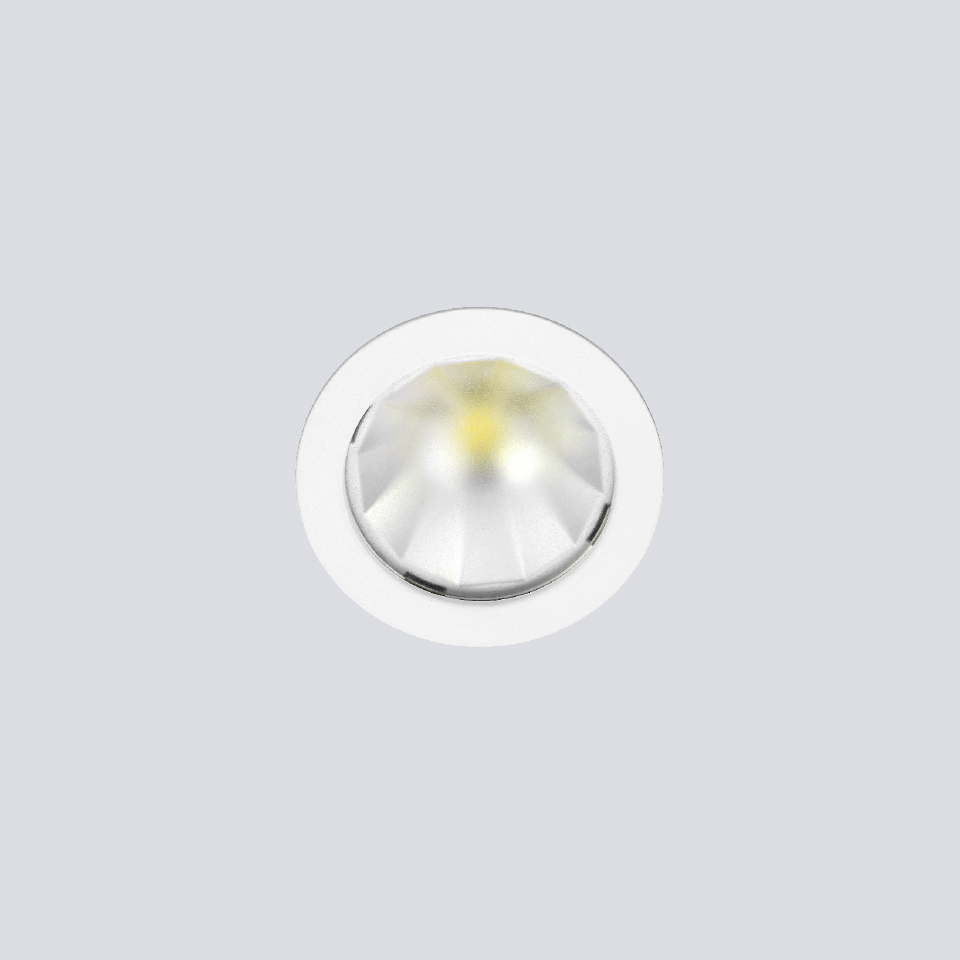

530 MINI
Fixed recessed spotlight made of die-casted zamak, designed for high performance LED with different diffuser options. Remote LED driver included and optional dimmable IGBT/TRIAC, 1-10V or PUSH version available.
Socket
LED
Output
≈ 6W / >600 lm
,
≈ 10W / >1000 lm
Control
PUSH
,
Dali
,
No Dimmable
Colour Temperature
2700K
,
3000K
,
4000K
Beam Angle
40º
,
16º
,
24º
Complements
Clear Diffuser
,
Ice Diffuser
Finish
| W | mA | Temp. | Lum. | CRI | |
|---|---|---|---|---|---|
| 530 MINI | 6W | 150 mA | 2.7K | 570 lm | 92 |
| 6W | 150 mA | 3K | 595 lm | 92 | |
| 6W | 150 mA | 4K | 635 lm | 92 | |
| 530 MINI | 10W | 300 mA | 2.7K | 1.005 lm | 92 |
| 10W | 300 mA | 3K | 1.070 lm | 92 | |
| 10W | 300 mA | 4K | 1.135 lm | 92 |
To help customizing this product, we have created a simple step by step configurator. Click on the button to start.
