Duo Wall
Duo Wall
Duo Wall
Duo Wall
Duo Wall

Duo Wall

https://onoklighting.com/web/image/product.template/9070/image_1920?unique=9fd477b

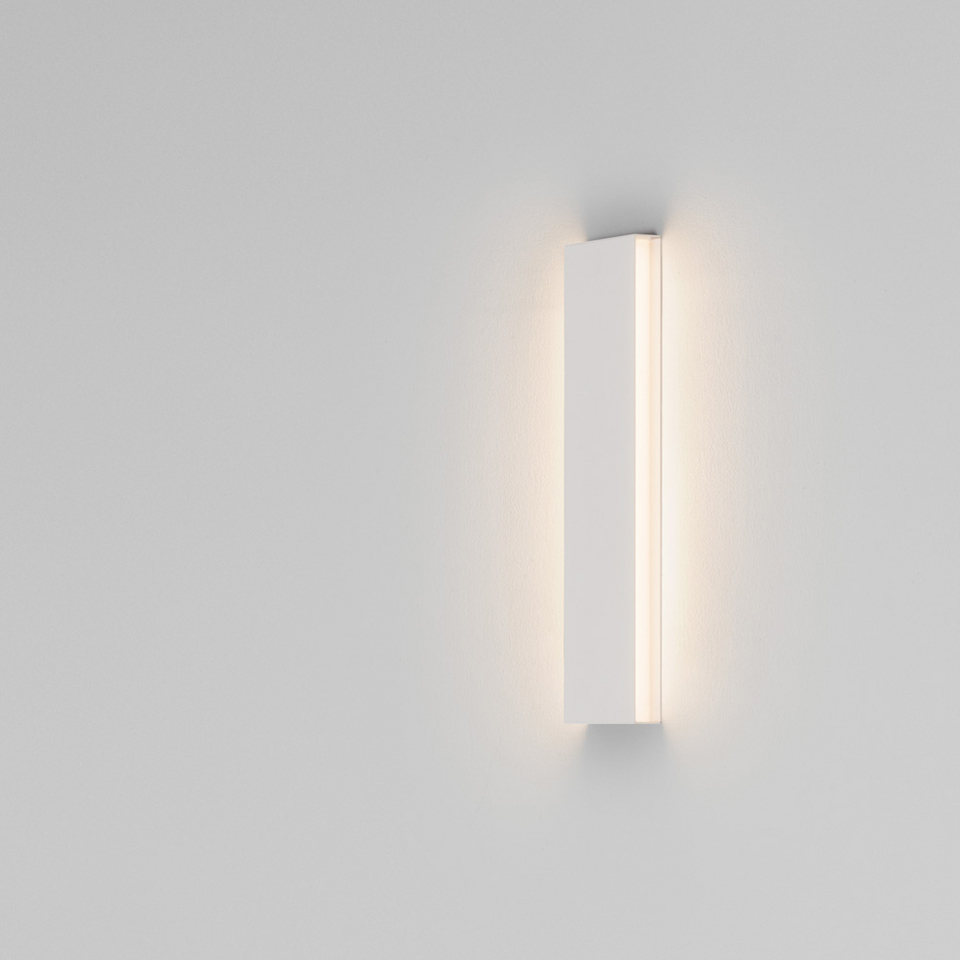

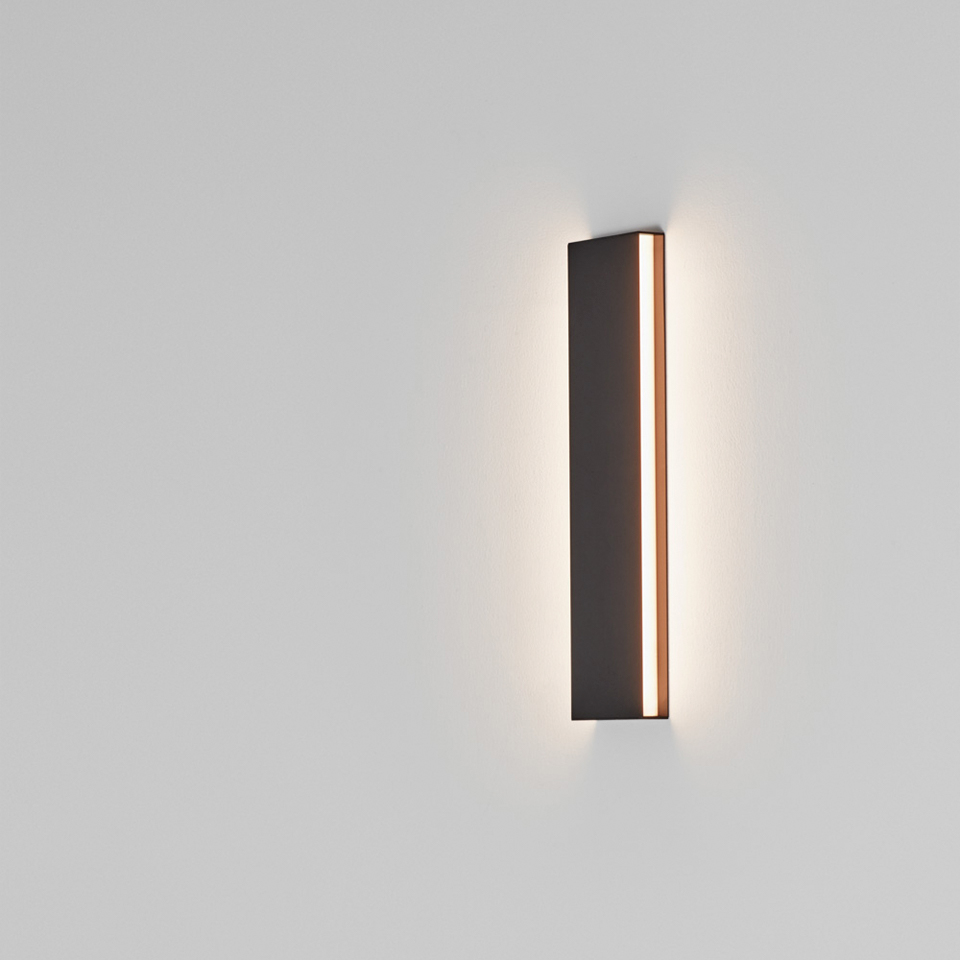

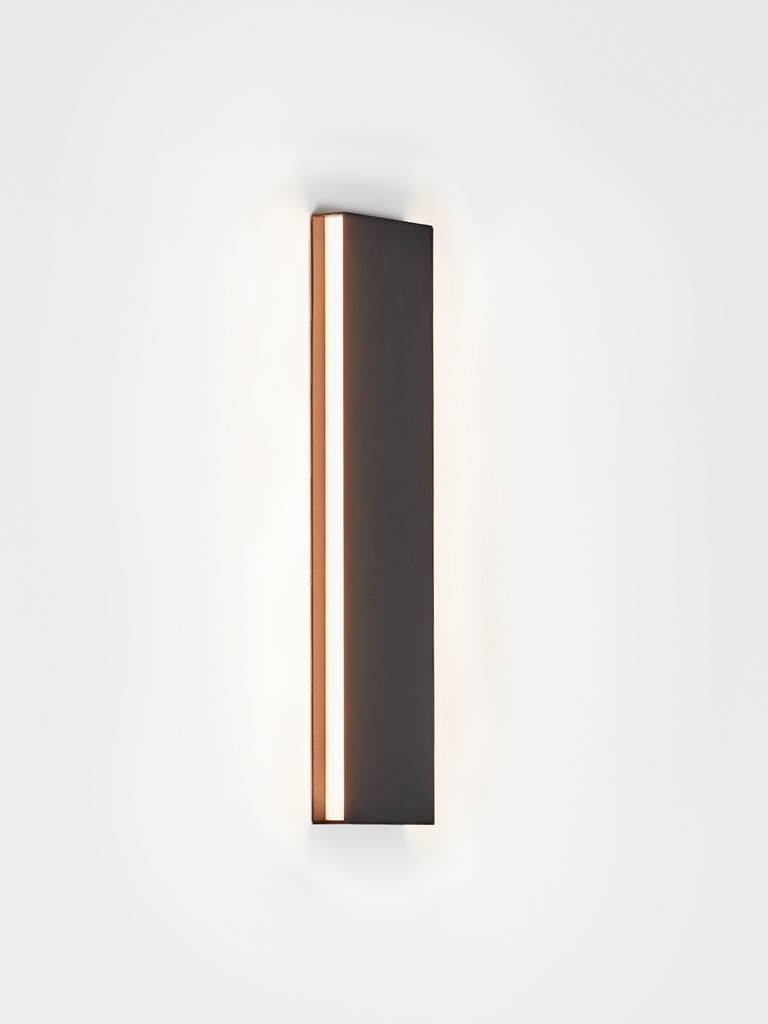

Profilo lineare con emissione bidirezionale. Disponibile in cinque lunghezze con opzioni di regolazione e temperatura di colore.

  • presa
  • uscita
  • controllo
  • temperatura del colore
  • Beam Angle
  • Complementi
  • finitura

Questa combinazione non esiste.

Contattaci
Duo Wall Duo Wall
LED Efficiency Label Technical Datasheet Installation Instructions General Guarantee Conditions CE Declaration for LED Extended Guarantee Conditions LED technical datasheet Driver technical datasheet DUO WALL - LDT files
Disegno tecnico
Flusso LED—
Consumo LED—
Efficienza luminosa—
CRI—
Driver LED—
Temperatura della luce—
Angolo di apertura—
Protezione IP—
Duo Wall
Duo Wall
Duo Wall
Modelo Ref. Color Fuente Potencia Regulación Flujo lum. Temp. Ángulo CRI Eficiencia
Duo Wall 2700K DUOWA08N21ABS Nero satinato LED ≈ 12W / >880 lm No Dimmable 2 x 553 lm 2700K 120º >90 96 lm/W
Duo Wall 2700K DUOWA08N21AWS Bianco satinato LED ≈ 12W / >880 lm No Dimmable 2 x 553 lm 2700K 120º >90 96 lm/W
Duo Wall 3000K DUOWA08N31ABS Nero satinato LED ≈ 12W / >880 lm No Dimmable 2 x 610 lm 3000K 120º >90 106 lm/W
Duo Wall 3000K DUOWA08N31AWS Bianco satinato LED ≈ 12W / >880 lm No Dimmable 2 x 610 lm 3000K 120º >90 106 lm/W
Duo Wall 4000K DUOWA08N41ABS Nero satinato LED ≈ 12W / >880 lm No Dimmable 2 x 660 lm 4000K 120º >90 110 lm/W
Duo Wall 4000K DUOWA08N41AWS Bianco satinato LED ≈ 12W / >880 lm No Dimmable 2 x 660 lm 4000K 120º >90 110 lm/W
Duo Wall 2700K DUOWA12D21ABS Nero satinato LED ≈ 18W / >1325 lm Dali 2 x 830 lm 2700K 120º >90 96 lm/W
Duo Wall 2700K DUOWA12D21AWS Bianco satinato LED ≈ 18W / >1325 lm Dali 2 x 830 lm 2700K 120º >90 96 lm/W
Duo Wall 3000K DUOWA12D31ABS Nero satinato LED ≈ 18W / >1325 lm Dali 2 x 915 lm 3000K 120º >90 106 lm/W
Duo Wall 3000K DUOWA12D31AWS Bianco satinato LED ≈ 18W / >1325 lm Dali 2 x 915 lm 3000K 120º >90 106 lm/W
Duo Wall 4000K DUOWA12D41ABS Nero satinato LED ≈ 18W / >1325 lm Dali 2 x 950 lm 4000K 120º >90 110 lm/W
Duo Wall 4000K DUOWA12D41AWS Bianco satinato LED ≈ 18W / >1325 lm Dali — 4000K 120º — —
Duo Wall RGB DUOWA12D71ABS Nero satinato LED ≈ 18W / >1325 lm Dali — RGB 120º — —
Duo Wall RGB DUOWA12D71AWS Bianco satinato LED ≈ 18W / >1325 lm Dali — RGB 120º — —
Duo Wall TUNABLE WHITE DUOWA12D81ABS Nero satinato LED ≈ 18W / >1325 lm Dali — TUNABLE WHITE 120º — —
Duo Wall TUNABLE WHITE DUOWA12D81AWS Bianco satinato LED ≈ 18W / >1325 lm Dali — TUNABLE WHITE 120º — —
Duo Wall RGBW DUOWA12D91ABS Nero satinato LED ≈ 18W / >1325 lm Dali — RGBW 120º — —
Duo Wall RGBW DUOWA12D91AWS Bianco satinato LED ≈ 18W / >1325 lm Dali — RGBW 120º — —
Duo Wall 2700K DUOWA12K21ABS Nero satinato LED ≈ 18W / >1325 lm Casambi — 2700K 120º — —
Duo Wall 2700K DUOWA12K21AWS Bianco satinato LED ≈ 18W / >1325 lm Casambi — 2700K 120º — —
Duo Wall 3000K DUOWA12K31ABS Nero satinato LED ≈ 18W / >1325 lm Casambi — 3000K 120º — —
Duo Wall 3000K DUOWA12K31AWS Bianco satinato LED ≈ 18W / >1325 lm Casambi — 3000K 120º — —
Duo Wall 4000K DUOWA12K41ABS Nero satinato LED ≈ 18W / >1325 lm Casambi — 4000K 120º — —
Duo Wall 4000K DUOWA12K41AWS Bianco satinato LED ≈ 18W / >1325 lm Casambi — 4000K 120º — —
Duo Wall RGB DUOWA12K71ABS Nero satinato LED ≈ 18W / >1325 lm Casambi — RGB 120º — —
Duo Wall RGB DUOWA12K71AWS Bianco satinato LED ≈ 18W / >1325 lm Casambi — RGB 120º — —
Duo Wall TUNABLE WHITE DUOWA12K81ABS Nero satinato LED ≈ 18W / >1325 lm Casambi — TUNABLE WHITE 120º — —
Duo Wall TUNABLE WHITE DUOWA12K81AWS Bianco satinato LED ≈ 18W / >1325 lm Casambi — TUNABLE WHITE 120º — —
Duo Wall RGBW DUOWA12K91ABS Nero satinato LED ≈ 18W / >1325 lm Casambi — RGBW 120º — —
Duo Wall RGBW DUOWA12K91AWS Bianco satinato LED ≈ 18W / >1325 lm Casambi — RGBW 120º — —
Duo Wall 2700K DUOWA12N21ABS Nero satinato LED ≈ 18W / >1325 lm No Dimmable 2 x 830 lm 2700K 120º >90 96 lm/W
Duo Wall 2700K DUOWA12N21AWS Bianco satinato LED ≈ 18W / >1325 lm No Dimmable 2 x 830 lm 2700K 120º >90 96 lm/W
Duo Wall 3000K DUOWA12N31ABS Nero satinato LED ≈ 18W / >1325 lm No Dimmable 2 x 915 lm 3000K 120º >90 106 lm/W
Duo Wall 3000K DUOWA12N31AWS Bianco satinato LED ≈ 18W / >1325 lm No Dimmable 2 x 915 lm 3000K 120º >90 106 lm/W
Duo Wall 4000K DUOWA12N41ABS Nero satinato LED ≈ 18W / >1325 lm No Dimmable 2 x 950 lm 4000K 120º >90 110 lm/W
Duo Wall 4000K DUOWA12N41AWS Bianco satinato LED ≈ 18W / >1325 lm No Dimmable 2 x 950 lm 4000K 120º >90 110 lm/W
Duo Wall 2700K DUOWA16D21ABS Nero satinato LED ≈ 23W / >1760 lm Dali 2 x 1105 lm 2700K 120º >90 96 lm/W
Duo Wall 2700K DUOWA16D21AWS Bianco satinato LED ≈ 23W / >1760 lm Dali — 2700K 120º — —
Duo Wall 3000K DUOWA16D31ABS Nero satinato LED ≈ 23W / >1760 lm Dali 2 x 1220 lm 3000K 120º >90 106 lm/W
Duo Wall 3000K DUOWA16D31AWS Bianco satinato LED ≈ 23W / >1760 lm Dali 2 x 1220 lm 3000K 120º >90 106 lm/W
Duo Wall 4000K DUOWA16D41ABS Nero satinato LED ≈ 23W / >1760 lm Dali 2 x 1265 lm 4000K 120º >90 110 lm/W
Duo Wall 4000K DUOWA16D41AWS Bianco satinato LED ≈ 23W / >1760 lm Dali — 4000K 120º — —
Duo Wall RGB DUOWA16D71ABS Nero satinato LED ≈ 23W / >1760 lm Dali — RGB 120º — —
Duo Wall RGB DUOWA16D71AWS Bianco satinato LED ≈ 23W / >1760 lm Dali — RGB 120º — —
Duo Wall TUNABLE WHITE DUOWA16D81ABS Nero satinato LED ≈ 23W / >1760 lm Dali — TUNABLE WHITE 120º — —
Duo Wall TUNABLE WHITE DUOWA16D81AWS Bianco satinato LED ≈ 23W / >1760 lm Dali — TUNABLE WHITE 120º — —
Duo Wall RGBW DUOWA16D91ABS Nero satinato LED ≈ 23W / >1760 lm Dali — RGBW 120º — —
Duo Wall RGBW DUOWA16D91AWS Bianco satinato LED ≈ 23W / >1760 lm Dali — RGBW 120º — —
Duo Wall 2700K DUOWA16K21ABS Nero satinato LED ≈ 23W / >1760 lm Casambi — 2700K 120º — —
Duo Wall 2700K DUOWA16K21AWS Bianco satinato LED ≈ 23W / >1760 lm Casambi — 2700K 120º — —
Duo Wall 3000K DUOWA16K31ABS Nero satinato LED ≈ 23W / >1760 lm Casambi — 3000K 120º — —
Duo Wall 3000K DUOWA16K31AWS Bianco satinato LED ≈ 23W / >1760 lm Casambi — 3000K 120º — —
Duo Wall 4000K DUOWA16K41ABS Nero satinato LED ≈ 23W / >1760 lm Casambi — 4000K 120º — —
Duo Wall 4000K DUOWA16K41AWS Bianco satinato LED ≈ 23W / >1760 lm Casambi — 4000K 120º — —
Duo Wall RGB DUOWA16K71ABS Nero satinato LED ≈ 23W / >1760 lm Casambi — RGB 120º — —
Duo Wall RGB DUOWA16K71AWS Bianco satinato LED ≈ 23W / >1760 lm Casambi — RGB 120º — —
Duo Wall TUNABLE WHITE DUOWA16K81ABS Nero satinato LED ≈ 23W / >1760 lm Casambi — TUNABLE WHITE 120º — —
Duo Wall TUNABLE WHITE DUOWA16K81AWS Bianco satinato LED ≈ 23W / >1760 lm Casambi — TUNABLE WHITE 120º — —
Duo Wall RGBW DUOWA16K91ABS Nero satinato LED ≈ 23W / >1760 lm Casambi — RGBW 120º — —
Duo Wall RGBW DUOWA16K91AWS Bianco satinato LED ≈ 23W / >1760 lm Casambi — RGBW 120º — —
Duo Wall 2700K DUOWA16N21ABS Nero satinato LED ≈ 23W / >1760 lm No Dimmable 2 x 1105 lm 2700K 120º >90 96 lm/W
Duo Wall 2700K DUOWA16N21AWS Bianco satinato LED ≈ 23W / >1760 lm No Dimmable 2 x 1105 lm 2700K 120º >90 96 lm/W
Duo Wall 3000K DUOWA16N31ABS Nero satinato LED ≈ 23W / >1760 lm No Dimmable 2 x 1220 lm 3000K 120º >90 106 lm/W
Duo Wall 3000K DUOWA16N31AWS Bianco satinato LED ≈ 23W / >1760 lm No Dimmable 2 x 1220 lm 3000K 120º >90 106 lm/W
Duo Wall 4000K DUOWA16N41ABS Nero satinato LED ≈ 23W / >1760 lm No Dimmable 2 x 1265 lm 4000K 120º >90 110 lm/W
Duo Wall 4000K DUOWA16N41AWS Bianco satinato LED ≈ 23W / >1760 lm No Dimmable 2 x 1265 lm 4000K 120º >90 110 lm/W
Duo Wall 2700K DUOWA20D21ABS Nero satinato LED ≈ 29W / >2210 lm Dali 2 x 1380 lm 2700K 120º >90 96 lm/W
Duo Wall 2700K DUOWA20D21AWS Bianco satinato LED ≈ 29W / >2210 lm Dali — 2700K 120º — —
Duo Wall 3000K DUOWA20D31ABS Nero satinato LED ≈ 29W / >2210 lm Dali 2 x 1525 lm 3000K 120º >90 106 lm/W
Duo Wall 3000K DUOWA20D31AWS Bianco satinato LED ≈ 29W / >2210 lm Dali 2 x 1520 lm 3000K 120º >90 106 lm/W
Duo Wall 4000K DUOWA20D41ABS Nero satinato LED ≈ 29W / >2210 lm Dali 2 x 1580 lm 4000K 120º >90 110 lm/W
Duo Wall 4000K DUOWA20D41AWS Bianco satinato LED ≈ 29W / >2210 lm Dali — 4000K 120º — —
Duo Wall RGB DUOWA20D71ABS Nero satinato LED ≈ 29W / >2210 lm Dali — RGB 120º — —
Duo Wall RGB DUOWA20D71AWS Bianco satinato LED ≈ 29W / >2210 lm Dali — RGB 120º — —
Duo Wall TUNABLE WHITE DUOWA20D81ABS Nero satinato LED ≈ 29W / >2210 lm Dali — TUNABLE WHITE 120º — —
Duo Wall TUNABLE WHITE DUOWA20D81AWS Bianco satinato LED ≈ 29W / >2210 lm Dali — TUNABLE WHITE 120º — —
Duo Wall RGBW DUOWA20D91ABS Nero satinato LED ≈ 29W / >2210 lm Dali — RGBW 120º — —
Duo Wall RGBW DUOWA20D91AWS Bianco satinato LED ≈ 29W / >2210 lm Dali — RGBW 120º — —
Duo Wall 2700K DUOWA20K21ABS Nero satinato LED ≈ 29W / >2210 lm Casambi — 2700K 120º — —
Duo Wall 2700K DUOWA20K21AWS Bianco satinato LED ≈ 29W / >2210 lm Casambi — 2700K 120º — —
Duo Wall 3000K DUOWA20K31ABS Nero satinato LED ≈ 29W / >2210 lm Casambi — 3000K 120º — —
Duo Wall 3000K DUOWA20K31AWS Bianco satinato LED ≈ 29W / >2210 lm Casambi — 3000K 120º — —
Duo Wall 4000K DUOWA20K41ABS Nero satinato LED ≈ 29W / >2210 lm Casambi — 4000K 120º — —
Duo Wall 4000K DUOWA20K41AWS Bianco satinato LED ≈ 29W / >2210 lm Casambi — 4000K 120º — —
Duo Wall RGB DUOWA20K71ABS Nero satinato LED ≈ 29W / >2210 lm Casambi — RGB 120º — —
Duo Wall RGB DUOWA20K71AWS Bianco satinato LED ≈ 29W / >2210 lm Casambi — RGB 120º — —
Duo Wall TUNABLE WHITE DUOWA20K81ABS Nero satinato LED ≈ 29W / >2210 lm Casambi — TUNABLE WHITE 120º — —
Duo Wall TUNABLE WHITE DUOWA20K81AWS Bianco satinato LED ≈ 29W / >2210 lm Casambi — TUNABLE WHITE 120º — —
Duo Wall RGBW DUOWA20K91ABS Nero satinato LED ≈ 29W / >2210 lm Casambi — RGBW 120º — —
Duo Wall RGBW DUOWA20K91AWS Bianco satinato LED ≈ 29W / >2210 lm Casambi — RGBW 120º — —
Duo Wall 2700K DUOWA20N21ABS Nero satinato LED ≈ 29W / >2210 lm No Dimmable 2 x 1380 lm 2700K 120º >90 96 lm/W
Duo Wall 2700K DUOWA20N21AWS Bianco satinato LED ≈ 29W / >2210 lm No Dimmable 2 x 1380 lm 2700K 120º >90 96 lm/W
Duo Wall 3000K DUOWA20N31ABS Nero satinato LED ≈ 29W / >2210 lm No Dimmable 2 x 1525 lm 3000K 120º >90 106 lm/W
Duo Wall 3000K DUOWA20N31AWS Bianco satinato LED ≈ 29W / >2210 lm No Dimmable 2 x 1525 lm 3000K 120º >90 106 lm/W
Duo Wall 4000K DUOWA20N41ABS Nero satinato LED ≈ 29W / >2210 lm No Dimmable 2 x 1580 lm 4000K 120º >90 110 lm/W
Duo Wall 4000K DUOWA20N41AWS Bianco satinato LED ≈ 29W / >2210 lm No Dimmable 2 x 1580 lm 4000K 120º >90 110 lm/W
Duo Wall 2700K DUOWA28D21ABS Nero satinato LED ≈ 40W / >3090 lm Dali 2 x 1935 lm 2700K 120º >90 96 lm/W
Duo Wall 2700K DUOWA28D21AWS Bianco satinato LED ≈ 40W / >3090 lm Dali 2 x 1935 lm 2700K 120º >90 96 lm/W
Duo Wall 3000K DUOWA28D31ABS Nero satinato LED ≈ 40W / >3090 lm Dali 2 x 2135 lm 3000K 120º >90 106 lm/W
Duo Wall 3000K DUOWA28D31AWS Bianco satinato LED ≈ 40W / >3090 lm Dali 2 x 2135 lm 3000K 120º >90 106 lm/W
Duo Wall 4000K DUOWA28D41ABS Nero satinato LED ≈ 40W / >3090 lm Dali 2 x 2215 lm 4000K 120º >90 110 lm/W
Duo Wall 4000K DUOWA28D41AWS Bianco satinato LED ≈ 40W / >3090 lm Dali 2 x 2215 lm 4000K 120º >90 110 lm/W
Duo Wall RGB DUOWA28D71ABS Nero satinato LED ≈ 40W / >3090 lm Dali — RGB 120º — —
Duo Wall RGB DUOWA28D71AWS Bianco satinato LED ≈ 40W / >3090 lm Dali — RGB 120º — —
Duo Wall TUNABLE WHITE DUOWA28D81ABS Nero satinato LED ≈ 40W / >3090 lm Dali — TUNABLE WHITE 120º — —
Duo Wall TUNABLE WHITE DUOWA28D81AWS Bianco satinato LED ≈ 40W / >3090 lm Dali — TUNABLE WHITE 120º — —
Duo Wall RGBW DUOWA28D91ABS Nero satinato LED ≈ 40W / >3090 lm Dali — RGBW 120º — —
Duo Wall RGBW DUOWA28D91AWS Bianco satinato LED ≈ 40W / >3090 lm Dali — RGBW 120º — —
Duo Wall 2700K DUOWA28K21ABS Nero satinato LED ≈ 40W / >3090 lm Casambi — 2700K 120º — —
Duo Wall 2700K DUOWA28K21AWS Bianco satinato LED ≈ 40W / >3090 lm Casambi — 2700K 120º — —
Duo Wall 3000K DUOWA28K31ABS Nero satinato LED ≈ 40W / >3090 lm Casambi — 3000K 120º — —
Duo Wall 3000K DUOWA28K31AWS Bianco satinato LED ≈ 40W / >3090 lm Casambi — 3000K 120º — —
Duo Wall 4000K DUOWA28K41ABS Nero satinato LED ≈ 40W / >3090 lm Casambi — 4000K 120º — —
Duo Wall 4000K DUOWA28K41AWS Bianco satinato LED ≈ 40W / >3090 lm Casambi — 4000K 120º — —
Duo Wall RGB DUOWA28K71ABS Nero satinato LED ≈ 40W / >3090 lm Casambi — RGB 120º — —
Duo Wall RGB DUOWA28K71AWS Bianco satinato LED ≈ 40W / >3090 lm Casambi — RGB 120º — —
Duo Wall TUNABLE WHITE DUOWA28K81ABS Nero satinato LED ≈ 40W / >3090 lm Casambi — TUNABLE WHITE 120º — —
Duo Wall TUNABLE WHITE DUOWA28K81AWS Bianco satinato LED ≈ 40W / >3090 lm Casambi — TUNABLE WHITE 120º — —
Duo Wall RGBW DUOWA28K91ABS Nero satinato LED ≈ 40W / >3090 lm Casambi — RGBW 120º — —
Duo Wall RGBW DUOWA28K91AWS Bianco satinato LED ≈ 40W / >3090 lm Casambi — RGBW 120º — —
Duo Wall 2700K DUOWA28N21ABS Nero satinato LED ≈ 40W / >3090 lm No Dimmable 2 x 1935 lm 2700K 120º >90 96 lm/W
Duo Wall 2700K DUOWA28N21AWS Bianco satinato LED ≈ 40W / >3090 lm No Dimmable 2 x 1935 lm 2700K 120º >90 96 lm/W
Duo Wall 3000K DUOWA28N31ABS Nero satinato LED ≈ 40W / >3090 lm No Dimmable 2 x 2135 lm 3000K 120º >90 106 lm/W
Duo Wall 3000K DUOWA28N31AWS Bianco satinato LED ≈ 40W / >3090 lm No Dimmable 2 x 2135 lm 3000K 120º >90 106 lm/W
Duo Wall 4000K DUOWA28N41ABS Nero satinato LED ≈ 40W / >3090 lm No Dimmable 2 x 2215 lm 4000K 120º >90 110 lm/W
Duo Wall 4000K DUOWA28N41AWS Bianco satinato LED ≈ 40W / >3090 lm No Dimmable 2 x 2215 lm 4000K 120º >90 110 lm/W
