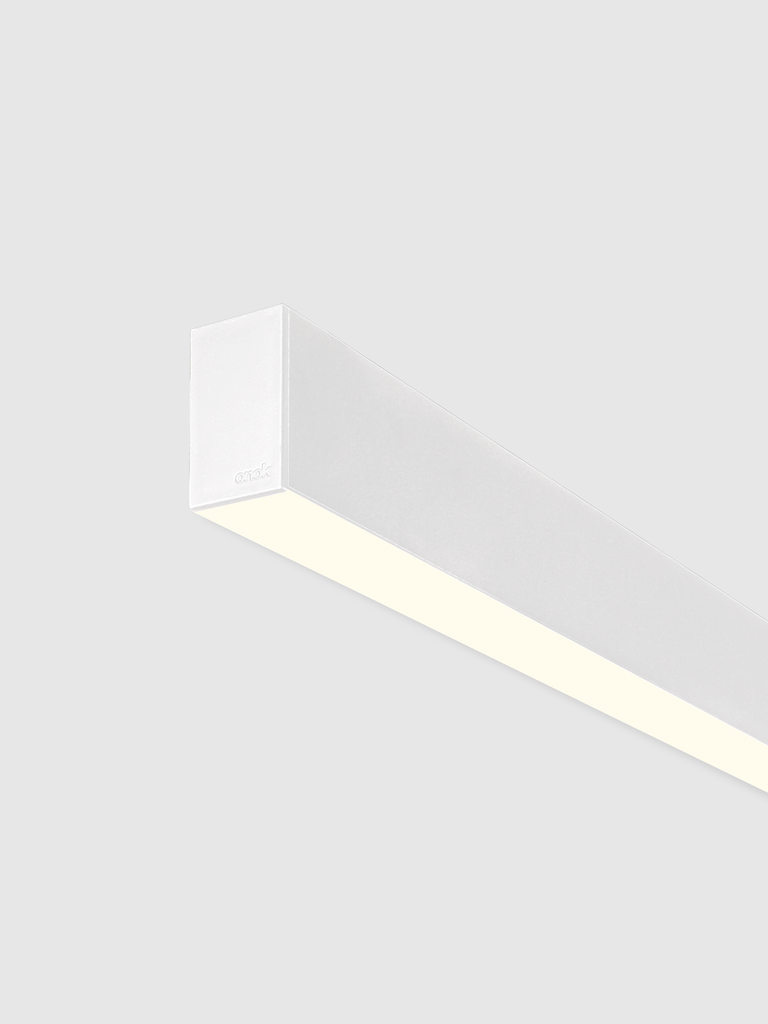

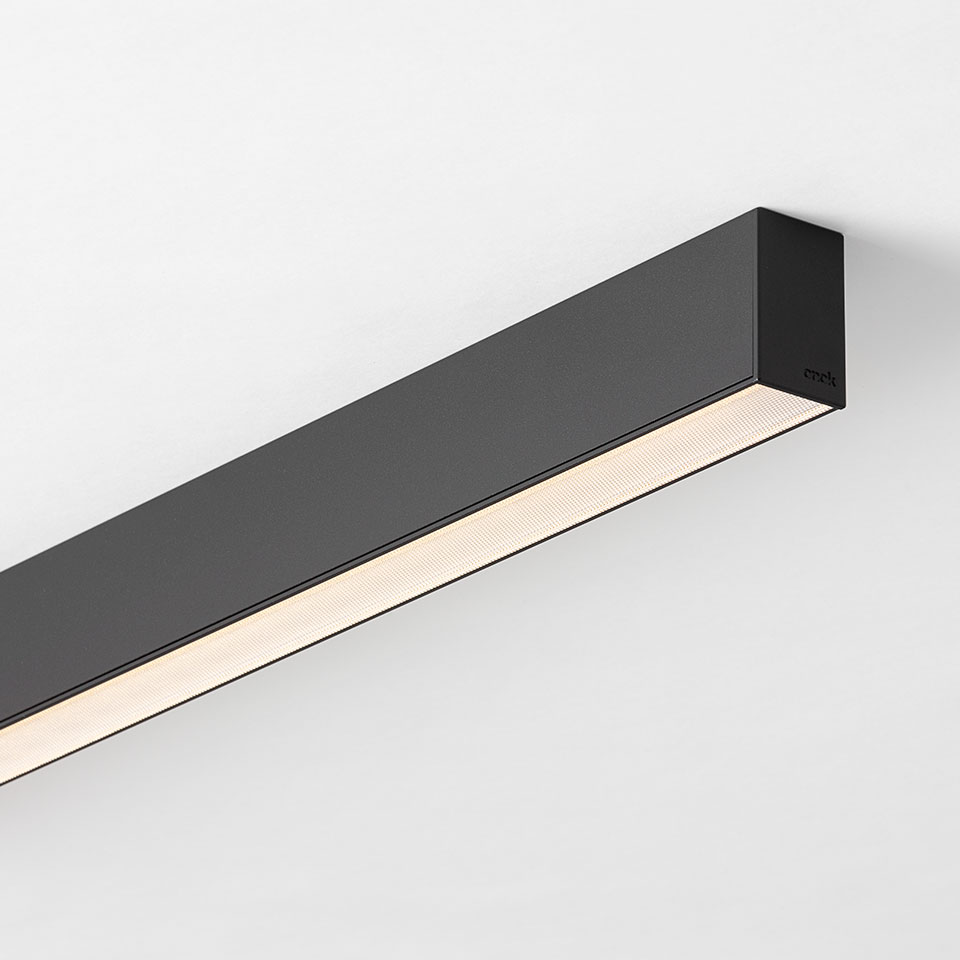

Profilo lineare continuo con lunghezze estese e giunzioni minimizzate. Diffusore microprismatico in PMMA per basso UGR e uniformità visiva

  • presa
  • uscita
  • controllo
  • temperatura del colore
  • Beam Angle
  • Complementi
  • finitura

Questa combinazione non esiste.

Contattaci
Line Line
CE Declaration Technical Datasheet Line System Catalogue General Guarantee Conditions Extended Guarantee Conditions Installation Instructions LED Efficiency Label Driver 42W technical datasheet Driver 21W technical datasheet LED technical datasheet TW LED technical datasheet Test report certificate Test report LINE - LDT files
Dibujo técnico
Flujo LED—
Consumo LED—
Eficiencia lumínica—
CRI—
Driver LED—
Temperatura de luz—
Ángulo apertura—
Protección IP—
Line
Line
Line
Modelo Ref. Color Fuente Potencia Regulación Flujo lum. Temp. Ángulo CRI Eficiencia
Line 2700K LNEXA11D29ABS Nero satinato LED 112 cm / 22W Dali 3348 lm 2700K >90º >90 152 lm/W
Line 2700K LNEXA11D29AWS Bianco satinato LED 112 cm / 22W Dali 3348 lm 2700K >90º >90 152 lm/W
Line 2700K LNEXA11D29CBS Nero satinato LED 112 cm / 22W Dali 3348 lm 2700K >90º >90 152 lm/W
Line 2700K LNEXA11D29CWS Bianco satinato LED 112 cm / 22W Dali — 2700K >90º >90 —
Line 3000K LNEXA11D39ABS Nero satinato LED 112 cm / 22W Dali 3.720 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA11D39AWS Bianco satinato LED 112 cm / 22W Dali 3.720 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA11D39CBS Nero satinato LED 112 cm / 22W Dali 3.720 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA11D39CWS Bianco satinato LED 112 cm / 22W Dali — 3000K >90º >90 —
Line 4000K LNEXA11D49ABS Nero satinato LED 112 cm / 22W Dali 3.999 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA11D49AWS Bianco satinato LED 112 cm / 22W Dali 3.999 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA11D49CBS Nero satinato LED 112 cm / 22W Dali 3.999 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA11D49CWS Bianco satinato LED 112 cm / 22W Dali 3.999 lm 4000K >90º >90 179 lm/W
Line TUNABLE WHITE LNEXA11D89ABS Nero satinato LED 112 cm / 22W Dali TW 3520 - 3652 lm TUNABLE WHITE >90º >90 160 - 166 lm/W
Line TUNABLE WHITE LNEXA11D89AWS Bianco satinato LED 112 cm / 22W Dali TW — TUNABLE WHITE >90º >90 —
Line TUNABLE WHITE LNEXA11D89CBS Nero satinato LED 112 cm / 22W Dali TW — TUNABLE WHITE >90º >90 —
Line TUNABLE WHITE LNEXA11D89CWS Bianco satinato LED 112 cm / 22W Dali TW — TUNABLE WHITE >90º >90 —
Line 2700K LNEXA11N29ABS Nero satinato LED 112 cm / 22W No Dimmable — 2700K >90º >90 —
Line 2700K LNEXA11N29AWS Bianco satinato LED 112 cm / 22W No Dimmable — 2700K >90º >90 —
Line 2700K LNEXA11N29CBS Nero satinato LED 112 cm / 22W No Dimmable — 2700K >90º >90 —
Line 2700K LNEXA11N29CWS Bianco satinato LED 112 cm / 22W No Dimmable — 2700K >90º >90 —
Line 3000K LNEXA11N39ABS Nero satinato LED 112 cm / 22W No Dimmable 3.720 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA11N39AWS Bianco satinato LED 112 cm / 22W No Dimmable 3.720 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA11N39CBS Nero satinato LED 112 cm / 22W No Dimmable 3.720 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA11N39CWS Bianco satinato LED 112 cm / 22W No Dimmable 3.720 lm 3000K >90º >90 167 lm/W
Line 4000K LNEXA11N49ABS Nero satinato LED 112 cm / 22W No Dimmable 3.999 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA11N49AWS Bianco satinato LED 112 cm / 22W No Dimmable 3.999 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA11N49CBS Nero satinato LED 112 cm / 22W No Dimmable 3.999 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA11N49CWS Bianco satinato LED 112 cm / 22W No Dimmable 3.999 lm 4000K >90º >90 179 lm/W
Line 2700K LNEXA14D29ABS Nero satinato LED 140 cm / 28W Dali 4185 lm 2700K >90º >90 152 lm/W
Line 2700K LNEXA14D29AWS Bianco satinato LED 140 cm / 28W Dali — 2700K >90º >90 —
Line 2700K LNEXA14D29CBS Nero satinato LED 140 cm / 28W Dali — 2700K >90º >90 —
Line 2700K LNEXA14D29CWS Bianco satinato LED 140 cm / 28W Dali — 2700K >90º >90 —
Line 3000K LNEXA14D39ABS Nero satinato LED 140 cm / 28W Dali 4.650 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA14D39AWS Bianco satinato LED 140 cm / 28W Dali 4.650 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA14D39CBS Nero satinato LED 140 cm / 28W Dali 4.650 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA14D39CWS Bianco satinato LED 140 cm / 28W Dali 4.650 lm 3000K >90º >90 167 lm/W
Line 4000K LNEXA14D49ABS Nero satinato LED 140 cm / 28W Dali 4.998 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA14D49AWS Bianco satinato LED 140 cm / 28W Dali 4.998 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA14D49CBS Nero satinato LED 140 cm / 28W Dali — 4000K >90º >90 —
Line 4000K LNEXA14D49CWS Bianco satinato LED 140 cm / 28W Dali 4.998 lm 4000K >90º >90 179 lm/W
Line TUNABLE WHITE LNEXA14D89ABS Nero satinato LED 140 cm / 28W Dali TW 4480 - 1648 lm TUNABLE WHITE >90º >90 160 - 166 lm/W
Line TUNABLE WHITE LNEXA14D89AWS Bianco satinato LED 140 cm / 28W Dali TW — TUNABLE WHITE >90º >90 —
Line TUNABLE WHITE LNEXA14D89CBS Nero satinato LED 140 cm / 28W Dali TW — TUNABLE WHITE >90º >90 —
Line TUNABLE WHITE LNEXA14D89CWS Bianco satinato LED 140 cm / 28W Dali TW — TUNABLE WHITE >90º >90 —
Line 2700K LNEXA14N29ABS Nero satinato LED 140 cm / 28W No Dimmable — 2700K >90º >90 —
Line 2700K LNEXA14N29AWS Bianco satinato LED 140 cm / 28W No Dimmable — 2700K >90º >90 —
Line 2700K LNEXA14N29CBS Nero satinato LED 140 cm / 28W No Dimmable — 2700K >90º >90 —
Line 2700K LNEXA14N29CWS Bianco satinato LED 140 cm / 28W No Dimmable — 2700K >90º >90 —
Line 3000K LNEXA14N39ABS Nero satinato LED 140 cm / 28W No Dimmable 4.650 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA14N39AWS Bianco satinato LED 140 cm / 28W No Dimmable 4.650 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA14N39CBS Nero satinato LED 140 cm / 28W No Dimmable 4.650 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA14N39CWS Bianco satinato LED 140 cm / 28W No Dimmable 4.650 lm 3000K >90º >90 167 lm/W
Line 4000K LNEXA14N49ABS Nero satinato LED 140 cm / 28W No Dimmable 4.998 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA14N49AWS Bianco satinato LED 140 cm / 28W No Dimmable 4.998 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA14N49CBS Nero satinato LED 140 cm / 28W No Dimmable 4.998 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA14N49CWS Bianco satinato LED 140 cm / 28W No Dimmable 4.998 lm 4000K >90º >90 179 lm/W
Line 2700K LNEXA18D29ABS Nero satinato LED 182 cm / 36W Dali 5441 lm 2700K >90º >90 152 lm/W
Line 2700K LNEXA18D29AWS Bianco satinato LED 182 cm / 36W Dali — 2700K >90º >90 —
Line 2700K LNEXA18D29CBS Nero satinato LED 182 cm / 36W Dali — 2700K >90º >90 —
Line 2700K LNEXA18D29CWS Bianco satinato LED 182 cm / 36W Dali — 2700K >90º >90 —
Line 3000K LNEXA18D39ABS Nero satinato LED 182 cm / 36W Dali 6.045 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA18D39AWS Bianco satinato LED 182 cm / 36W Dali 6.045 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA18D39CBS Nero satinato LED 182 cm / 36W Dali 6.045 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA18D39CWS Bianco satinato LED 182 cm / 36W Dali — 3000K >90º >90 —
Line 4000K LNEXA18D49ABS Nero satinato LED 182 cm / 36W Dali 6.498 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA18D49AWS Bianco satinato LED 182 cm / 36W Dali 6.498 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA18D49CBS Nero satinato LED 182 cm / 36W Dali — 4000K >90º >90 —
Line 4000K LNEXA18D49CWS Bianco satinato LED 182 cm / 36W Dali 6.498 lm 4000K >90º >90 179 lm/W
Line 2700K LNEXA18N29ABS Nero satinato LED 182 cm / 36W No Dimmable — 2700K >90º >90 —
Line 2700K LNEXA18N29AWS Bianco satinato LED 182 cm / 36W No Dimmable — 2700K >90º >90 —
Line 2700K LNEXA18N29CBS Nero satinato LED 182 cm / 36W No Dimmable — 2700K >90º >90 —
Line 2700K LNEXA18N29CWS Bianco satinato LED 182 cm / 36W No Dimmable — 2700K >90º >90 —
Line 3000K LNEXA18N39ABS Nero satinato LED 182 cm / 36W No Dimmable 6.045 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA18N39AWS Bianco satinato LED 182 cm / 36W No Dimmable 6.045 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA18N39CBS Nero satinato LED 182 cm / 36W No Dimmable 6.045 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA18N39CWS Bianco satinato LED 182 cm / 36W No Dimmable 6.045 lm 3000K >90º >90 167 lm/W
Line 4000K LNEXA18N49ABS Nero satinato LED 182 cm / 36W No Dimmable 6.498 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA18N49AWS Bianco satinato LED 182 cm / 36W No Dimmable 6.498 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA18N49CBS Nero satinato LED 182 cm / 36W No Dimmable 6.498 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA18N49CWS Bianco satinato LED 182 cm / 36W No Dimmable 6.498 lm 4000K >90º >90 179 lm/W
Line 2700K LNEXA22D29ABS Nero satinato LED 224 cm / 45W Dali 6840 lm 2700K >90º >90 152 lm/W
Line 2700K LNEXA22D29AWS Bianco satinato LED 224 cm / 45W Dali — 2700K >90º >90 —
Line 2700K LNEXA22D29CBS Nero satinato LED 224 cm / 45W Dali — 2700K >90º >90 —
Line 2700K LNEXA22D29CWS Bianco satinato LED 224 cm / 45W Dali — 2700K >90º >90 —
Line 3000K LNEXA22D39ABS Nero satinato LED 224 cm / 45W Dali 7.440 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA22D39AWS Bianco satinato LED 224 cm / 45W Dali 7.440 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA22D39CBS Nero satinato LED 224 cm / 45W Dali 7.440 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA22D39CWS Bianco satinato LED 224 cm / 45W Dali 7.440 lm 3000K >90º >90 167 lm/W
Line 4000K LNEXA22D49ABS Nero satinato LED 224 cm / 45W Dali 7.998 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA22D49AWS Bianco satinato LED 224 cm / 45W Dali 7.998 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA22D49CBS Nero satinato LED 224 cm / 45W Dali 7.998 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA22D49CWS Bianco satinato LED 224 cm / 45W Dali 7.998 lm 4000K >90º >90 179 lm/W
Line TUNABLE WHITE LNEXA22D89ABS Nero satinato LED 224 cm / 45W Dali TW 7200 - 7470 lm TUNABLE WHITE >90º >90 160 - 166 lm/W
Line TUNABLE WHITE LNEXA22D89AWS Bianco satinato LED 224 cm / 45W Dali TW — TUNABLE WHITE >90º >90 —
Line TUNABLE WHITE LNEXA22D89CBS Nero satinato LED 224 cm / 45W Dali TW — TUNABLE WHITE >90º >90 —
Line TUNABLE WHITE LNEXA22D89CWS Bianco satinato LED 224 cm / 45W Dali TW — TUNABLE WHITE >90º >90 —
Line 2700K LNEXA22N29ABS Nero satinato LED 224 cm / 45W No Dimmable — 2700K >90º >90 —
Line 2700K LNEXA22N29AWS Bianco satinato LED 224 cm / 45W No Dimmable — 2700K >90º >90 —
Line 2700K LNEXA22N29CBS Nero satinato LED 224 cm / 45W No Dimmable — 2700K >90º >90 —
Line 2700K LNEXA22N29CWS Bianco satinato LED 224 cm / 45W No Dimmable — 2700K >90º >90 —
Line 3000K LNEXA22N39ABS Nero satinato LED 224 cm / 45W No Dimmable 7.440 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA22N39AWS Bianco satinato LED 224 cm / 45W No Dimmable 7.440 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA22N39CBS Nero satinato LED 224 cm / 45W No Dimmable 7.440 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA22N39CWS Bianco satinato LED 224 cm / 45W No Dimmable 7.440 lm 3000K >90º >90 167 lm/W
Line 4000K LNEXA22N49ABS Nero satinato LED 224 cm / 45W No Dimmable 7.998 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA22N49AWS Bianco satinato LED 224 cm / 45W No Dimmable 7.998 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA22N49CBS Nero satinato LED 224 cm / 45W No Dimmable 7.998 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA22N49CWS Bianco satinato LED 224 cm / 45W No Dimmable 7.998 lm 4000K >90º >90 179 lm/W
Line 2700K LNEXA28D29ABS Nero satinato LED 281 cm / 56W Dali 8512 lm 2700K >90º >90 152 lm/W
Line 2700K LNEXA28D29AWS Bianco satinato LED 281 cm / 56W Dali — 2700K >90º >90 —
Line 2700K LNEXA28D29CBS Nero satinato LED 281 cm / 56W Dali — 2700K >90º >90 —
Line 2700K LNEXA28D29CWS Bianco satinato LED 281 cm / 56W Dali — 2700K >90º >90 —
Line 3000K LNEXA28D39ABS Nero satinato LED 281 cm / 56W Dali 9.300 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA28D39AWS Bianco satinato LED 281 cm / 56W Dali 9.300 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA28D39CBS Nero satinato LED 281 cm / 56W Dali 9.300 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA28D39CWS Bianco satinato LED 281 cm / 56W Dali — 3000K >90º >90 —
Line 4000K LNEXA28D49ABS Nero satinato LED 281 cm / 56W Dali 9.997 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA28D49AWS Bianco satinato LED 281 cm / 56W Dali 9.997 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA28D49CBS Nero satinato LED 281 cm / 56W Dali 9.997 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA28D49CWS Bianco satinato LED 281 cm / 56W Dali 9.997 lm 4000K >90º >90 179 lm/W
Line TUNABLE WHITE LNEXA28D89ABS Nero satinato LED 281 cm / 56W Dali TW 8960 - 9296 lm TUNABLE WHITE >90º >90 160 - 166 lm/W
Line TUNABLE WHITE LNEXA28D89AWS Bianco satinato LED 281 cm / 56W Dali TW — TUNABLE WHITE >90º >90 —
Line TUNABLE WHITE LNEXA28D89CBS Nero satinato LED 281 cm / 56W Dali TW — TUNABLE WHITE >90º >90 —
Line TUNABLE WHITE LNEXA28D89CWS Bianco satinato LED 281 cm / 56W Dali TW — TUNABLE WHITE >90º >90 —
Line 2700K LNEXA28N29ABS Nero satinato LED 281 cm / 56W No Dimmable — 2700K >90º >90 —
Line 2700K LNEXA28N29AWS Bianco satinato LED 281 cm / 56W No Dimmable — 2700K >90º >90 —
Line 2700K LNEXA28N29CBS Nero satinato LED 281 cm / 56W No Dimmable — 2700K >90º >90 —
Line 2700K LNEXA28N29CWS Bianco satinato LED 281 cm / 56W No Dimmable — 2700K >90º >90 —
Line 3000K LNEXA28N39ABS Nero satinato LED 281 cm / 56W No Dimmable 9.300 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA28N39AWS Bianco satinato LED 281 cm / 56W No Dimmable 9.300 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA28N39CBS Nero satinato LED 281 cm / 56W No Dimmable 9.300 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA28N39CWS Bianco satinato LED 281 cm / 56W No Dimmable 9.300 lm 3000K >90º >90 167 lm/W
Line 4000K LNEXA28N49ABS Nero satinato LED 281 cm / 56W No Dimmable 9.997 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA28N49AWS Bianco satinato LED 281 cm / 56W No Dimmable 9.997 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA28N49CBS Nero satinato LED 281 cm / 56W No Dimmable 9.997 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA28N49CWS Bianco satinato LED 281 cm / 56W No Dimmable 9.997 lm 4000K >90º >90 179 lm/W
Line 2700K LNEXA70D29ABS Nero satinato LED 70 cm / 14W Dali 2128 lm 2700K >90º >90 152 lm/W
Line 2700K LNEXA70D29AWS Bianco satinato LED 70 cm / 14W Dali — 2700K >90º >90 —
Line 2700K LNEXA70D29CBS Nero satinato LED 70 cm / 14W Dali — 2700K >90º >90 —
Line 2700K LNEXA70D29CWS Bianco satinato LED 70 cm / 14W Dali — 2700K >90º >90 —
Line 3000K LNEXA70D39ABS Nero satinato LED 70 cm / 14W Dali 2.325 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA70D39AWS Bianco satinato LED 70 cm / 14W Dali 2.325 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA70D39CBS Nero satinato LED 70 cm / 14W Dali — 3000K >90º >90 —
Line 3000K LNEXA70D39CWS Bianco satinato LED 70 cm / 14W Dali 2.325 lm 3000K >90º >90 167 lm/W
Line 4000K LNEXA70D49ABS Nero satinato LED 70 cm / 14W Dali 2.499 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA70D49AWS Bianco satinato LED 70 cm / 14W Dali 2.499 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA70D49CBS Nero satinato LED 70 cm / 14W Dali — 4000K >90º >90 —
Line 4000K LNEXA70D49CWS Bianco satinato LED 70 cm / 14W Dali — 4000K >90º >90 —
Line 2700K LNEXA70N29ABS Nero satinato LED 70 cm / 14W No Dimmable — 2700K >90º >90 —
Line 2700K LNEXA70N29AWS Bianco satinato LED 70 cm / 14W No Dimmable — 2700K >90º >90 —
Line 2700K LNEXA70N29CBS Nero satinato LED 70 cm / 14W No Dimmable — 2700K >90º >90 —
Line 2700K LNEXA70N29CWS Bianco satinato LED 70 cm / 14W No Dimmable — 2700K >90º >90 —
Line 3000K LNEXA70N39ABS Nero satinato LED 70 cm / 14W No Dimmable 2.325 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA70N39AWS Bianco satinato LED 70 cm / 14W No Dimmable 2.325 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA70N39CBS Nero satinato LED 70 cm / 14W No Dimmable 2.325 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA70N39CWS Bianco satinato LED 70 cm / 14W No Dimmable 2.325 lm 3000K >90º >90 167 lm/W
Line 4000K LNEXA70N49ABS Nero satinato LED 70 cm / 14W No Dimmable 2.499 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA70N49AWS Bianco satinato LED 70 cm / 14W No Dimmable 2.499 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA70N49CBS Nero satinato LED 70 cm / 14W No Dimmable 2.499 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA70N49CWS Bianco satinato LED 70 cm / 14W No Dimmable — 4000K >90º >90 —

Prodotti correlati

Interessato a questo prodotto? Contattaci

Hai bisogno di aiuto?
