Linear profile with bidirectional emission. Available in five lengths with dimming and colour temperature options.

  • Socket
  • Output
  • Control
  • Colour Temperature
  • Beam Angle
  • Complements
  • Finish

This combination does not exist.

Contact Us
Duo Wall Duo Wall
LED Efficiency Label Technical Datasheet Installation Instructions General Guarantee Conditions CE Declaration for LED Extended Guarantee Conditions LED technical datasheet Driver technical datasheet DUO WALL - LDT files

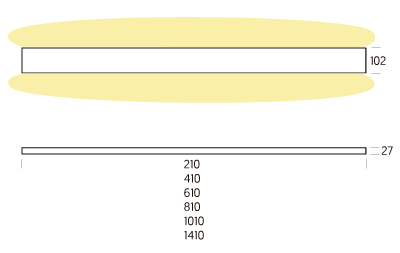

Technical drawing
LED flux—
LED power consumption—
Luminous efficiency—
CRI—
Driver LED—
Light temperature—
Beam angle—
IP protection—
Duo Wall
Duo Wall
Duo Wall
Modelo Ref. Color Fuente Potencia Regulación Flujo lum. Temp. Ángulo CRI Eficiencia
Duo Wall 2700K DUOWA08N21ABS Satin Black LED ≈ 12W / >880 lm No Dimmable 2 x 553 lm 2700K 120º >90 96 lm/W
Duo Wall 2700K DUOWA08N21AWS Satin White LED ≈ 12W / >880 lm No Dimmable 2 x 553 lm 2700K 120º >90 96 lm/W
Duo Wall 3000K DUOWA08N31ABS Satin Black LED ≈ 12W / >880 lm No Dimmable 2 x 610 lm 3000K 120º >90 106 lm/W
Duo Wall 3000K DUOWA08N31AWS Satin White LED ≈ 12W / >880 lm No Dimmable 2 x 610 lm 3000K 120º >90 106 lm/W
Duo Wall 4000K DUOWA08N41ABS Satin Black LED ≈ 12W / >880 lm No Dimmable 2 x 660 lm 4000K 120º >90 110 lm/W
Duo Wall 4000K DUOWA08N41AWS Satin White LED ≈ 12W / >880 lm No Dimmable 2 x 660 lm 4000K 120º >90 110 lm/W
Duo Wall 2700K DUOWA12D21ABS Satin Black LED ≈ 18W / >1325 lm Dali 2 x 830 lm 2700K 120º >90 96 lm/W
Duo Wall 2700K DUOWA12D21AWS Satin White LED ≈ 18W / >1325 lm Dali 2 x 830 lm 2700K 120º >90 96 lm/W
Duo Wall 3000K DUOWA12D31ABS Satin Black LED ≈ 18W / >1325 lm Dali 2 x 915 lm 3000K 120º >90 106 lm/W
Duo Wall 3000K DUOWA12D31AWS Satin White LED ≈ 18W / >1325 lm Dali 2 x 915 lm 3000K 120º >90 106 lm/W
Duo Wall 4000K DUOWA12D41ABS Satin Black LED ≈ 18W / >1325 lm Dali 2 x 950 lm 4000K 120º >90 110 lm/W
Duo Wall 4000K DUOWA12D41AWS Satin White LED ≈ 18W / >1325 lm Dali — 4000K 120º — —
Duo Wall RGB DUOWA12D71ABS Satin Black LED ≈ 18W / >1325 lm Dali — RGB 120º — —
Duo Wall RGB DUOWA12D71AWS Satin White LED ≈ 18W / >1325 lm Dali — RGB 120º — —
Duo Wall TUNABLE WHITE DUOWA12D81ABS Satin Black LED ≈ 18W / >1325 lm Dali — TUNABLE WHITE 120º — —
Duo Wall TUNABLE WHITE DUOWA12D81AWS Satin White LED ≈ 18W / >1325 lm Dali — TUNABLE WHITE 120º — —
Duo Wall RGBW DUOWA12D91ABS Satin Black LED ≈ 18W / >1325 lm Dali — RGBW 120º — —
Duo Wall RGBW DUOWA12D91AWS Satin White LED ≈ 18W / >1325 lm Dali — RGBW 120º — —
Duo Wall 2700K DUOWA12K21ABS Satin Black LED ≈ 18W / >1325 lm Casambi — 2700K 120º — —
Duo Wall 2700K DUOWA12K21AWS Satin White LED ≈ 18W / >1325 lm Casambi — 2700K 120º — —
Duo Wall 3000K DUOWA12K31ABS Satin Black LED ≈ 18W / >1325 lm Casambi — 3000K 120º — —
Duo Wall 3000K DUOWA12K31AWS Satin White LED ≈ 18W / >1325 lm Casambi — 3000K 120º — —
Duo Wall 4000K DUOWA12K41ABS Satin Black LED ≈ 18W / >1325 lm Casambi — 4000K 120º — —
Duo Wall 4000K DUOWA12K41AWS Satin White LED ≈ 18W / >1325 lm Casambi — 4000K 120º — —
Duo Wall RGB DUOWA12K71ABS Satin Black LED ≈ 18W / >1325 lm Casambi — RGB 120º — —
Duo Wall RGB DUOWA12K71AWS Satin White LED ≈ 18W / >1325 lm Casambi — RGB 120º — —
Duo Wall TUNABLE WHITE DUOWA12K81ABS Satin Black LED ≈ 18W / >1325 lm Casambi — TUNABLE WHITE 120º — —
Duo Wall TUNABLE WHITE DUOWA12K81AWS Satin White LED ≈ 18W / >1325 lm Casambi — TUNABLE WHITE 120º — —
Duo Wall RGBW DUOWA12K91ABS Satin Black LED ≈ 18W / >1325 lm Casambi — RGBW 120º — —
Duo Wall RGBW DUOWA12K91AWS Satin White LED ≈ 18W / >1325 lm Casambi — RGBW 120º — —
Duo Wall 2700K DUOWA12N21ABS Satin Black LED ≈ 18W / >1325 lm No Dimmable 2 x 830 lm 2700K 120º >90 96 lm/W
Duo Wall 2700K DUOWA12N21AWS Satin White LED ≈ 18W / >1325 lm No Dimmable 2 x 830 lm 2700K 120º >90 96 lm/W
Duo Wall 3000K DUOWA12N31ABS Satin Black LED ≈ 18W / >1325 lm No Dimmable 2 x 915 lm 3000K 120º >90 106 lm/W
Duo Wall 3000K DUOWA12N31AWS Satin White LED ≈ 18W / >1325 lm No Dimmable 2 x 915 lm 3000K 120º >90 106 lm/W
Duo Wall 4000K DUOWA12N41ABS Satin Black LED ≈ 18W / >1325 lm No Dimmable 2 x 950 lm 4000K 120º >90 110 lm/W
Duo Wall 4000K DUOWA12N41AWS Satin White LED ≈ 18W / >1325 lm No Dimmable 2 x 950 lm 4000K 120º >90 110 lm/W
Duo Wall 2700K DUOWA16D21ABS Satin Black LED ≈ 23W / >1760 lm Dali 2 x 1105 lm 2700K 120º >90 96 lm/W
Duo Wall 2700K DUOWA16D21AWS Satin White LED ≈ 23W / >1760 lm Dali — 2700K 120º — —
Duo Wall 3000K DUOWA16D31ABS Satin Black LED ≈ 23W / >1760 lm Dali 2 x 1220 lm 3000K 120º >90 106 lm/W
Duo Wall 3000K DUOWA16D31AWS Satin White LED ≈ 23W / >1760 lm Dali 2 x 1220 lm 3000K 120º >90 106 lm/W
Duo Wall 4000K DUOWA16D41ABS Satin Black LED ≈ 23W / >1760 lm Dali 2 x 1265 lm 4000K 120º >90 110 lm/W
Duo Wall 4000K DUOWA16D41AWS Satin White LED ≈ 23W / >1760 lm Dali — 4000K 120º — —
Duo Wall RGB DUOWA16D71ABS Satin Black LED ≈ 23W / >1760 lm Dali — RGB 120º — —
Duo Wall RGB DUOWA16D71AWS Satin White LED ≈ 23W / >1760 lm Dali — RGB 120º — —
Duo Wall TUNABLE WHITE DUOWA16D81ABS Satin Black LED ≈ 23W / >1760 lm Dali — TUNABLE WHITE 120º — —
Duo Wall TUNABLE WHITE DUOWA16D81AWS Satin White LED ≈ 23W / >1760 lm Dali — TUNABLE WHITE 120º — —
Duo Wall RGBW DUOWA16D91ABS Satin Black LED ≈ 23W / >1760 lm Dali — RGBW 120º — —
Duo Wall RGBW DUOWA16D91AWS Satin White LED ≈ 23W / >1760 lm Dali — RGBW 120º — —
Duo Wall 2700K DUOWA16K21ABS Satin Black LED ≈ 23W / >1760 lm Casambi — 2700K 120º — —
Duo Wall 2700K DUOWA16K21AWS Satin White LED ≈ 23W / >1760 lm Casambi — 2700K 120º — —
Duo Wall 3000K DUOWA16K31ABS Satin Black LED ≈ 23W / >1760 lm Casambi — 3000K 120º — —
Duo Wall 3000K DUOWA16K31AWS Satin White LED ≈ 23W / >1760 lm Casambi — 3000K 120º — —
Duo Wall 4000K DUOWA16K41ABS Satin Black LED ≈ 23W / >1760 lm Casambi — 4000K 120º — —
Duo Wall 4000K DUOWA16K41AWS Satin White LED ≈ 23W / >1760 lm Casambi — 4000K 120º — —
Duo Wall RGB DUOWA16K71ABS Satin Black LED ≈ 23W / >1760 lm Casambi — RGB 120º — —
Duo Wall RGB DUOWA16K71AWS Satin White LED ≈ 23W / >1760 lm Casambi — RGB 120º — —
Duo Wall TUNABLE WHITE DUOWA16K81ABS Satin Black LED ≈ 23W / >1760 lm Casambi — TUNABLE WHITE 120º — —
Duo Wall TUNABLE WHITE DUOWA16K81AWS Satin White LED ≈ 23W / >1760 lm Casambi — TUNABLE WHITE 120º — —
Duo Wall RGBW DUOWA16K91ABS Satin Black LED ≈ 23W / >1760 lm Casambi — RGBW 120º — —
Duo Wall RGBW DUOWA16K91AWS Satin White LED ≈ 23W / >1760 lm Casambi — RGBW 120º — —
Duo Wall 2700K DUOWA16N21ABS Satin Black LED ≈ 23W / >1760 lm No Dimmable 2 x 1105 lm 2700K 120º >90 96 lm/W
Duo Wall 2700K DUOWA16N21AWS Satin White LED ≈ 23W / >1760 lm No Dimmable 2 x 1105 lm 2700K 120º >90 96 lm/W
Duo Wall 3000K DUOWA16N31ABS Satin Black LED ≈ 23W / >1760 lm No Dimmable 2 x 1220 lm 3000K 120º >90 106 lm/W
Duo Wall 3000K DUOWA16N31AWS Satin White LED ≈ 23W / >1760 lm No Dimmable 2 x 1220 lm 3000K 120º >90 106 lm/W
Duo Wall 4000K DUOWA16N41ABS Satin Black LED ≈ 23W / >1760 lm No Dimmable 2 x 1265 lm 4000K 120º >90 110 lm/W
Duo Wall 4000K DUOWA16N41AWS Satin White LED ≈ 23W / >1760 lm No Dimmable 2 x 1265 lm 4000K 120º >90 110 lm/W
Duo Wall 2700K DUOWA20D21ABS Satin Black LED ≈ 29W / >2210 lm Dali 2 x 1380 lm 2700K 120º >90 96 lm/W
Duo Wall 2700K DUOWA20D21AWS Satin White LED ≈ 29W / >2210 lm Dali — 2700K 120º — —
Duo Wall 3000K DUOWA20D31ABS Satin Black LED ≈ 29W / >2210 lm Dali 2 x 1525 lm 3000K 120º >90 106 lm/W
Duo Wall 3000K DUOWA20D31AWS Satin White LED ≈ 29W / >2210 lm Dali 2 x 1520 lm 3000K 120º >90 106 lm/W
Duo Wall 4000K DUOWA20D41ABS Satin Black LED ≈ 29W / >2210 lm Dali 2 x 1580 lm 4000K 120º >90 110 lm/W
Duo Wall 4000K DUOWA20D41AWS Satin White LED ≈ 29W / >2210 lm Dali — 4000K 120º — —
Duo Wall RGB DUOWA20D71ABS Satin Black LED ≈ 29W / >2210 lm Dali — RGB 120º — —
Duo Wall RGB DUOWA20D71AWS Satin White LED ≈ 29W / >2210 lm Dali — RGB 120º — —
Duo Wall TUNABLE WHITE DUOWA20D81ABS Satin Black LED ≈ 29W / >2210 lm Dali — TUNABLE WHITE 120º — —
Duo Wall TUNABLE WHITE DUOWA20D81AWS Satin White LED ≈ 29W / >2210 lm Dali — TUNABLE WHITE 120º — —
Duo Wall RGBW DUOWA20D91ABS Satin Black LED ≈ 29W / >2210 lm Dali — RGBW 120º — —
Duo Wall RGBW DUOWA20D91AWS Satin White LED ≈ 29W / >2210 lm Dali — RGBW 120º — —
Duo Wall 2700K DUOWA20K21ABS Satin Black LED ≈ 29W / >2210 lm Casambi — 2700K 120º — —
Duo Wall 2700K DUOWA20K21AWS Satin White LED ≈ 29W / >2210 lm Casambi — 2700K 120º — —
Duo Wall 3000K DUOWA20K31ABS Satin Black LED ≈ 29W / >2210 lm Casambi — 3000K 120º — —
Duo Wall 3000K DUOWA20K31AWS Satin White LED ≈ 29W / >2210 lm Casambi — 3000K 120º — —
Duo Wall 4000K DUOWA20K41ABS Satin Black LED ≈ 29W / >2210 lm Casambi — 4000K 120º — —
Duo Wall 4000K DUOWA20K41AWS Satin White LED ≈ 29W / >2210 lm Casambi — 4000K 120º — —
Duo Wall RGB DUOWA20K71ABS Satin Black LED ≈ 29W / >2210 lm Casambi — RGB 120º — —
Duo Wall RGB DUOWA20K71AWS Satin White LED ≈ 29W / >2210 lm Casambi — RGB 120º — —
Duo Wall TUNABLE WHITE DUOWA20K81ABS Satin Black LED ≈ 29W / >2210 lm Casambi — TUNABLE WHITE 120º — —
Duo Wall TUNABLE WHITE DUOWA20K81AWS Satin White LED ≈ 29W / >2210 lm Casambi — TUNABLE WHITE 120º — —
Duo Wall RGBW DUOWA20K91ABS Satin Black LED ≈ 29W / >2210 lm Casambi — RGBW 120º — —
Duo Wall RGBW DUOWA20K91AWS Satin White LED ≈ 29W / >2210 lm Casambi — RGBW 120º — —
Duo Wall 2700K DUOWA20N21ABS Satin Black LED ≈ 29W / >2210 lm No Dimmable 2 x 1380 lm 2700K 120º >90 96 lm/W
Duo Wall 2700K DUOWA20N21AWS Satin White LED ≈ 29W / >2210 lm No Dimmable 2 x 1380 lm 2700K 120º >90 96 lm/W
Duo Wall 3000K DUOWA20N31ABS Satin Black LED ≈ 29W / >2210 lm No Dimmable 2 x 1525 lm 3000K 120º >90 106 lm/W
Duo Wall 3000K DUOWA20N31AWS Satin White LED ≈ 29W / >2210 lm No Dimmable 2 x 1525 lm 3000K 120º >90 106 lm/W
Duo Wall 4000K DUOWA20N41ABS Satin Black LED ≈ 29W / >2210 lm No Dimmable 2 x 1580 lm 4000K 120º >90 110 lm/W
Duo Wall 4000K DUOWA20N41AWS Satin White LED ≈ 29W / >2210 lm No Dimmable 2 x 1580 lm 4000K 120º >90 110 lm/W
Duo Wall 2700K DUOWA28D21ABS Satin Black LED ≈ 40W / >3090 lm Dali 2 x 1935 lm 2700K 120º >90 96 lm/W
Duo Wall 2700K DUOWA28D21AWS Satin White LED ≈ 40W / >3090 lm Dali 2 x 1935 lm 2700K 120º >90 96 lm/W
Duo Wall 3000K DUOWA28D31ABS Satin Black LED ≈ 40W / >3090 lm Dali 2 x 2135 lm 3000K 120º >90 106 lm/W
Duo Wall 3000K DUOWA28D31AWS Satin White LED ≈ 40W / >3090 lm Dali 2 x 2135 lm 3000K 120º >90 106 lm/W
Duo Wall 4000K DUOWA28D41ABS Satin Black LED ≈ 40W / >3090 lm Dali 2 x 2215 lm 4000K 120º >90 110 lm/W
Duo Wall 4000K DUOWA28D41AWS Satin White LED ≈ 40W / >3090 lm Dali 2 x 2215 lm 4000K 120º >90 110 lm/W
Duo Wall RGB DUOWA28D71ABS Satin Black LED ≈ 40W / >3090 lm Dali — RGB 120º — —
Duo Wall RGB DUOWA28D71AWS Satin White LED ≈ 40W / >3090 lm Dali — RGB 120º — —
Duo Wall TUNABLE WHITE DUOWA28D81ABS Satin Black LED ≈ 40W / >3090 lm Dali — TUNABLE WHITE 120º — —
Duo Wall TUNABLE WHITE DUOWA28D81AWS Satin White LED ≈ 40W / >3090 lm Dali — TUNABLE WHITE 120º — —
Duo Wall RGBW DUOWA28D91ABS Satin Black LED ≈ 40W / >3090 lm Dali — RGBW 120º — —
Duo Wall RGBW DUOWA28D91AWS Satin White LED ≈ 40W / >3090 lm Dali — RGBW 120º — —
Duo Wall 2700K DUOWA28K21ABS Satin Black LED ≈ 40W / >3090 lm Casambi — 2700K 120º — —
Duo Wall 2700K DUOWA28K21AWS Satin White LED ≈ 40W / >3090 lm Casambi — 2700K 120º — —
Duo Wall 3000K DUOWA28K31ABS Satin Black LED ≈ 40W / >3090 lm Casambi — 3000K 120º — —
Duo Wall 3000K DUOWA28K31AWS Satin White LED ≈ 40W / >3090 lm Casambi — 3000K 120º — —
Duo Wall 4000K DUOWA28K41ABS Satin Black LED ≈ 40W / >3090 lm Casambi — 4000K 120º — —
Duo Wall 4000K DUOWA28K41AWS Satin White LED ≈ 40W / >3090 lm Casambi — 4000K 120º — —
Duo Wall RGB DUOWA28K71ABS Satin Black LED ≈ 40W / >3090 lm Casambi — RGB 120º — —
Duo Wall RGB DUOWA28K71AWS Satin White LED ≈ 40W / >3090 lm Casambi — RGB 120º — —
Duo Wall TUNABLE WHITE DUOWA28K81ABS Satin Black LED ≈ 40W / >3090 lm Casambi — TUNABLE WHITE 120º — —
Duo Wall TUNABLE WHITE DUOWA28K81AWS Satin White LED ≈ 40W / >3090 lm Casambi — TUNABLE WHITE 120º — —
Duo Wall RGBW DUOWA28K91ABS Satin Black LED ≈ 40W / >3090 lm Casambi — RGBW 120º — —
Duo Wall RGBW DUOWA28K91AWS Satin White LED ≈ 40W / >3090 lm Casambi — RGBW 120º — —
Duo Wall 2700K DUOWA28N21ABS Satin Black LED ≈ 40W / >3090 lm No Dimmable 2 x 1935 lm 2700K 120º >90 96 lm/W
Duo Wall 2700K DUOWA28N21AWS Satin White LED ≈ 40W / >3090 lm No Dimmable 2 x 1935 lm 2700K 120º >90 96 lm/W
Duo Wall 3000K DUOWA28N31ABS Satin Black LED ≈ 40W / >3090 lm No Dimmable 2 x 2135 lm 3000K 120º >90 106 lm/W
Duo Wall 3000K DUOWA28N31AWS Satin White LED ≈ 40W / >3090 lm No Dimmable 2 x 2135 lm 3000K 120º >90 106 lm/W
Duo Wall 4000K DUOWA28N41ABS Satin Black LED ≈ 40W / >3090 lm No Dimmable 2 x 2215 lm 4000K 120º >90 110 lm/W
Duo Wall 4000K DUOWA28N41AWS Satin White LED ≈ 40W / >3090 lm No Dimmable 2 x 2215 lm 4000K 120º >90 110 lm/W
