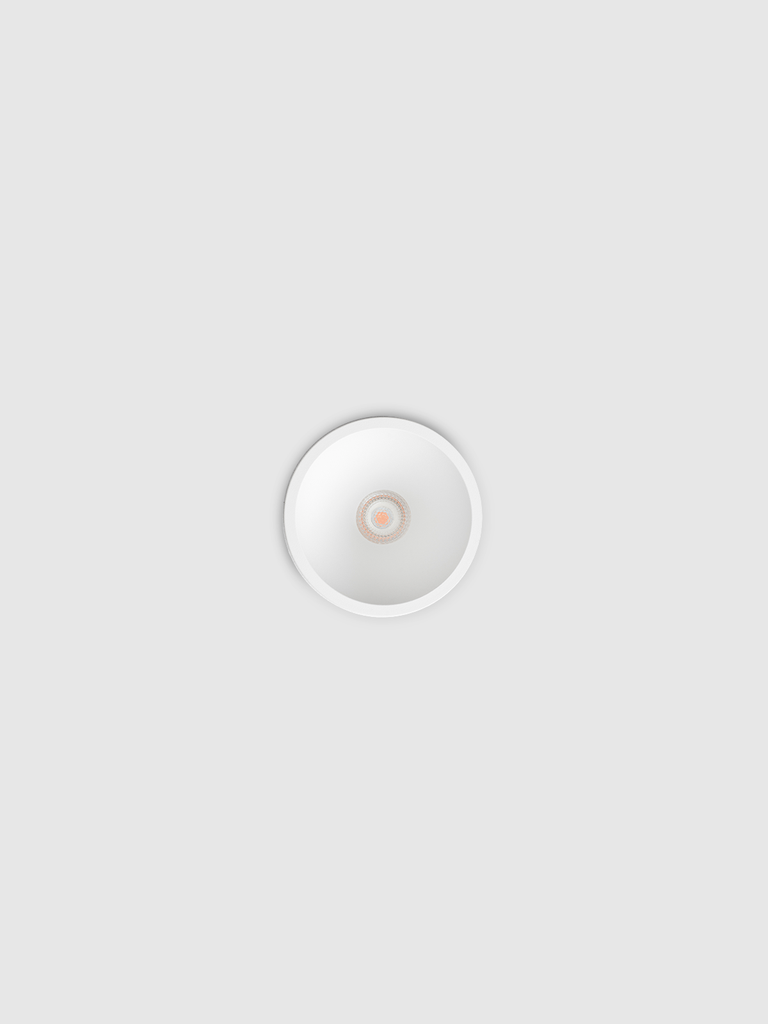

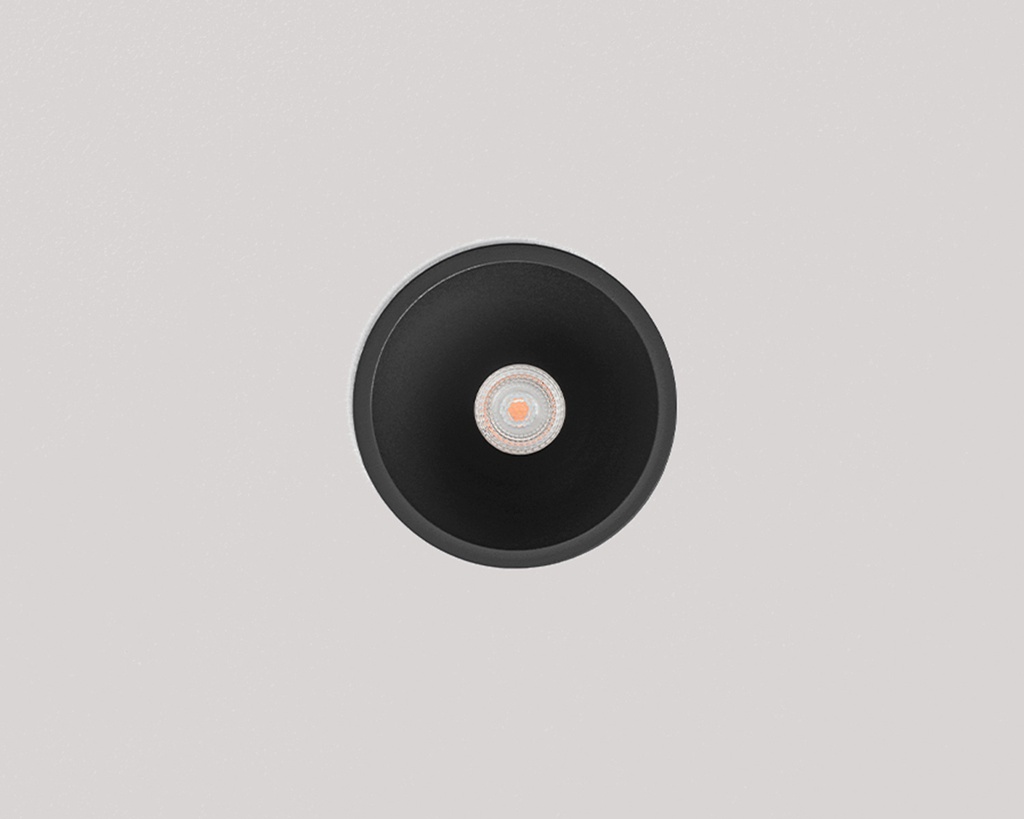

Optik 1

Optik 1

https://onoklighting.com/web/image/product.template/7248/image_1920?unique=ba89311

Optical system with lens available in two beam angles. Protects the LED against dust and handling, improving luminous uniformity

  • Socket
  • Output
  • Control
  • Colour Temperature
  • Beam Angle
  • Complements
  • Finish

This combination does not exist.

Contact Us
Optik 1 Optik 1
Technical Datasheet CE Declaration Technical Catalogue Video Installation Instructions General Guarantee Conditions Extended Guarantee Conditions LED Efficiency Label TechnicalDatasheet LED TechnicalDatasheet DRIVER Test report certificate Test report TechnicalDatasheet IGBT Driver TechnicalDatasheet DALI Driver OPTIK 1 - LDT files OPTIK 1 - 3D model
Technical drawing
LED flux—
LED power consumption—
Luminous efficiency—
CRI—
Driver LED—
Light temperature—
Beam angle—
IP protection—
Modelo Ref. Color Fuente Potencia Regulación Flujo lum. Temp. Ángulo CRI Eficiencia
Optik 1 2700K OPT1A07C21BBS Satin Black LED ≈ 8W / >800 lm IGBT/TRIAC 630 lm 2700K 15º >90 79 lm/W
Optik 1 2700K OPT1A07C21BWS Satin White LED ≈ 8W / >800 lm IGBT/TRIAC 630 lm 2700K 15º >90 79 lm/W
Optik 1 2700K OPT1A07C24BBS Satin Black LED ≈ 8W / >800 lm IGBT/TRIAC 630 lm 2700K 40º >90 79 lm/W
Optik 1 2700K OPT1A07C24BWS Satin White LED ≈ 8W / >800 lm IGBT/TRIAC 630 lm 2700K 40º >90 79 lm/W
Optik 1 3000K OPT1A07C31BBS Satin Black LED ≈ 8W / >800 lm IGBT/TRIAC 766 lm 3000K 15º >90 96 lm/W
Optik 1 3000K OPT1A07C31BWS Satin White LED ≈ 8W / >800 lm IGBT/TRIAC 766 lm 3000K 15º >90 96 lm/W
Optik 1 3000K OPT1A07C34BBS Satin Black LED ≈ 8W / >800 lm IGBT/TRIAC 766 lm 3000K 40º >90 96 lm/W
Optik 1 3000K OPT1A07C34BWS Satin White LED ≈ 8W / >800 lm IGBT/TRIAC 766 lm 3000K 40º >90 96 lm/W
Optik 1 4000K OPT1A07C41BBS Satin Black LED ≈ 8W / >800 lm IGBT/TRIAC 931 lm 4000K 15º >90 79 lm/W
Optik 1 4000K OPT1A07C41BWS Satin White LED ≈ 8W / >800 lm IGBT/TRIAC 931 lm 4000K 15º >90 79 lm/W
Optik 1 4000K OPT1A07C44BBS Satin Black LED ≈ 8W / >800 lm IGBT/TRIAC 931 lm 4000K 40º >90 116 lm/W
Optik 1 4000K OPT1A07C44BWS Satin White LED ≈ 8W / >800 lm IGBT/TRIAC 931 lm 4000K 40º >90 116 lm/W
Optik 1 2700K OPT1A07D21BBS Satin Black LED ≈ 8W / >800 lm Dali 630 lm 2700K 15º >90 79 lm/W
Optik 1 2700K OPT1A07D21BWS Satin White LED ≈ 8W / >800 lm Dali 630 lm 2700K 15º >90 79 lm/W
Optik 1 2700K OPT1A07D24BBS Satin Black LED ≈ 8W / >800 lm Dali 630 lm 2700K 40º >90 79 lm/W
Optik 1 2700K OPT1A07D24BWS Satin White LED ≈ 8W / >800 lm Dali 630 lm 2700K 40º >90 79 lm/W
Optik 1 3000K OPT1A07D31BBS Satin Black LED ≈ 8W / >800 lm Dali 766 lm 3000K 15º >90 96 lm/W
Optik 1 3000K OPT1A07D31BWS Satin White LED ≈ 8W / >800 lm Dali 766 lm 3000K 15º >90 96 lm/W
Optik 1 3000K OPT1A07D34BBS Satin Black LED ≈ 8W / >800 lm Dali 766 lm 3000K 40º >90 96 lm/W
Optik 1 3000K OPT1A07D34BWS Satin White LED ≈ 8W / >800 lm Dali 766 lm 3000K 40º >90 96 lm/W
Optik 1 4000K OPT1A07D41BBS Satin Black LED ≈ 8W / >800 lm Dali 931 lm 4000K 15º >90 79 lm/W
Optik 1 4000K OPT1A07D41BWS Satin White LED ≈ 8W / >800 lm Dali 937 lm 4000K 15º >90 79 lm/W
Optik 1 4000K OPT1A07D44BBS Satin Black LED ≈ 8W / >800 lm Dali 931 lm 4000K 40º >90 116 lm/W
Optik 1 4000K OPT1A07D44BWS Satin White LED ≈ 8W / >800 lm Dali 931 lm 4000K 40º >90 116 lm/W
Optik 1 TUNABLE WHITE OPT1A07D84BBS Satin Black LED ≈ 8W / >800 lm Dali TW 684-792lm TUNABLE WHITE 40º >90 116 2700K-5000K lm/W
Optik 1 TUNABLE WHITE OPT1A07D84BWS Satin White LED ≈ 8W / >800 lm Dali TW 684-792lm TUNABLE WHITE 40º >90 116 2700K-5000K lm/W
Optik 1 2700K OPT1A07N21BBS Satin Black LED ≈ 8W / >800 lm No Dimmable 630 lm 2700K 15º >90 79 lm/W
Optik 1 2700K OPT1A07N21BWS Satin White LED ≈ 8W / >800 lm No Dimmable 630 lm 2700K 15º >90 79 lm/W
Optik 1 2700K OPT1A07N24BBS Satin Black LED ≈ 8W / >800 lm No Dimmable 630 lm 2700K 40º >90 79 lm/W
Optik 1 2700K OPT1A07N24BWS Satin White LED ≈ 8W / >800 lm No Dimmable 630 lm 2700K 40º >90 79 lm/W
Optik 1 3000K OPT1A07N31BBS Satin Black LED ≈ 8W / >800 lm No Dimmable 766 lm 3000K 15º >90 96 lm/W
Optik 1 3000K OPT1A07N31BWS Satin White LED ≈ 8W / >800 lm No Dimmable 766 lm 3000K 15º >90 96 lm/W
Optik 1 3000K OPT1A07N34BBS Satin Black LED ≈ 8W / >800 lm No Dimmable 766 lm 3000K 40º >90 96 lm/W
Optik 1 3000K OPT1A07N34BWS Satin White LED ≈ 8W / >800 lm No Dimmable 766 lm 3000K 40º >90 96 lm/W
Optik 1 4000K OPT1A07N41BBS Satin Black LED ≈ 8W / >800 lm No Dimmable 931 lm 4000K 15º >90 79 lm/W
Optik 1 4000K OPT1A07N41BWS Satin White LED ≈ 8W / >800 lm No Dimmable 931 lm 4000K 15º >90 79 lm/W
Optik 1 4000K OPT1A07N44BBS Satin Black LED ≈ 8W / >800 lm No Dimmable 931 lm 4000K 40º >90 116 lm/W
Optik 1 4000K OPT1A07N44BWS Satin White LED ≈ 8W / >800 lm No Dimmable 931 lm 4000K 40º >90 116 lm/W
