Optik 2 Ip65

Optik 2 Ip65

https://onoklighting.com/web/image/product.template/9185/image_1920?unique=ba89311

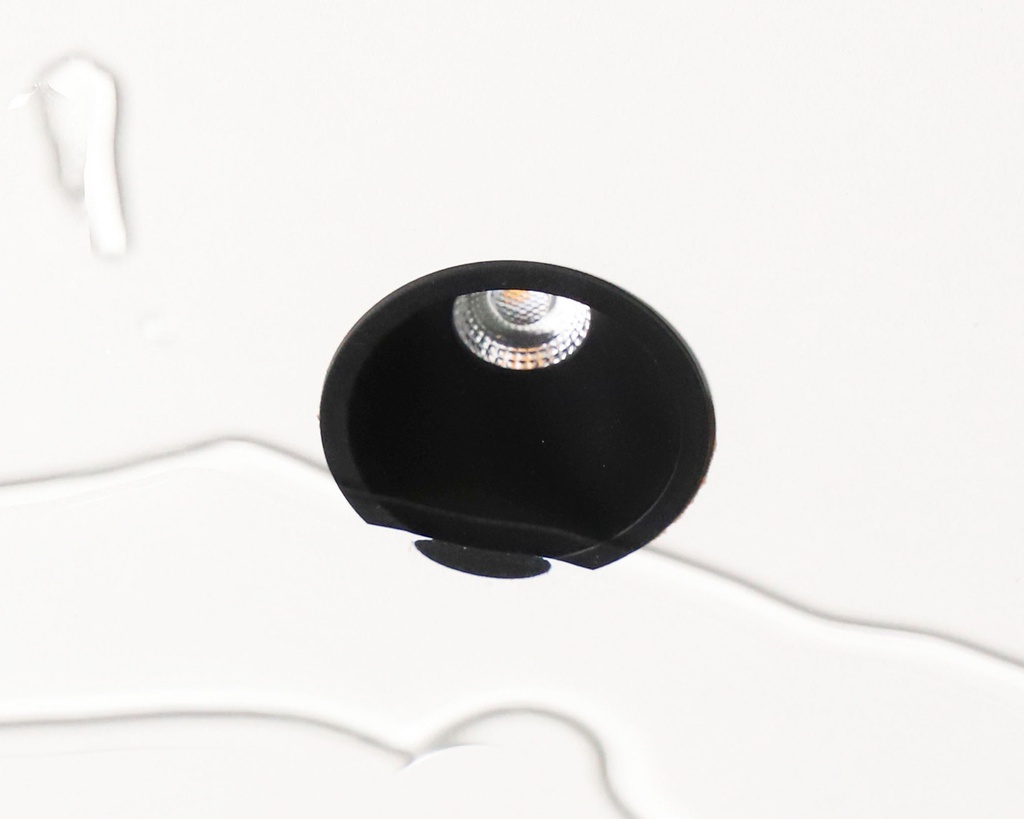

Weatherproof version of the Optik system with IP65 protection. Available in different finishes and dimming options
  • Socket
  • Output
  • Control
  • Colour Temperature
  • Beam Angle
  • Complements
  • Finish

This combination does not exist.

Contact Us
Optik 2 Ip65 Optik 2 Ip65
Technical Datasheet Technical Catalogue Video General Guarantee Conditions Extended Guarantee Conditions Installation Instructions CE Declaration LED Efficiency Label TechnicalDatasheet LED TechnicalDatasheet DRIVER Test report certificate Test report IP test TechnicalDatasheet IGBT Driver TechnicalDatasheet DALI Driver OPTIK 2 IP65 - LDT files OPTIK 2 IP65 - 3D model
Technical drawing
LED flux—
LED power consumption—
Luminous efficiency—
CRI—
Driver LED—
Light temperature—
Beam angle—
IP protection—
Modelo Ref. Color Fuente Potencia Regulación Flujo lum. Temp. Ángulo CRI Eficiencia
Optik 2 Ip65 3000K OPE2A07C31BBS Satin Black LED ≈ 8W / >800 lm IGBT/TRIAC 766 lm 3000K 15º >90 96 lm/W
Optik 2 Ip65 3000K OPE2A07C31BWS Satin White LED ≈ 8W / >800 lm IGBT/TRIAC 766 lm 3000K 15º >90 96 lm/W
Optik 2 Ip65 3000K OPE2A07C34BBS Satin Black LED ≈ 8W / >800 lm IGBT/TRIAC 766 lm 3000K 40º >90 96 lm/W
Optik 2 Ip65 3000K OPE2A07C34BWS Satin White LED ≈ 8W / >800 lm IGBT/TRIAC 766 lm 3000K 40º >90 96 lm/W
Optik 2 Ip65 4000K OPE2A07C41BBS Satin Black LED ≈ 8W / >800 lm IGBT/TRIAC 931 lm 4000K 15º >90 79 lm/W
Optik 2 Ip65 4000K OPE2A07C41BWS Satin White LED ≈ 8W / >800 lm IGBT/TRIAC 931 lm 4000K 15º >90 79 lm/W
Optik 2 Ip65 4000K OPE2A07C44BBS Satin Black LED ≈ 8W / >800 lm IGBT/TRIAC 931 lm 4000K 40º >90 116 lm/W
Optik 2 Ip65 4000K OPE2A07C44BWS Satin White LED ≈ 8W / >800 lm IGBT/TRIAC 931 lm 4000K 40º >90 116 lm/W
Optik 2 Ip65 3000K OPE2A07D31BBS Satin Black LED ≈ 8W / >800 lm Dali 766 lm 3000K 15º >90 96 lm/W
Optik 2 Ip65 3000K OPE2A07D31BWS Satin White LED ≈ 8W / >800 lm Dali 766 lm 3000K 15º >90 96 lm/W
Optik 2 Ip65 3000K OPE2A07D34BBS Satin Black LED ≈ 8W / >800 lm Dali 766 lm 3000K 40º >90 96 lm/W
Optik 2 Ip65 3000K OPE2A07D34BWS Satin White LED ≈ 8W / >800 lm Dali 766 lm 3000K 40º >90 96 lm/W
Optik 2 Ip65 4000K OPE2A07D41BBS Satin Black LED ≈ 8W / >800 lm Dali 931 lm/W 4000K 15º >90 79 lm/W
Optik 2 Ip65 4000K OPE2A07D41BWS Satin White LED ≈ 8W / >800 lm Dali 931 lm 4000K 15º >90 79 lm/W
Optik 2 Ip65 4000K OPE2A07D44BBS Satin Black LED ≈ 8W / >800 lm Dali 931 lm 4000K 40º >90 116 lm/W
Optik 2 Ip65 4000K OPE2A07D44BWS Satin White LED ≈ 8W / >800 lm Dali 931 lm 4000K 40º >90 116 lm/W
Optik 2 Ip65 TUNABLE WHITE OPE2A07D84BBS Satin Black LED ≈ 8W / >800 lm Dali TW 684-792lm TUNABLE WHITE 40º >90 116 2700K-5000K lm/W
Optik 2 Ip65 TUNABLE WHITE OPE2A07D84BWS Satin White LED ≈ 8W / >800 lm Dali TW 684-792lm TUNABLE WHITE 40º >90 116 2700K-5000K lm/W
Optik 2 Ip65 3000K OPE2A07N31BBS Satin Black LED ≈ 8W / >800 lm No Dimmable 766 lm 3000K 15º >90 96 lm/W
Optik 2 Ip65 3000K OPE2A07N31BWS Satin White LED ≈ 8W / >800 lm No Dimmable 766 lm/W 3000K 15º >90 96 lm/W
Optik 2 Ip65 3000K OPE2A07N34BBS Satin Black LED ≈ 8W / >800 lm No Dimmable 766 lm 3000K 40º >90 96 lm/W
Optik 2 Ip65 3000K OPE2A07N34BWS Satin White LED ≈ 8W / >800 lm No Dimmable 766 lm 3000K 40º >90 96 lm/W
Optik 2 Ip65 4000K OPE2A07N41BBS Satin Black LED ≈ 8W / >800 lm No Dimmable 931 lm 4000K 15º >90 79 lm/W
Optik 2 Ip65 4000K OPE2A07N41BWS Satin White LED ≈ 8W / >800 lm No Dimmable 931 lm 4000K 15º >90 79 lm/W
Optik 2 Ip65 4000K OPE2A07N44BBS Satin Black LED ≈ 8W / >800 lm No Dimmable 931 lm 4000K 40º >90 116 lm/W
Optik 2 Ip65 4000K OPE2A07N44BWS Satin White LED ≈ 8W / >800 lm No Dimmable 931 lm 4000K 40º >90 116 lm/W
