Line E Ip54
Line E Ip54
Line E Ip54

Line E Ip54

https://onoklighting.com/web/image/product.template/7417/image_1920?unique=08cba62

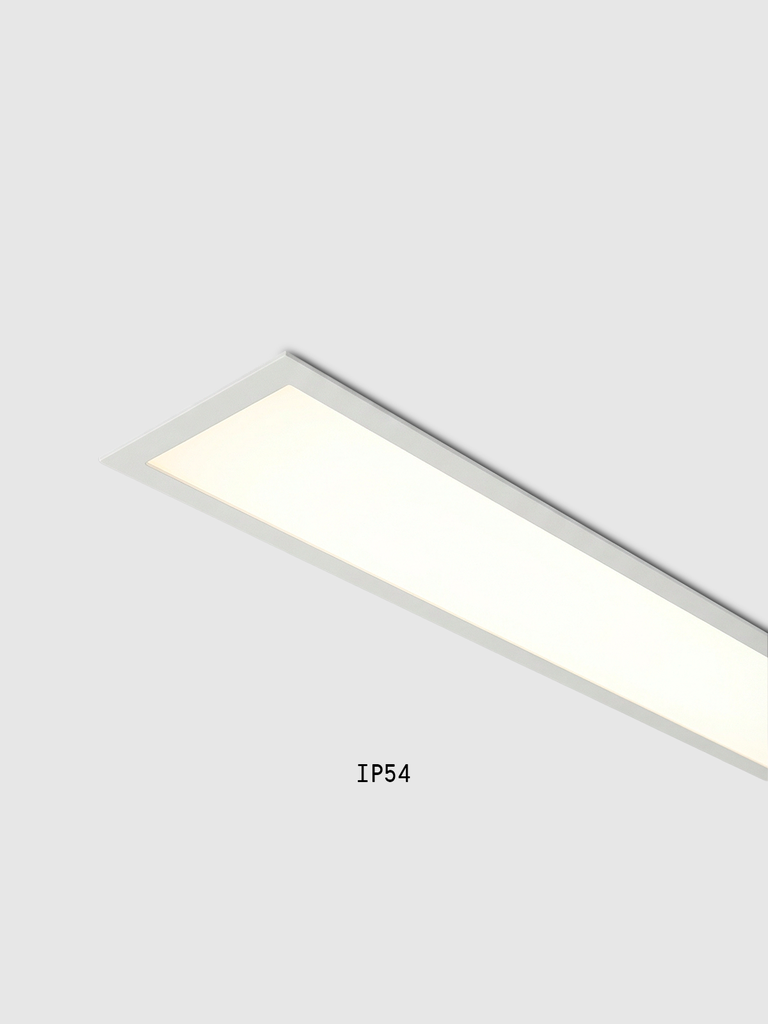

Continuous linear profile with IP54 protection. Designed for applications in humid environments

  • Socket
  • Output
  • Control
  • Colour Temperature
  • Beam Angle
  • Complements
  • Finish

This combination does not exist.

Contact Us
Line E Ip54 Line E Ip54
CE Declaration Technical Datasheet Line System Catalogue Installation Instructions General Guarantee Conditions Extended Guarantee Conditions LED Efficiency Label LED technical datasheet TW technical datasheet Driver 21W technical datasheet Driver 42W technical datasheet Test report certificate Test report LINE E IP54 - LDT files
Technical drawing
LED flux—
LED power consumption—
Luminous efficiency—
CRI—
Driver LED—
Light temperature—
Beam angle—
IP protection—
Line E Ip54
Line E Ip54
Modelo Ref. Color Fuente Potencia Regulación Flujo lum. Temp. Ángulo CRI Eficiencia
Line E Ip54 3000K LNEIA14D39ABS Satin Black LED 140 cm / 28W Dali 4.650 lm 3000K >90º >90 167 lm/W
Line E Ip54 3000K LNEIA14D39AWS Satin White LED 140 cm / 28W Dali 4.650 lm 3000K >90º >90 167 lm/W
Line E Ip54 3000K LNEIA14D39CBS Satin Black LED 140 cm / 28W Dali 4.650 lm 3000K >90º >90 167 lm/W
Line E Ip54 3000K LNEIA14D39CWS Satin White LED 140 cm / 28W Dali 4.650 lm 3000K >90º >90 167 lm/W
Line E Ip54 4000K LNEIA14D49ABS Satin Black LED 140 cm / 28W Dali 4.998 lm 4000K >90º >90 179 lm/W
Line E Ip54 4000K LNEIA14D49AWS Satin White LED 140 cm / 28W Dali 4.998 lm 4000K >90º >90 179 lm/W
Line E Ip54 4000K LNEIA14D49CBS Satin Black LED 140 cm / 28W Dali 4.998 lm 4000K >90º >90 179 lm/W
Line E Ip54 4000K LNEIA14D49CWS Satin White LED 140 cm / 28W Dali 4.998 lm 4000K >90º >90 179 lm/W
Line E Ip54 3000K LNEIA14N39ABS Satin Black LED 140 cm / 28W No Dimmable 4.650 lm 3000K >90º >90 167 lm/W
Line E Ip54 3000K LNEIA14N39AWS Satin White LED 140 cm / 28W No Dimmable 4.650 lm 3000K >90º >90 167 lm/W
Line E Ip54 3000K LNEIA14N39CBS Satin Black LED 140 cm / 28W No Dimmable 4.650 lm 3000K >90º >90 167 lm/W
Line E Ip54 3000K LNEIA14N39CWS Satin White LED 140 cm / 28W No Dimmable 4.650 lm 3000K >90º >90 167 lm/W
Line E Ip54 4000K LNEIA14N49ABS Satin Black LED 140 cm / 28W No Dimmable 4.998 lm 4000K >90º >90 179 lm/W
Line E Ip54 4000K LNEIA14N49AWS Satin White LED 140 cm / 28W No Dimmable 4.998 lm 4000K >90º >90 179 lm/W
Line E Ip54 4000K LNEIA14N49CBS Satin Black LED 140 cm / 28W No Dimmable 4.998 lm 4000K >90º >90 179 lm/W
Line E Ip54 4000K LNEIA14N49CWS Satin White LED 140 cm / 28W No Dimmable 4.998 lm 4000K >90º >90 179 lm/W
