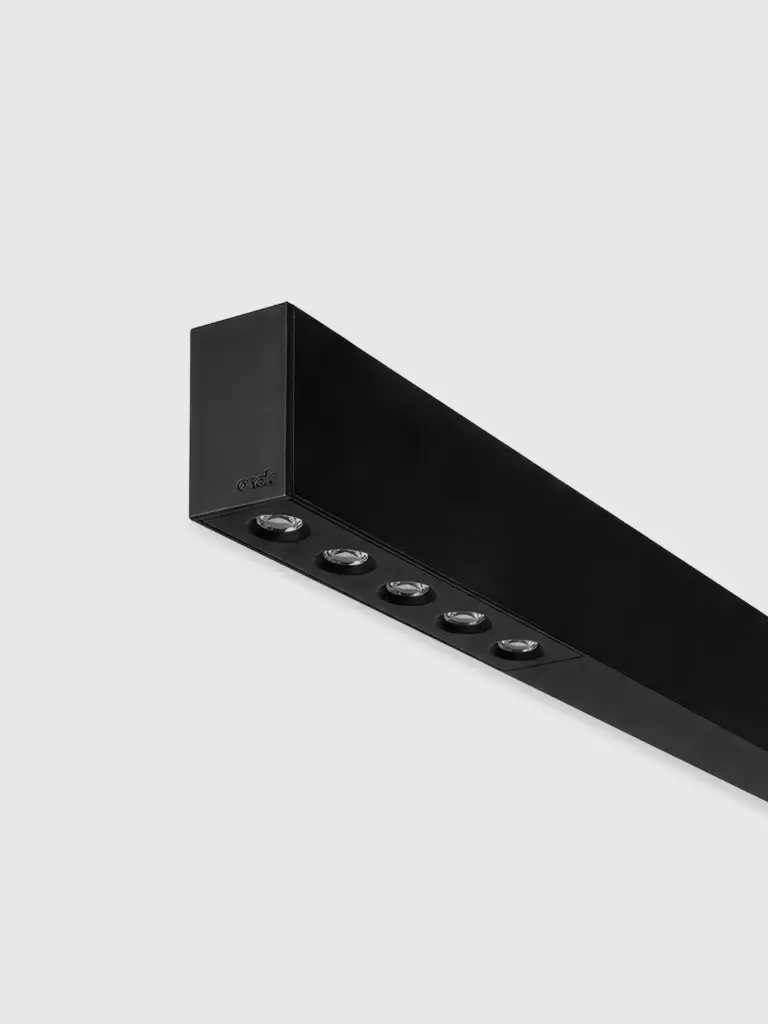

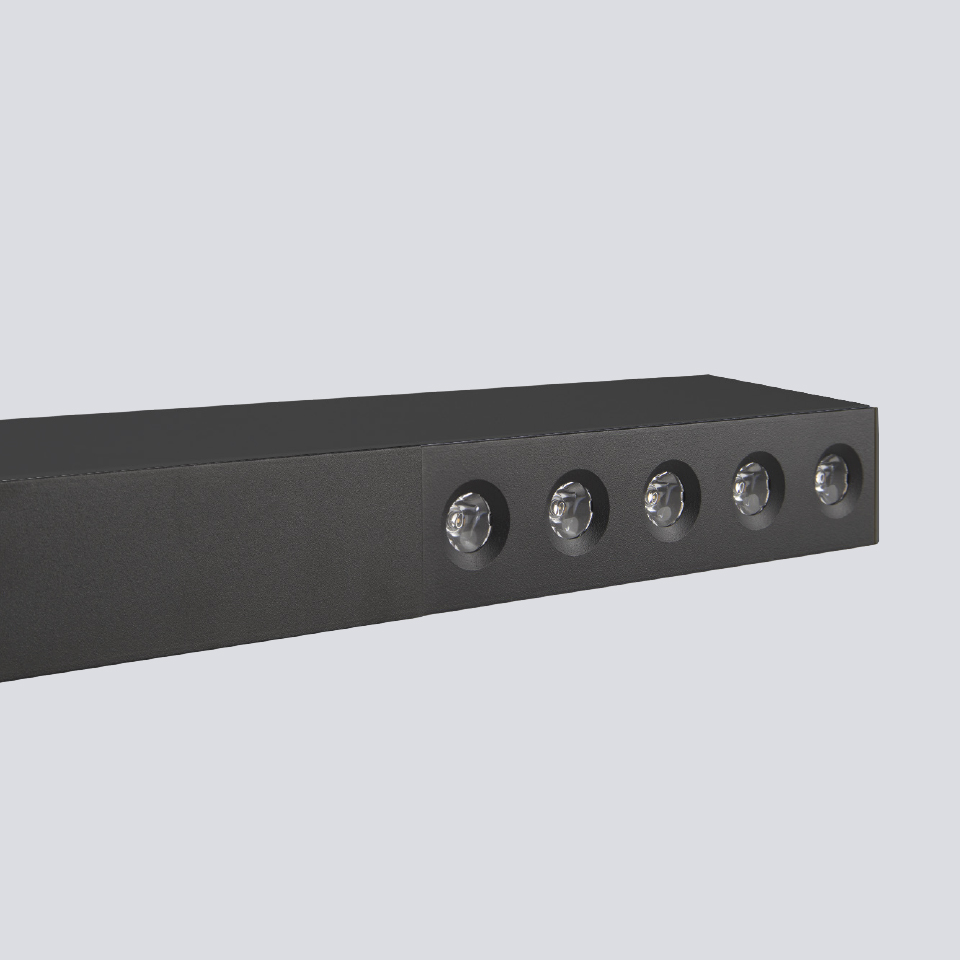

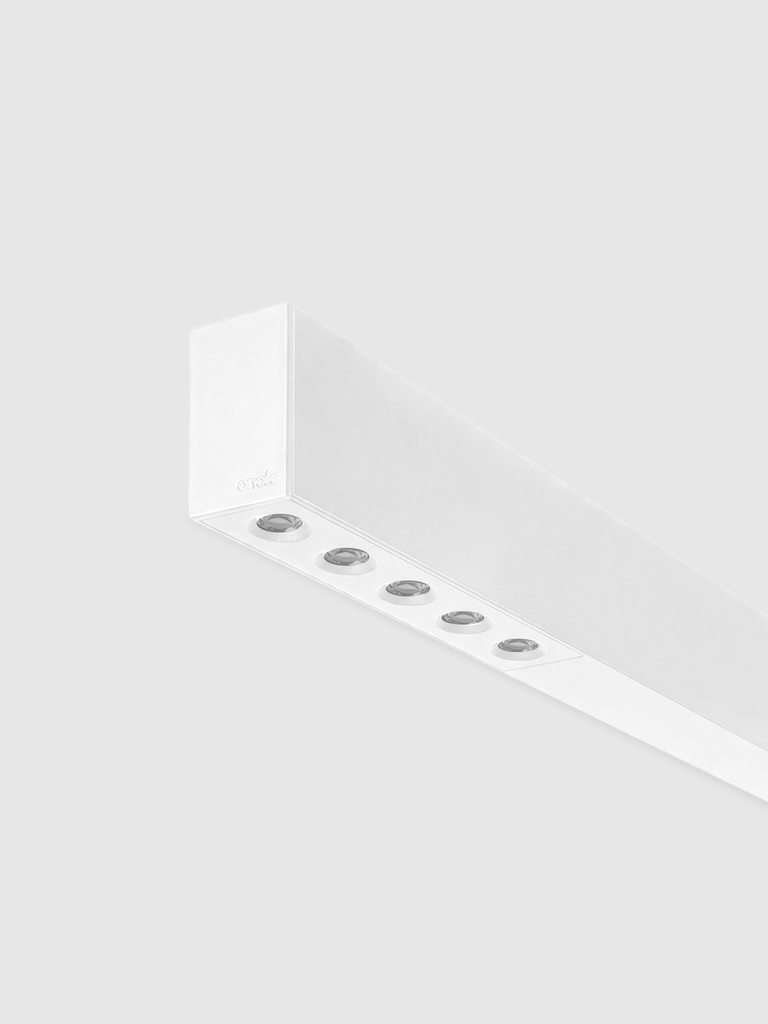

Linear profile with two high-performance modules. Beam angle, colour temperature and finish configurable.

  • Socket
  • Output
  • Control
  • Colour Temperature
  • Beam Angle
  • Installation
  • Finish

This combination does not exist.

Contact Us
Adot Adot
Installation Instructions Technical Datasheet CE Declaration General Guarantee Conditions Extended Guarantee Conditions LED Efficiency Label ADOT - LDT files
Technical drawing
LED flux—
LED power consumption—
Luminous efficiency—
CRI—
Driver LED—
Light temperature—
Beam angle—
IP protection—
Adot
Adot
Modelo Ref. Color Fuente Potencia Regulación Flujo lum. Temp. Ángulo CRI Eficiencia
Adot 2700K ADT5A05D21PBS Satin Black LED 5P / 20W Dali 2.000 lm 2700K 19º >90 100 lm/W
Adot 2700K ADT5A05D21PWB White - black LED 5P / 20W Dali 2.000 lm 2700K 19º >90 100 lm/W
Adot 2700K ADT5A05D21SBS Satin Black LED 5P / 20W Dali 2.000 lm 2700K 19º >90 100 lm/W
Adot 2700K ADT5A05D21SWB White - black LED 5P / 20W Dali 2.000 lm 2700K 19º >90 100 lm/W
Adot 2700K ADT5A05D21TBS Satin Black LED 5P / 20W Dali 2.000 lm 2700K 19º >90 100 lm/W
Adot 2700K ADT5A05D21TWB White - black LED 5P / 20W Dali 2.000 lm 2700K 19º >90 100 lm/W
Adot 2700K ADT5A05D23PBS Satin Black LED 5P / 20W Dali 2.000 lm 2700K 30º >90 100 lm/W
Adot 2700K ADT5A05D23PWB White - black LED 5P / 20W Dali 2.000 lm 2700K 30º >90 100 lm/W
Adot 2700K ADT5A05D23SBS Satin Black LED 5P / 20W Dali 2.000 lm 2700K 30º >90 100 lm/W
Adot 2700K ADT5A05D23SWB White - black LED 5P / 20W Dali 2.000 lm 2700K 30º >90 100 lm/W
Adot 2700K ADT5A05D23TBS Satin Black LED 5P / 20W Dali 2.000 lm 2700K 30º >90 100 lm/W
Adot 2700K ADT5A05D23TWB White - black LED 5P / 20W Dali 2.000 lm 2700K 30º >90 100 lm/W
Adot 3000K ADT5A05D31PBS Satin Black LED 5P / 20W Dali 2.158 lm 3000K 19º >90 108 lm/W
Adot 3000K ADT5A05D31PWB White - black LED 5P / 20W Dali 2.158 lm 3000K 19º >90 108 lm/W
Adot 3000K ADT5A05D31SBS Satin Black LED 5P / 20W Dali 2.158 lm 3000K 19º >90 108 lm/W
Adot 3000K ADT5A05D31SWB White - black LED 5P / 20W Dali 2.158 lm 3000K 19º >90 108 lm/W
Adot 3000K ADT5A05D31TBS Satin Black LED 5P / 20W Dali 2.158 lm 3000K 19º >90 108 lm/W
Adot 3000K ADT5A05D31TWB White - black LED 5P / 20W Dali 2.158 lm 3000K 19º >90 108 lm/W
Adot 3000K ADT5A05D33PBS Satin Black LED 5P / 20W Dali 2.158 lm 3000K 30º >90 108 lm/W
Adot 3000K ADT5A05D33PWB White - black LED 5P / 20W Dali 2.158 lm 3000K 30º >90 108 lm/W
Adot 3000K ADT5A05D33SBS Satin Black LED 5P / 20W Dali 2.158 lm 3000K 30º >90 108 lm/W
Adot 3000K ADT5A05D33SWB White - black LED 5P / 20W Dali 2.158 lm 3000K 30º >90 108 lm/W
Adot 3000K ADT5A05D33TBS Satin Black LED 5P / 20W Dali 2.158 lm 3000K 30º >90 108 lm/W
Adot 3000K ADT5A05D33TWB White - black LED 5P / 20W Dali 2.158 lm 3000K 30º >90 108 lm/W
Adot 4000K ADT5A05D41PBS Satin Black LED 5P / 20W Dali 2.310 lm 4000K 19º >90 116 lm/W
Adot 4000K ADT5A05D41PWB White - black LED 5P / 20W Dali 2.310 lm 4000K 19º >90 116 lm/W
Adot 4000K ADT5A05D41SBS Satin Black LED 5P / 20W Dali 2.310 lm 4000K 19º >90 116 lm/W
Adot 4000K ADT5A05D41SWB White - black LED 5P / 20W Dali 2.310 lm 4000K 19º >90 116 lm/W
Adot 4000K ADT5A05D41TBS Satin Black LED 5P / 20W Dali 2.310 lm 4000K 19º >90 116 lm/W
Adot 4000K ADT5A05D41TWB White - black LED 5P / 20W Dali 2.310 lm 4000K 19º >90 116 lm/W
Adot 4000K ADT5A05D43PBS Satin Black LED 5P / 20W Dali 2.310 lm 4000K 30º >90 116 lm/W
Adot 4000K ADT5A05D43PWB White - black LED 5P / 20W Dali 2.310 lm 4000K 30º >90 116 lm/W
Adot 4000K ADT5A05D43SBS Satin Black LED 5P / 20W Dali 2.310 lm 4000K 30º >90 116 lm/W
Adot 4000K ADT5A05D43SWB White - black LED 5P / 20W Dali 2.310 lm 4000K 30º >90 116 lm/W
Adot 4000K ADT5A05D43TBS Satin Black LED 5P / 20W Dali 2.310 lm 4000K 30º >90 116 lm/W
Adot 4000K ADT5A05D43TWB White - black LED 5P / 20W Dali 2.310 lm 4000K 30º >90 116 lm/W
Adot 2700K ADT5A05N21PBS Satin Black LED 5P / 20W No Dimmable 2.000 lm 2700K 19º >90 100 lm/W
Adot 2700K ADT5A05N21PWB White - black LED 5P / 20W No Dimmable 2.000 lm 2700K 19º >90 100 lm/W
Adot 2700K ADT5A05N21SBS Satin Black LED 5P / 20W No Dimmable 2.000 lm 2700K 19º >90 100 lm/W
Adot 2700K ADT5A05N21SWB White - black LED 5P / 20W No Dimmable 2.000 lm 2700K 19º >90 100 lm/W
Adot 2700K ADT5A05N21TBS Satin Black LED 5P / 20W No Dimmable 2.000 lm 2700K 19º >90 100 lm/W
Adot 2700K ADT5A05N21TWB White - black LED 5P / 20W No Dimmable 2.000 lm 2700K 19º >90 100 lm/W
Adot 2700K ADT5A05N23PBS Satin Black LED 5P / 20W No Dimmable 2.000 lm 2700K 30º >90 100 lm/W
Adot 2700K ADT5A05N23PWB White - black LED 5P / 20W No Dimmable 2.000 lm 2700K 30º >90 100 lm/W
Adot 2700K ADT5A05N23SBS Satin Black LED 5P / 20W No Dimmable 2.000 lm 2700K 30º >90 100 lm/W
Adot 2700K ADT5A05N23SWB White - black LED 5P / 20W No Dimmable 2.000 lm 2700K 30º >90 100 lm/W
Adot 2700K ADT5A05N23TBS Satin Black LED 5P / 20W No Dimmable 2.000 lm 2700K 30º >90 100 lm/W
Adot 2700K ADT5A05N23TWB White - black LED 5P / 20W No Dimmable 2.000 lm 2700K 30º >90 100 lm/W
Adot 3000K ADT5A05N31PBS Satin Black LED 5P / 20W No Dimmable 2.158 lm 3000K 19º >90 108 lm/W
Adot 3000K ADT5A05N31PWB White - black LED 5P / 20W No Dimmable 2.158 lm 3000K 19º >90 108 lm/W
Adot 3000K ADT5A05N31SBS Satin Black LED 5P / 20W No Dimmable 2.158 lm 3000K 19º >90 108 lm/W
Adot 3000K ADT5A05N31SWB White - black LED 5P / 20W No Dimmable 2.158 lm 3000K 19º >90 108 lm/W
Adot 3000K ADT5A05N31TBS Satin Black LED 5P / 20W No Dimmable 2.158 lm 3000K 19º >90 108 lm/W
Adot 3000K ADT5A05N31TWB White - black LED 5P / 20W No Dimmable 2.158 lm 3000K 19º >90 108 lm/W
Adot 3000K ADT5A05N33PBS Satin Black LED 5P / 20W No Dimmable 2.158 lm 3000K 30º >90 108 lm/W
Adot 3000K ADT5A05N33PWB White - black LED 5P / 20W No Dimmable 2.158 lm 3000K 30º >90 108 lm/W
Adot 3000K ADT5A05N33SBS Satin Black LED 5P / 20W No Dimmable 2.158 lm 3000K 30º >90 108 lm/W
Adot 3000K ADT5A05N33SWB White - black LED 5P / 20W No Dimmable 2.158 lm 3000K 30º >90 108 lm/W
Adot 3000K ADT5A05N33TBS Satin Black LED 5P / 20W No Dimmable 2.158 lm 3000K 30º >90 108 lm/W
Adot 3000K ADT5A05N33TWB White - black LED 5P / 20W No Dimmable 2.158 lm 3000K 30º >90 108 lm/W
Adot 4000K ADT5A05N41PBS Satin Black LED 5P / 20W No Dimmable 2.310 lm 4000K 19º >90 116 lm/W
Adot 4000K ADT5A05N41PWB White - black LED 5P / 20W No Dimmable 2.310 lm 4000K 19º >90 116 lm/W
Adot 4000K ADT5A05N41SBS Satin Black LED 5P / 20W No Dimmable 2.310 lm 4000K 19º >90 116 lm/W
Adot 4000K ADT5A05N41SWB White - black LED 5P / 20W No Dimmable 2.310 lm 4000K 19º >90 116 lm/W
Adot 4000K ADT5A05N41TBS Satin Black LED 5P / 20W No Dimmable 2.310 lm 4000K 19º >90 116 lm/W
Adot 4000K ADT5A05N41TWB White - black LED 5P / 20W No Dimmable 2.310 lm 4000K 19º >90 116 lm/W
Adot 4000K ADT5A05N43PBS Satin Black LED 5P / 20W No Dimmable 2.310 lm 4000K 30º >90 116 lm/W
Adot 4000K ADT5A05N43PWB White - black LED 5P / 20W No Dimmable 2.310 lm 4000K 30º >90 116 lm/W
Adot 4000K ADT5A05N43SBS Satin Black LED 5P / 20W No Dimmable 2.310 lm 4000K 30º >90 116 lm/W
Adot 4000K ADT5A05N43SWB White - black LED 5P / 20W No Dimmable 2.310 lm 4000K 30º >90 116 lm/W
Adot 4000K ADT5A05N43TBS Satin Black LED 5P / 20W No Dimmable 2.310 lm 4000K 30º >90 116 lm/W
Adot 4000K ADT5A05N43TWB White - black LED 5P / 20W No Dimmable 2.310 lm 4000K 30º >90 116 lm/W
