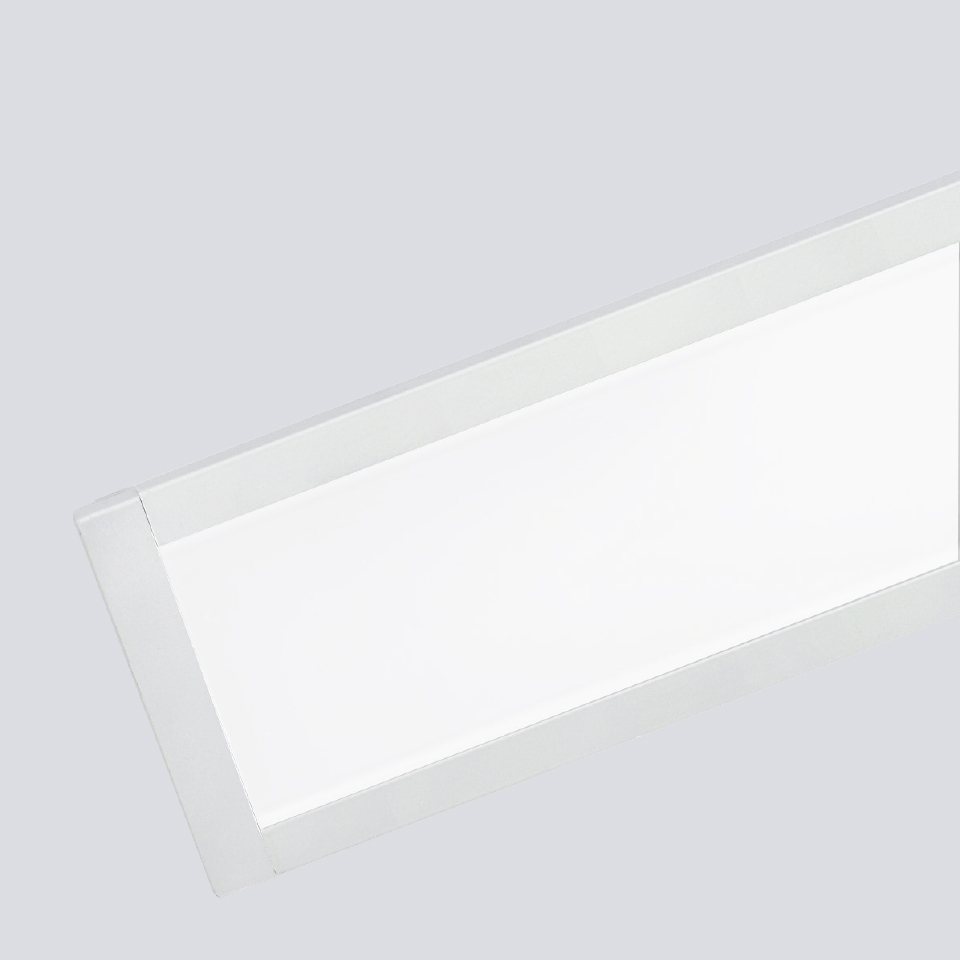

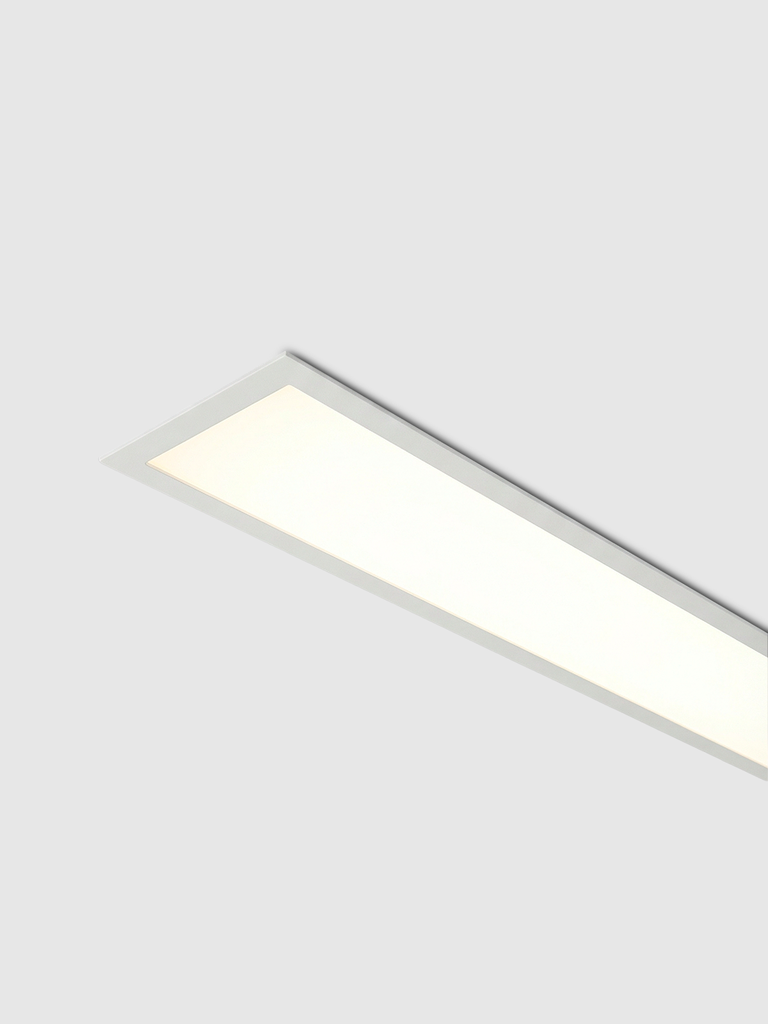

Line E
Line E
Line E

Line E

https://onoklighting.com/web/image/product.template/8377/image_1920?unique=5aa7ef1

Continuous linear profile with extended lengths and minimised joints. Microprismatic PMMA diffuser for low UGR and visual uniformity

  • Socket
  • Output
  • Control
  • Colour Temperature
  • Beam Angle
  • Complements
  • Finish

This combination does not exist.

Contact Us
Line E Line E
Technical Datasheet LED Efficiency Label CE Declaration Installation Instructions Extended Guarantee Conditions General Guarantee Conditions Line System Catalogue LED technical datasheet TW LED technical datasheet Driver 21W technical datasheet Driver 42W technical datasheet Test report certificate Test report LINE E - LDT files
Technical drawing
LED flux—
LED power consumption—
Luminous efficiency—
CRI—
Driver LED—
Light temperature—
Beam angle—
IP protection—
Line E
Line E
Modelo Ref. Color Fuente Potencia Regulación Flujo lum. Temp. Ángulo CRI Eficiencia
Line E 2700K LNXEA11D29ABS Satin Black LED 112 cm / 22W Dali 3.810 lm 2700K >90º >90 163 lm/W
Line E 2700K LNXEA11D29AWS Satin White LED 112 cm / 22W Dali — 2700K >90º >90 —
Line E 2700K LNXEA11D29CBS Satin Black LED 112 cm / 22W Dali 3.810 lm 2700K >90º >90 163 lm/W
Line E 2700K LNXEA11D29CWS Satin White LED 112 cm / 22W Dali — 2700K >90º >90 —
Line E 3000K LNXEA11D39ABS Satin Black LED 112 cm / 22W Dali 3.920 lm 3000K >90º >90 168 lm/W
Line E 3000K LNXEA11D39AWS Satin White LED 112 cm / 22W Dali 3.920 lm 3000K >90º >90 168 lm/W
Line E 3000K LNXEA11D39CBS Satin Black LED 112 cm / 22W Dali 3.920 lm 3000K >90º >90 168 lm/W
Line E 3000K LNXEA11D39CWS Satin White LED 112 cm / 22W Dali 3.920 lm 3000K >90º >90 168 lm/W
Line E 4000K LNXEA11D49ABS Satin Black LED 112 cm / 22W Dali 4.140 lm 4000K >90º >90 178 lm/W
Line E 4000K LNXEA11D49AWS Satin White LED 112 cm / 22W Dali 4.140 lm 4000K >90º >90 178 lm/W
Line E 4000K LNXEA11D49CBS Satin Black LED 112 cm / 22W Dali 4.140 lm 4000K >90º >90 178 lm/W
Line E 4000K LNXEA11D49CWS Satin White LED 112 cm / 22W Dali 4.140 lm 4000K >90º >90 178 lm/W
Line E TUNABLE WHITE LNXEA11D89ABS Satin Black LED 112 cm / 22W Dali TW — TUNABLE WHITE >90º >90 —
Line E TUNABLE WHITE LNXEA11D89AWS Satin White LED 112 cm / 22W Dali TW — TUNABLE WHITE >90º >90 —
Line E TUNABLE WHITE LNXEA11D89CBS Satin Black LED 112 cm / 22W Dali TW — TUNABLE WHITE >90º >90 —
Line E TUNABLE WHITE LNXEA11D89CWS Satin White LED 112 cm / 22W Dali TW — TUNABLE WHITE >90º >90 —
Line E 2700K LNXEA11N29ABS Satin Black LED 112 cm / 22W No Dimmable 3.810 lm 2700K >90º >90 163 lm/W
Line E 2700K LNXEA11N29AWS Satin White LED 112 cm / 22W No Dimmable — 2700K >90º >90 —
Line E 2700K LNXEA11N29CBS Satin Black LED 112 cm / 22W No Dimmable 3.810 lm 2700K >90º >90 163 lm/W
Line E 2700K LNXEA11N29CWS Satin White LED 112 cm / 22W No Dimmable — 2700K >90º >90 —
Line E 3000K LNXEA11N39ABS Satin Black LED 112 cm / 22W No Dimmable 3.920 lm 3000K >90º >90 168 lm/W
Line E 3000K LNXEA11N39AWS Satin White LED 112 cm / 22W No Dimmable 3.920 lm 3000K >90º >90 168 lm/W
Line E 3000K LNXEA11N39CBS Satin Black LED 112 cm / 22W No Dimmable 3.920 lm 3000K >90º >90 168 lm/W
Line E 3000K LNXEA11N39CWS Satin White LED 112 cm / 22W No Dimmable 3.920 lm 3000K >90º >90 168 lm/W
Line E 4000K LNXEA11N49ABS Satin Black LED 112 cm / 22W No Dimmable 4.140 lm 4000K >90º >90 178 lm/W
Line E 4000K LNXEA11N49AWS Satin White LED 112 cm / 22W No Dimmable 4.140 lm 4000K >90º >90 178 lm/W
Line E 4000K LNXEA11N49CBS Satin Black LED 112 cm / 22W No Dimmable 4.140 lm 4000K >90º >90 178 lm/W
Line E 4000K LNXEA11N49CWS Satin White LED 112 cm / 22W No Dimmable 4.140 lm 4000K >90º >90 178 lm/W
Line E 2700K LNXEA14D29ABS Satin Black LED 140 cm / 28W Dali 4.760 lm 2700K >90º >90 163 lm/W
Line E 2700K LNXEA14D29AWS Satin White LED 140 cm / 28W Dali — 2700K >90º >90 —
Line E 2700K LNXEA14D29CBS Satin Black LED 140 cm / 28W Dali 4.760 lm 2700K >90º >90 163 lm/W
Line E 2700K LNXEA14D29CWS Satin White LED 140 cm / 28W Dali — 2700K >90º >90 —
Line E 3000K LNXEA14D39ABS Satin Black LED 140 cm / 28W Dali 4.900 lm 3000K >90º >90 168 lm/W
Line E 3000K LNXEA14D39AWS Satin White LED 140 cm / 28W Dali 4.900 lm 3000K >90º >90 168 lm/W
Line E 3000K LNXEA14D39CBS Satin Black LED 140 cm / 28W Dali 4.900 lm 3000K >90º >90 168 lm/W
Line E 3000K LNXEA14D39CWS Satin White LED 140 cm / 28W Dali — 3000K >90º >90 —
Line E 4000K LNXEA14D49ABS Satin Black LED 140 cm / 28W Dali 5.175 lm 4000K >90º >90 178 lm/W
Line E 4000K LNXEA14D49AWS Satin White LED 140 cm / 28W Dali 5.175 lm 4000K >90º >90 178 lm/W
Line E 4000K LNXEA14D49CBS Satin Black LED 140 cm / 28W Dali 5.175 lm 4000K >90º >90 178 lm/W
Line E 4000K LNXEA14D49CWS Satin White LED 140 cm / 28W Dali 5.175 lm 4000K >90º >90 178 lm/W
Line E TUNABLE WHITE LNXEA14D89ABS Satin Black LED 140 cm / 28W Dali TW — TUNABLE WHITE >90º >90 —
Line E TUNABLE WHITE LNXEA14D89AWS Satin White LED 140 cm / 28W Dali TW — TUNABLE WHITE >90º >90 —
Line E TUNABLE WHITE LNXEA14D89CBS Satin Black LED 140 cm / 28W Dali TW — TUNABLE WHITE >90º >90 —
Line E TUNABLE WHITE LNXEA14D89CWS Satin White LED 140 cm / 28W Dali TW — TUNABLE WHITE >90º >90 —
Line E 2700K LNXEA14N29ABS Satin Black LED 140 cm / 28W No Dimmable 4.140 lm 2700K >90º >90 163 lm/W
Line E 2700K LNXEA14N29AWS Satin White LED 140 cm / 28W No Dimmable — 2700K >90º >90 —
Line E 2700K LNXEA14N29CBS Satin Black LED 140 cm / 28W No Dimmable 4.140 lm 2700K >90º >90 163 lm/W
Line E 2700K LNXEA14N29CWS Satin White LED 140 cm / 28W No Dimmable — 2700K >90º >90 —
Line E 3000K LNXEA14N39ABS Satin Black LED 140 cm / 28W No Dimmable 4.900 lm 3000K >90º >90 168 lm/W
Line E 3000K LNXEA14N39AWS Satin White LED 140 cm / 28W No Dimmable 4.900 lm 3000K >90º >90 168 lm/W
Line E 3000K LNXEA14N39CBS Satin Black LED 140 cm / 28W No Dimmable 4.900 lm 3000K >90º >90 168 lm/W
Line E 3000K LNXEA14N39CWS Satin White LED 140 cm / 28W No Dimmable 4.900 lm 3000K >90º >90 168 lm/W
Line E 4000K LNXEA14N49ABS Satin Black LED 140 cm / 28W No Dimmable 5.175 lm 4000K >90º >90 178 lm/W
Line E 4000K LNXEA14N49AWS Satin White LED 140 cm / 28W No Dimmable 5.175 lm 4000K >90º >90 178 lm/W
Line E 4000K LNXEA14N49CBS Satin Black LED 140 cm / 28W No Dimmable 5.175 lm 4000K >90º >90 178 lm/W
Line E 4000K LNXEA14N49CWS Satin White LED 140 cm / 28W No Dimmable 5.175 lm 4000K >90º >90 178 lm/W
Line E 2700K LNXEA18D29ABS Satin Black LED 182 cm / 36W Dali 6.190 lm 2700K >90º >90 163 lm/W
Line E 2700K LNXEA18D29AWS Satin White LED 182 cm / 36W Dali — 2700K >90º >90 —
Line E 2700K LNXEA18D29CBS Satin Black LED 182 cm / 36W Dali 6.190 lm 2700K >90º >90 163 lm/W
Line E 2700K LNXEA18D29CWS Satin White LED 182 cm / 36W Dali — 2700K >90º >90 —
Line E 3000K LNXEA18D39ABS Satin Black LED 182 cm / 36W Dali 6.370 lm 3000K >90º >90 168 lm/W
Line E 3000K LNXEA18D39AWS Satin White LED 182 cm / 36W Dali 6.370 lm 3000K >90º >90 168 lm/W
Line E 3000K LNXEA18D39CBS Satin Black LED 182 cm / 36W Dali 6.370 lm 3000K >90º >90 168 lm/W
Line E 3000K LNXEA18D39CWS Satin White LED 182 cm / 36W Dali 6.370 lm 3000K >90º >90 168 lm/W
Line E 4000K LNXEA18D49ABS Satin Black LED 182 cm / 36W Dali 6.730 lm 4000K >90º >90 178 lm/W
Line E 4000K LNXEA18D49AWS Satin White LED 182 cm / 36W Dali 6.730 lm 4000K >90º >90 178 lm/W
Line E 4000K LNXEA18D49CBS Satin Black LED 182 cm / 36W Dali 6.730 lm 4000K >90º >90 178 lm/W
Line E 4000K LNXEA18D49CWS Satin White LED 182 cm / 36W Dali 6.730 lm 4000K >90º >90 178 lm/W
Line E 2700K LNXEA18N29ABS Satin Black LED 182 cm / 36W No Dimmable 5.175 lm 2700K >90º >90 163 lm/W
Line E 2700K LNXEA18N29AWS Satin White LED 182 cm / 36W No Dimmable — 2700K >90º >90 —
Line E 2700K LNXEA18N29CBS Satin Black LED 182 cm / 36W No Dimmable 5.175 lm 2700K >90º >90 163 lm/W
Line E 2700K LNXEA18N29CWS Satin White LED 182 cm / 36W No Dimmable — 2700K >90º >90 —
Line E 3000K LNXEA18N39ABS Satin Black LED 182 cm / 36W No Dimmable 6.370 lm 3000K >90º >90 168 lm/W
Line E 3000K LNXEA18N39AWS Satin White LED 182 cm / 36W No Dimmable 6.370 lm 3000K >90º >90 168 lm/W
Line E 3000K LNXEA18N39CBS Satin Black LED 182 cm / 36W No Dimmable 6.370 lm 3000K >90º >90 168 lm/W
Line E 3000K LNXEA18N39CWS Satin White LED 182 cm / 36W No Dimmable 6.370 lm 3000K >90º >90 168 lm/W
Line E 4000K LNXEA18N49ABS Satin Black LED 182 cm / 36W No Dimmable 6.730 lm 4000K >90º >90 178 lm/W
Line E 4000K LNXEA18N49AWS Satin White LED 182 cm / 36W No Dimmable 6.730 lm 4000K >90º >90 178 lm/W
Line E 4000K LNXEA18N49CBS Satin Black LED 182 cm / 36W No Dimmable 6.730 lm 4000K >90º >90 178 lm/W
Line E 4000K LNXEA18N49CWS Satin White LED 182 cm / 36W No Dimmable 6.730 lm 4000K >90º >90 178 lm/W
Line E 2700K LNXEA22D29ABS Satin Black LED 224 cm / 45W Dali 7.620 lm 2700K >90º >90 163 lm/W
Line E 2700K LNXEA22D29AWS Satin White LED 224 cm / 45W Dali — 2700K >90º >90 —
Line E 2700K LNXEA22D29CBS Satin Black LED 224 cm / 45W Dali 7.620 lm 2700K >90º >90 163 lm/W
Line E 2700K LNXEA22D29CWS Satin White LED 224 cm / 45W Dali — 2700K >90º >90 —
Line E 3000K LNXEA22D39ABS Satin Black LED 224 cm / 45W Dali 7.840 lm 3000K >90º >90 168 lm/W
Line E 3000K LNXEA22D39AWS Satin White LED 224 cm / 45W Dali 7.840 lm 3000K >90º >90 168 lm/W
Line E 3000K LNXEA22D39CBS Satin Black LED 224 cm / 45W Dali 7.840 lm 3000K >90º >90 168 lm/W
Line E 3000K LNXEA22D39CWS Satin White LED 224 cm / 45W Dali — 3000K >90º >90 —
Line E 4000K LNXEA22D49ABS Satin Black LED 224 cm / 45W Dali 8.280 lm 4000K >90º >90 178 lm/W
Line E 4000K LNXEA22D49AWS Satin White LED 224 cm / 45W Dali 8.280 lm 4000K >90º >90 178 lm/W
Line E 4000K LNXEA22D49CBS Satin Black LED 224 cm / 45W Dali 8.280 lm 4000K >90º >90 178 lm/W
Line E 4000K LNXEA22D49CWS Satin White LED 224 cm / 45W Dali 8.280 lm 4000K >90º >90 178 lm/W
Line E TUNABLE WHITE LNXEA22D89ABS Satin Black LED 224 cm / 45W Dali TW — TUNABLE WHITE >90º >90 —
Line E TUNABLE WHITE LNXEA22D89AWS Satin White LED 224 cm / 45W Dali TW — TUNABLE WHITE >90º >90 —
Line E TUNABLE WHITE LNXEA22D89CBS Satin Black LED 224 cm / 45W Dali TW — TUNABLE WHITE >90º >90 —
Line E TUNABLE WHITE LNXEA22D89CWS Satin White LED 224 cm / 45W Dali TW — TUNABLE WHITE >90º >90 —
Line E 2700K LNXEA22N29ABS Satin Black LED 224 cm / 45W No Dimmable 7.620 lm 2700K >90º >90 163 lm/W
Line E 2700K LNXEA22N29AWS Satin White LED 224 cm / 45W No Dimmable — 2700K >90º >90 —
Line E 2700K LNXEA22N29CBS Satin Black LED 224 cm / 45W No Dimmable 7.620 lm 2700K >90º >90 163 lm/W
Line E 2700K LNXEA22N29CWS Satin White LED 224 cm / 45W No Dimmable — 2700K >90º >90 —
Line E 3000K LNXEA22N39ABS Satin Black LED 224 cm / 45W No Dimmable 7.840 lm 3000K >90º >90 168 lm/W
Line E 3000K LNXEA22N39AWS Satin White LED 224 cm / 45W No Dimmable 7.840 lm 3000K >90º >90 168 lm/W
Line E 3000K LNXEA22N39CBS Satin Black LED 224 cm / 45W No Dimmable 7.840 lm 3000K >90º >90 168 lm/W
Line E 3000K LNXEA22N39CWS Satin White LED 224 cm / 45W No Dimmable — 3000K >90º >90 —
Line E 4000K LNXEA22N49ABS Satin Black LED 224 cm / 45W No Dimmable 8.820 lm 4000K >90º >90 178 lm/W
Line E 4000K LNXEA22N49AWS Satin White LED 224 cm / 45W No Dimmable 8.820 lm 4000K >90º >90 178 lm/W
Line E 4000K LNXEA22N49CBS Satin Black LED 224 cm / 45W No Dimmable 8.820 lm 4000K >90º >90 178 lm/W
Line E 4000K LNXEA22N49CWS Satin White LED 224 cm / 45W No Dimmable 8.820 lm 4000K >90º >90 178 lm/W
Line E 2700K LNXEA28D29ABS Satin Black LED 281 cm / 56W Dali 9.520 lm 2700K >90º >90 163 lm/W
Line E 2700K LNXEA28D29AWS Satin White LED 281 cm / 56W Dali — 2700K >90º >90 —
Line E 2700K LNXEA28D29CBS Satin Black LED 281 cm / 56W Dali 9.520 lm 2700K >90º >90 163 lm/W
Line E 2700K LNXEA28D29CWS Satin White LED 281 cm / 56W Dali — 2700K >90º >90 —
Line E 3000K LNXEA28D39ABS Satin Black LED 281 cm / 56W Dali 9.800 lm 3000K >90º >90 168 lm/W
Line E 3000K LNXEA28D39AWS Satin White LED 281 cm / 56W Dali 9.800 lm 3000K >90º >90 168 lm/W
Line E 3000K LNXEA28D39CBS Satin Black LED 281 cm / 56W Dali 9.800 lm 3000K >90º >90 168 lm/W
Line E 3000K LNXEA28D39CWS Satin White LED 281 cm / 56W Dali 9.800 lm 3000K >90º >90 168 lm/W
Line E 4000K LNXEA28D49ABS Satin Black LED 281 cm / 56W Dali 10.350 lm 4000K >90º >90 178 lm/W
Line E 4000K LNXEA28D49AWS Satin White LED 281 cm / 56W Dali 10.350 lm 4000K >90º >90 178 lm/W
Line E 4000K LNXEA28D49CBS Satin Black LED 281 cm / 56W Dali 10.350 lm 4000K >90º >90 178 lm/W
Line E 4000K LNXEA28D49CWS Satin White LED 281 cm / 56W Dali 10.350 lm 4000K >90º >90 178 lm/W
Line E TUNABLE WHITE LNXEA28D89ABS Satin Black LED 281 cm / 56W Dali TW 8960 - 9296 lm TUNABLE WHITE >90º >90 160 - 166 lm/W
Line E TUNABLE WHITE LNXEA28D89AWS Satin White LED 281 cm / 56W Dali TW — TUNABLE WHITE >90º >90 —
Line E TUNABLE WHITE LNXEA28D89CBS Satin Black LED 281 cm / 56W Dali TW — TUNABLE WHITE >90º >90 —
Line E TUNABLE WHITE LNXEA28D89CWS Satin White LED 281 cm / 56W Dali TW — TUNABLE WHITE >90º >90 —
Line E 2700K LNXEA28N29ABS Satin Black LED 281 cm / 56W No Dimmable 9.520 lm 2700K >90º >90 163 lm/W
Line E 2700K LNXEA28N29AWS Satin White LED 281 cm / 56W No Dimmable — 2700K >90º >90 —
Line E 2700K LNXEA28N29CBS Satin Black LED 281 cm / 56W No Dimmable 9.520 lm 2700K >90º >90 163 lm/W
Line E 2700K LNXEA28N29CWS Satin White LED 281 cm / 56W No Dimmable — 2700K >90º >90 —
Line E 3000K LNXEA28N39ABS Satin Black LED 281 cm / 56W No Dimmable 9.800 lm 3000K >90º >90 168 lm/W
Line E 3000K LNXEA28N39AWS Satin White LED 281 cm / 56W No Dimmable 9.800 lm 3000K >90º >90 168 lm/W
Line E 3000K LNXEA28N39CBS Satin Black LED 281 cm / 56W No Dimmable 9.800 lm 3000K >90º >90 168 lm/W
Line E 3000K LNXEA28N39CWS Satin White LED 281 cm / 56W No Dimmable — 3000K >90º >90 —
Line E 4000K LNXEA28N49ABS Satin Black LED 281 cm / 56W No Dimmable 10.350 lm 4000K >90º >90 178 lm/W
Line E 4000K LNXEA28N49AWS Satin White LED 281 cm / 56W No Dimmable 10.350 lm 4000K >90º >90 178 lm/W
Line E 4000K LNXEA28N49CBS Satin Black LED 281 cm / 56W No Dimmable 10.350 lm 4000K >90º >90 178 lm/W
Line E 4000K LNXEA28N49CWS Satin White LED 281 cm / 56W No Dimmable 10.350 lm 4000K >90º >90 178 lm/W
Line E 2700K LNXEA70D29ABS Satin Black LED 70 cm / 14W Dali 2.380 lm 2700K >90º >90 163 lm/W
Line E 2700K LNXEA70D29AWS Satin White LED 70 cm / 14W Dali — 2700K >90º >90 —
Line E 2700K LNXEA70D29CBS Satin Black LED 70 cm / 14W Dali 2.380 lm 2700K >90º >90 163 lm/W
Line E 2700K LNXEA70D29CWS Satin White LED 70 cm / 14W Dali — 2700K >90º >90 —
Line E 3000K LNXEA70D39ABS Satin Black LED 70 cm / 14W Dali 2.450 lm 3000K >90º >90 168 lm/W
Line E 3000K LNXEA70D39AWS Satin White LED 70 cm / 14W Dali 2.450 lm 3000K >90º >90 168 lm/W
Line E 3000K LNXEA70D39CBS Satin Black LED 70 cm / 14W Dali 2.450 lm 3000K >90º >90 168 lm/W
Line E 3000K LNXEA70D39CWS Satin White LED 70 cm / 14W Dali — 3000K >90º >90 —
Line E 4000K LNXEA70D49ABS Satin Black LED 70 cm / 14W Dali 2.590 lm 4000K >90º >90 178 lm/W
Line E 4000K LNXEA70D49AWS Satin White LED 70 cm / 14W Dali 2.590 lm 4000K >90º >90 178 lm/W
Line E 4000K LNXEA70D49CBS Satin Black LED 70 cm / 14W Dali 2.590 lm 4000K >90º >90 178 lm/W
Line E 4000K LNXEA70D49CWS Satin White LED 70 cm / 14W Dali 2.590 lm 4000K >90º >90 178 lm/W
Line E 2700K LNXEA70N29ABS Satin Black LED 70 cm / 14W No Dimmable 2.380 lm 2700K >90º >90 163 lm/W
Line E 2700K LNXEA70N29AWS Satin White LED 70 cm / 14W No Dimmable — 2700K >90º >90 —
Line E 2700K LNXEA70N29CBS Satin Black LED 70 cm / 14W No Dimmable 2.380 lm 2700K >90º >90 163 lm/W
Line E 2700K LNXEA70N29CWS Satin White LED 70 cm / 14W No Dimmable — 2700K >90º >90 —
Line E 3000K LNXEA70N39ABS Satin Black LED 70 cm / 14W No Dimmable 2.450 lm 3000K >90º >90 168 lm/W
Line E 3000K LNXEA70N39AWS Satin White LED 70 cm / 14W No Dimmable 2.450 lm 3000K >90º >90 168 lm/W
Line E 3000K LNXEA70N39CBS Satin Black LED 70 cm / 14W No Dimmable 2.450 lm 3000K >90º >90 168 lm/W
Line E 3000K LNXEA70N39CWS Satin White LED 70 cm / 14W No Dimmable 2.450 lm 3000K >90º >90 168 lm/W
Line E 4000K LNXEA70N49ABS Satin Black LED 70 cm / 14W No Dimmable 2.590 lm 4000K >90º >90 178 lm/W
Line E 4000K LNXEA70N49AWS Satin White LED 70 cm / 14W No Dimmable 2.590 lm 4000K >90º >90 178 lm/W
Line E 4000K LNXEA70N49CBS Satin Black LED 70 cm / 14W No Dimmable 2.590 lm 4000K >90º >90 178 lm/W
Line E 4000K LNXEA70N49CWS Satin White LED 70 cm / 14W No Dimmable 2.590 lm 4000K >90º >90 178 lm/W

Related products

Interested in this product? Contact us

Need help?
