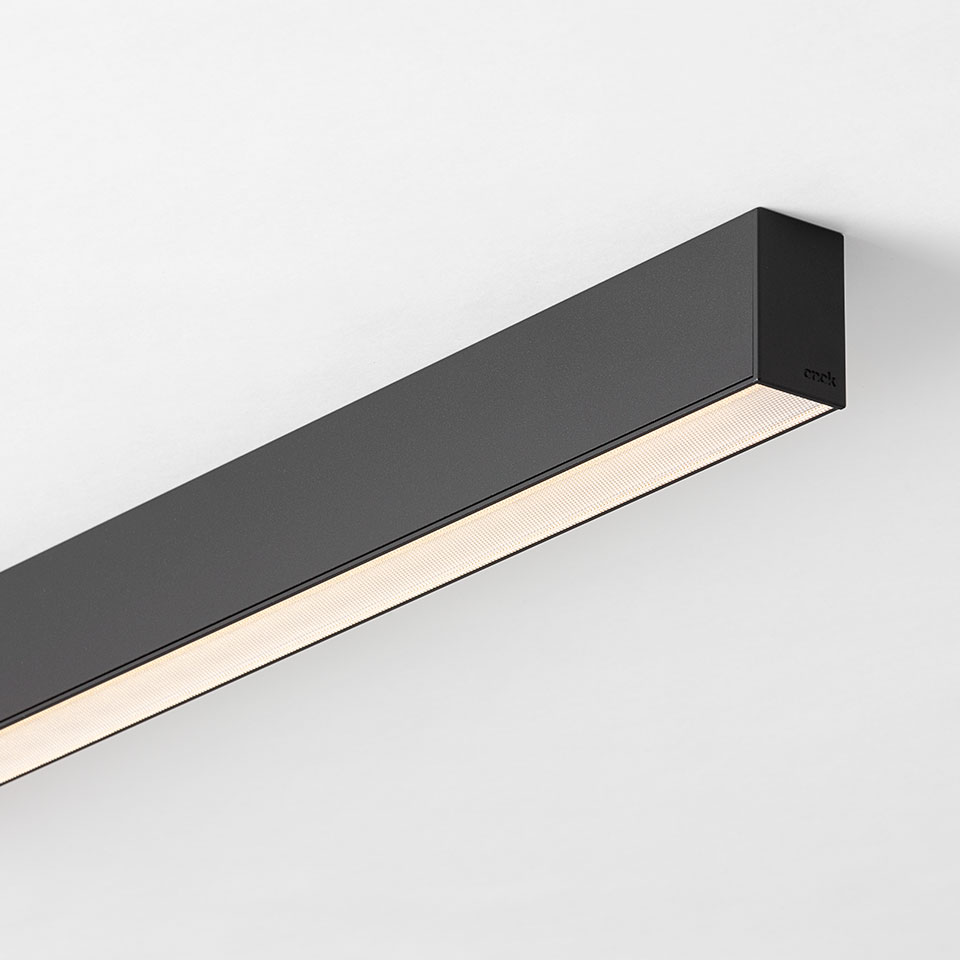

Continuous linear profile with extended lengths and minimised joints. Microprismatic PMMA diffuser for low UGR and visual uniformity

  • Socket
  • Output
  • Control
  • Colour Temperature
  • Beam Angle
  • Complements
  • Finish

This combination does not exist.

Contact Us
Line Line
LED Efficiency Label Technical Datasheet Line System Catalogue General Guarantee Conditions Extended Guarantee Conditions Installation Instructions CE Declaration Driver 42W technical datasheet Driver 21W technical datasheet LED technical datasheet TW LED technical datasheet Test report certificate Test report LINE - LDT files
Technical drawing
LED flux—
LED power consumption—
Luminous efficiency—
CRI—
Driver LED—
Light temperature—
Beam angle—
IP protection—
Line
Line
Line
Modelo Ref. Color Fuente Potencia Regulación Flujo lum. Temp. Ángulo CRI Eficiencia
Line 2700K LNEXA11D29ABS Satin Black LED 112 cm / 22W Dali 3348 lm 2700K >90º >90 152 lm/W
Line 2700K LNEXA11D29AWS Satin White LED 112 cm / 22W Dali 3348 lm 2700K >90º >90 152 lm/W
Line 2700K LNEXA11D29CBS Satin Black LED 112 cm / 22W Dali 3348 lm 2700K >90º >90 152 lm/W
Line 2700K LNEXA11D29CWS Satin White LED 112 cm / 22W Dali — 2700K >90º >90 —
Line 3000K LNEXA11D39ABS Satin Black LED 112 cm / 22W Dali 3.720 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA11D39AWS Satin White LED 112 cm / 22W Dali 3.720 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA11D39CBS Satin Black LED 112 cm / 22W Dali 3.720 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA11D39CWS Satin White LED 112 cm / 22W Dali — 3000K >90º >90 —
Line 4000K LNEXA11D49ABS Satin Black LED 112 cm / 22W Dali 3.999 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA11D49AWS Satin White LED 112 cm / 22W Dali 3.999 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA11D49CBS Satin Black LED 112 cm / 22W Dali 3.999 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA11D49CWS Satin White LED 112 cm / 22W Dali 3.999 lm 4000K >90º >90 179 lm/W
Line TUNABLE WHITE LNEXA11D89ABS Satin Black LED 112 cm / 22W Dali TW 3520 - 3652 lm TUNABLE WHITE >90º >90 160 - 166 lm/W
Line TUNABLE WHITE LNEXA11D89AWS Satin White LED 112 cm / 22W Dali TW — TUNABLE WHITE >90º >90 —
Line TUNABLE WHITE LNEXA11D89CBS Satin Black LED 112 cm / 22W Dali TW — TUNABLE WHITE >90º >90 —
Line TUNABLE WHITE LNEXA11D89CWS Satin White LED 112 cm / 22W Dali TW — TUNABLE WHITE >90º >90 —
Line 2700K LNEXA11N29ABS Satin Black LED 112 cm / 22W No Dimmable — 2700K >90º >90 —
Line 2700K LNEXA11N29AWS Satin White LED 112 cm / 22W No Dimmable — 2700K >90º >90 —
Line 2700K LNEXA11N29CBS Satin Black LED 112 cm / 22W No Dimmable — 2700K >90º >90 —
Line 2700K LNEXA11N29CWS Satin White LED 112 cm / 22W No Dimmable — 2700K >90º >90 —
Line 3000K LNEXA11N39ABS Satin Black LED 112 cm / 22W No Dimmable 3.720 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA11N39AWS Satin White LED 112 cm / 22W No Dimmable 3.720 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA11N39CBS Satin Black LED 112 cm / 22W No Dimmable 3.720 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA11N39CWS Satin White LED 112 cm / 22W No Dimmable 3.720 lm 3000K >90º >90 167 lm/W
Line 4000K LNEXA11N49ABS Satin Black LED 112 cm / 22W No Dimmable 3.999 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA11N49AWS Satin White LED 112 cm / 22W No Dimmable 3.999 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA11N49CBS Satin Black LED 112 cm / 22W No Dimmable 3.999 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA11N49CWS Satin White LED 112 cm / 22W No Dimmable 3.999 lm 4000K >90º >90 179 lm/W
Line 2700K LNEXA14D29ABS Satin Black LED 140 cm / 28W Dali 4185 lm 2700K >90º >90 152 lm/W
Line 2700K LNEXA14D29AWS Satin White LED 140 cm / 28W Dali — 2700K >90º >90 —
Line 2700K LNEXA14D29CBS Satin Black LED 140 cm / 28W Dali — 2700K >90º >90 —
Line 2700K LNEXA14D29CWS Satin White LED 140 cm / 28W Dali — 2700K >90º >90 —
Line 3000K LNEXA14D39ABS Satin Black LED 140 cm / 28W Dali 4.650 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA14D39AWS Satin White LED 140 cm / 28W Dali 4.650 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA14D39CBS Satin Black LED 140 cm / 28W Dali 4.650 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA14D39CWS Satin White LED 140 cm / 28W Dali 4.650 lm 3000K >90º >90 167 lm/W
Line 4000K LNEXA14D49ABS Satin Black LED 140 cm / 28W Dali 4.998 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA14D49AWS Satin White LED 140 cm / 28W Dali 4.998 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA14D49CBS Satin Black LED 140 cm / 28W Dali — 4000K >90º >90 —
Line 4000K LNEXA14D49CWS Satin White LED 140 cm / 28W Dali 4.998 lm 4000K >90º >90 179 lm/W
Line TUNABLE WHITE LNEXA14D89ABS Satin Black LED 140 cm / 28W Dali TW 4480 - 1648 lm TUNABLE WHITE >90º >90 160 - 166 lm/W
Line TUNABLE WHITE LNEXA14D89AWS Satin White LED 140 cm / 28W Dali TW — TUNABLE WHITE >90º >90 —
Line TUNABLE WHITE LNEXA14D89CBS Satin Black LED 140 cm / 28W Dali TW — TUNABLE WHITE >90º >90 —
Line TUNABLE WHITE LNEXA14D89CWS Satin White LED 140 cm / 28W Dali TW — TUNABLE WHITE >90º >90 —
Line 2700K LNEXA14N29ABS Satin Black LED 140 cm / 28W No Dimmable — 2700K >90º >90 —
Line 2700K LNEXA14N29AWS Satin White LED 140 cm / 28W No Dimmable — 2700K >90º >90 —
Line 2700K LNEXA14N29CBS Satin Black LED 140 cm / 28W No Dimmable — 2700K >90º >90 —
Line 2700K LNEXA14N29CWS Satin White LED 140 cm / 28W No Dimmable — 2700K >90º >90 —
Line 3000K LNEXA14N39ABS Satin Black LED 140 cm / 28W No Dimmable 4.650 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA14N39AWS Satin White LED 140 cm / 28W No Dimmable 4.650 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA14N39CBS Satin Black LED 140 cm / 28W No Dimmable 4.650 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA14N39CWS Satin White LED 140 cm / 28W No Dimmable 4.650 lm 3000K >90º >90 167 lm/W
Line 4000K LNEXA14N49ABS Satin Black LED 140 cm / 28W No Dimmable 4.998 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA14N49AWS Satin White LED 140 cm / 28W No Dimmable 4.998 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA14N49CBS Satin Black LED 140 cm / 28W No Dimmable 4.998 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA14N49CWS Satin White LED 140 cm / 28W No Dimmable 4.998 lm 4000K >90º >90 179 lm/W
Line 2700K LNEXA18D29ABS Satin Black LED 182 cm / 36W Dali 5441 lm 2700K >90º >90 152 lm/W
Line 2700K LNEXA18D29AWS Satin White LED 182 cm / 36W Dali — 2700K >90º >90 —
Line 2700K LNEXA18D29CBS Satin Black LED 182 cm / 36W Dali — 2700K >90º >90 —
Line 2700K LNEXA18D29CWS Satin White LED 182 cm / 36W Dali — 2700K >90º >90 —
Line 3000K LNEXA18D39ABS Satin Black LED 182 cm / 36W Dali 6.045 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA18D39AWS Satin White LED 182 cm / 36W Dali 6.045 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA18D39CBS Satin Black LED 182 cm / 36W Dali 6.045 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA18D39CWS Satin White LED 182 cm / 36W Dali — 3000K >90º >90 —
Line 4000K LNEXA18D49ABS Satin Black LED 182 cm / 36W Dali 6.498 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA18D49AWS Satin White LED 182 cm / 36W Dali 6.498 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA18D49CBS Satin Black LED 182 cm / 36W Dali — 4000K >90º >90 —
Line 4000K LNEXA18D49CWS Satin White LED 182 cm / 36W Dali 6.498 lm 4000K >90º >90 179 lm/W
Line 2700K LNEXA18N29ABS Satin Black LED 182 cm / 36W No Dimmable — 2700K >90º >90 —
Line 2700K LNEXA18N29AWS Satin White LED 182 cm / 36W No Dimmable — 2700K >90º >90 —
Line 2700K LNEXA18N29CBS Satin Black LED 182 cm / 36W No Dimmable — 2700K >90º >90 —
Line 2700K LNEXA18N29CWS Satin White LED 182 cm / 36W No Dimmable — 2700K >90º >90 —
Line 3000K LNEXA18N39ABS Satin Black LED 182 cm / 36W No Dimmable 6.045 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA18N39AWS Satin White LED 182 cm / 36W No Dimmable 6.045 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA18N39CBS Satin Black LED 182 cm / 36W No Dimmable 6.045 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA18N39CWS Satin White LED 182 cm / 36W No Dimmable 6.045 lm 3000K >90º >90 167 lm/W
Line 4000K LNEXA18N49ABS Satin Black LED 182 cm / 36W No Dimmable 6.498 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA18N49AWS Satin White LED 182 cm / 36W No Dimmable 6.498 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA18N49CBS Satin Black LED 182 cm / 36W No Dimmable 6.498 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA18N49CWS Satin White LED 182 cm / 36W No Dimmable 6.498 lm 4000K >90º >90 179 lm/W
Line 2700K LNEXA22D29ABS Satin Black LED 224 cm / 45W Dali 6840 lm 2700K >90º >90 152 lm/W
Line 2700K LNEXA22D29AWS Satin White LED 224 cm / 45W Dali — 2700K >90º >90 —
Line 2700K LNEXA22D29CBS Satin Black LED 224 cm / 45W Dali — 2700K >90º >90 —
Line 2700K LNEXA22D29CWS Satin White LED 224 cm / 45W Dali — 2700K >90º >90 —
Line 3000K LNEXA22D39ABS Satin Black LED 224 cm / 45W Dali 7.440 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA22D39AWS Satin White LED 224 cm / 45W Dali 7.440 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA22D39CBS Satin Black LED 224 cm / 45W Dali 7.440 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA22D39CWS Satin White LED 224 cm / 45W Dali 7.440 lm 3000K >90º >90 167 lm/W
Line 4000K LNEXA22D49ABS Satin Black LED 224 cm / 45W Dali 7.998 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA22D49AWS Satin White LED 224 cm / 45W Dali 7.998 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA22D49CBS Satin Black LED 224 cm / 45W Dali 7.998 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA22D49CWS Satin White LED 224 cm / 45W Dali 7.998 lm 4000K >90º >90 179 lm/W
Line TUNABLE WHITE LNEXA22D89ABS Satin Black LED 224 cm / 45W Dali TW 7200 - 7470 lm TUNABLE WHITE >90º >90 160 - 166 lm/W
Line TUNABLE WHITE LNEXA22D89AWS Satin White LED 224 cm / 45W Dali TW — TUNABLE WHITE >90º >90 —
Line TUNABLE WHITE LNEXA22D89CBS Satin Black LED 224 cm / 45W Dali TW — TUNABLE WHITE >90º >90 —
Line TUNABLE WHITE LNEXA22D89CWS Satin White LED 224 cm / 45W Dali TW — TUNABLE WHITE >90º >90 —
Line 2700K LNEXA22N29ABS Satin Black LED 224 cm / 45W No Dimmable — 2700K >90º >90 —
Line 2700K LNEXA22N29AWS Satin White LED 224 cm / 45W No Dimmable — 2700K >90º >90 —
Line 2700K LNEXA22N29CBS Satin Black LED 224 cm / 45W No Dimmable — 2700K >90º >90 —
Line 2700K LNEXA22N29CWS Satin White LED 224 cm / 45W No Dimmable — 2700K >90º >90 —
Line 3000K LNEXA22N39ABS Satin Black LED 224 cm / 45W No Dimmable 7.440 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA22N39AWS Satin White LED 224 cm / 45W No Dimmable 7.440 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA22N39CBS Satin Black LED 224 cm / 45W No Dimmable 7.440 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA22N39CWS Satin White LED 224 cm / 45W No Dimmable 7.440 lm 3000K >90º >90 167 lm/W
Line 4000K LNEXA22N49ABS Satin Black LED 224 cm / 45W No Dimmable 7.998 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA22N49AWS Satin White LED 224 cm / 45W No Dimmable 7.998 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA22N49CBS Satin Black LED 224 cm / 45W No Dimmable 7.998 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA22N49CWS Satin White LED 224 cm / 45W No Dimmable 7.998 lm 4000K >90º >90 179 lm/W
Line 2700K LNEXA28D29ABS Satin Black LED 281 cm / 56W Dali 8512 lm 2700K >90º >90 152 lm/W
Line 2700K LNEXA28D29AWS Satin White LED 281 cm / 56W Dali — 2700K >90º >90 —
Line 2700K LNEXA28D29CBS Satin Black LED 281 cm / 56W Dali — 2700K >90º >90 —
Line 2700K LNEXA28D29CWS Satin White LED 281 cm / 56W Dali — 2700K >90º >90 —
Line 3000K LNEXA28D39ABS Satin Black LED 281 cm / 56W Dali 9.300 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA28D39AWS Satin White LED 281 cm / 56W Dali 9.300 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA28D39CBS Satin Black LED 281 cm / 56W Dali 9.300 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA28D39CWS Satin White LED 281 cm / 56W Dali — 3000K >90º >90 —
Line 4000K LNEXA28D49ABS Satin Black LED 281 cm / 56W Dali 9.997 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA28D49AWS Satin White LED 281 cm / 56W Dali 9.997 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA28D49CBS Satin Black LED 281 cm / 56W Dali 9.997 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA28D49CWS Satin White LED 281 cm / 56W Dali 9.997 lm 4000K >90º >90 179 lm/W
Line TUNABLE WHITE LNEXA28D89ABS Satin Black LED 281 cm / 56W Dali TW 8960 - 9296 lm TUNABLE WHITE >90º >90 160 - 166 lm/W
Line TUNABLE WHITE LNEXA28D89AWS Satin White LED 281 cm / 56W Dali TW — TUNABLE WHITE >90º >90 —
Line TUNABLE WHITE LNEXA28D89CBS Satin Black LED 281 cm / 56W Dali TW — TUNABLE WHITE >90º >90 —
Line TUNABLE WHITE LNEXA28D89CWS Satin White LED 281 cm / 56W Dali TW — TUNABLE WHITE >90º >90 —
Line 2700K LNEXA28N29ABS Satin Black LED 281 cm / 56W No Dimmable — 2700K >90º >90 —
Line 2700K LNEXA28N29AWS Satin White LED 281 cm / 56W No Dimmable — 2700K >90º >90 —
Line 2700K LNEXA28N29CBS Satin Black LED 281 cm / 56W No Dimmable — 2700K >90º >90 —
Line 2700K LNEXA28N29CWS Satin White LED 281 cm / 56W No Dimmable — 2700K >90º >90 —
Line 3000K LNEXA28N39ABS Satin Black LED 281 cm / 56W No Dimmable 9.300 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA28N39AWS Satin White LED 281 cm / 56W No Dimmable 9.300 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA28N39CBS Satin Black LED 281 cm / 56W No Dimmable 9.300 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA28N39CWS Satin White LED 281 cm / 56W No Dimmable 9.300 lm 3000K >90º >90 167 lm/W
Line 4000K LNEXA28N49ABS Satin Black LED 281 cm / 56W No Dimmable 9.997 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA28N49AWS Satin White LED 281 cm / 56W No Dimmable 9.997 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA28N49CBS Satin Black LED 281 cm / 56W No Dimmable 9.997 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA28N49CWS Satin White LED 281 cm / 56W No Dimmable 9.997 lm 4000K >90º >90 179 lm/W
Line 2700K LNEXA70D29ABS Satin Black LED 70 cm / 14W Dali 2128 lm 2700K >90º >90 152 lm/W
Line 2700K LNEXA70D29AWS Satin White LED 70 cm / 14W Dali — 2700K >90º >90 —
Line 2700K LNEXA70D29CBS Satin Black LED 70 cm / 14W Dali — 2700K >90º >90 —
Line 2700K LNEXA70D29CWS Satin White LED 70 cm / 14W Dali — 2700K >90º >90 —
Line 3000K LNEXA70D39ABS Satin Black LED 70 cm / 14W Dali 2.325 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA70D39AWS Satin White LED 70 cm / 14W Dali 2.325 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA70D39CBS Satin Black LED 70 cm / 14W Dali — 3000K >90º >90 —
Line 3000K LNEXA70D39CWS Satin White LED 70 cm / 14W Dali 2.325 lm 3000K >90º >90 167 lm/W
Line 4000K LNEXA70D49ABS Satin Black LED 70 cm / 14W Dali 2.499 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA70D49AWS Satin White LED 70 cm / 14W Dali 2.499 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA70D49CBS Satin Black LED 70 cm / 14W Dali — 4000K >90º >90 —
Line 4000K LNEXA70D49CWS Satin White LED 70 cm / 14W Dali — 4000K >90º >90 —
Line 2700K LNEXA70N29ABS Satin Black LED 70 cm / 14W No Dimmable — 2700K >90º >90 —
Line 2700K LNEXA70N29AWS Satin White LED 70 cm / 14W No Dimmable — 2700K >90º >90 —
Line 2700K LNEXA70N29CBS Satin Black LED 70 cm / 14W No Dimmable — 2700K >90º >90 —
Line 2700K LNEXA70N29CWS Satin White LED 70 cm / 14W No Dimmable — 2700K >90º >90 —
Line 3000K LNEXA70N39ABS Satin Black LED 70 cm / 14W No Dimmable 2.325 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA70N39AWS Satin White LED 70 cm / 14W No Dimmable 2.325 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA70N39CBS Satin Black LED 70 cm / 14W No Dimmable 2.325 lm 3000K >90º >90 167 lm/W
Line 3000K LNEXA70N39CWS Satin White LED 70 cm / 14W No Dimmable 2.325 lm 3000K >90º >90 167 lm/W
Line 4000K LNEXA70N49ABS Satin Black LED 70 cm / 14W No Dimmable 2.499 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA70N49AWS Satin White LED 70 cm / 14W No Dimmable 2.499 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA70N49CBS Satin Black LED 70 cm / 14W No Dimmable 2.499 lm 4000K >90º >90 179 lm/W
Line 4000K LNEXA70N49CWS Satin White LED 70 cm / 14W No Dimmable — 4000K >90º >90 —

Related products

Interested in this product? Contact us

Need help?
