Kono Plus
Kono Plus

Kono Plus

https://onoklighting.com/web/image/product.template/2398/image_1920?unique=487b35b

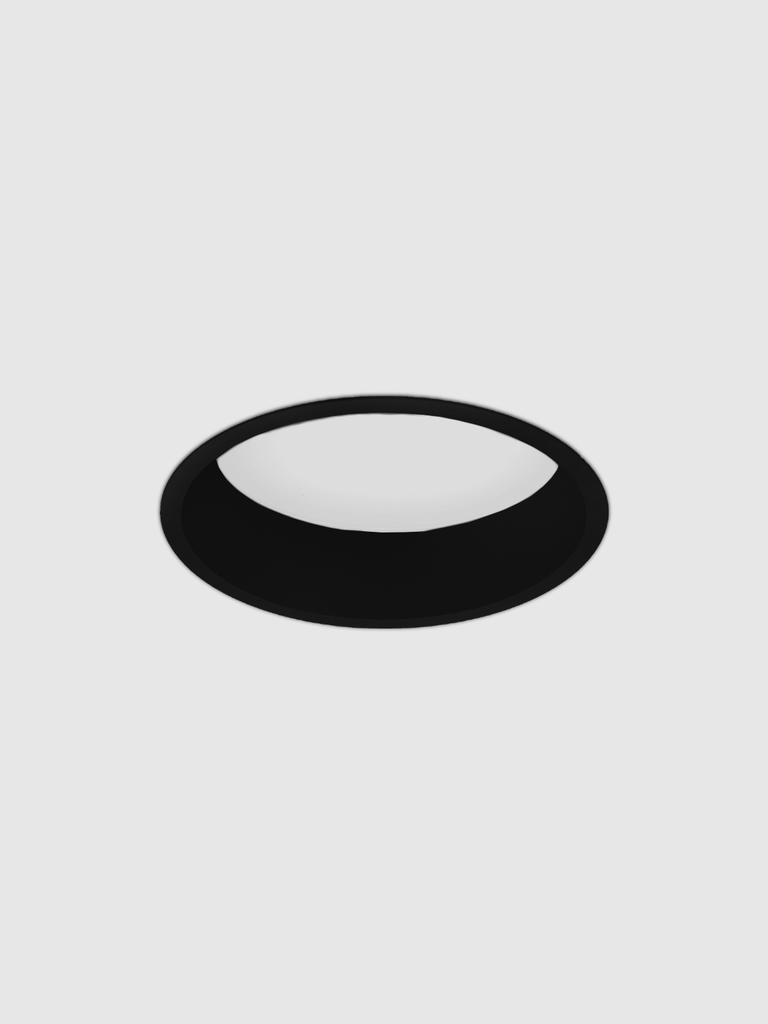

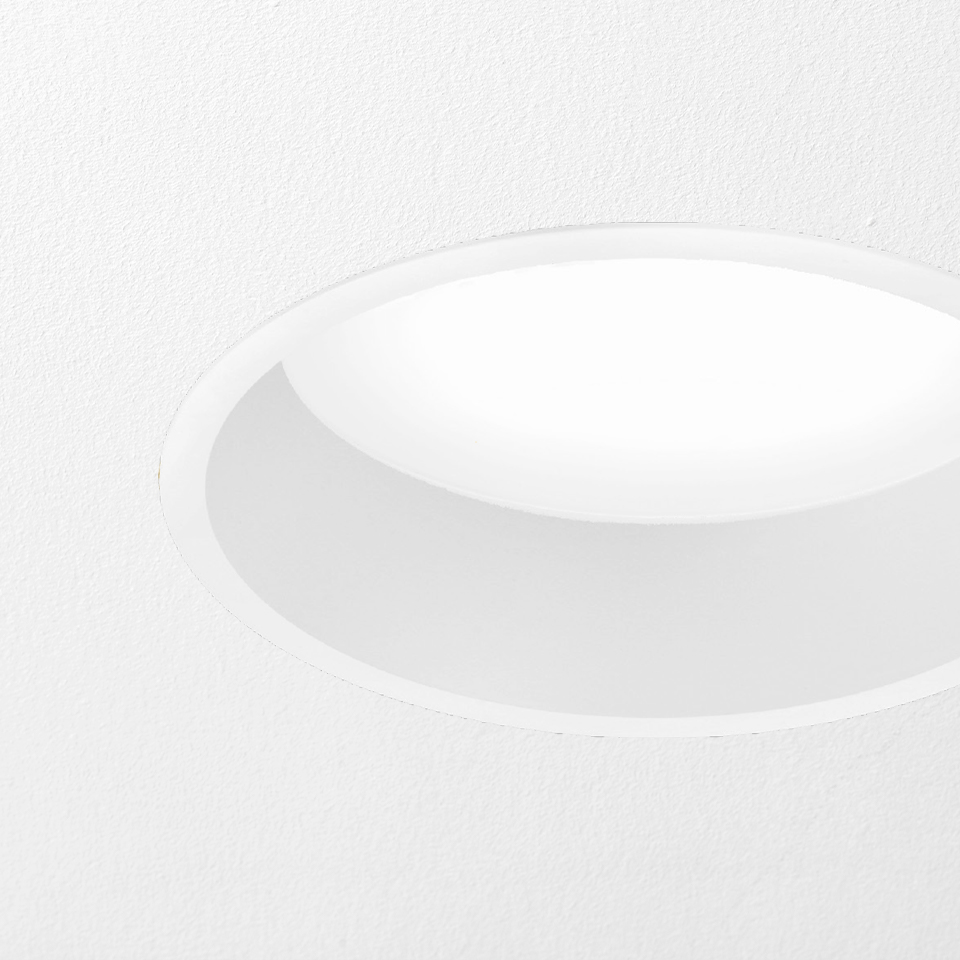

IP54 LED recessed luminaire with three power options and ice or prismatic diffuser. Integrated driver with DALI or PUSH dimmin

  • Socket
  • Output
  • Control
  • Colour Temperature
  • Beam Angle
  • Complements
  • Finish

This combination does not exist.

Contact Us
Kono Plus Kono Plus
CE Declaration Technical Datasheet Installation Instructions General Guarantee Conditions Extended Guarantee Conditions LED Efficiency Label Driver 20W technical datasheet Driver 30W technical datasheet LED technical datasheet KONO PLUS - LDT files KONO PLUS - 3D Model
Technical drawing
LED flux—
LED power consumption—
Luminous efficiency—
CRI—
Driver LED—
Light temperature—
Beam angle—
IP protection—
Kono Plus
Modelo Ref. Color Fuente Potencia Regulación Flujo lum. Temp. Ángulo CRI Eficiencia
Kono Plus 2700K KNOPA10D29ABS Satin Black LED ≈ 11W / >1800lm Dali 1.675 lm 2700K >90º 92 142 lm/W
Kono Plus 2700K KNOPA10D29AWS Satin White LED ≈ 11W / >1800lm Dali 1.675 lm 2700K >90º 92 142 lm/W
Kono Plus 3000K KNOPA10D39ABS Satin Black LED ≈ 11W / >1800lm Dali 1.870 lm 3000K >90º 92 158 lm/W
Kono Plus 3000K KNOPA10D39AWS Satin White LED ≈ 11W / >1800lm Dali 1.870 lm 3000K >90º 92 158 lm/W
Kono Plus 4000K KNOPA10D49ABS Satin Black LED ≈ 11W / >1800lm Dali 1.940 lm 4000K >90º 92 164 lm/W
Kono Plus 4000K KNOPA10D49AWS Satin White LED ≈ 11W / >1800lm Dali 1.940 lm 4000K >90º 92 164 lm/W
Kono Plus 2700K KNOPA10F29ABS Satin Black LED ≈ 11W / >1800lm PUSH 1.675 lm 2700K >90º 92 142 lm/W
Kono Plus 2700K KNOPA10F29AWS Satin White LED ≈ 11W / >1800lm PUSH 1.675 lm 2700K >90º 92 142 lm/W
Kono Plus 3000K KNOPA10F39ABS Satin Black LED ≈ 11W / >1800lm PUSH 1.870 lm 3000K >90º 92 158 lm/W
Kono Plus 3000K KNOPA10F39AWS Satin White LED ≈ 11W / >1800lm PUSH 1.870 lm 3000K >90º 92 158 lm/W
Kono Plus 4000K KNOPA10F49ABS Satin Black LED ≈ 11W / >1800lm PUSH 1.940 lm 4000K >90º 92 164 lm/W
Kono Plus 4000K KNOPA10F49AWS Satin White LED ≈ 11W / >1800lm PUSH 1.940 lm 4000K >90º 92 164 lm/W
Kono Plus 2700K KNOPA10N29ABS Satin Black LED ≈ 11W / >1800lm No Dimmable 1.675 lm 2700K >90º 92 142 lm/W
Kono Plus 2700K KNOPA10N29AWS Satin White LED ≈ 11W / >1800lm No Dimmable 1.675 lm 2700K >90º 92 142 lm/W
Kono Plus 3000K KNOPA10N39ABS Satin Black LED ≈ 11W / >1800lm No Dimmable 1.870 lm 3000K >90º 92 158 lm/W
Kono Plus 3000K KNOPA10N39AWS Satin White LED ≈ 11W / >1800lm No Dimmable 1.870 lm 3000K >90º 92 158 lm/W
Kono Plus 4000K KNOPA10N49ABS Satin Black LED ≈ 11W / >1800lm No Dimmable 1.940 lm 4000K >90º 92 164 lm/W
Kono Plus 4000K KNOPA10N49AWS Satin White LED ≈ 11W / >1800lm No Dimmable 1.940 lm 4000K >90º 92 164 lm/W
Kono Plus 2700K KNOPA20D29ABS Satin Black LED ≈ 17W / >2500 lm Dali 2.455 lm 2700K >90º 92 142 lm/W
Kono Plus 2700K KNOPA20D29AWS Satin White LED ≈ 17W / >2500 lm Dali 2.455 lm 2700K >90º 92 142 lm/W
Kono Plus 3000K KNOPA20D39ABS Satin Black LED ≈ 17W / >2500 lm Dali 2.640 lm 3000K >90º 92 153 lm/W
Kono Plus 3000K KNOPA20D39AWS Satin White LED ≈ 17W / >2500 lm Dali 2.640 lm 3000K >90º 92 153 lm/W
Kono Plus 4000K KNOPA20D49ABS Satin Black LED ≈ 17W / >2500 lm Dali 2.730 lm 4000K >90º 92 157 lm/W
Kono Plus 4000K KNOPA20D49AWS Satin White LED ≈ 17W / >2500 lm Dali 2.730 lm 4000K >90º 92 157 lm/W
Kono Plus 2700K KNOPA20F29ABS Satin Black LED ≈ 17W / >2500 lm PUSH 2.455 lm 2700K >90º 92 142 lm/W
Kono Plus 2700K KNOPA20F29AWS Satin White LED ≈ 17W / >2500 lm PUSH 2.455 lm 2700K >90º 92 142 lm/W
Kono Plus 3000K KNOPA20F39ABS Satin Black LED ≈ 17W / >2500 lm PUSH 2.640 lm 3000K >90º 92 153 lm/W
Kono Plus 3000K KNOPA20F39AWS Satin White LED ≈ 17W / >2500 lm PUSH 2.640 lm 3000K >90º 92 153 lm/W
Kono Plus 4000K KNOPA20F49ABS Satin Black LED ≈ 17W / >2500 lm PUSH 2.730 lm 4000K >90º 92 157 lm/W
Kono Plus 4000K KNOPA20F49AWS Satin White LED ≈ 17W / >2500 lm PUSH 2.730 lm 4000K >90º 92 157 lm/W
Kono Plus 2700K KNOPA20N29ABS Satin Black LED ≈ 17W / >2500 lm No Dimmable 2.455 lm 2700K >90º 92 142 lm/W
Kono Plus 2700K KNOPA20N29AWS Satin White LED ≈ 17W / >2500 lm No Dimmable 2.455 lm 2700K >90º 92 142 lm/W
Kono Plus 3000K KNOPA20N39ABS Satin Black LED ≈ 17W / >2500 lm No Dimmable 2.640 lm 3000K >90º 92 153 lm/W
Kono Plus 3000K KNOPA20N39AWS Satin White LED ≈ 17W / >2500 lm No Dimmable 2.640 lm 3000K >90º 92 153 lm/W
Kono Plus 4000K KNOPA20N49ABS Satin Black LED ≈ 17W / >2500 lm No Dimmable 2.730 lm 4000K >90º 92 157 lm/W
Kono Plus 4000K KNOPA20N49AWS Satin White LED ≈ 17W / >2500 lm No Dimmable 2.730 lm 4000K >90º 92 157 lm/W
Kono Plus 2700K KNOPA30D29ABS Satin Black LED ≈ 23W / >3000 lm Dali 3.260 lm 2700K >90º 92 130 lm/W
Kono Plus 2700K KNOPA30D29AWS Satin White LED ≈ 23W / >3000 lm Dali 3.260 lm 2700K >90º 92 130 lm/W
Kono Plus 3000K KNOPA30D39ABS Satin Black LED ≈ 23W / >3000 lm Dali 3.505 lm 3000K >90º 92 140 lm/W
Kono Plus 3000K KNOPA30D39AWS Satin White LED ≈ 23W / >3000 lm Dali 3.505 lm 3000K >90º 92 140 lm/W
Kono Plus 4000K KNOPA30D49ABS Satin Black LED ≈ 23W / >3000 lm Dali 3.625 lm 4000K >90º 92 145 lm/W
Kono Plus 4000K KNOPA30D49AWS Satin White LED ≈ 23W / >3000 lm Dali 3.625 lm 4000K >90º 92 145 lm/W
Kono Plus 2700K KNOPA30F29ABS Satin Black LED ≈ 23W / >3000 lm PUSH 3.260 lm 2700K >90º 92 130 lm/W
Kono Plus 2700K KNOPA30F29AWS Satin White LED ≈ 23W / >3000 lm PUSH 3.260 lm 2700K >90º 92 130 lm/W
Kono Plus 3000K KNOPA30F39ABS Satin Black LED ≈ 23W / >3000 lm PUSH 3.505 lm 3000K >90º 92 140 lm/W
Kono Plus 3000K KNOPA30F39AWS Satin White LED ≈ 23W / >3000 lm PUSH 3.505 lm 3000K >90º 92 140 lm/W
Kono Plus 4000K KNOPA30F49ABS Satin Black LED ≈ 23W / >3000 lm PUSH 3.625 lm 4000K >90º 92 145 lm/W
Kono Plus 4000K KNOPA30F49AWS Satin White LED ≈ 23W / >3000 lm PUSH 3.625 lm 4000K >90º 92 145 lm/W
Kono Plus 2700K KNOPA30N29ABS Satin Black LED ≈ 23W / >3000 lm No Dimmable 3.260 lm 2700K >90º 92 130 lm/W
Kono Plus 2700K KNOPA30N29AWS Satin White LED ≈ 23W / >3000 lm No Dimmable 3.260 lm 2700K >90º 92 130 lm/W
Kono Plus 3000K KNOPA30N39ABS Satin Black LED ≈ 23W / >3000 lm No Dimmable 3.505 lm 3000K >90º 92 140 lm/W
Kono Plus 3000K KNOPA30N39AWS Satin White LED ≈ 23W / >3000 lm No Dimmable 3.505 lm 3000K >90º 92 140 lm/W
Kono Plus 4000K KNOPA30N49ABS Satin Black LED ≈ 23W / >3000 lm No Dimmable 3.625 lm 4000K >90º 92 145 lm/W
Kono Plus 4000K KNOPA30N49AWS Satin White LED ≈ 23W / >3000 lm No Dimmable 3.625 lm 4000K >90º 92 145 lm/W
