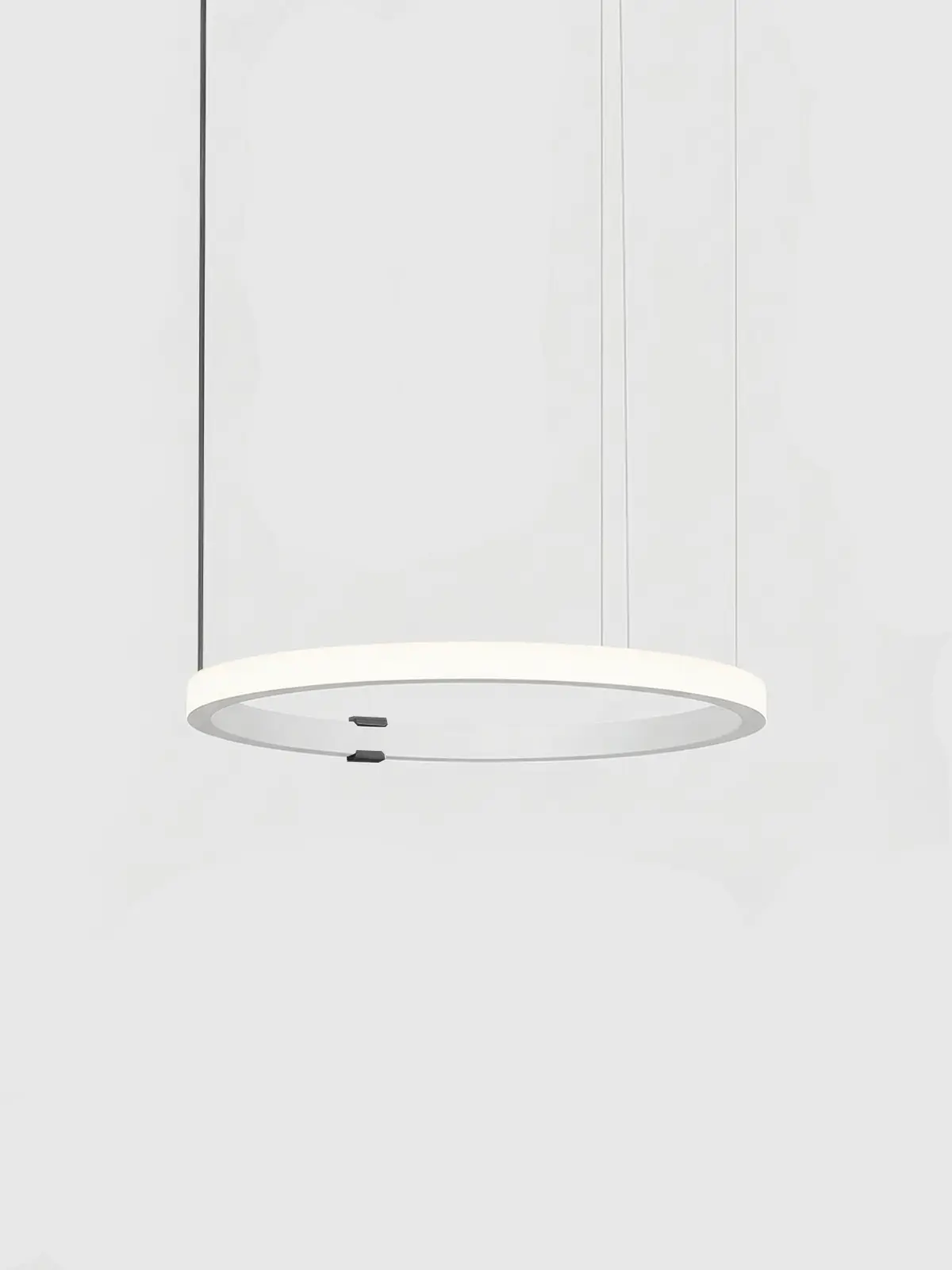

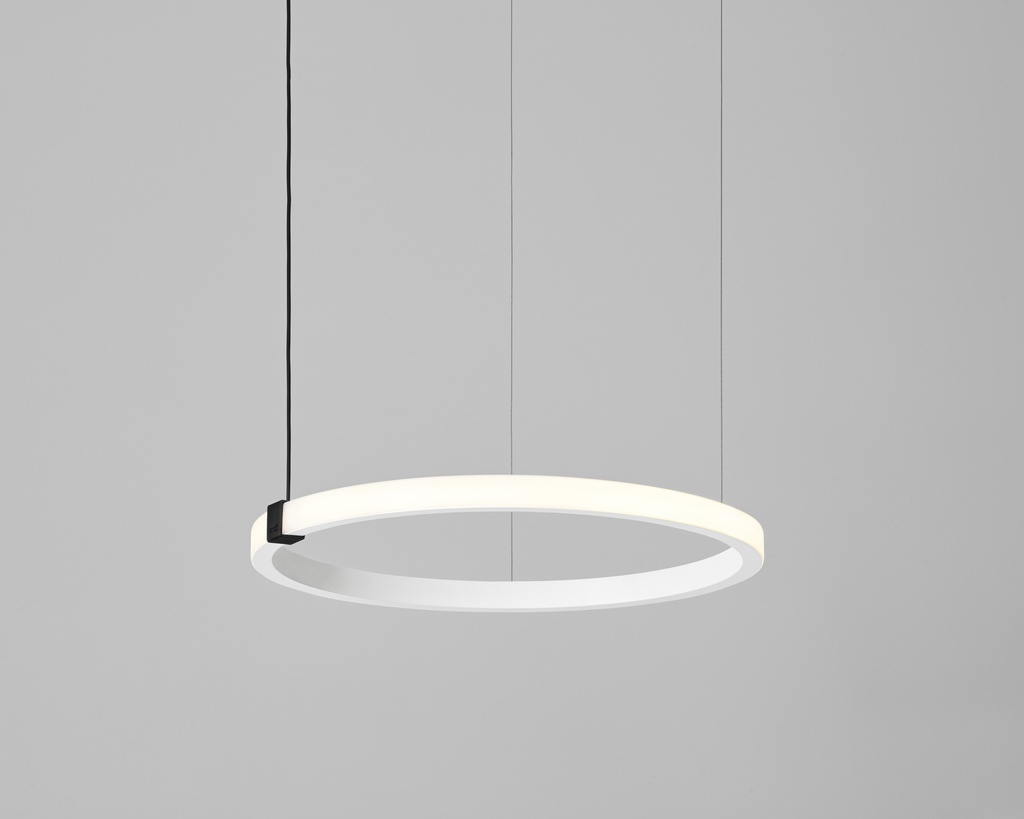

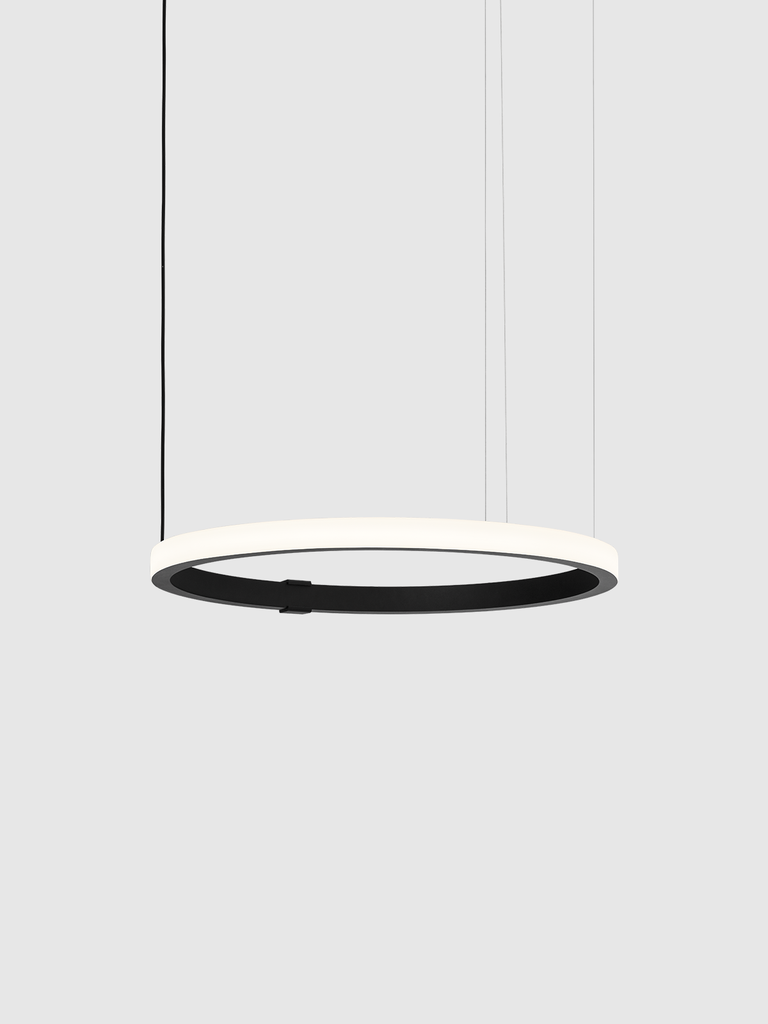

Suspended circular luminaire for uniform lighting. Available in different diameters and finishes

  • Socket
  • Output
  • Control
  • Colour Temperature
  • Beam Angle
  • Installation
  • Finish

This combination does not exist.

Contact Us
Hoop Horizontal Exterior Hoop Horizontal Exterior
Technical Datasheet General Guarantee Conditions Extended Guarantee Conditions LED Efficiency Label Installation Instructions CE Declaration Driver 36W technical datasheet Driver 60W technical datasheet LED technical datasheet Test report certificate Test report HOOP HORIZONTAL EXTERIOR - LDT files HOOP HORIZONTAL EXTERIOR - 3D model
Technical drawing
LED flux—
LED power consumption—
Luminous efficiency—
CRI—
Driver LED—
Light temperature—
Beam angle—
IP protection—
Modelo Ref. Color Fuente Potencia Regulación Flujo lum. Temp. Ángulo CRI Eficiencia
Hoop Horizontal Exterior 2700K HPHEA50D29RBS Satin Black LED Ø50 / ≈ 27W / >4335 lm Dali 3035 lm 2700K >90º >90 112 lm/W
Hoop Horizontal Exterior 2700K HPHEA50D29RWS Satin White LED Ø50 / ≈ 27W / >4335 lm Dali 3035 lm 2700K >90º >90 112 lm/W
Hoop Horizontal Exterior 2700K HPHEA50D29SBS Satin Black LED Ø50 / ≈ 27W / >4335 lm Dali 3035 lm 2700K >90º >90 112 lm/W
Hoop Horizontal Exterior 2700K HPHEA50D29SWS Satin White LED Ø50 / ≈ 27W / >4335 lm Dali 3035 lm 2700K >90º >90 112 lm/W
Hoop Horizontal Exterior 3000K HPHEA50D39RBS Satin Black LED Ø50 / ≈ 27W / >4335 lm Dali 3081 lm 3000K >90º >90 114 lm/W
Hoop Horizontal Exterior 3000K HPHEA50D39RWS Satin White LED Ø50 / ≈ 27W / >4335 lm Dali 3081 lm 3000K >90º >90 114 lm/W
Hoop Horizontal Exterior 3000K HPHEA50D39SBS Satin Black LED Ø50 / ≈ 27W / >4335 lm Dali 3081 lm 3000K >90º >90 114 lm/W
Hoop Horizontal Exterior 3000K HPHEA50D39SWS Satin White LED Ø50 / ≈ 27W / >4335 lm Dali 3081 lm 3000K >90º >90 114 lm/W
Hoop Horizontal Exterior 4000K HPHEA50D49RBS Satin Black LED Ø50 / ≈ 27W / >4335 lm Dali 3186 lm 4000K >90º >90 118 lm/W
Hoop Horizontal Exterior 4000K HPHEA50D49RWS Satin White LED Ø50 / ≈ 27W / >4335 lm Dali 3186 lm 4000K >90º >90 118 lm/W
Hoop Horizontal Exterior 4000K HPHEA50D49SBS Satin Black LED Ø50 / ≈ 27W / >4335 lm Dali 3186 lm 4000K >90º >90 118 lm/W
Hoop Horizontal Exterior 4000K HPHEA50D49SWS Satin White LED Ø50 / ≈ 27W / >4335 lm Dali 3186 lm 4000K >90º >90 118 lm/W
Hoop Horizontal Exterior 2700K HPHEA50N29RBS Satin Black LED Ø50 / ≈ 27W / >4335 lm No Dimmable 3035 lm 2700K >90º >90 112 lm/W
Hoop Horizontal Exterior 2700K HPHEA50N29RWS Satin White LED Ø50 / ≈ 27W / >4335 lm No Dimmable 3035 lm 2700K >90º >90 112 lm/W
Hoop Horizontal Exterior 2700K HPHEA50N29SBS Satin Black LED Ø50 / ≈ 27W / >4335 lm No Dimmable 3035 lm 2700K >90º >90 112 lm/W
Hoop Horizontal Exterior 2700K HPHEA50N29SWS Satin White LED Ø50 / ≈ 27W / >4335 lm No Dimmable 3035 lm 2700K >90º >90 112 lm/W
Hoop Horizontal Exterior 3000K HPHEA50N39RBS Satin Black LED Ø50 / ≈ 27W / >4335 lm No Dimmable 3081 lm 3000K >90º >90 114 lm/W
Hoop Horizontal Exterior 3000K HPHEA50N39RWS Satin White LED Ø50 / ≈ 27W / >4335 lm No Dimmable 3081 lm 3000K >90º >90 114 lm/W
Hoop Horizontal Exterior 3000K HPHEA50N39SBS Satin Black LED Ø50 / ≈ 27W / >4335 lm No Dimmable 3081 lm 3000K >90º >90 114 lm/W
Hoop Horizontal Exterior 3000K HPHEA50N39SWS Satin White LED Ø50 / ≈ 27W / >4335 lm No Dimmable 3081 lm 3000K >90º >90 114 lm/W
Hoop Horizontal Exterior 4000K HPHEA50N49RBS Satin Black LED Ø50 / ≈ 27W / >4335 lm No Dimmable 3186 lm 4000K >90º >90 118 lm/W
Hoop Horizontal Exterior 4000K HPHEA50N49RWS Satin White LED Ø50 / ≈ 27W / >4335 lm No Dimmable 3186 lm 4000K >90º >90 118 lm/W
Hoop Horizontal Exterior 4000K HPHEA50N49SBS Satin Black LED Ø50 / ≈ 27W / >4335 lm No Dimmable 3186 lm 4000K >90º >90 118 lm/W
Hoop Horizontal Exterior 4000K HPHEA50N49SWS Satin White LED Ø50 / ≈ 27W / >4335 lm No Dimmable 3186 lm 4000K >90º >90 118 lm/W
Hoop Horizontal Exterior 2700K HPHEA70D29RBS Satin Black LED Ø70 / ≈ 40W / >6358 lm Dali 4451 lm 2700K >90º >90 112 lm/W
Hoop Horizontal Exterior 2700K HPHEA70D29RWS Satin White LED Ø70 / ≈ 40W / >6358 lm Dali 4451 lm 2700K >90º >90 112 lm/W
Hoop Horizontal Exterior 2700K HPHEA70D29SBS Satin Black LED Ø70 / ≈ 40W / >6358 lm Dali 4451 lm 2700K >90º >90 112 lm/W
Hoop Horizontal Exterior 2700K HPHEA70D29SWS Satin White LED Ø70 / ≈ 40W / >6358 lm Dali 4451 lm 2700K >90º >90 112 lm/W
Hoop Horizontal Exterior 3000K HPHEA70D39RBS Satin Black LED Ø70 / ≈ 40W / >6358 lm Dali 4518 lm 3000K >90º >90 114 lm/W
Hoop Horizontal Exterior 3000K HPHEA70D39RWS Satin White LED Ø70 / ≈ 40W / >6358 lm Dali 4518 lm 3000K >90º >90 114 lm/W
Hoop Horizontal Exterior 3000K HPHEA70D39SBS Satin Black LED Ø70 / ≈ 40W / >6358 lm Dali 4518 lm 3000K >90º >90 114 lm/W
Hoop Horizontal Exterior 3000K HPHEA70D39SWS Satin White LED Ø70 / ≈ 40W / >6358 lm Dali 4518 lm 3000K >90º >90 114 lm/W
Hoop Horizontal Exterior 4000K HPHEA70D49RBS Satin Black LED Ø70 / ≈ 40W / >6358 lm Dali 4672 lm 4000K >90º >90 118 lm/W
Hoop Horizontal Exterior 4000K HPHEA70D49RWS Satin White LED Ø70 / ≈ 40W / >6358 lm Dali 4672 lm 4000K >90º >90 118 lm/W
Hoop Horizontal Exterior 4000K HPHEA70D49SBS Satin Black LED Ø70 / ≈ 40W / >6358 lm Dali 4672 lm 4000K >90º >90 118 lm/W
Hoop Horizontal Exterior 4000K HPHEA70D49SWS Satin White LED Ø70 / ≈ 40W / >6358 lm Dali 4672 lm 4000K >90º >90 118 lm/W
Hoop Horizontal Exterior 2700K HPHEA70N29RBS Satin Black LED Ø70 / ≈ 40W / >6358 lm No Dimmable 4451 lm 2700K >90º >90 112 lm/W
Hoop Horizontal Exterior 2700K HPHEA70N29RWS Satin White LED Ø70 / ≈ 40W / >6358 lm No Dimmable 4451 lm 2700K >90º >90 112 lm/W
Hoop Horizontal Exterior 2700K HPHEA70N29SBS Satin Black LED Ø70 / ≈ 40W / >6358 lm No Dimmable 4451 lm 2700K >90º >90 112 lm/W
Hoop Horizontal Exterior 2700K HPHEA70N29SWS Satin White LED Ø70 / ≈ 40W / >6358 lm No Dimmable 4451 lm 2700K >90º >90 112 lm/W
Hoop Horizontal Exterior 3000K HPHEA70N39RBS Satin Black LED Ø70 / ≈ 40W / >6358 lm No Dimmable 4518 lm 3000K >90º >90 114 lm/W
Hoop Horizontal Exterior 3000K HPHEA70N39RWS Satin White LED Ø70 / ≈ 40W / >6358 lm No Dimmable 4518 lm 3000K >90º >90 114 lm/W
Hoop Horizontal Exterior 3000K HPHEA70N39SBS Satin Black LED Ø70 / ≈ 40W / >6358 lm No Dimmable 4518 lm 3000K >90º >90 114 lm/W
Hoop Horizontal Exterior 3000K HPHEA70N39SWS Satin White LED Ø70 / ≈ 40W / >6358 lm No Dimmable 4518 lm 3000K >90º >90 114 lm/W
Hoop Horizontal Exterior 4000K HPHEA70N49RBS Satin Black LED Ø70 / ≈ 40W / >6358 lm No Dimmable 4672 lm 4000K >90º >90 118 lm/W
Hoop Horizontal Exterior 4000K HPHEA70N49RWS Satin White LED Ø70 / ≈ 40W / >6358 lm No Dimmable 4672 lm 4000K >90º >90 118 lm/W
Hoop Horizontal Exterior 4000K HPHEA70N49SBS Satin Black LED Ø70 / ≈ 40W / >6358 lm No Dimmable 4672 lm 4000K >90º >90 118 lm/W
Hoop Horizontal Exterior 4000K HPHEA70N49SWS Satin White LED Ø70 / ≈ 40W / >6358 lm No Dimmable 4672 lm 4000K >90º >90 118 lm/W
Hoop Horizontal Exterior 2700K HPHEA90D29RBS Satin Black LED Ø90 / ≈ 50W / >8092 lm Dali 5664 lm 2700K >90º >90 112 lm/W
Hoop Horizontal Exterior 2700K HPHEA90D29RWS Satin White LED Ø90 / ≈ 50W / >8092 lm Dali 5664 lm 2700K >90º >90 112 lm/W
Hoop Horizontal Exterior 2700K HPHEA90D29SBS Satin Black LED Ø90 / ≈ 50W / >8092 lm Dali 5664 lm 2700K >90º >90 112 lm/W
Hoop Horizontal Exterior 2700K HPHEA90D29SWS Satin White LED Ø90 / ≈ 50W / >8092 lm Dali 5664 lm 2700K >90º >90 112 lm/W
Hoop Horizontal Exterior 3000K HPHEA90D39RBS Satin Black LED Ø90 / ≈ 50W / >8092 lm Dali 5751 lm 3000K >90º >90 114 lm/W
Hoop Horizontal Exterior 3000K HPHEA90D39RWS Satin White LED Ø90 / ≈ 50W / >8092 lm Dali 5751 lm 3000K >90º >90 114 lm/W
Hoop Horizontal Exterior 3000K HPHEA90D39SBS Satin Black LED Ø90 / ≈ 50W / >8092 lm Dali 5751 lm 3000K >90º >90 114 lm/W
Hoop Horizontal Exterior 3000K HPHEA90D39SWS Satin White LED Ø90 / ≈ 50W / >8092 lm Dali 5751 lm 3000K >90º >90 114 lm/W
Hoop Horizontal Exterior 4000K HPHEA90D49RBS Satin Black LED Ø90 / ≈ 50W / >8092 lm Dali 5947 lm 4000K >90º >90 118 lm/W
Hoop Horizontal Exterior 4000K HPHEA90D49RWS Satin White LED Ø90 / ≈ 50W / >8092 lm Dali 5947 lm 4000K >90º >90 118 lm/W
Hoop Horizontal Exterior 4000K HPHEA90D49SBS Satin Black LED Ø90 / ≈ 50W / >8092 lm Dali 5947 lm 4000K >90º >90 118 lm/W
Hoop Horizontal Exterior 4000K HPHEA90D49SWS Satin White LED Ø90 / ≈ 50W / >8092 lm Dali 5947 lm 4000K >90º >90 118 lm/W
Hoop Horizontal Exterior 2700K HPHEA90N29RBS Satin Black LED Ø90 / ≈ 50W / >8092 lm No Dimmable 5664 lm 2700K >90º >90 112 lm/W
Hoop Horizontal Exterior 2700K HPHEA90N29RWS Satin White LED Ø90 / ≈ 50W / >8092 lm No Dimmable 5664 lm 2700K >90º >90 112 lm/W
Hoop Horizontal Exterior 2700K HPHEA90N29SBS Satin Black LED Ø90 / ≈ 50W / >8092 lm No Dimmable 5664 lm 2700K >90º >90 112 lm/W
Hoop Horizontal Exterior 2700K HPHEA90N29SWS Satin White LED Ø90 / ≈ 50W / >8092 lm No Dimmable 5664 lm 2700K >90º >90 112 lm/W
Hoop Horizontal Exterior 3000K HPHEA90N39RBS Satin Black LED Ø90 / ≈ 50W / >8092 lm No Dimmable 5751 lm 3000K >90º >90 114 lm/W
Hoop Horizontal Exterior 3000K HPHEA90N39RWS Satin White LED Ø90 / ≈ 50W / >8092 lm No Dimmable 5751 lm 3000K >90º >90 114 lm/W
Hoop Horizontal Exterior 3000K HPHEA90N39SBS Satin Black LED Ø90 / ≈ 50W / >8092 lm No Dimmable 5751 lm 3000K >90º >90 114 lm/W
Hoop Horizontal Exterior 3000K HPHEA90N39SWS Satin White LED Ø90 / ≈ 50W / >8092 lm No Dimmable 5751 lm 3000K >90º >90 114 lm/W
Hoop Horizontal Exterior 4000K HPHEA90N49RBS Satin Black LED Ø90 / ≈ 50W / >8092 lm No Dimmable 5947 lm 4000K >90º >90 118 lm/W
Hoop Horizontal Exterior 4000K HPHEA90N49RWS Satin White LED Ø90 / ≈ 50W / >8092 lm No Dimmable 5947 lm 4000K >90º >90 118 lm/W
Hoop Horizontal Exterior 4000K HPHEA90N49SBS Satin Black LED Ø90 / ≈ 50W / >8092 lm No Dimmable 5947 lm 4000K >90º >90 118 lm/W
Hoop Horizontal Exterior 4000K HPHEA90N49SWS Satin White LED Ø90 / ≈ 50W / >8092 lm No Dimmable 5947 lm 4000K >90º >90 118 lm/W
