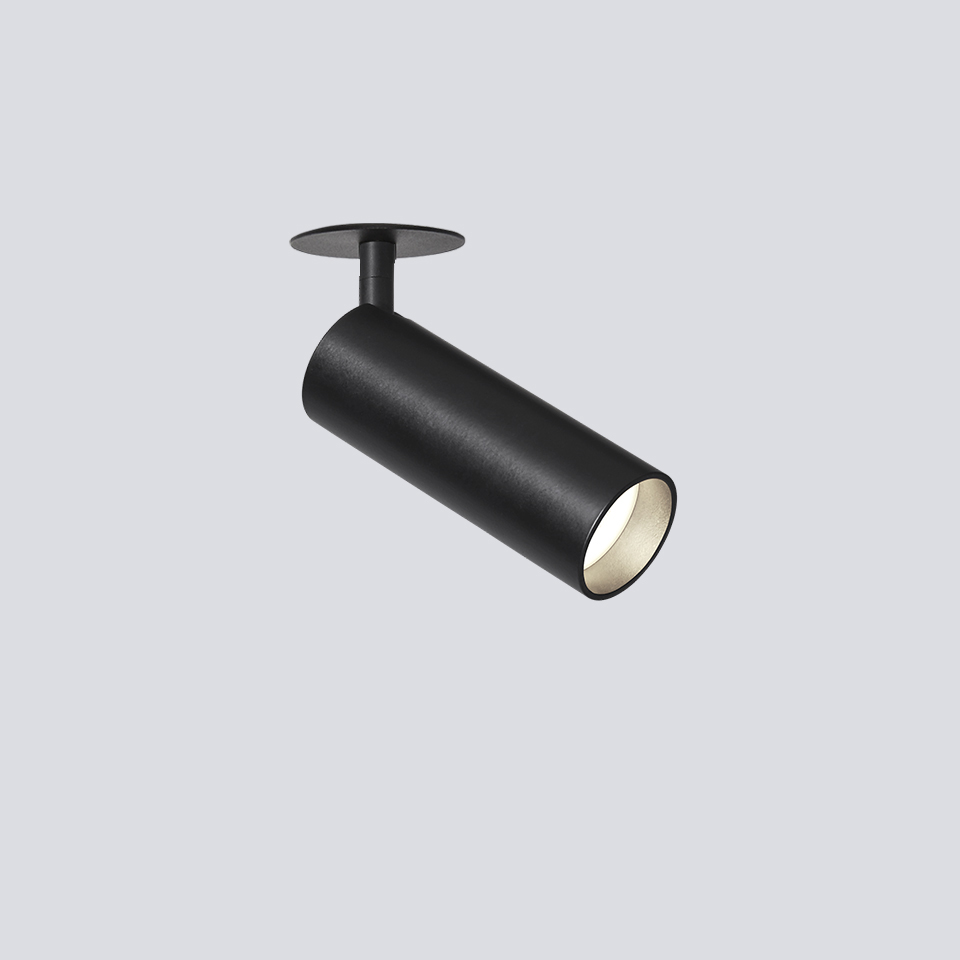

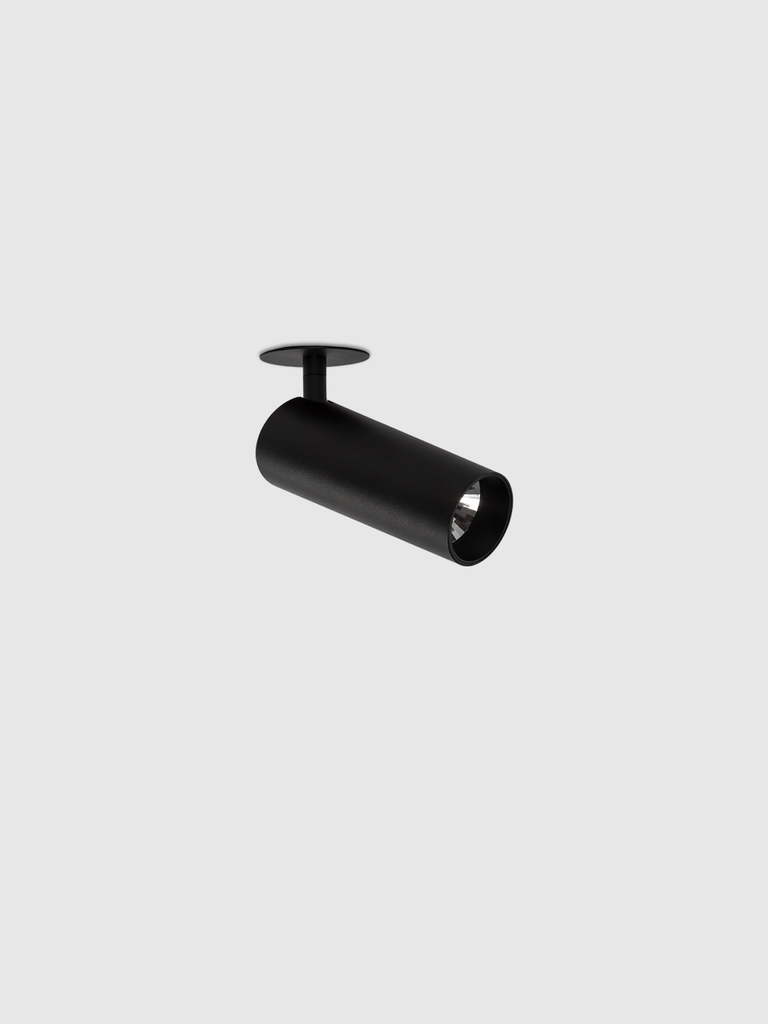

Range of projectors with precision optics. Glare control for interior applications

  • Socket
  • Output
  • Control
  • Colour Temperature
  • Beam Angle
  • Complements
  • Finish

This combination does not exist.

Contact Us
Focus 40 R Focus 40 R
Technical Datasheet CE Declaration Technical Catalogue Installation Instructions General Guarantee Conditions Extended Guarantee Conditions LED Efficiency Label LED technical datasheet Driver technical datasheet Test report certificate Test report FOCUS 40 R - LDT files
Technical drawing
LED flux—
LED power consumption—
Luminous efficiency—
CRI—
Driver LED—
Light temperature—
Beam angle—
IP protection—
Focus 40 R
Focus 40 R
Modelo Ref. Color Fuente Potencia Regulación Flujo lum. Temp. Ángulo CRI Eficiencia
Focus 40 R 2700K FCS4A40D22ABS Satin Black LED Ø40 / ≈ 6W / >600 lm Dali 674 lm 2700K 25º >90 112 lm/W
Focus 40 R 2700K FCS4A40D22AWB White - black LED Ø40 / ≈ 6W / >600 lm Dali 674 lm 2700K 25º >90 112 lm/W
Focus 40 R 3000K FCS4A40D32ABS Satin Black LED Ø40 / ≈ 6W / >600 lm Dali 705 lm 3000K 25º >90 118 lm/W
Focus 40 R 3000K FCS4A40D32AWB White - black LED Ø40 / ≈ 6W / >600 lm Dali 705 lm 3000K 25º >90 118 lm/W
Focus 40 R 4000K FCS4A40D42ABS Satin Black LED Ø40 / ≈ 6W / >600 lm Dali 745 lm 4000K 25º >90 124 lm/W
Focus 40 R 4000K FCS4A40D42AWB White - black LED Ø40 / ≈ 6W / >600 lm Dali 745 lm 4000K 25º >90 124 lm/W
Focus 40 R 2700K FCS4A40K22ABS Satin Black LED Ø40 / ≈ 6W / >600 lm Casambi — 2700K 24º — —
Focus 40 R 2700K FCS4A40K22AWB White - black LED Ø40 / ≈ 6W / >600 lm Casambi — 2700K 24º — —
Focus 40 R 3000K FCS4A40K32ABS Satin Black LED Ø40 / ≈ 6W / >600 lm Casambi — 3000K 24º — —
Focus 40 R 3000K FCS4A40K32AWB White - black LED Ø40 / ≈ 6W / >600 lm Casambi — 3000K 24º — —
Focus 40 R 4000K FCS4A40K42ABS Satin Black LED Ø40 / ≈ 6W / >600 lm Casambi — 4000K 24º — —
Focus 40 R 4000K FCS4A40K42AWB White - black LED Ø40 / ≈ 6W / >600 lm Casambi — 4000K 24º — —
Focus 40 R 2700K FCS4A40N22ABS Satin Black LED Ø40 / ≈ 6W / >600 lm No Dimmable 694 lm 2700K 25º >90 89 lm/W
Focus 40 R 2700K FCS4A40N22AWB White - black LED Ø40 / ≈ 6W / >600 lm No Dimmable 694 lm 2700K 25º >90 89 lm/W
Focus 40 R 3000K FCS4A40N32ABS Satin Black LED Ø40 / ≈ 6W / >600 lm No Dimmable 745 lm 3000K 25º >90 96 lm/W
Focus 40 R 3000K FCS4A40N32AWB White - black LED Ø40 / ≈ 6W / >600 lm No Dimmable 745 lm 3000K 25º >90 96 lm/W
Focus 40 R 4000K FCS4A40N42ABS Satin Black LED Ø40 / ≈ 6W / >600 lm No Dimmable 796 lm 4000K 25º >90 102 lm/W
Focus 40 R 4000K FCS4A40N42AWB White - black LED Ø40 / ≈ 6W / >600 lm No Dimmable 796 lm 4000K 25º >90 102 lm/W
