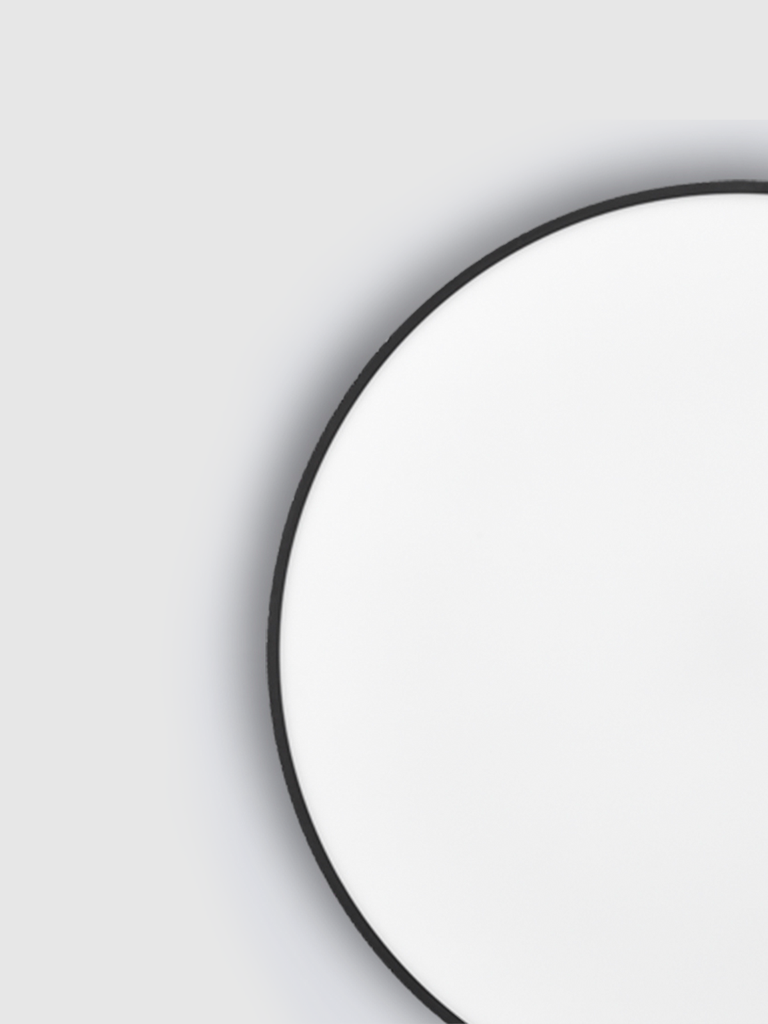

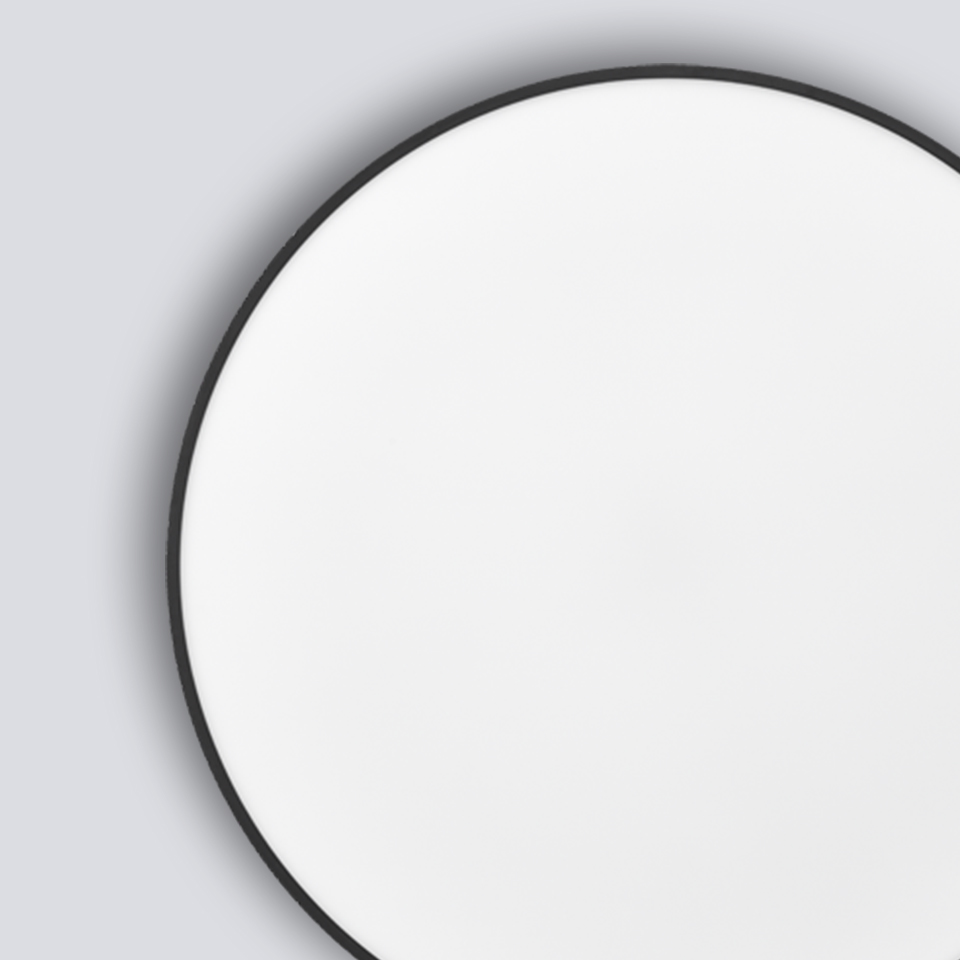

Circular luminaire in extruded aluminium with PMMA diffuser. UGR ≤ 19 with integrated LED driver

  • Socket
  • Output
  • Control
  • Colour Temperature
  • Beam Angle
  • Complements
  • Finish

This combination does not exist.

Contact Us
Drone Drone
General Guarantee Conditions CE Declaration Installation Instructions Technical Datasheet Extended Guarantee Conditions LED Efficiency Label Driver 25W technical datasheet Driver 65W technical datasheet Driver 100W technical datasheet LED technical datasheet DRONE - LDT files DRONE - 3D Model
Technical drawing
LED flux—
LED power consumption—
Luminous efficiency—
CRI—
Driver LED—
Light temperature—
Beam angle—
IP protection—
Drone
Drone
Drone
Modelo Ref. Color Fuente Potencia Regulación Flujo lum. Temp. Ángulo CRI Eficiencia
Drone 3000K DRNEA39D39ABS Satin Black LED Ø39 / ≈ 16W / >2800 lm Dali 2.820 lm 3000K 90º >90 173 lm/W
Drone 3000K DRNEA39D39AWS Satin White LED Ø39 / ≈ 16W / >2800 lm Dali 2.820 lm 3000K 90º >90 173 lm/W
Drone 4000K DRNEA39D49ABS Satin Black LED Ø39 / ≈ 16W / >2800 lm Dali 2.910 lm 4000K 90º >90 179 lm/W
Drone 4000K DRNEA39D49AWS Satin White LED Ø39 / ≈ 16W / >2800 lm Dali 2.910 lm 4000K 90º >90 179 lm/W
Drone 3000K DRNEA39N39ABS Satin Black LED Ø39 / ≈ 16W / >2800 lm No Dimmable 2.820 lm 3000K 90º >90 173 lm/W
Drone 3000K DRNEA39N39AWS Satin White LED Ø39 / ≈ 16W / >2800 lm No Dimmable 2.820 lm 3000K 90º >90 173 lm/W
Drone 4000K DRNEA39N49ABS Satin Black LED Ø39 / ≈ 16W / >2800 lm No Dimmable 2.910 lm 4000K 90º >90 179 lm/W
Drone 4000K DRNEA39N49AWS Satin White LED Ø39 / ≈ 16W / >2800 lm No Dimmable 2.910 lm 4000K 90º >90 179 lm/W
Drone 3000K DRNEA64D39ABS Satin Black LED Ø60 / ≈ 39W / >6600 lm Dali 6.680 lm 3000K 90º >90 170 lm/W
Drone 3000K DRNEA64D39AWS Satin White LED Ø60 / ≈ 39W / >6600 lm Dali 6.680 lm 3000K 90º >90 170 lm/W
Drone 4000K DRNEA64D49ABS Satin Black LED Ø60 / ≈ 39W / >6600 lm Dali 6.960 lm 4000K 90º >90 178 lm/W
Drone 4000K DRNEA64D49AWS Satin White LED Ø60 / ≈ 39W / >6600 lm Dali 6.960 lm 4000K 90º >90 178 lm/W
Drone 3000K DRNEA64N39ABS Satin Black LED Ø60 / ≈ 39W / >6600 lm No Dimmable 6.680 lm 3000K 90º >90 170 lm/W
Drone 3000K DRNEA64N39AWS Satin White LED Ø60 / ≈ 39W / >6600 lm No Dimmable 6.680 lm 3000K 90º >90 170 lm/W
Drone 4000K DRNEA64N49ABS Satin Black LED Ø60 / ≈ 39W / >6600 lm No Dimmable 6.960 lm 4000K 90º >90 178 lm/W
Drone 4000K DRNEA64N49AWS Satin White LED Ø60 / ≈ 39W / >6600 lm No Dimmable 6.960 lm 4000K 90º >90 178 lm/W
Drone 3000K DRNEA88D39ABS Satin Black LED Ø88 / ≈ 84W / >14600 lm Dali 14.600 lm 3000K 90º >90 172 lm/W
Drone 3000K DRNEA88D39AWS Satin White LED Ø88 / ≈ 84W / >14600 lm Dali 14.600 lm 3000K 90º >90 172 lm/W
Drone 4000K DRNEA88D49ABS Satin Black LED Ø88 / ≈ 84W / >14600 lm Dali 15.120 lm 4000K 90º >90 178 lm/W
Drone 4000K DRNEA88D49AWS Satin White LED Ø88 / ≈ 84W / >14600 lm Dali 15.120 lm 4000K 90º >90 178 lm/W
Drone 3000K DRNEA88N39ABS Satin Black LED Ø88 / ≈ 84W / >14600 lm No Dimmable 14.600 lm 3000K 90º >90 172 lm/W
Drone 3000K DRNEA88N39AWS Satin White LED Ø88 / ≈ 84W / >14600 lm No Dimmable 14.600 lm 3000K 90º >90 172 lm/W
Drone 4000K DRNEA88N49ABS Satin Black LED Ø88 / ≈ 84W / >14600 lm No Dimmable 15.120 lm 4000K 90º >90 178 lm/W
Drone 4000K DRNEA88N49AWS Satin White LED Ø88 / ≈ 84W / >14600 lm No Dimmable 15.120 lm 4000K 90º >90 178 lm/W
