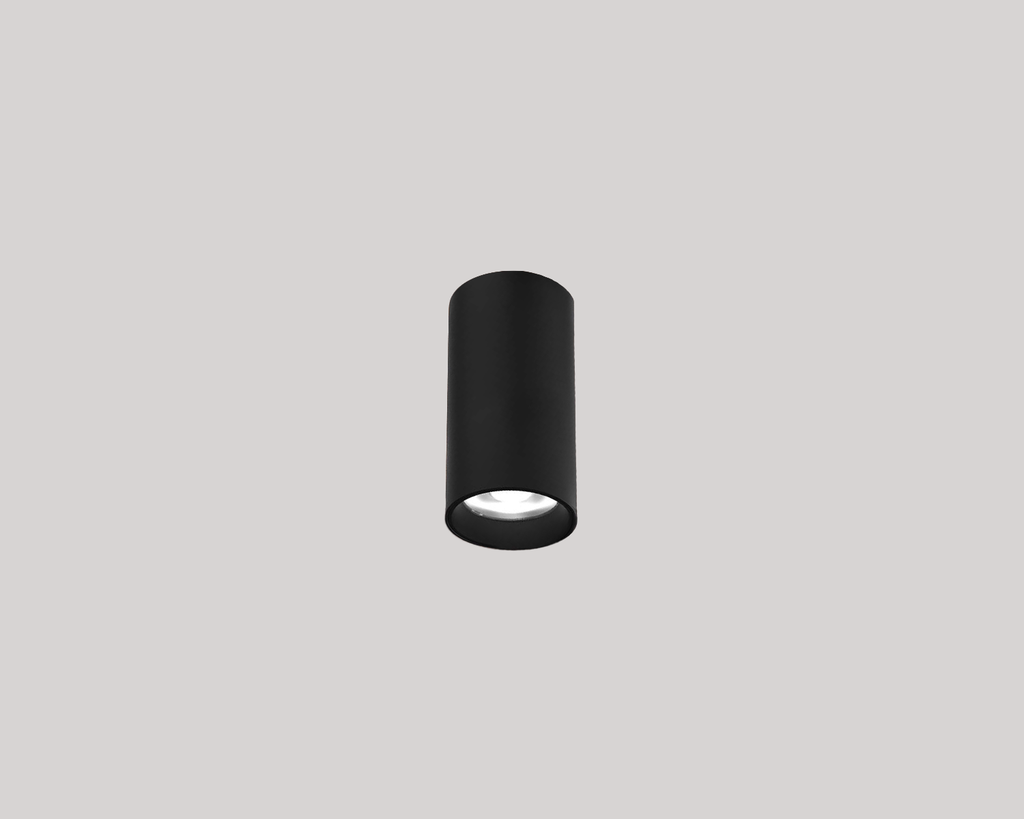

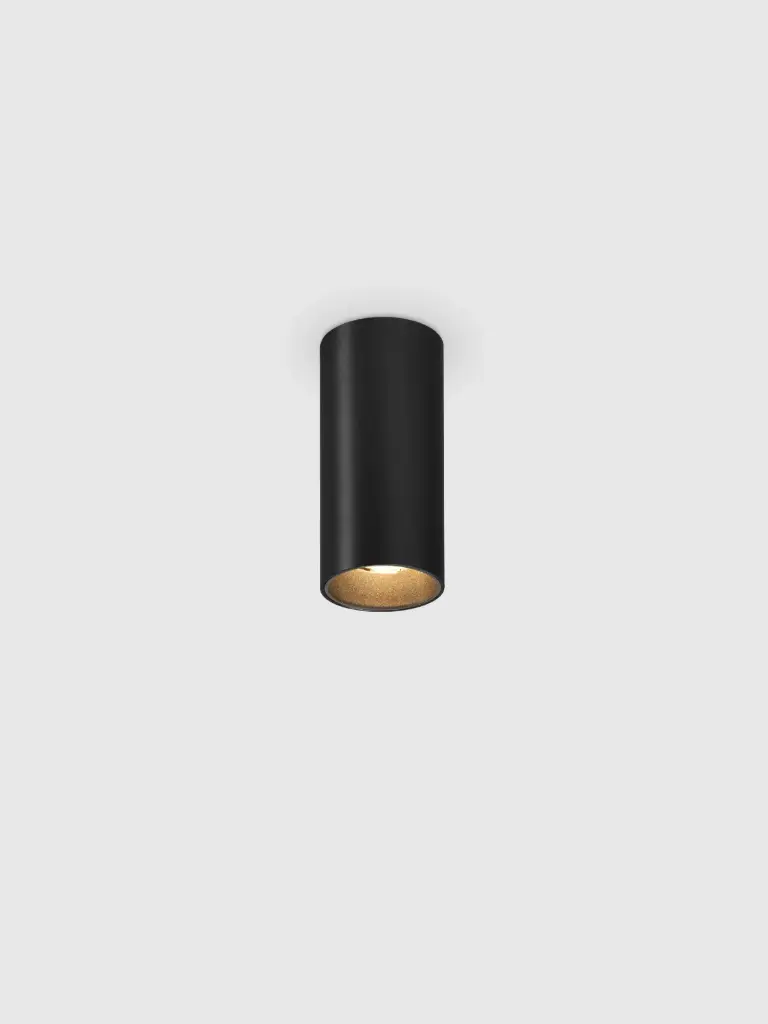

Surface-mounted luminaire with defined geometry. Available in different sizes, finishes and optics

  • Socket
  • Output
  • Control
  • Colour Temperature
  • Beam Angle
  • Complements
  • Finish

This combination does not exist.

Contact Us
Serra Serra
Technical Datasheet General Guarantee Conditions Extended Guarantee Conditions CE Declaration LED Efficiency Label Installation Instructions LED Datasheet Ø45 LED Datasheet Ø65 Driver Datasheet Ø45 Driver Datasheet Ø65 Test Report 18W Certificate 18W Test Report 10W Certificate 10W SERRA - LDT files
Technical drawing
LED flux—
LED power consumption—
Luminous efficiency—
CRI—
Driver LED—
Light temperature—
Beam angle—
IP protection—
Serra
Serra
Modelo Ref. Color Fuente Potencia Regulación Flujo lum. Temp. Ángulo CRI Eficiencia
Serra 2700K SERAA10N21ABS Satin Black LED 10W / Ø45 No Dim 1030 lm 2700K 15º >90 114 lm/W
Serra 2700K SERAA10N21AWS Satin White LED 10W / Ø45 No Dim 1030 lm 2700K 15º >90 114 lm/W
Serra 2700K SERAA10N22ABS Satin Black LED 10W / Ø45 No Dim 1030 lm 2700K 24º <90 114 lm/W
Serra 2700K SERAA10N22AWS Satin White LED 10W / Ø45 No Dim 1030 lm 2700K 24º >90 114 lm/W
Serra 2700K SERAA10N23ABS Satin Black LED 10W / Ø45 No Dim 1030 lm 2700K 36º >90 114 lm/W
Serra 2700K SERAA10N23AWS Satin White LED 10W / Ø45 No Dim 1030 lm 2700K 36º >90 114 lm/W
Serra 3000K SERAA10N31ABS Satin Black LED 10W / Ø45 No Dim 1138 lm 3000K 15º >90 114 lm/W
Serra 3000K SERAA10N31ACO Copper LED 10W / Ø45 No Dim 1138 lm 3000K 15º >90 114 lm/W
Serra 3000K SERAA10N31AGD Gold LED 10W / Ø45 No Dim 1138 lm 3000K 15º >90 114 lm/W
Serra 3000K SERAA10N31APL Silver LED 10W / Ø45 No Dim 1138 lm 3000K 15º >90 114 lm/W
Serra 3000K SERAA10N31AWS Satin White LED 10W / Ø45 No Dim 1138 lm 3000K 15º >90 114 lm/W
Serra 3000K SERAA10N32ABS Satin Black LED 10W / Ø45 No Dim 1138 lm 3000K 24º >90 114 lm/W
Serra 3000K SERAA10N32ACO Copper LED 10W / Ø45 No Dim 1138 lm 3000K 24º >90 114 lm/W
Serra 3000K SERAA10N32AGD Gold LED 10W / Ø45 No Dim 1138 lm 3000K 24º >90 108 lm/W
Serra 3000K SERAA10N32APL Silver LED 10W / Ø45 No Dim 1138 lm 3000K 24º >90 114 lm/W
Serra 3000K SERAA10N32AWS Satin White LED 10W / Ø45 No Dim 1138 lm 3000K 24º >90 114 lm/W
Serra 3000K SERAA10N33ABS Satin Black LED 10W / Ø45 No Dim 1138 lm 3000K 36º >90 114 lm/W
Serra 3000K SERAA10N33ACO Copper LED 10W / Ø45 No Dim 1138 lm 3000K 36º >90 114 lm/W
Serra 3000K SERAA10N33AGD Gold LED 10W / Ø45 No Dim 1138 lm 3000K 36º >90 114 lm/W
Serra 3000K SERAA10N33APL Silver LED 10W / Ø45 No Dim 1138 lm 3000K 36º >90 114 lm/W
Serra 3000K SERAA10N33AWS Satin White LED 10W / Ø45 No Dim 1138 lM 3000K 36º >90 114 lm/W
Serra 4000K SERAA10N41ABS Satin Black LED 10W / Ø45 No Dim 1233 lm 4000K 15º >90 108 lm/W
Serra 4000K SERAA10N41AWS Satin White LED 10W / Ø45 No Dim 1233 lm 4000K 15º >90 114 lm/W
Serra 4000K SERAA10N42ABS Satin Black LED 10W / Ø45 No Dim 1233 lm 4000K 24º >90 114 lm/W
Serra 4000K SERAA10N42AWS Satin White LED 10W / Ø45 No Dim 1233 lm 4000K 24º >90 114 lm/W
Serra 4000K SERAA10N43ABS Satin Black LED 10W / Ø45 No Dim 1233 lm 4000K 36º >90 114 lm/W
Serra 4000K SERAA10N43AWS Satin White LED 10W / Ø45 No Dim 1233 lm 4000K 36º >90 114 lm/W
Serra 2700K SERAA18N21ABS Satin Black LED 18W / Ø62 No Dim 2027 lm 2700K 15º >90 108 lm/W
Serra 2700K SERAA18N21AWS Satin White LED 18W / Ø62 No Dim 2027 lm 2700K 15º >90 108 lm/W
Serra 2700K SERAA18N22ABS Satin Black LED 18W / Ø62 No Dim 2027 lm 2700K 24º >90 108 lm/W
Serra 2700K SERAA18N22AWS Satin White LED 18W / Ø62 No Dim 2027 lm 2700K 24º >90 108 lm/W
Serra 2700K SERAA18N23ABS Satin Black LED 18W / Ø62 No Dim 2027 lm 2700K 36º >90 108 lm/W
Serra 2700K SERAA18N23AWS Satin White LED 18W / Ø62 No Dim 2027 lm 2700K 36º >90 108 lm/W
Serra 3000K SERAA18N31ABS Satin Black LED 18W / Ø62 No Dim 2168 lm 3000K 15º >90 108 lm/W
Serra 3000K SERAA18N31ACO Copper LED 18W / Ø62 No Dim 2168 lm 3000K 15º >90 108 lm/W
Serra 3000K SERAA18N31AGD Gold LED 18W / Ø62 No Dim 2168 lm 3000K 15º >90 108 lm/W
Serra 3000K SERAA18N31APL Silver LED 18W / Ø62 No Dim 2168 lm 3000K 15º >90 108 lm/W
Serra 3000K SERAA18N31AWS Satin White LED 18W / Ø62 No Dim 2168 lm 3000K 15º >90 108 lm/W
Serra 3000K SERAA18N32ABS Satin Black LED 18W / Ø62 No Dim 2168 lm 3000K 24º >90 108 lm/W
Serra 3000K SERAA18N32ACO Copper LED 18W / Ø62 No Dim 2168 lm 3000K 24º >90 108 lm/W
Serra 3000K SERAA18N32AGD Gold LED 18W / Ø62 No Dim 2168 lm 3000K 24º >90 108 lm/W
Serra 3000K SERAA18N32APL Silver LED 18W / Ø62 No Dim 2168 lm 3000K 24º >90 108 lm/W
Serra 3000K SERAA18N32AWS Satin White LED 18W / Ø62 No Dim 2168 lm 3000K 24º >90 108 lm/W
Serra 3000K SERAA18N33ABS Satin Black LED 18W / Ø62 No Dim 2168 lm 3000K 36º >90 108 lm/W
Serra 3000K SERAA18N33ACO Copper LED 18W / Ø62 No Dim 2168 lm 3000K 36º >90 108 lm/W
Serra 3000K SERAA18N33AGD Gold LED 18W / Ø62 No Dim 2168 lm 3000K 36º >90 108 lm/W
Serra 3000K SERAA18N33APL Silver LED 18W / Ø62 No Dim 2168 lm 3000K 36º >90 108 lm/W
Serra 3000K SERAA18N33AWS Satin White LED 18W / Ø62 No Dim 2168 lm 3000K 36º >90 108 lm/W
Serra 4000K SERAA18N41ABS Satin Black LED 18W / Ø62 No Dim 2402 lm 4000K 15º >90 108 lm/W
Serra 4000K SERAA18N41AWS Satin White LED 18W / Ø62 No Dim 2402 lm 4000K 15º >90 108 lm/W
Serra 4000K SERAA18N42ABS Satin Black LED 18W / Ø62 No Dim 2402 lm 4000K 24º >90 108 lm/W
Serra 4000K SERAA18N42AWS Satin White LED 18W / Ø62 No Dim 2402 lm 4000K 24º >90 108 lm/W
Serra 4000K SERAA18N43ABS Satin Black LED 18W / Ø62 No Dim 2402 lm 4000K 36º >90 108 lm/W
Serra 4000K SERAA18N43AWS Satin White LED 18W / Ø62 No Dim 2402 lm 4000K 36º >90 108 lm/W
