Dot Tilt

Dot Tilt

https://onoklighting.com/web/image/product.template/6304/image_1920?unique=90940fb

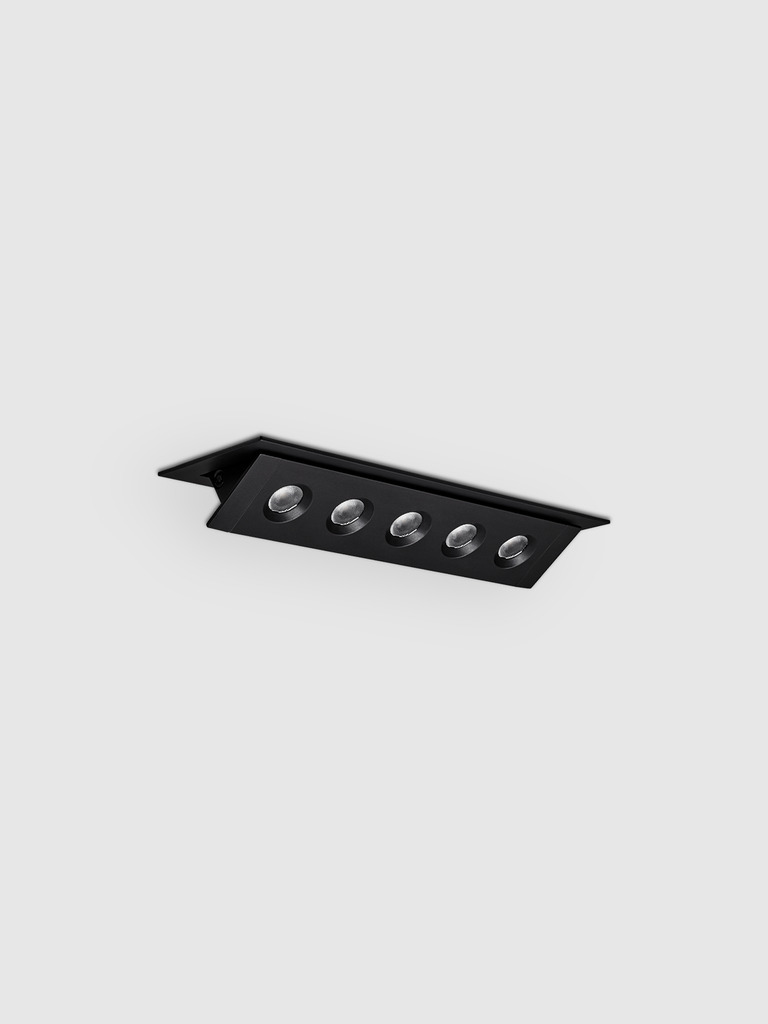

Linear profile with CRI >90 and anti-glare optics. Available in tiltable version for indirect lighting or wallwasher applications

  • Socket
  • Output
  • Control
  • Colour Temperature
  • Beam Angle
  • Complements
  • Finish

This combination does not exist.

Contact Us
Dot Tilt Dot Tilt
Technical Datasheet CE Declaration Technical Catalogue Installation Instructions General Guarantee Conditions Extended Guarantee Conditions Efficiency Label Driver technical datasheet LED technical datasheet Test report certificate Test report DOT TILT - LDT files DOT TILT - 3D Model
Technical drawing
LED flux—
LED power consumption—
Luminous efficiency—
CRI—
Driver LED—
Light temperature—
Beam angle—
IP protection—
Modelo Ref. Color Fuente Potencia Regulación Flujo lum. Temp. Ángulo CRI Eficiencia
Dot Tilt 2700K DOTTA05D23ABS Satin Black LED 5P / ≈ 10W / >1.000 lm Dali 1.000 lm 2700K 30º >90 100 lm/W
Dot Tilt 3000K DOTTA05D33ABS Satin Black LED 5P / ≈ 10W / >1.000 lm Dali 1.097 lm 3000K 30º >90 110 lm/W
Dot Tilt 4000K DOTTA05D43ABS Satin Black LED 5P / ≈ 10W / >1.000 lm Dali 1.155 lm 4000K 30º >90 115 lm/W
Dot Tilt 2700K DOTTA05F23ABS Satin Black LED 5P / ≈ 10W / >1.000 lm PUSH 1.000 lm 2700K 30º >90 100 lm/W
Dot Tilt 3000K DOTTA05F33ABS Satin Black LED 5P / ≈ 10W / >1.000 lm PUSH 1.097 lm 3000K 30º >90 110 lm/W
Dot Tilt 4000K DOTTA05F43ABS Satin Black LED 5P / ≈ 10W / >1.000 lm PUSH 1.155 lm 4000K 30º >90 115 lm/W
Dot Tilt 2700K DOTTA05N23ABS Satin Black LED 5P / ≈ 10W / >1.000 lm No Dimmable 1.000 lm 2700K 30º >90 100 lm/W
Dot Tilt 3000K DOTTA05N33ABS Satin Black LED 5P / ≈ 10W / >1.000 lm No Dimmable 1.097 lm 3000K 30º >90 110 lm/W
Dot Tilt 4000K DOTTA05N43ABS Satin Black LED 5P / ≈ 10W / >1.000 lm No Dimmable 1.155 lm 4000K 30º >90 115 lm/W
Dot Tilt 2700K DOTTA10D23ABS Satin Black LED 10P / ≈ 21W / >2.000 lm Dali 2.100 lm 2700K 30º >90 105 lm/W
Dot Tilt 3000K DOTTA10D33ABS Satin Black LED 10P / ≈ 21W / >2.000 lm Dali 2.158 lm 3000K 30º >90 108 lm/W
Dot Tilt 4000K DOTTA10D43ABS Satin Black LED 10P / ≈ 21W / >2.000 lm Dali 2.310 lm 4000K 30º >90 116 lm/W
Dot Tilt 2700K DOTTA10F23ABS Satin Black LED 10P / ≈ 21W / >2.000 lm PUSH 2.100 lm 2700K 30º >90 105 lm/W
Dot Tilt 3000K DOTTA10F33ABS Satin Black LED 10P / ≈ 21W / >2.000 lm PUSH 2.158 lm 3000K 30º >90 108 lm/W
Dot Tilt 4000K DOTTA10F43ABS Satin Black LED 10P / ≈ 21W / >2.000 lm PUSH 2.310 lm 4000K 30º >90 116 lm/W
Dot Tilt 2700K DOTTA10N23ABS Satin Black LED 10P / ≈ 21W / >2.000 lm No Dimmable 2.100 lm 2700K 30º >90 105 lm/W
Dot Tilt 3000K DOTTA10N33ABS Satin Black LED 10P / ≈ 21W / >2.000 lm No Dimmable 2.158 lm 3000K 30º >90 108 lm/W
Dot Tilt 4000K DOTTA10N43ABS Satin Black LED 10P / ≈ 21W / >2.000 lm No Dimmable 2.310 lm 4000K 30º >90 116 lm/W
