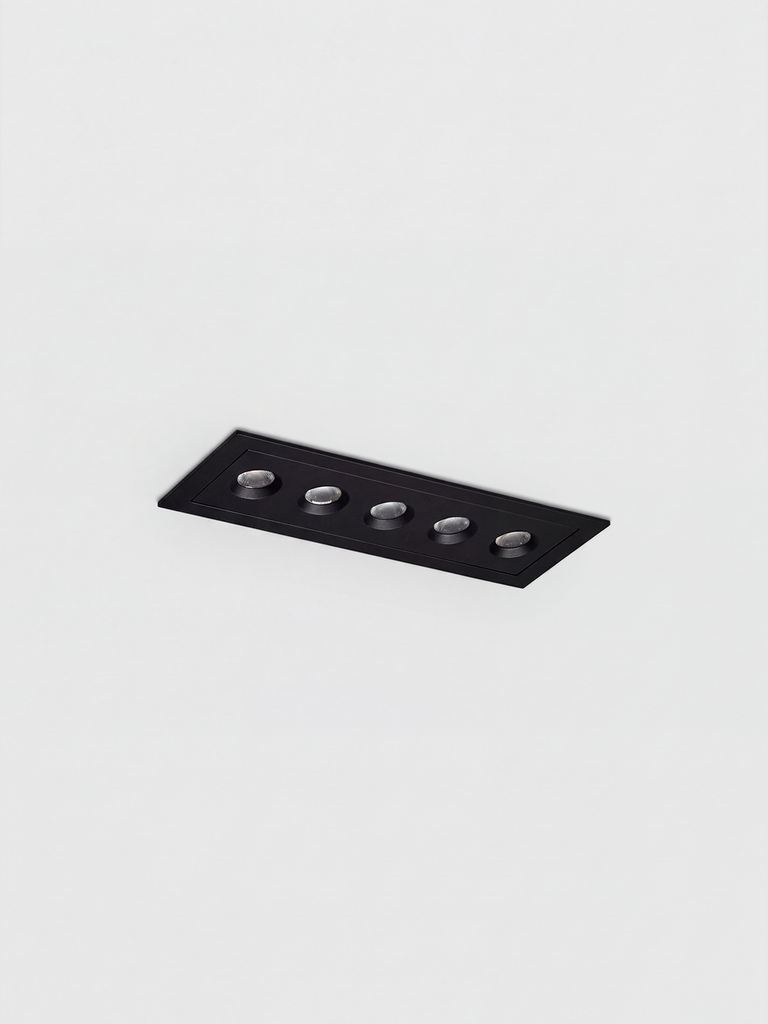

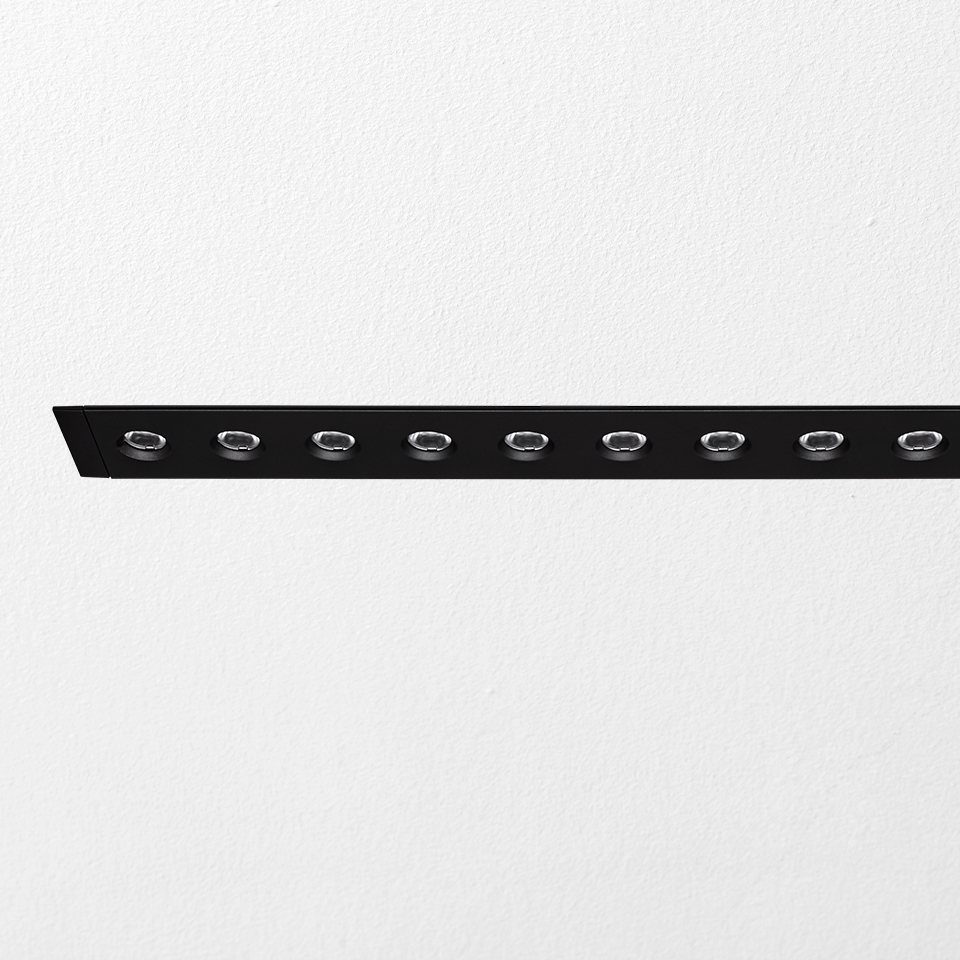

One-metre linear profile with integrated point modules. Directed and uniform lighting for indoor applications

  • Socket
  • Output
  • Control
  • Colour Temperature
  • Beam Angle
  • Complements
  • Finish

This combination does not exist.

Contact Us
Dot Dot
Technical Datasheet CE Declaration Technical Catalogue Installation Instructions General Guarantee Conditions Extended Guarantee Conditions Efficiency Label Driver technical datasheet (X3) Driver technical datasheet (X5/X10) LED technical datasheet Test report certificate Test report DOT - LDT files DOT - 3D model
Technical drawing
LED flux—
LED power consumption—
Luminous efficiency—
CRI—
Driver LED—
Light temperature—
Beam angle—
IP protection—
Dot
Dot
Modelo Ref. Color Fuente Potencia Regulación Flujo lum. Temp. Ángulo CRI Eficiencia
Dot 2700K DOTXA03D23ABS Satin Black LED 3P / ≈ 6W / >600 lm Dali 600 lm 2700K 30º >90 100 lm/W
Dot 2700K DOTXA03D23AWS Satin White LED 3P / ≈ 6W / >600 lm Dali 600 lm 2700K 30º >90 100 lm/W
Dot 3000K DOTXA03D33ABS Satin Black LED 3P / ≈ 6W / >600 lm Dali 647 lm 3000K 30º >90 108 lm/W
Dot 3000K DOTXA03D33AWS Satin White LED 3P / ≈ 6W / >600 lm Dali 647 lm 3000K 30º >90 108 lm/W
Dot 4000K DOTXA03D43ABS Satin Black LED 3P / ≈ 6W / >600 lm Dali 693 lm 4000K 30º >90 116 lm/W
Dot 4000K DOTXA03D43AWS Satin White LED 3P / ≈ 6W / >600 lm Dali 693 lm 4000K 30º >90 116 lm/W
Dot 2700K DOTXA03F23ABS Satin Black LED 3P / ≈ 6W / >600 lm PUSH 600 lm 2700K 30º >90 100 lm/W
Dot 2700K DOTXA03F23AWS Satin White LED 3P / ≈ 6W / >600 lm PUSH 600 lm 2700K 30º >90 100 lm/W
Dot 3000K DOTXA03F33ABS Satin Black LED 3P / ≈ 6W / >600 lm PUSH 647 lm 3000K 30º >90 108 lm/W
Dot 3000K DOTXA03F33AWS Satin White LED 3P / ≈ 6W / >600 lm PUSH 647 lm 3000K 30º >90 108 lm/W
Dot 4000K DOTXA03F43ABS Satin Black LED 3P / ≈ 6W / >600 lm PUSH 693 lm 4000K 30º >90 116 lm/W
Dot 4000K DOTXA03F43AWS Satin White LED 3P / ≈ 6W / >600 lm PUSH 693 lm 4000K 30º >90 116 lm/W
Dot 2700K DOTXA03K23ABS Satin Black LED 3P / ≈ 6W / >600 lm Casambi — 2700K 36º — —
Dot 2700K DOTXA03K23AWS Satin White LED 3P / ≈ 6W / >600 lm Casambi — 2700K 36º — —
Dot 3000K DOTXA03K33ABS Satin Black LED 3P / ≈ 6W / >600 lm Casambi — 3000K 36º — —
Dot 3000K DOTXA03K33AWS Satin White LED 3P / ≈ 6W / >600 lm Casambi — 3000K 36º — —
Dot 4000K DOTXA03K43ABS Satin Black LED 3P / ≈ 6W / >600 lm Casambi — 4000K 36º — —
Dot 4000K DOTXA03K43AWS Satin White LED 3P / ≈ 6W / >600 lm Casambi — 4000K 36º — —
Dot 2700K DOTXA03N23ABS Satin Black LED 3P / ≈ 6W / >600 lm No Dimmable 600 lm 2700K 30º >90 100 lm/W
Dot 2700K DOTXA03N23AWS Satin White LED 3P / ≈ 6W / >600 lm No Dimmable 600 lm 2700K 30º >90 100 lm/W
Dot 3000K DOTXA03N33ABS Satin Black LED 3P / ≈ 6W / >600 lm No Dimmable 647 lm 3000K 30º >90 108 lm/W
Dot 3000K DOTXA03N33AWS Satin White LED 3P / ≈ 6W / >600 lm No Dimmable 647 lm 3000K 30º >90 108 lm/W
Dot 4000K DOTXA03N43ABS Satin Black LED 3P / ≈ 6W / >600 lm No Dimmable 693 lm 4000K 30º >90 116 lm/W
Dot 4000K DOTXA03N43AWS Satin White LED 3P / ≈ 6W / >600 lm No Dimmable 693 lm 4000K 30º >90 116 lm/W
Dot 2700K DOTXA05D23ABS Satin Black LED 5P / ≈ 10W / >1.000 lm Dali 1.000 lm 2700K 30º >90 100 lm/W
Dot 2700K DOTXA05D23AWS Satin White LED 5P / ≈ 10W / >1.000 lm Dali 1.000 lm 2700K 30º >90 100 lm/W
Dot 3000K DOTXA05D33ABS Satin Black LED 5P / ≈ 10W / >1.000 lm Dali 1.097 lm 3000K 30º >90 110 lm/W
Dot 3000K DOTXA05D33AWS Satin White LED 5P / ≈ 10W / >1.000 lm Dali 1.097 lm 3000K 30º >90 110 lm/W
Dot 4000K DOTXA05D43ABS Satin Black LED 5P / ≈ 10W / >1.000 lm Dali 1.155 lm 4000K 30º >90 115 lm/W
Dot 4000K DOTXA05D43AWS Satin White LED 5P / ≈ 10W / >1.000 lm Dali 1.155 lm 4000K 30º >90 115 lm/W
Dot 2700K DOTXA05F23ABS Satin Black LED 5P / ≈ 10W / >1.000 lm PUSH 1.000 lm 2700K 30º >90 100 lm/W
Dot 2700K DOTXA05F23AWS Satin White LED 5P / ≈ 10W / >1.000 lm PUSH 1.000 lm 2700K 30º >90 100 lm/W
Dot 3000K DOTXA05F33ABS Satin Black LED 5P / ≈ 10W / >1.000 lm PUSH 1.097 lm 3000K 30º >90 110 lm/W
Dot 3000K DOTXA05F33AWS Satin White LED 5P / ≈ 10W / >1.000 lm PUSH 1.097 lm 3000K 30º >90 110 lm/W
Dot 4000K DOTXA05F43ABS Satin Black LED 5P / ≈ 10W / >1.000 lm PUSH 1.155 lm 4000K 30º >90 115 lm/W
Dot 4000K DOTXA05F43AWS Satin White LED 5P / ≈ 10W / >1.000 lm PUSH 1.155 lm 4000K 30º >90 115 lm/W
Dot 2700K DOTXA05K23ABS Satin Black LED 5P / ≈ 10W / >1.000 lm Casambi — 2700K 36º — —
Dot 2700K DOTXA05K23AWS Satin White LED 5P / ≈ 10W / >1.000 lm Casambi — 2700K 36º — —
Dot 3000K DOTXA05K33ABS Satin Black LED 5P / ≈ 10W / >1.000 lm Casambi — 3000K 36º — —
Dot 3000K DOTXA05K33AWS Satin White LED 5P / ≈ 10W / >1.000 lm Casambi — 3000K 36º — —
Dot 4000K DOTXA05K43ABS Satin Black LED 5P / ≈ 10W / >1.000 lm Casambi — 4000K 36º — —
Dot 4000K DOTXA05K43AWS Satin White LED 5P / ≈ 10W / >1.000 lm Casambi — 4000K 36º — —
Dot 2700K DOTXA05N23ABS Satin Black LED 5P / ≈ 10W / >1.000 lm No Dimmable 1.000 lm 2700K 30º >90 100 lm/W
Dot 2700K DOTXA05N23AWS Satin White LED 5P / ≈ 10W / >1.000 lm No Dimmable 1.000 lm 2700K 30º >90 100 lm/W
Dot 3000K DOTXA05N33ABS Satin Black LED 5P / ≈ 10W / >1.000 lm No Dimmable 1.097 lm 3000K 30º >90 110 lm/W
Dot 3000K DOTXA05N33AWS Satin White LED 5P / ≈ 10W / >1.000 lm No Dimmable 1.097 lm 3000K 30º >90 110 lm/W
Dot 4000K DOTXA05N43ABS Satin Black LED 5P / ≈ 10W / >1.000 lm No Dimmable 1.155 lm 4000K 30º >90 115 lm/W
Dot 4000K DOTXA05N43AWS Satin White LED 5P / ≈ 10W / >1.000 lm No Dimmable 1.155 lm 4000K 30º >90 115 lm/W
Dot 2700K DOTXA10D23ABS Satin Black LED 10P / ≈ 21W / >2.000 lm Dali 2.100 lm 2700K 30º >90 105 lm/W
Dot 2700K DOTXA10D23AWS Satin White LED 10P / ≈ 21W / >2.000 lm Dali 2.100 lm 2700K 30º >90 105 lm/W
Dot 3000K DOTXA10D33ABS Satin Black LED 10P / ≈ 21W / >2.000 lm Dali 2.158 lm 3000K 30º >90 108 lm/W
Dot 3000K DOTXA10D33AWS Satin White LED 10P / ≈ 21W / >2.000 lm Dali 2.158 lm 3000K 30º >90 108 lm/W
Dot 4000K DOTXA10D43ABS Satin Black LED 10P / ≈ 21W / >2.000 lm Dali 2.310 lm 4000K 30º >90 116 lm/W
Dot 4000K DOTXA10D43AWS Satin White LED 10P / ≈ 21W / >2.000 lm Dali 2.310 lm 4000K 30º >90 116 lm/W
Dot 2700K DOTXA10F23ABS Satin Black LED 10P / ≈ 21W / >2.000 lm PUSH 2.100 lm 2700K 30º >90 105 lm/W
Dot 2700K DOTXA10F23AWS Satin White LED 10P / ≈ 21W / >2.000 lm PUSH 2.100 lm 2700K 30º >90 105 lm/W
Dot 3000K DOTXA10F33ABS Satin Black LED 10P / ≈ 21W / >2.000 lm PUSH 2.158 lm 3000K 30º >90 108 lm/W
Dot 3000K DOTXA10F33AWS Satin White LED 10P / ≈ 21W / >2.000 lm PUSH 2.158 lm 3000K 30º >90 108 lm/W
Dot 4000K DOTXA10F43ABS Satin Black LED 10P / ≈ 21W / >2.000 lm PUSH 2.310 lm 4000K 30º >90 116 lm/W
Dot 4000K DOTXA10F43AWS Satin White LED 10P / ≈ 21W / >2.000 lm PUSH 2.310 lm 4000K 30º >90 116 lm/W
Dot 2700K DOTXA10K23ABS Satin Black LED 10P / ≈ 21W / >2.000 lm Casambi — 2700K 36º — —
Dot 2700K DOTXA10K23AWS Satin White LED 10P / ≈ 21W / >2.000 lm Casambi — 2700K 36º — —
Dot 3000K DOTXA10K33ABS Satin Black LED 10P / ≈ 21W / >2.000 lm Casambi — 3000K 36º — —
Dot 3000K DOTXA10K33AWS Satin White LED 10P / ≈ 21W / >2.000 lm Casambi — 3000K 36º — —
Dot 4000K DOTXA10K43ABS Satin Black LED 10P / ≈ 21W / >2.000 lm Casambi — 4000K 36º — —
Dot 4000K DOTXA10K43AWS Satin White LED 10P / ≈ 21W / >2.000 lm Casambi — 4000K 36º — —
Dot 2700K DOTXA10N23ABS Satin Black LED 10P / ≈ 21W / >2.000 lm No Dimmable 2.100 lm 2700K 30º >90 105 lm/W
Dot 2700K DOTXA10N23AWS Satin White LED 10P / ≈ 21W / >2.000 lm No Dimmable 2.100 lm 2700K 30º >90 105 lm/W
Dot 3000K DOTXA10N33ABS Satin Black LED 10P / ≈ 21W / >2.000 lm No Dimmable 2.158 lm 3000K 30º >90 108 lm/W
Dot 3000K DOTXA10N33AWS Satin White LED 10P / ≈ 21W / >2.000 lm No Dimmable 2.158 lm 3000K 30º >90 108 lm/W
Dot 4000K DOTXA10N43ABS Satin Black LED 10P / ≈ 21W / >2.000 lm No Dimmable 2.310 lm 4000K 30º >90 116 lm/W
Dot 4000K DOTXA10N43AWS Satin White LED 10P / ≈ 21W / >2.000 lm No Dimmable 2.310 lm 4000K 30º >90 116 lm/W
