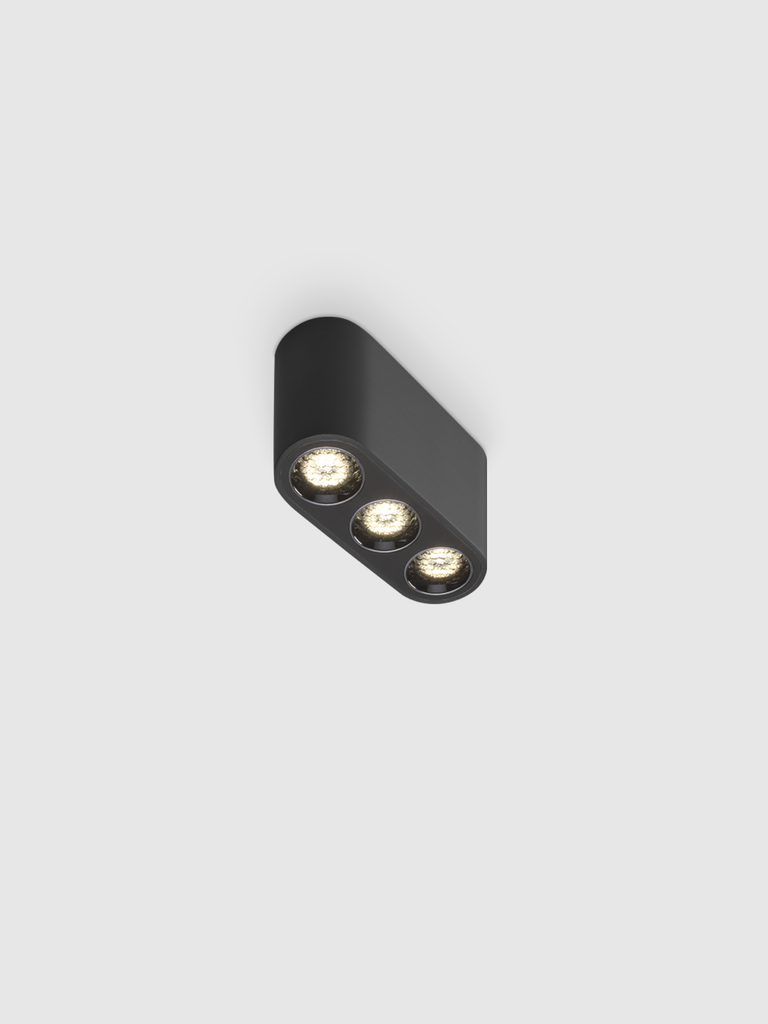

Compact luminaire for discreet integration in interior applications. Available in different power outputs, colour temperatures and finishes

  • Socket
  • Output
  • Control
  • Colour Temperature
  • Beam Angle
  • Complements
  • Finish

This combination does not exist.

Contact Us
Dio S Dio S
Technical Datasheet General Guarantee Conditions Extended Guarantee Conditions LED Efficiency Label CE Declaration Installation Instructions LED Datasheet Driver Datasheet Test Report Certificate DIO S - LDT files
Technical drawing
LED flux—
LED power consumption—
Luminous efficiency—
CRI—
Driver LED—
Light temperature—
Beam angle—
IP protection—
Dio S
Dio S
Modelo Ref. Color Fuente Potencia Regulación Flujo lum. Temp. Ángulo CRI Eficiencia
Dio S 2700K DIOSA07N23ABS Satin Black LED 3P / 7W No Dim 669 lm 2700K 36º >90 106 lm/W
Dio S 2700K DIOSA07N23AWS Satin White LED 3P / 7W No Dim 669 lm 2700K 36º >90 106 lm/W
Dio S 3000K DIOSA07N33ABS Satin Black LED 3P / 7W No Dim 744 lm 3000K 36º >90 106 lm/W
Dio S 3000K DIOSA07N33ACO Copper LED 3P / 7W No Dim 744 lm 3000K 36º >90 106 lm/W
Dio S 3000K DIOSA07N33AGD Gold LED 3P / 7W No Dim 744 lm 3000K 36º >90 106 lm/W
Dio S 3000K DIOSA07N33APL Silver LED 3P / 7W No Dim 744 lm 3000K 36º >90 106 lm/W
Dio S 3000K DIOSA07N33AWS Satin White LED 3P / 7W No Dim 744 lm 3000K 36º >90 106 lm/W
Dio S 4000K DIOSA07N43ABS Satin Black LED 3P / 7W No Dim 991 lm 4000K 36º >90 106 lm/W
Dio S 4000K DIOSA07N43AWS Satin White LED 3P / 7W No Dim 991 lm 4000K 36º >90 106 lm/W
Dio S 2700K DIOSA14N23ABS Satin Black LED 6P / 14W No Dim 1338 lm 2700K 36º >90 106 lm/W
Dio S 2700K DIOSA14N23AWS Satin White LED 6P / 14W No Dim 1338 lm 2700K 36º >90 106 lm/W
Dio S 3000K DIOSA14N33ABS Satin Black LED 6P / 14W No Dim 1486 lm 3000K 36º >90 106 lm/W
Dio S 3000K DIOSA14N33ACO Copper LED 6P / 14W No Dim 14W lm 3000K 36º >90 700 mA lm/W
Dio S 3000K DIOSA14N33AGD Gold LED 6P / 14W No Dim 1486 lm 3000K 26º >90 106 lm/W
Dio S 3000K DIOSA14N33APL Silver LED 6P / 14W No Dim 1486 lm 3000K 36º >90 106 lm/W
Dio S 3000K DIOSA14N33AWS Satin White LED 6P / 14W No Dim 1486 lm 3000K 36º >90 700 mA lm/W
Dio S 4000K DIOSA14N43ABS Satin Black LED 6P / 14W No Dim 1979 lm 4000K 36º >90 106 lm/W
Dio S 4000K DIOSA14N43AWS Satin White LED 6P / 14W No Dim 1979 lm 4000K 36º >90 106 lm/W
