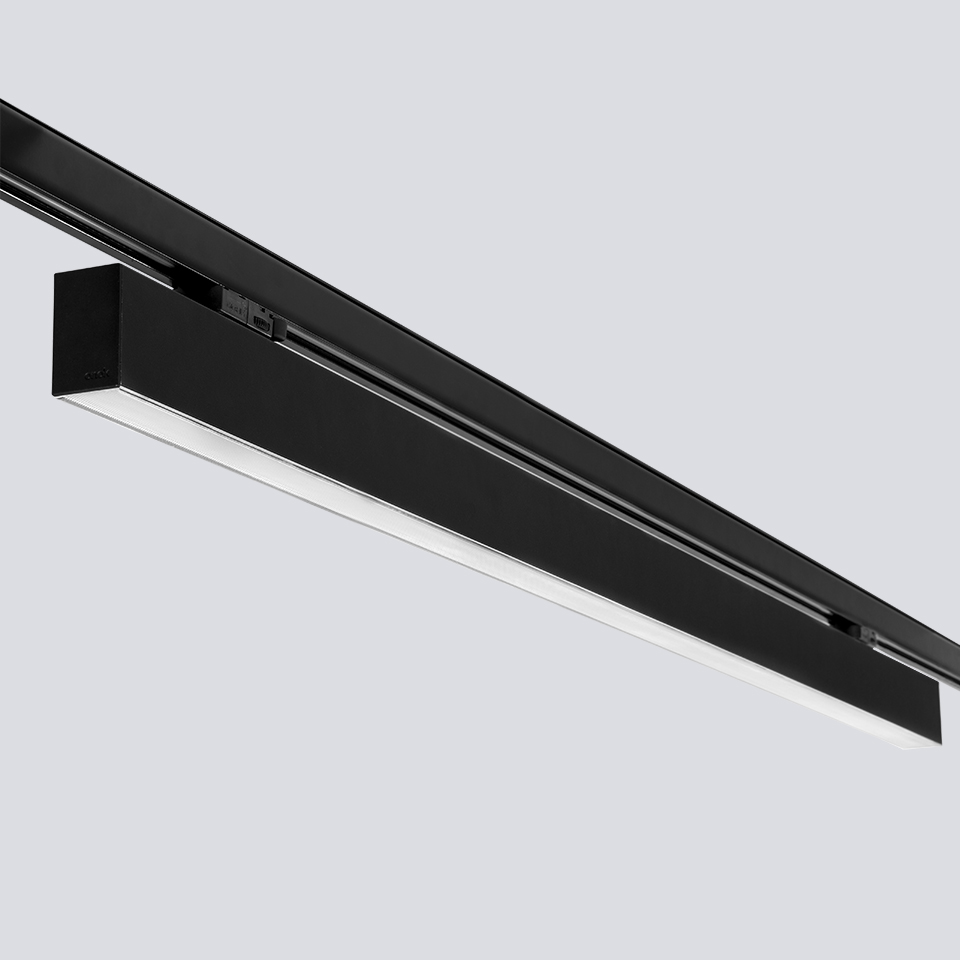

TRACK LINE
Socket:
LED
Beam Angle:
>90º
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
TRACK LINE
More lengths mean less union joints, in Onok Lighting we renovate our most popular profile, with longer measure that can be adapted better to those projects where your lines have no end, we had also incorporated a new microprismatic diffuser in PMMA designed for projects with low UGR needs.
| W | mA | Temp. | Lum. | CRI | |
|---|---|---|---|---|---|
| TRACK LINE | 112 cm / 22W | 500 mA | 3K | 3.720 lm | >85 |
| 112 cm / 22W | 500 mA | 4K | 3.999 lm | >85 | |
| TRACK LINE | 140 cm / 28W | 500 mA | 3K | 4.650 lm | >85 |
| 140 cm / 28W | 500 mA | 4K | 4.998 lm | >85 | |
| TRACK LINE | 182 cm / 36W | 500 mA | 3K | 6.045 lm | >85 |
| 182 cm / 36W | 500 mA | 4K | 6.498 lm | >85 | |
| TRACK LINE | 224 cm / 45W | 500 mA | 3K | 7.440 lm | >85 |
| 224 cm / 45W | 500 mA | 4K | 7.998 lm | >85 | |
| TRACK LINE | 281 cm / 56W | 500 mA | 3K | 9.300 lm | >85 |
| 281 cm / 56W | 500 mA | 4K | 9.997 lm | >85 | |
| TRACK LINE | 70 cm / 14W | 500 mA | 3K | 2.325 lm | >85 |
| 70 cm / 14W | 500 mA | 4K | 2.499 lm | >85 |
To help customizing this product, we have created a simple step by step configurator. Click on the button to start.
-
