LINE R

http://onoklighting.com/web/image/product.template/8376/image_1920?unique=5a6daad
  • Socket
  • Output
  • Control
  • Colour Temperature
  • Beam Angle
  • Complements
  • Finish

880.50 € 880.50 € 880.5 EUR

157.00 €

This combination does not exist.

Add to Cart

Socket: LED
Beam Angle: >90º

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

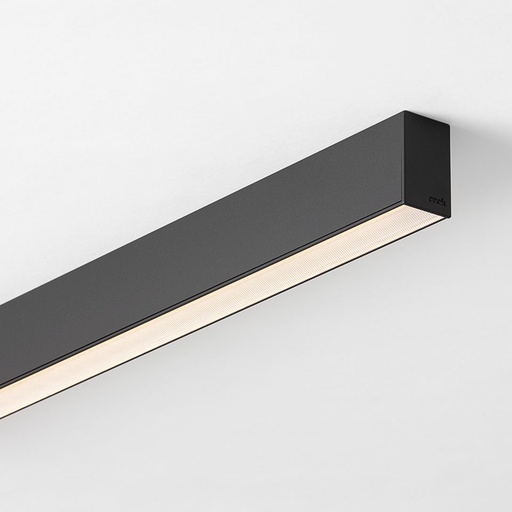

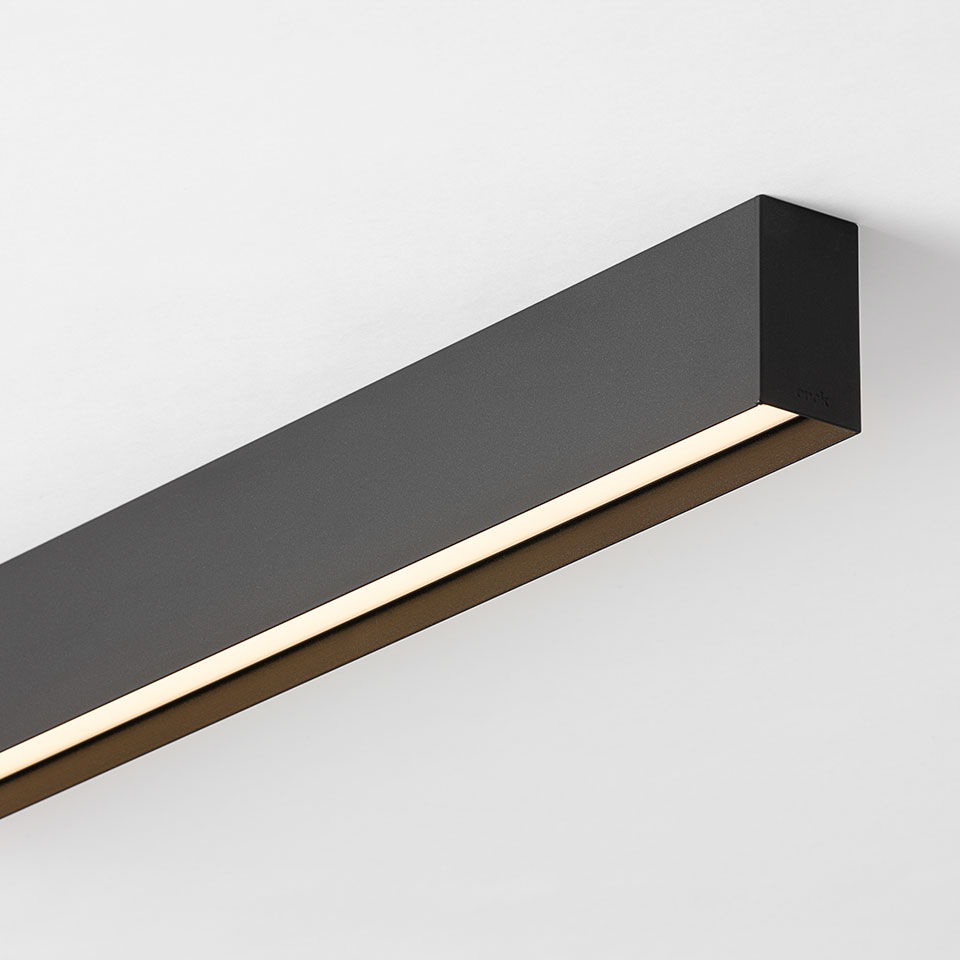

LINE R

More lengths mean less union joints, in Onok Lighting we renovate our most popular profile, with longer measure that can be adapted better to those projects where your lines have no end, we had also incorporated a new microprismatic diffuser in PMMA designed for projects with low UGR needs.

Socket
LED
Output
281 cm / 56W , 224 cm / 45W , 140 cm / 28W , 182 cm / 36W , 112 cm / 22W , 70 cm / 14W
Control
Dali TW , Dali , No Dimmable
Colour Temperature
TUNABLE WHITE , 2700K , 3000K , 4000K
Beam Angle
>90º
Complements
Ice Diffuser , Prismatic Diffuser
Finish
W mA Temp. Lum. CRI
LINE R 112 cm / 22W 500 mA 2.7K 3.810 lm >85
112 cm / 22W 500 mA 3K 3.920 lm >85
112 cm / 22W 500 mA 4K 4.140 lm >85
112 cm / 22W 500 mA TW 3520 - 3652 lm >85
LINE R 140 cm / 28W 500 mA 2.7K 4.760 lm >85
140 cm / 28W 500 mA 3K 4.900 lm >85
140 cm / 28W 500 mA 4K 5.175 lm >85
140 cm / 28W 500 mA TW 4480 - 4648 lm >85
LINE R 182 cm / 36W 500 mA 2.7K 6.190 lm >85
182 cm / 36W 500 mA 3K 6.370 lm >85
182 cm / 36W 500 mA 4K 6.730 lm >85
LINE R 224 cm / 45W 500 mA 2.7K 7.620 lm >85
224 cm / 45W 500 mA 3K 7.840 lm >85
224 cm / 45W 500 mA 4K 8.280 lm >85
224 cm / 45W 500 mA TW 7200 - 7470 lm >85
LINE R 281 cm / 56W 500 mA 2.7K 9.520 lm >85
281 cm / 56W 500 mA 3K 9.800 lm >85
281 cm / 56W 500 mA 4K 10.350 lm >85
281 cm / 56W 500 mA TW 8960 - 9296 lm >85
LINE R 70 cm / 14W 500 mA 2.7K 2.380 lm >85
70 cm / 14W 500 mA 3K 2.450 lm >85
70 cm / 14W 500 mA 4K 2.590 lm >85

To help customizing this product, we have created a simple step by step configurator. Click on the button to start.

Para ayudar a personalizar este producto, hemos creado un simple configurador paso a paso. Haga clic en el botón para comenzar.
