DOT

http://onoklighting.com/web/image/product.template/6303/image_1920?unique=da1596c
  • Socket
  • Output
  • Control
  • Colour Temperature
  • Beam Angle
  • Complements
  • Finish

133.78 € 133.78 € 133.78 EUR

89.00 €

This combination does not exist.

Add to Cart

Socket: LED
Beam Angle: 36º
Complements: Ice Diffuser

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

DOT

With a CRI> 90, this luminaire offers high performance with high visual comfort thanks to its special anti-glare lens.

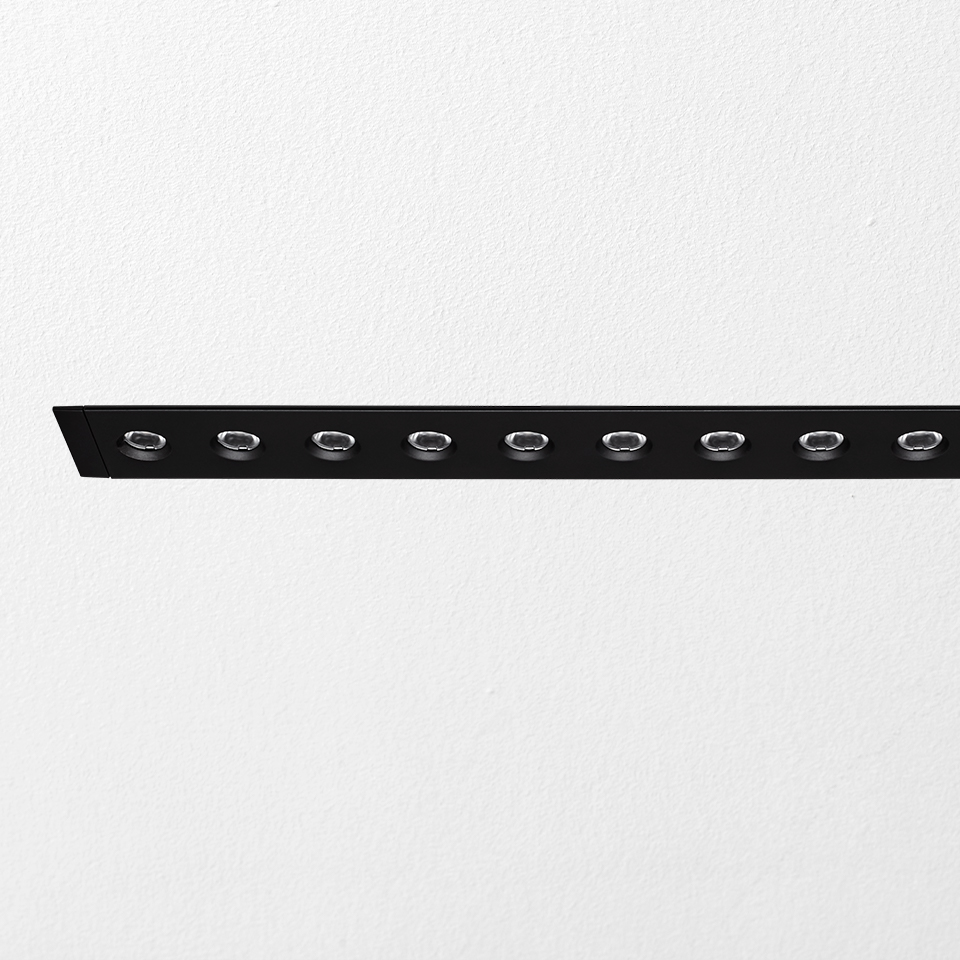

The recessed version is available in three sizes to suit all spaces.

Socket
LED
Output
3P / ≈ 6W / >600 lm , 5P / ≈ 10W / >1.000 lm , 10P / ≈ 21W / >2.000 lm
Control
PUSH , Dali , No Dimmable , Casambi
Colour Temperature
2700K , 3000K , 4000K
Beam Angle
36º
Complements
Ice Diffuser
Finish
W mA Temp. Lum. CRI
DOT 3P - 6W 700 mA 2.7K 600 lm >90
3P - 6W 700 mA 3K 647 lm >90
3P - 6W 700 mA 4K 693 lm >90
DOT 5P - 10W 700 mA 2.7K 1.000 lm >90
5P - 10W 700 mA 3K 1.097 lm >90
5P - 10W 700 mA 4K 1.155 lm >90
DOT 10P - 21W 700 mA 2.7K 2.100 lm >90
10P - 21W 700 mA 3K 2.158 lm >90
10P - 21W 700 mA 4K 2.310 lm >90

To help customizing this product, we have created a simple step by step configurator. Click on the button to start.

PERSONALIZE YOUR PRODUCT

Tu Producto

1 . Socket
2 . Output
3 . Control
4 . Colour Temperature
5 . Beam Angle
6 . Complements
7 . Finish
Código de referencia
CN01XXXXXXXSS

133.78 € 133.78 € 133.78 EUR

89.00 €

Añadir a mi proyecto

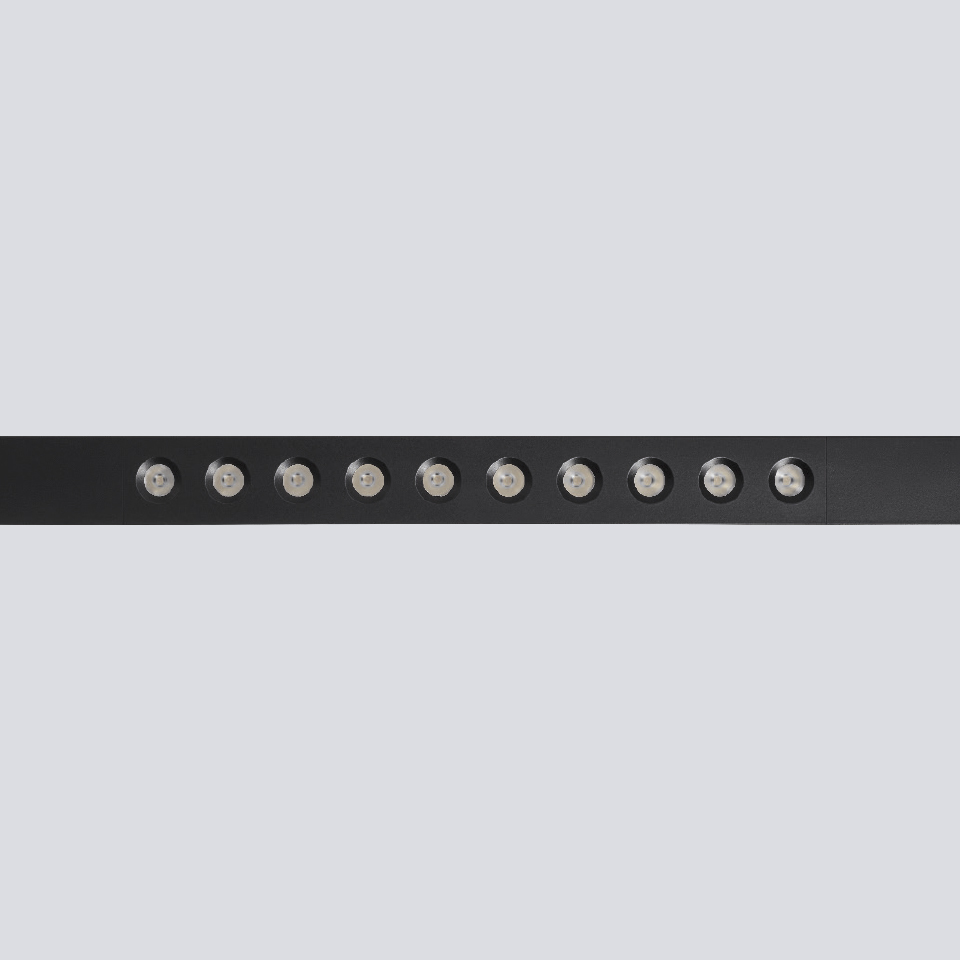

[KDT1A10D23CBS] Click Dot 10 LED Dali 36º Central 2700K Satin Black 10P / ≈ 21W / >2.000 lm

Click Dot 10

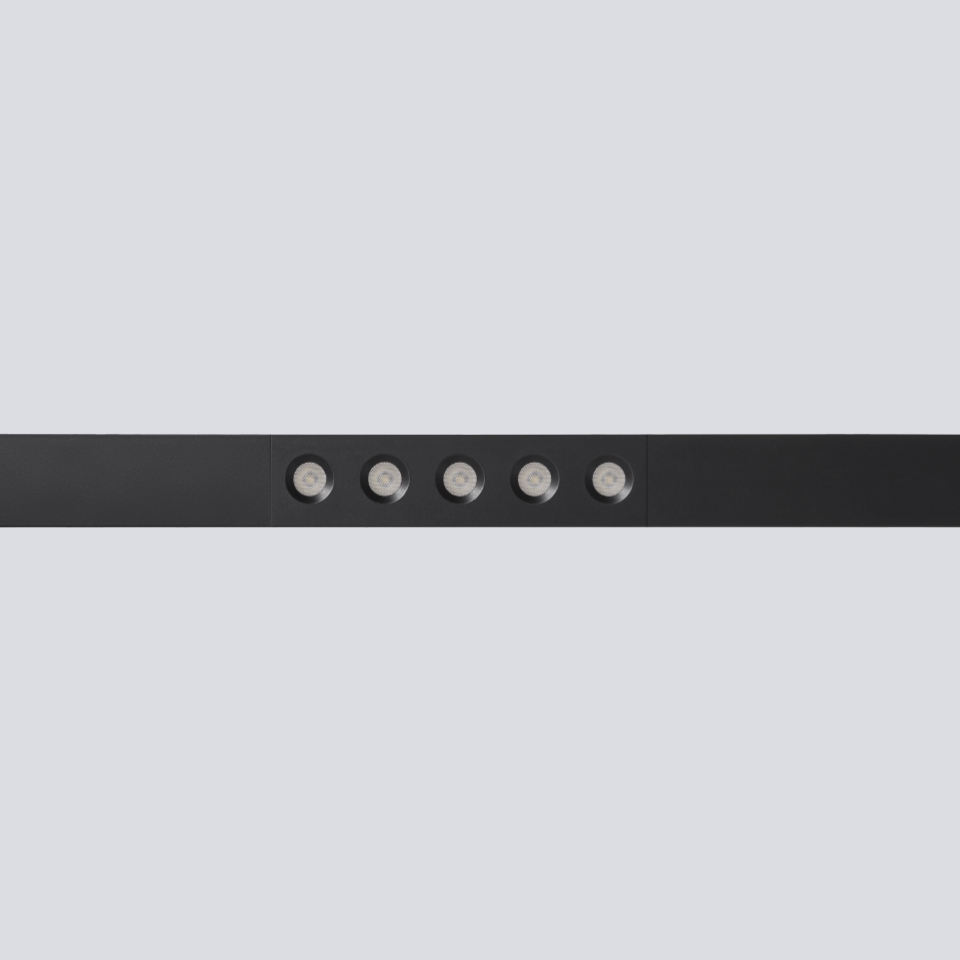

[KDT5A05D23CBS] Click Dot 5 LED Dali 36º Central 2700K Satin Black 5P / ≈ 10W / >1.000 lm

Click Dot 5
[KPNTA04D24SBS] Click Point 4 ESQUINADO Dali 40º 4P / ≈ 13W / >1.400 lm 2700K Satin Black

Click Point 4
[DOTTA05F23ABS] DOT TILT LED PUSH 36º Ice Diffuser 2700K Satin Black 5P / ≈ 10W / >1.000 lm

DOT TILT
