Click Linear 1000mm
Socket:
LED
Output:
≈ 14W / >2300lm
Beam Angle:
>90º
Complements:
Ice Diffuser
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Click Linear 1000mm
Designed to give the light that looks nice in every space, this luminaire has a beam angle of 120º with two different dimensions, this allows you to illuminate longer or shorter lengths.
In addition the microprismatic diffuser is a good solution to reduce the UGR.
| W | mA | Temp. | Lum. | CRI | |
|---|---|---|---|---|---|
| Click Linear 1000mm | 14W | 250 mA | 3K | 2325 lm | >85 |
| 14W | 250 mA | 4K | 2499 lm | >85 |
To help customizing this product, we have created a simple step by step configurator. Click on the button to start.
-
Technical Datasheet
-
General Guarantee Conditions
-
Extended Guarantee Conditions
-
CE Declaration for Surface and Pendant
-
CE Declaration for Recessed
-
LED Efficiency Label
-
Driver technical datasheet
-
LED technical datasheet
-
Test report certificate (Recessed profile)
-
Test report (Recessed profile)
-
Test report certificate (Surface profile)
-
Test report (Surface profile)
LDT File
To help customize this product, we have created a simple step-by-step configurator. Click the button to start the Micro 24V system.
![[KLR2A14D39ABS] Click Linear 1500mm LED Dali >90º Ice Diffuser 3000K Satin Black 140 cm / 28W](/web/image/product.product/394238/image_512/%5BKLR2A14D39ABS%5D%20Click%20Linear%201500mm%20LED%20Dali%20%3E90%C2%BA%20Ice%20Diffuser%203000K%20Satin%20Black%20140%20cm%20-%2028W?unique=73a159e)

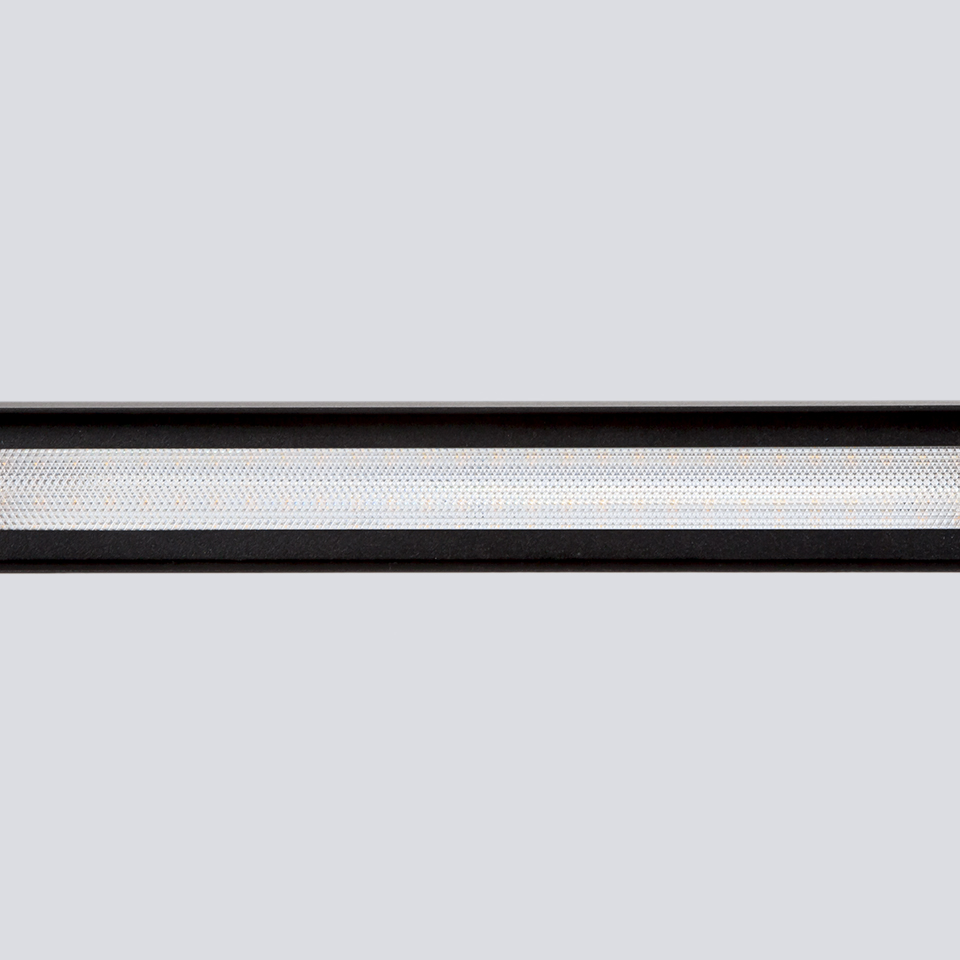

![[KST1A10D39CBS] Click Straight 10 LED Dali >90º Prismatic Diffuser 3000K Satin Black ≈ 16W / >2500lm](/web/image/product.product/380226/image_512/%5BKST1A10D39CBS%5D%20Click%20Straight%2010%20LED%20Dali%20%3E90%C2%BA%20Prismatic%20Diffuser%203000K%20Satin%20Black%20%E2%89%88%2016W%20-%20%3E2500lm?unique=73a159e)

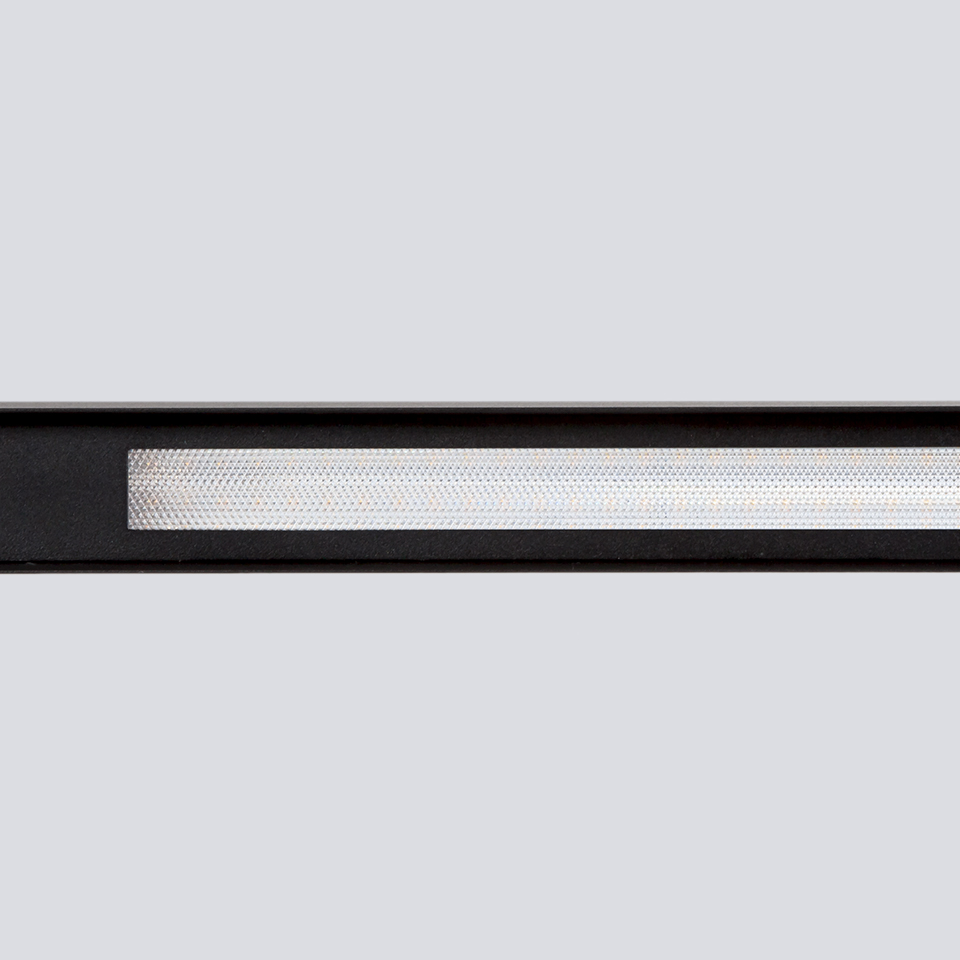

![[KST5A05D29CBS] Click Straight 5 LED Dali >90º Prismatic Diffuser 2700K Satin Black ≈ 5W / >1.200 lm](/web/image/product.product/439347/image_512/%5BKST5A05D29CBS%5D%20Click%20Straight%205%20LED%20Dali%20%3E90%C2%BA%20Prismatic%20Diffuser%202700K%20Satin%20Black%20%E2%89%88%205W%20-%20%3E1.200%20lm?unique=73a159e)

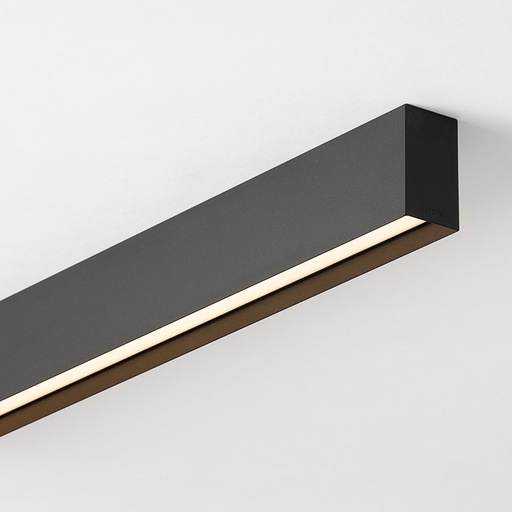

![[LNERA28D89ABS] LINE R Dali TW TUNABLE WHITE >90º Ice Diffuser Satin Black 281 cm / 56W](/web/image/product.product/440102/image_512/%5BLNERA28D89ABS%5D%20LINE%20R%20Dali%20TW%20TUNABLE%20WHITE%20%3E90%C2%BA%20Ice%20Diffuser%20Satin%20Black%20281%20cm%20-%2056W?unique=73a159e)
