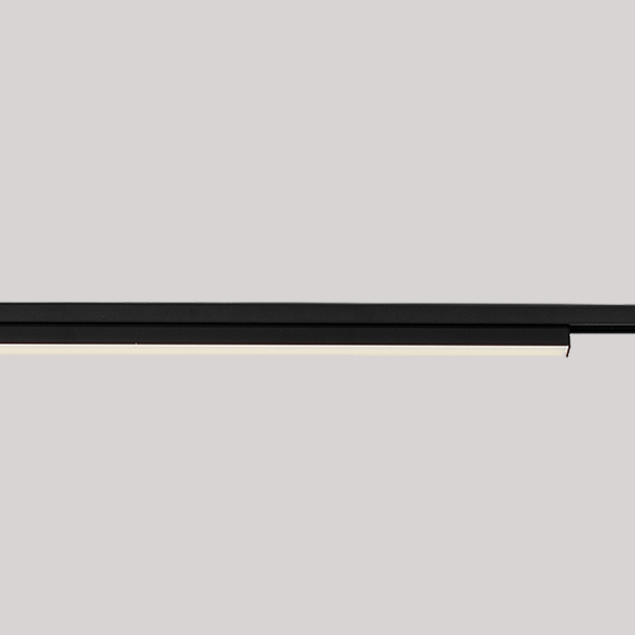

Tiny Micro Line 48V

Tiny Micro Line 48V

https://onoklighting.com/web/image/product.template/10397/image_1920?unique=7e2c0f0
Profilo lineare con sistema di fissaggio. Illuminazione continua e uniforme per integrazione architettonica
  • presa
  • uscita
  • controllo
  • temperatura del colore
  • Beam Angle
  • Complementi
  • finitura

Questa combinazione non esiste.

Contattaci
Tiny Micro Line 48V Tiny Micro Line 48V
General Guarantee Conditions CE Declaration for LED Extended Guarantee Conditions Technical Datasheet Tiny System Catalogue LED Efficiency Label Installation Instructions TINY MICRO - LDT files
Disegno tecnico
Flusso LED—
Consumo LED—
Efficienza luminosa—
CRI—
Driver LED—
Temperatura della luce—
Angolo di apertura—
Protezione IP—
Modelo Ref. Color Fuente Potencia Regulación Flujo lum. Temp. Ángulo CRI Eficiencia
Tiny Micro Line 48V 2700K TMCLA10D29ABS Nero satinato LED 0.5m / 10w Dali 1120lm 2700K >90º >90 106 lm/W
Tiny Micro Line 48V 3000K TMCLA10D39ABS Nero satinato LED 0.5m / 10w Dali 1150lm 3000K >90º >90 110 lm/W
Tiny Micro Line 48V 4000K TMCLA10D49ABS Nero satinato LED 0.5m / 10w Dali 1180lm 4000K >90º >90 112 lm/W
Tiny Micro Line 48V 2700K TMCLA10K29ABS Nero satinato LED 0.5m / 10w Casambi 1120lm 2700K >90º >90 106 lm/W
Tiny Micro Line 48V 3000K TMCLA10K39ABS Nero satinato LED 0.5m / 10w Casambi 1150lm 3000K >90º >90 110 lm/W
Tiny Micro Line 48V 4000K TMCLA10K49ABS Nero satinato LED 0.5m / 10w Casambi 1180lm 4000K >90º >90 112 lm/W
Tiny Micro Line 48V 2700K TMCLA10N29ABS Nero satinato LED 0.5m / 10w No Dim 1120lm 2700K >90º >90 106 lm/W
Tiny Micro Line 48V 3000K TMCLA10N39ABS Nero satinato LED 0.5m / 10w No Dim 1150lm 3000K >90º >90 110 lm/W
Tiny Micro Line 48V 4000K TMCLA10N49ABS Nero satinato LED 0.5m / 10w No Dim 1180lm 4000K >90º >90 112 lm/W
Tiny Micro Line 48V 2700K TMCLA21D29ABS Nero satinato LED 1m / 21w Dali 2240lm 2700K >90º >90 107 lm/W
Tiny Micro Line 48V 3000K TMCLA21D39ABS Nero satinato LED 1m / 21w Dali 2300lm 3000K >90º >90 110 lm/W
Tiny Micro Line 48V 4000K TMCLA21D49ABS Nero satinato LED 1m / 21w Dali 2360lm 4000K >90º >90 112 lm/W
Tiny Micro Line 48V 2700K TMCLA21K29ABS Nero satinato LED 1m / 21w Casambi 2240lm 2700K >90º >90 107 lm/W
Tiny Micro Line 48V 3000K TMCLA21K39ABS Nero satinato LED 1m / 21w Casambi 2300lm 3000K >90º >90 110 lm/W
Tiny Micro Line 48V 4000K TMCLA21K49ABS Nero satinato LED 1m / 21w Casambi 2360lm 4000K >90º >90 112 lm/W
Tiny Micro Line 48V 2700K TMCLA21N29ABS Nero satinato LED 1m / 21w No Dim 2240lm 2700K >90º >90 107 lm/W
Tiny Micro Line 48V 3000K TMCLA21N39ABS Nero satinato LED 1m / 21w No Dim 2300lm 3000K >90º >90 110 lm/W
Tiny Micro Line 48V 4000K TMCLA21N49ABS Nero satinato LED 1m / 21w No Dim 2360lm 4000K >90º >90 112 lm/W
Tiny Micro Line 48V 2700K TMCLA31D29ABS Nero satinato LED 1.5m / 31w Dali 3210lm 2700K >90º >90 102 lm/W
Tiny Micro Line 48V 3000K TMCLA31D39ABS Nero satinato LED 1.5m / 31w Dali 3250lm 3000K >90º >90 104 lm/W
Tiny Micro Line 48V 4000K TMCLA31D49ABS Nero satinato LED 1.5m / 31w Dali 3280lm 4000K >90º >90 105 lm/W
Tiny Micro Line 48V 2700K TMCLA31K29ABS Nero satinato LED 1.5m / 31w Casambi 3210lm 2700K >90º >90 102 lm/W
Tiny Micro Line 48V 3000K TMCLA31K39ABS Nero satinato LED 1.5m / 31w Casambi 3250lm 3000K >90º >90 104 lm/W
Tiny Micro Line 48V 4000K TMCLA31K49ABS Nero satinato LED 1.5m / 31w Casambi 3280lm 4000K >90º >90 105 lm/W
Tiny Micro Line 48V 2700K TMCLA31N29ABS Nero satinato LED 1.5m / 31w No Dim 3210lm 2700K >90º >90 102 lm/W
Tiny Micro Line 48V 3000K TMCLA31N39ABS Nero satinato LED 1.5m / 31w No Dim 3250lm 3000K >90º >90 104 lm/W
Tiny Micro Line 48V 4000K TMCLA31N49ABS Nero satinato LED 1.5m / 31w No Dim 3280lm 4000K >90º >90 105 lm/W
