Line Wall
Line Wall
Line Wall
Line Wall

Line Wall

https://onoklighting.com/web/image/product.template/7454/image_1920?unique=91ff295

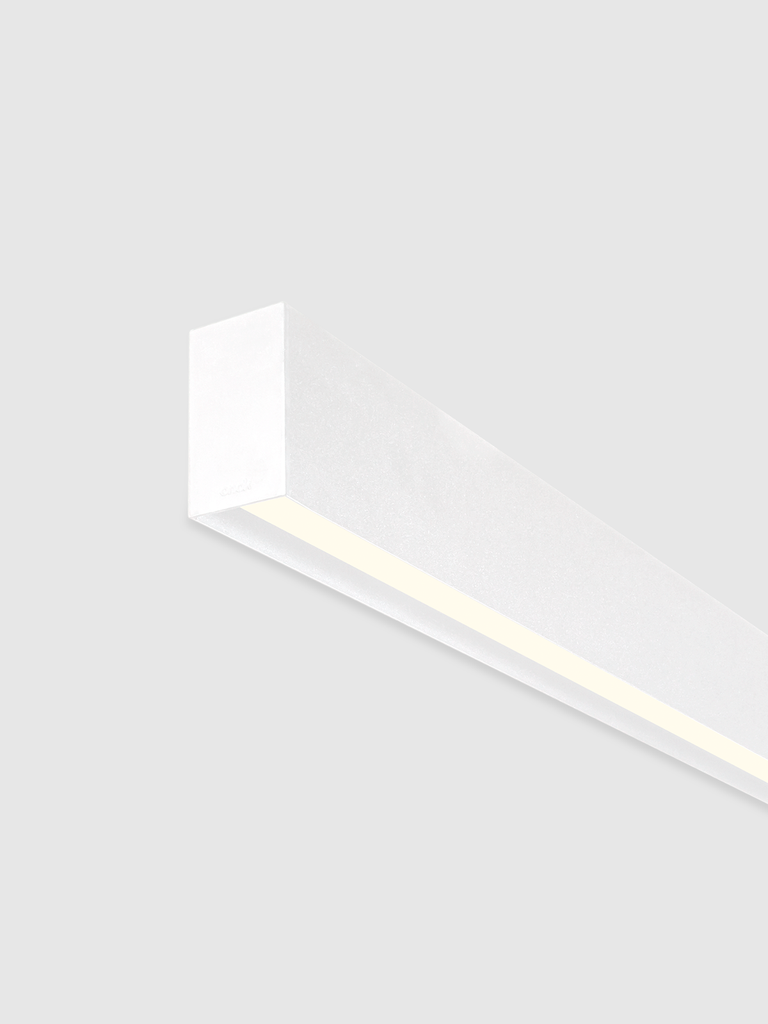

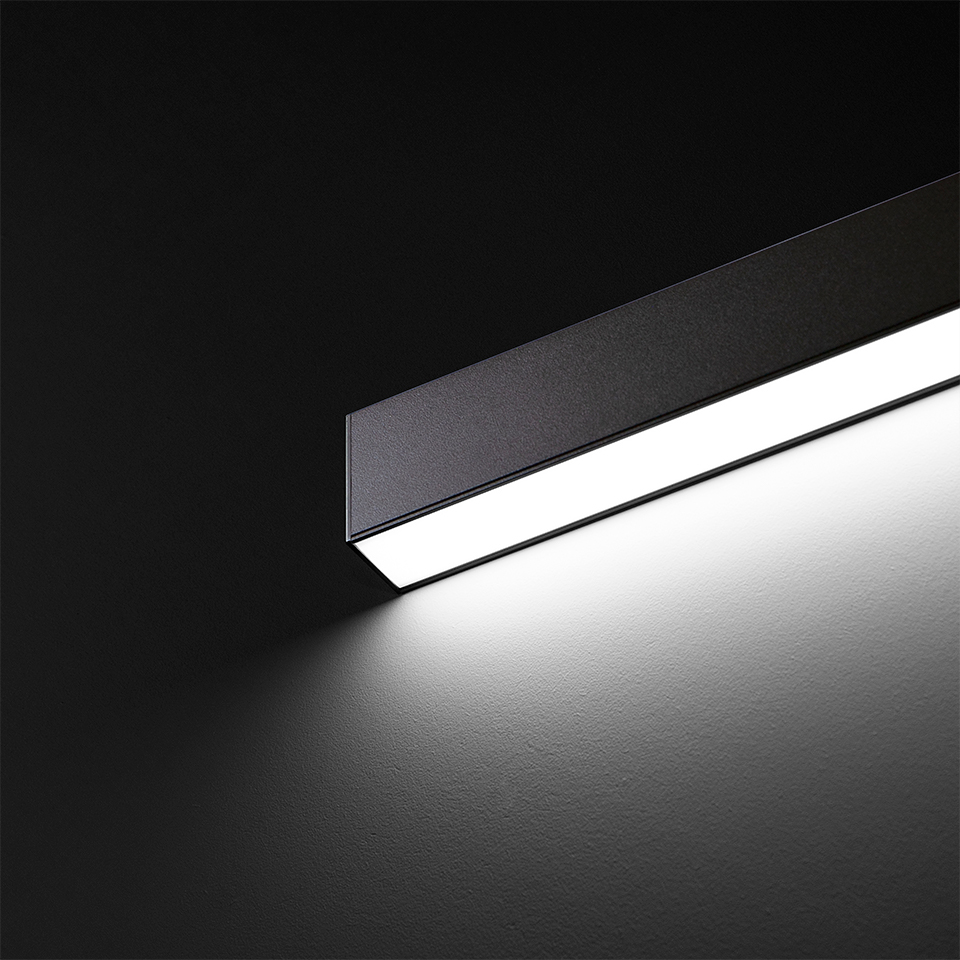

Profilo lineare per installazione a parete con emissione continua. Disponibile in diverse dimensioni, temperature di colore e diffusori

  • presa
  • uscita
  • controllo
  • temperatura del colore
  • Beam Angle
  • Complementi
  • finitura

Questa combinazione non esiste.

Contattaci
Line Wall Line Wall
Installation Instructions Technical Datasheet CE Declaration General Guarantee Conditions Extended Guarantee Conditions LED Efficiency Label LED technical datasheet TW LED technical datasheet Driver 21W technical datasheet Driver 42W technical datasheet Test report certificate Test report LINE WALL - LDT files
Disegno tecnico
Flusso LED—
Consumo LED—
Efficienza luminosa—
CRI—
Driver LED—
Temperatura della luce—
Angolo di apertura—
Protezione IP—
Line Wall
Line Wall
Line Wall
Modelo Ref. Color Fuente Potencia Regulación Flujo lum. Temp. Ángulo CRI Eficiencia
Line Wall 2700K LNEAA11D29ABS Nero satinato LED 112 cm / 22W Dali 3586 lm 2700K >90º >90 163 lm/W
Line Wall 2700K LNEAA11D29AWS Bianco satinato LED 112 cm / 22W Dali — 2700K >90º >90 —
Line Wall 2700K LNEAA11D29CBS Nero satinato LED 112 cm / 22W Dali — 2700K >90º >90 —
Line Wall 2700K LNEAA11D29CWS Bianco satinato LED 112 cm / 22W Dali — 2700K >90º >90 —
Line Wall 3000K LNEAA11D39ABS Nero satinato LED 112 cm / 22W Dali 3.720 lm 3000K >90º >90 169 lm/W
Line Wall 3000K LNEAA11D39AWS Bianco satinato LED 112 cm / 22W Dali 3.720 lm 3000K >90º >90 169 lm/W
Line Wall 3000K LNEAA11D39CBS Nero satinato LED 112 cm / 22W Dali 3.720 lm 3000K >90º >90 169 lm/W
Line Wall 3000K LNEAA11D39CWS Bianco satinato LED 112 cm / 22W Dali 3.720 lm 3000K >90º >90 169 lm/W
Line Wall 4000K LNEAA11D49ABS Nero satinato LED 112 cm / 22W Dali 3.999 lm 4000K >90º >90 182 lm/W
Line Wall 4000K LNEAA11D49AWS Bianco satinato LED 112 cm / 22W Dali 3.999 lm 4000K >90º >90 182 lm/W
Line Wall 4000K LNEAA11D49CBS Nero satinato LED 112 cm / 22W Dali 3.999 lm 4000K >90º >90 182 lm/W
Line Wall 4000K LNEAA11D49CWS Bianco satinato LED 112 cm / 22W Dali 3.999 lm 4000K >90º >90 182 lm/W
Line Wall 2700K LNEAA11N29ABS Nero satinato LED 112 cm / 22W No Dimmable — 2700K >90º >90 —
Line Wall 2700K LNEAA11N29AWS Bianco satinato LED 112 cm / 22W No Dimmable — 2700K >90º >90 —
Line Wall 2700K LNEAA11N29CBS Nero satinato LED 112 cm / 22W No Dimmable — 2700K >90º >90 —
Line Wall 2700K LNEAA11N29CWS Bianco satinato LED 112 cm / 22W No Dimmable — 2700K >90º >90 —
Line Wall 3000K LNEAA11N39ABS Nero satinato LED 112 cm / 22W No Dimmable 3.720 lm 3000K >90º >90 169 lm/W
Line Wall 3000K LNEAA11N39AWS Bianco satinato LED 112 cm / 22W No Dimmable 3.720 lm 3000K >90º >90 169 lm/W
Line Wall 3000K LNEAA11N39CBS Nero satinato LED 112 cm / 22W No Dimmable 3.720 lm 3000K >90º >90 169 lm/W
Line Wall 3000K LNEAA11N39CWS Bianco satinato LED 112 cm / 22W No Dimmable 3.720 lm 3000K >90º >90 169 lm/W
Line Wall 4000K LNEAA11N49ABS Nero satinato LED 112 cm / 22W No Dimmable 3.999 lm 4000K >90º >90 182 lm/W
Line Wall 4000K LNEAA11N49AWS Bianco satinato LED 112 cm / 22W No Dimmable 3.999 lm 4000K >90º >90 182 lm/W
Line Wall 4000K LNEAA11N49CBS Nero satinato LED 112 cm / 22W No Dimmable 3.999 lm 4000K >90º >90 182 lm/W
Line Wall 4000K LNEAA11N49CWS Bianco satinato LED 112 cm / 22W No Dimmable 3.999 lm 4000K >90º >90 182 lm/W
Line Wall 2700K LNEAA14D29ABS Nero satinato LED 140 cm / 28W Dali 4564 lm 2700K >90º >90 163 lm/W
Line Wall 2700K LNEAA14D29AWS Bianco satinato LED 140 cm / 28W Dali — 2700K >90º >90 —
Line Wall 2700K LNEAA14D29CBS Nero satinato LED 140 cm / 28W Dali — 2700K >90º >90 —
Line Wall 2700K LNEAA14D29CWS Bianco satinato LED 140 cm / 28W Dali — 2700K >90º >90 —
Line Wall 3000K LNEAA14D39ABS Nero satinato LED 140 cm / 28W Dali 4.650 lm 3000K >90º >90 166 lm/W
Line Wall 3000K LNEAA14D39AWS Bianco satinato LED 140 cm / 28W Dali 4.650 lm 3000K >90º >90 166 lm/W
Line Wall 3000K LNEAA14D39CBS Nero satinato LED 140 cm / 28W Dali 4.650 lm 3000K >90º >90 166 lm/W
Line Wall 3000K LNEAA14D39CWS Bianco satinato LED 140 cm / 28W Dali 4.650 lm 3000K >90º >90 166 lm/W
Line Wall 4000K LNEAA14D49ABS Nero satinato LED 140 cm / 28W Dali 4.998 lm 4000K >90º >90 179 lm/W
Line Wall 4000K LNEAA14D49AWS Bianco satinato LED 140 cm / 28W Dali 4.998 lm 4000K >90º >90 179 lm/W
Line Wall 4000K LNEAA14D49CBS Nero satinato LED 140 cm / 28W Dali 4.998 lm 4000K >90º >90 179 lm/W
Line Wall 4000K LNEAA14D49CWS Bianco satinato LED 140 cm / 28W Dali 4.998 lm 4000K >90º >90 179 lm/W
Line Wall 2700K LNEAA14N29ABS Nero satinato LED 140 cm / 28W No Dimmable — 2700K >90º >90 —
Line Wall 2700K LNEAA14N29AWS Bianco satinato LED 140 cm / 28W No Dimmable — 2700K >90º >90 —
Line Wall 2700K LNEAA14N29CBS Nero satinato LED 140 cm / 28W No Dimmable — 2700K >90º >90 —
Line Wall 2700K LNEAA14N29CWS Bianco satinato LED 140 cm / 28W No Dimmable — 2700K >90º >90 —
Line Wall 3000K LNEAA14N39ABS Nero satinato LED 140 cm / 28W No Dimmable 4.650 lm 3000K >90º >90 166 lm/W
Line Wall 3000K LNEAA14N39AWS Bianco satinato LED 140 cm / 28W No Dimmable 4.650 lm 3000K >90º >90 166 lm/W
Line Wall 3000K LNEAA14N39CBS Nero satinato LED 140 cm / 28W No Dimmable 4.650 lm 3000K >90º >90 166 lm/W
Line Wall 3000K LNEAA14N39CWS Bianco satinato LED 140 cm / 28W No Dimmable 4.650 lm 3000K >90º >90 166 lm/W
Line Wall 4000K LNEAA14N49ABS Nero satinato LED 140 cm / 28W No Dimmable 4.998 lm 4000K >90º >90 179 lm/W
Line Wall 4000K LNEAA14N49AWS Bianco satinato LED 140 cm / 28W No Dimmable 4.998 lm 4000K >90º >90 179 lm/W
Line Wall 4000K LNEAA14N49CBS Nero satinato LED 140 cm / 28W No Dimmable 4.998 lm 4000K >90º >90 179 lm/W
Line Wall 4000K LNEAA14N49CWS Bianco satinato LED 140 cm / 28W No Dimmable 4.998 lm 4000K >90º >90 179 lm/W
Line Wall 2700K LNEAA70D29ABS Nero satinato LED 70 cm / 14W Dali 2282 lm 2700K >90º >90 163 lm/W
Line Wall 2700K LNEAA70D29AWS Bianco satinato LED 70 cm / 14W Dali — 2700K >90º >90 —
Line Wall 2700K LNEAA70D29CBS Nero satinato LED 70 cm / 14W Dali — 2700K >90º >90 —
Line Wall 2700K LNEAA70D29CWS Bianco satinato LED 70 cm / 14W Dali — 2700K >90º >90 —
Line Wall 3000K LNEAA70D39ABS Nero satinato LED 70 cm / 14W Dali 2.325 lm 3000K >90º >90 166 lm/W
Line Wall 3000K LNEAA70D39AWS Bianco satinato LED 70 cm / 14W Dali 2.325 lm 3000K >90º >90 166 lm/W
Line Wall 3000K LNEAA70D39CBS Nero satinato LED 70 cm / 14W Dali 2.325 lm 3000K >90º >90 166 lm/W
Line Wall 3000K LNEAA70D39CWS Bianco satinato LED 70 cm / 14W Dali 2.325 lm 3000K >90º >90 166 lm/W
Line Wall 4000K LNEAA70D49ABS Nero satinato LED 70 cm / 14W Dali 2.499 lm 4000K >90º >90 179 lm/W
Line Wall 4000K LNEAA70D49AWS Bianco satinato LED 70 cm / 14W Dali 2.499 lm 4000K >90º >90 179 lm/W
Line Wall 4000K LNEAA70D49CBS Nero satinato LED 70 cm / 14W Dali 2.499 lm 4000K >90º >90 179 lm/W
Line Wall 4000K LNEAA70D49CWS Bianco satinato LED 70 cm / 14W Dali 2.499 lm 4000K >90º >90 179 lm/W
Line Wall 2700K LNEAA70N29ABS Nero satinato LED 70 cm / 14W No Dimmable — 2700K >90º >90 —
Line Wall 2700K LNEAA70N29AWS Bianco satinato LED 70 cm / 14W No Dimmable — 2700K >90º >90 —
Line Wall 2700K LNEAA70N29CBS Nero satinato LED 70 cm / 14W No Dimmable — 2700K >90º >90 —
Line Wall 2700K LNEAA70N29CWS Bianco satinato LED 70 cm / 14W No Dimmable — 2700K >90º >90 —
Line Wall 3000K LNEAA70N39ABS Nero satinato LED 70 cm / 14W No Dimmable 2.325 lm 3000K >90º >90 166 lm/W
Line Wall 3000K LNEAA70N39AWS Bianco satinato LED 70 cm / 14W No Dimmable 2.325 lm 3000K >90º >90 166 lm/W
Line Wall 3000K LNEAA70N39CBS Nero satinato LED 70 cm / 14W No Dimmable 2.325 lm 3000K >90º >90 166 lm/W
Line Wall 3000K LNEAA70N39CWS Bianco satinato LED 70 cm / 14W No Dimmable 2.325 lm 3000K >90º >90 166 lm/W
Line Wall 4000K LNEAA70N49ABS Nero satinato LED 70 cm / 14W No Dimmable 2.499 lm 4000K >90º >90 179 lm/W
Line Wall 4000K LNEAA70N49AWS Bianco satinato LED 70 cm / 14W No Dimmable 2.499 lm 4000K >90º >90 179 lm/W
Line Wall 4000K LNEAA70N49CBS Nero satinato LED 70 cm / 14W No Dimmable 2.499 lm 4000K >90º >90 179 lm/W
Line Wall 4000K LNEAA70N49CWS Bianco satinato LED 70 cm / 14W No Dimmable 2.499 lm 4000K >90º >90 179 lm/W
