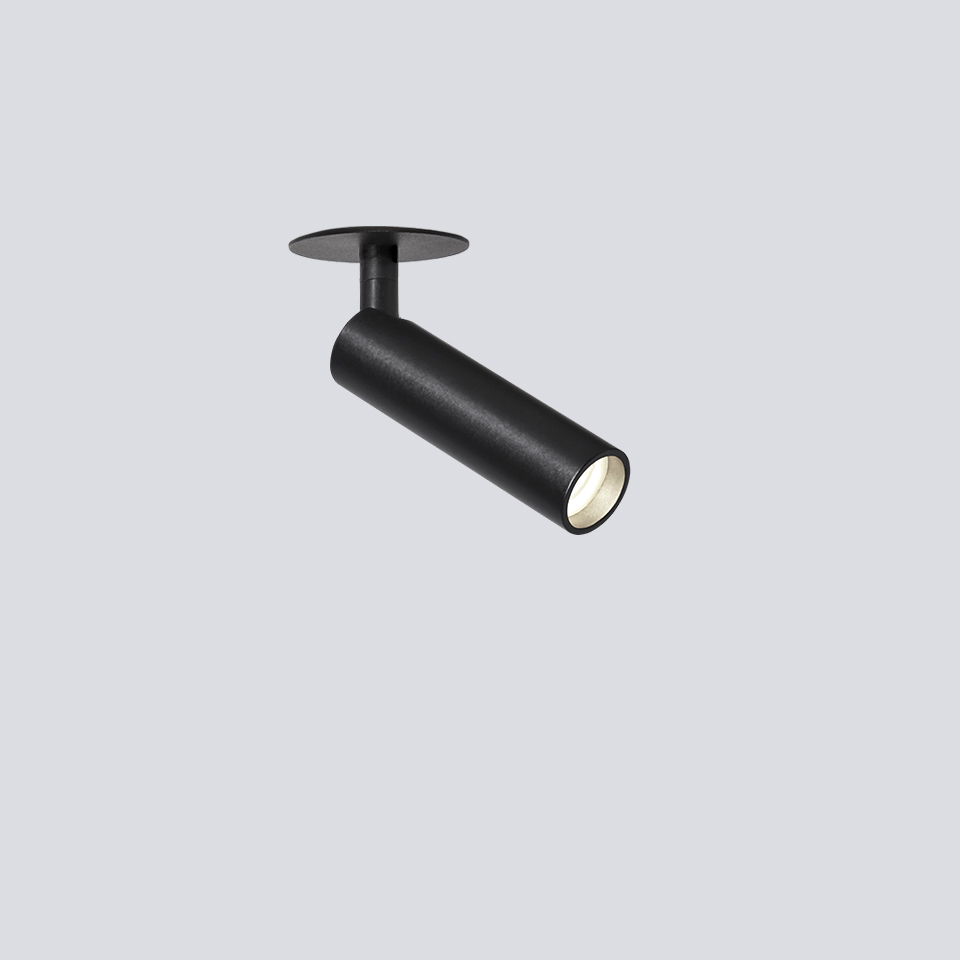

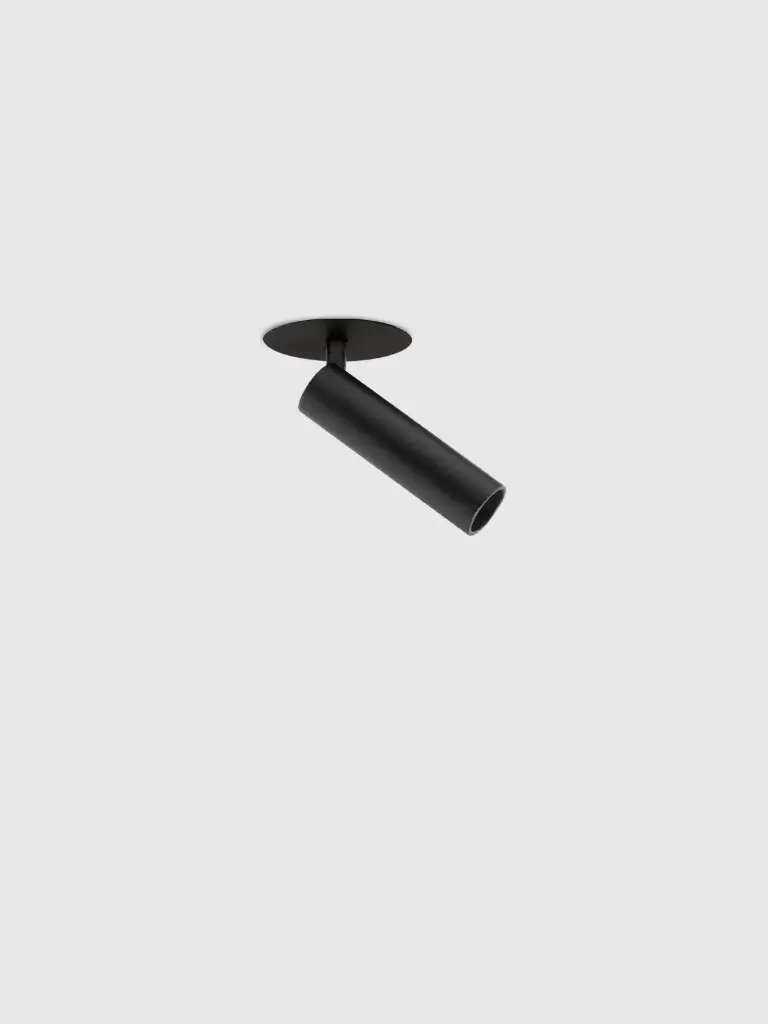

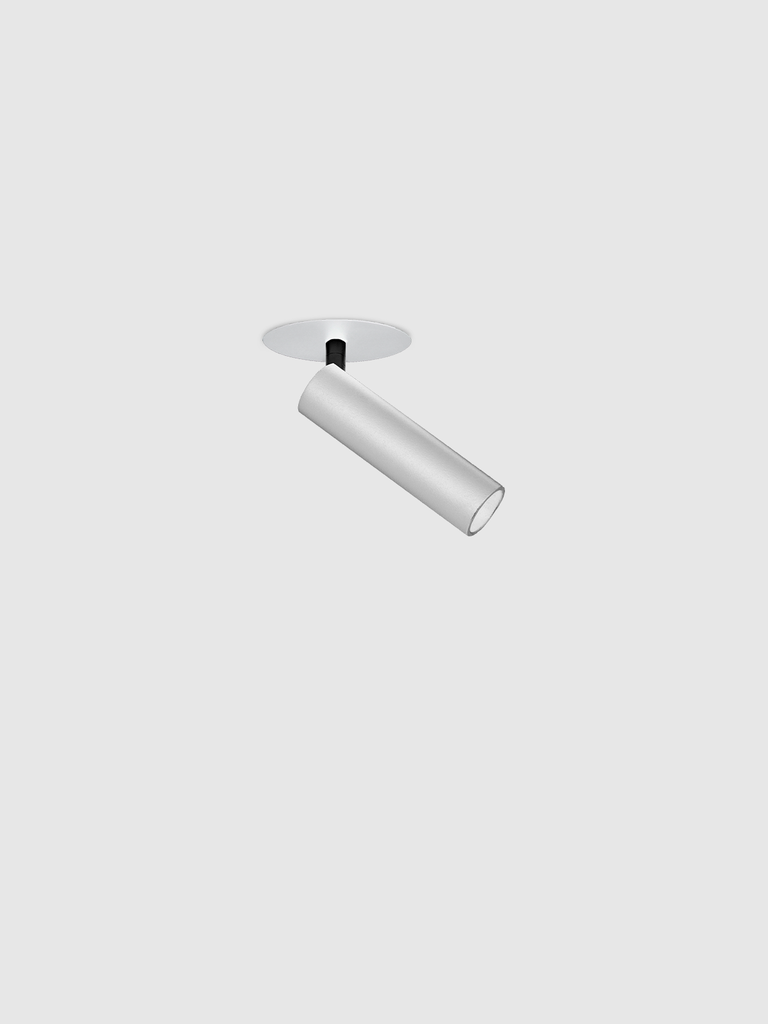

Focus 25 R
Focus 25 R
Focus 25 R

Focus 25 R

https://onoklighting.com/web/image/product.template/7001/image_1920?unique=e9c7e80

Gamma di proiettori con ottica di precisione. Controllo dell’abbagliamento per applicazioni in interno

  • presa
  • uscita
  • controllo
  • temperatura del colore
  • Beam Angle
  • Complementi
  • finitura

Questa combinazione non esiste.

Contattaci
Focus 25 R Focus 25 R
Technical Datasheet CE Declaration Technical Catalogue Installation Instructions General Guarantee Conditions Extended Guarantee Conditions LED Efficiency Label LED technical datasheet Driver technical datasheet Test report certificate Test report FOCUS 25 R - LDT files
Disegno tecnico
Flusso LED—
Consumo LED—
Efficienza luminosa—
CRI—
Driver LED—
Temperatura della luce—
Angolo di apertura—
Protezione IP—
Focus 25 R
Focus 25 R
Modelo Ref. Color Fuente Potencia Regulación Flujo lum. Temp. Ángulo CRI Eficiencia
Focus 25 R 2700K FCS2A25D22ABS Nero satinato LED Ø25 / ≈ 6W / >500 lm Dali 521 lm 2700K 25º >90 87 lm/W
Focus 25 R 2700K FCS2A25D22AWB Bianco - nero LED Ø25 / ≈ 6W / >500 lm Dali 521 lm 2700K 25º >90 87 lm/W
Focus 25 R 3000K FCS2A25D32ABS Nero satinato LED Ø25 / ≈ 6W / >500 lm Dali 559 lm 3000K 25º >90 93 lm/W
Focus 25 R 3000K FCS2A25D32AWB Bianco - nero LED Ø25 / ≈ 6W / >500 lm Dali 559 lm 3000K 25º >90 93 lm/W
Focus 25 R 4000K FCS2A25D42ABS Nero satinato LED Ø25 / ≈ 6W / >500 lm Dali 597 lm 4000K 25º >90 100 lm/W
Focus 25 R 4000K FCS2A25D42AWB Bianco - nero LED Ø25 / ≈ 6W / >500 lm Dali 597 lm 4000K 25º >90 100 lm/W
Focus 25 R 2700K FCS2A25K22ABS Nero satinato LED Ø25 / ≈ 6W / >500 lm Casambi — 2700K 24º — —
Focus 25 R 2700K FCS2A25K22AWB Bianco - nero LED Ø25 / ≈ 6W / >500 lm Casambi — 2700K 24º — —
Focus 25 R 3000K FCS2A25K32ABS Nero satinato LED Ø25 / ≈ 6W / >500 lm Casambi — 3000K 24º — —
Focus 25 R 3000K FCS2A25K32AWB Bianco - nero LED Ø25 / ≈ 6W / >500 lm Casambi — 3000K 24º — —
Focus 25 R 4000K FCS2A25K42ABS Nero satinato LED Ø25 / ≈ 6W / >500 lm Casambi — 4000K 24º — —
Focus 25 R 4000K FCS2A25K42AWB Bianco - nero LED Ø25 / ≈ 6W / >500 lm Casambi — 4000K 24º — —
Focus 25 R 2700K FCS2A25N22ABS Nero satinato LED Ø25 / ≈ 6W / >500 lm No Dimmable 521 lm 2700K 25º >90 87 lm/W
Focus 25 R 2700K FCS2A25N22AWB Bianco - nero LED Ø25 / ≈ 6W / >500 lm No Dimmable 521 lm 2700K 25º >90 87 lm/W
Focus 25 R 3000K FCS2A25N32ABS Nero satinato LED Ø25 / ≈ 6W / >500 lm No Dimmable 559 lm 3000K 25º >90 93 lm/W
Focus 25 R 3000K FCS2A25N32AWB Bianco - nero LED Ø25 / ≈ 6W / >500 lm No Dimmable 559 lm 3000K 25º >90 93 lm/W
Focus 25 R 4000K FCS2A25N42ABS Nero satinato LED Ø25 / ≈ 6W / >500 lm No Dimmable 597 lm 4000K 25º >90 100 lm/W
Focus 25 R 4000K FCS2A25N42AWB Bianco - nero LED Ø25 / ≈ 6W / >500 lm No Dimmable 597 lm 4000K 25º >90 100 lm/W
