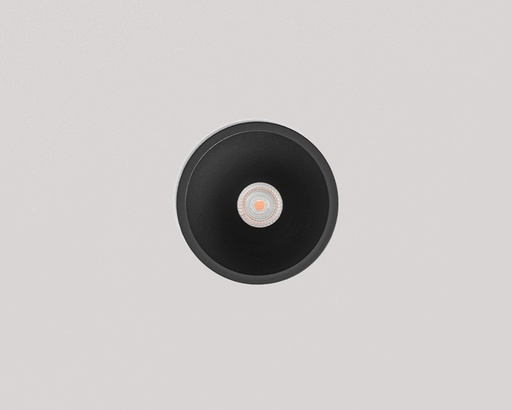

KONO 1
Faretto da incasso fisso in policarbonato, progettato per LED con diverse opzioni diffusore ad alte prestazioni. Remote LED driver incluso e opzionale dimmerabile IGBT / TRIAC, 1-10V o PUSH versione disponibile.
*Finitura bianca con texture
presa
GU10
,
LED
uscita
≈ 6W / >600 lm
,
≈ 10W / >1000 lm
,
Max. 10W
controllo
PUSH
,
Dali
,
Driver non incluso
,
No Dimmable
temperatura del colore
2700K
,
3000K
,
4000K
,
ºK not available
Beam Angle
40º
,
16º
,
Å not available (lamp not included)
,
24º
Complementi
Clear Diffuser
,
Ice Diffusore
,
No Diffuser
finitura
| W | mA | Temp. | Lum. | CRI | |
|---|---|---|---|---|---|
| KONO 1 | 6W | 150 mA | 2.7K | 570 lm | 92 |
| 6W | 150 mA | 3K | 595 lm | 92 | |
| 6W | 150 mA | 4K | 635 lm | 92 | |
| KONO 1 | 10W | 300 mA | 2.7K | 1.005 lm | 92 |
| 10W | 300 mA | 3K | 1.070 lm | 92 | |
| 10W | 300 mA | 4K | 1.135 lm | 92 | |
| KONO 1 | Max. 10W | No Lamp | X | No lamp | No lamp |
Per aiutare a personalizzare questo prodotto, abbiamo creato un semplice configuratore passo dopo passo. Clicca sul pulsante per iniziare.
-
Technical Datasheet
-
Installation Instructions
-
LED Efficiency Label
-
General Guarantee Conditions
-
2D - dwg
-
2D - dxf
-
3D - step
-
Extended Guarantee Conditions
-
CE Declaration for GU 10
-
CE Declaration for LED
-
Test report certificate
-
Driver Technical datasheet
-
LED 6W Technical datasheet
-
LED 10W Technical datasheet
LDT File
