Tiny Tube 25 48V

Tiny Tube 25 48V

https://onoklighting.com/web/image/product.template/10400/image_1920?unique=a0e9abb

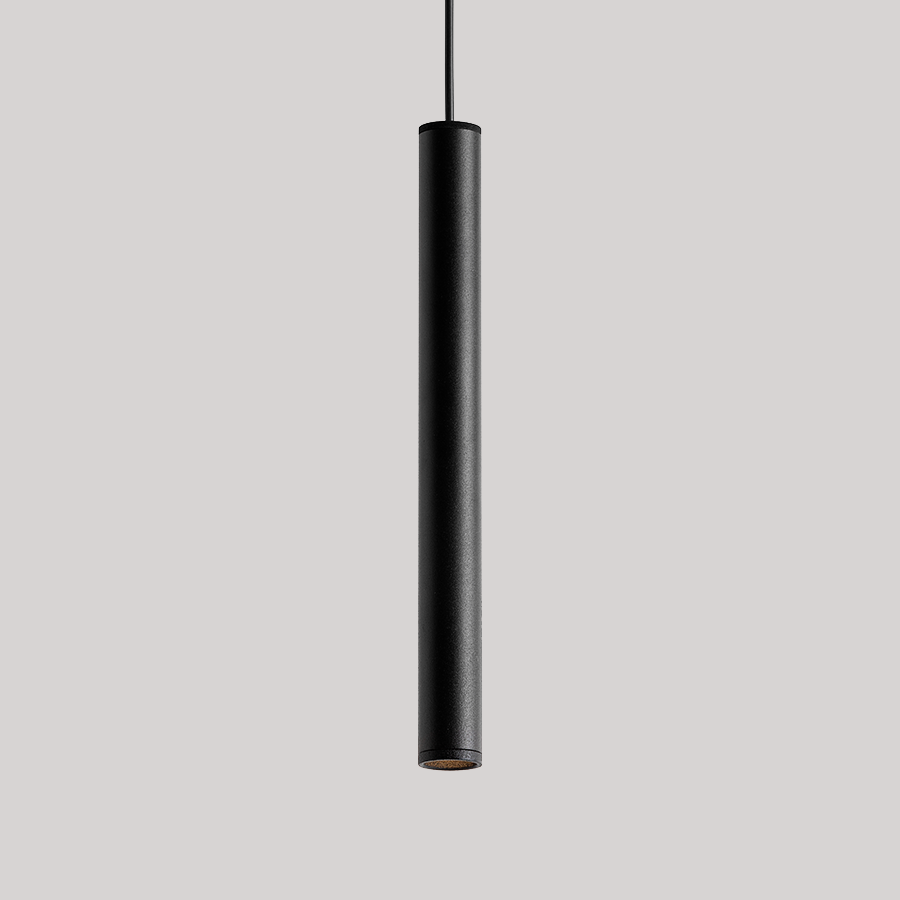

Extruded aluminium luminaire available in various sizes and wattages. Beam angles and apertures configurable according to project requirements
  • Socket
  • Output
  • Control
  • Colour Temperature
  • Beam Angle
  • Complements
  • Finish

This combination does not exist.

Contact Us
Tiny Tube 25 48V Tiny Tube 25 48V
General Guarantee Conditions CE Declaration for LED Extended Guarantee Conditions Technical Datasheet Tiny System Catalogue LED Efficiency Label Installation Instructions TINY TUBE - LDT files
Technical drawing
LED flux—
LED power consumption—
Luminous efficiency—
CRI—
Driver LED—
Light temperature—
Beam angle—
IP protection—
Modelo Ref. Color Fuente Potencia Regulación Flujo lum. Temp. Ángulo CRI Eficiencia
Tiny Tube 25 48V 2700K TTUBA05D22BBS Satin Black LED ≈ 5W / >600lm Dali 596lm 2700K 24º >90 110 lm/W
Tiny Tube 25 48V 3000K TTUBA05D32BBS Satin Black LED ≈ 5W / >600lm Dali 608lm 3000K 24º >90 113 lm/W
Tiny Tube 25 48V 4000K TTUBA05D42BBS Satin Black LED ≈ 5W / >600lm Dali 640lm 4000K 24º >90 119 lm/W
Tiny Tube 25 48V 2700K TTUBA05K22BBS Satin Black LED ≈ 5W / >600lm Casambi 596lm 2700K 24º >90 110 lm/W
Tiny Tube 25 48V 3000K TTUBA05K32BBS Satin Black LED ≈ 5W / >600lm Casambi 608lm 3000K 24º >90 113 lm/W
Tiny Tube 25 48V 4000K TTUBA05K42BBS Satin Black LED ≈ 5W / >600lm Casambi 640lm 4000K 24º >90 119 lm/W
Tiny Tube 25 48V 2700K TTUBA05N22BBS Satin Black LED ≈ 5W / >600lm No Dimmable 596lm 2700K 24º >90 110 lm/W
Tiny Tube 25 48V 3000K TTUBA05N32BBS Satin Black LED ≈ 5W / >600lm No Dimmable 608lm 3000K 24º >90 113 lm/W
Tiny Tube 25 48V 4000K TTUBA05N42BBS Satin Black LED ≈ 5W / >600lm No Dimmable 640lm 4000K 24º >90 119 lm/W
