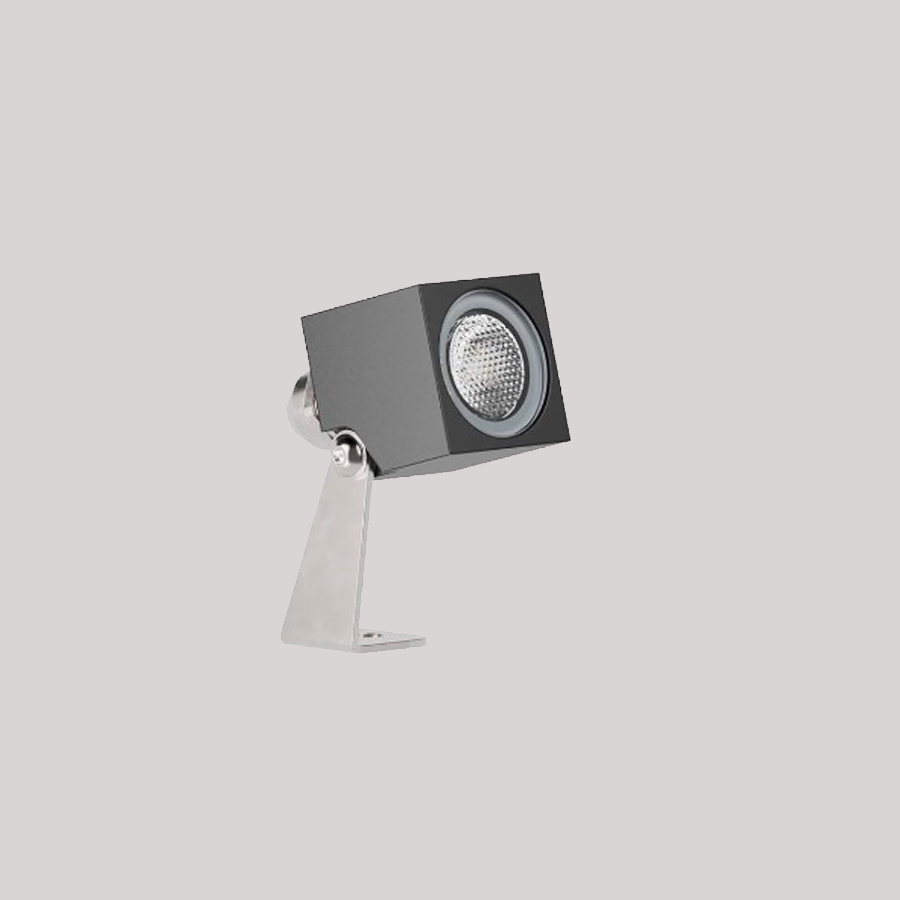

Adjustable outdoor projector for architectural applications. Designed for lighting architectural elements

  • Socket
  • Output
  • Control
  • Colour Temperature
  • Beam Angle
  • Complements
  • Finish

This combination does not exist.

Contact Us
Quare Q Quare Q
Technical datasheet General Guarantee Conditions Extended Guarantee Conditions CE Declaration LED Efficiency Label Installation Instructions QUARE Q - LDT files
Technical drawing
LED flux—
LED power consumption—
Luminous efficiency—
CRI—
Driver LED—
Light temperature—
Beam angle—
IP protection—
Quare Q
Quare Q
Quare Q
Modelo Ref. Color Fuente Potencia Regulación Flujo lum. Temp. Ángulo CRI Eficiencia
Quare Q 2700K QUAQA02N22BAS Anthracite - stainless steel LED 2W No Dim 155lm 2700K 25º >90 78 lm/W
Quare Q 2700K QUAQA02N22BCS Corten steel - stainless steel LED 2W No Dim 155lm 2700K 25º >90 78 lm/W
Quare Q 2700K QUAQA02N22BSW White - stainless steel LED 2W No Dim 155lm 2700K 25º >90 78 lm/W
Quare Q 2700K QUAQA02N24BAS Anthracite - stainless steel LED 2W No Dim 155 lm 2700K 40 extº >90 78 lm/W
Quare Q 2700K QUAQA02N24BCS Corten steel - stainless steel LED 2W No Dim 155 lm 2700K 40 extº >90 78 lm/W
Quare Q 2700K QUAQA02N24BSW White - stainless steel LED 2W No Dim 155 lm 2700K 40 extº >90 78 lm/W
Quare Q 2700K QUAQA02N27BAS Anthracite - stainless steel LED 2W No Dim 155 lm 2700K 60º >90 78 lm/W
Quare Q 2700K QUAQA02N27BCS Corten steel - stainless steel LED 2W No Dim 155 lm 2700K 60º >90 78 lm/W
Quare Q 2700K QUAQA02N27BSW White - stainless steel LED 2W No Dim 155 lm 2700K 60º >90 78 lm/W
Quare Q 3000K QUAQA02N32BAS Anthracite - stainless steel LED 2W No Dim 172lm 3000K 25º >90 86 lm/W
Quare Q 3000K QUAQA02N32BCS Corten steel - stainless steel LED 2W No Dim — 3000K 25º >90 —
Quare Q 3000K QUAQA02N32BSW White - stainless steel LED 2W No Dim — 3000K 25º >90 —
Quare Q 3000K QUAQA02N34BAS Anthracite - stainless steel LED 2W No Dim 172 lm 3000K 40 extº >90 86 lm/W
Quare Q 3000K QUAQA02N34BCS Corten steel - stainless steel LED 2W No Dim 172 lm 3000K 40 extº >90 86 lm/W
Quare Q 3000K QUAQA02N34BSW White - stainless steel LED 2W No Dim 172 lm 3000K 40 extº >90 86 lm/W
Quare Q 3000K QUAQA02N37BAS Anthracite - stainless steel LED 2W No Dim 172 lm 3000K 60º >90 86 lm/W
Quare Q 3000K QUAQA02N37BCS Corten steel - stainless steel LED 2W No Dim 172 lm 3000K 60º >90 86 lm/W
Quare Q 3000K QUAQA02N37BSW White - stainless steel LED 2W No Dim 172 lm 3000K 60º >90 86 lm/W
