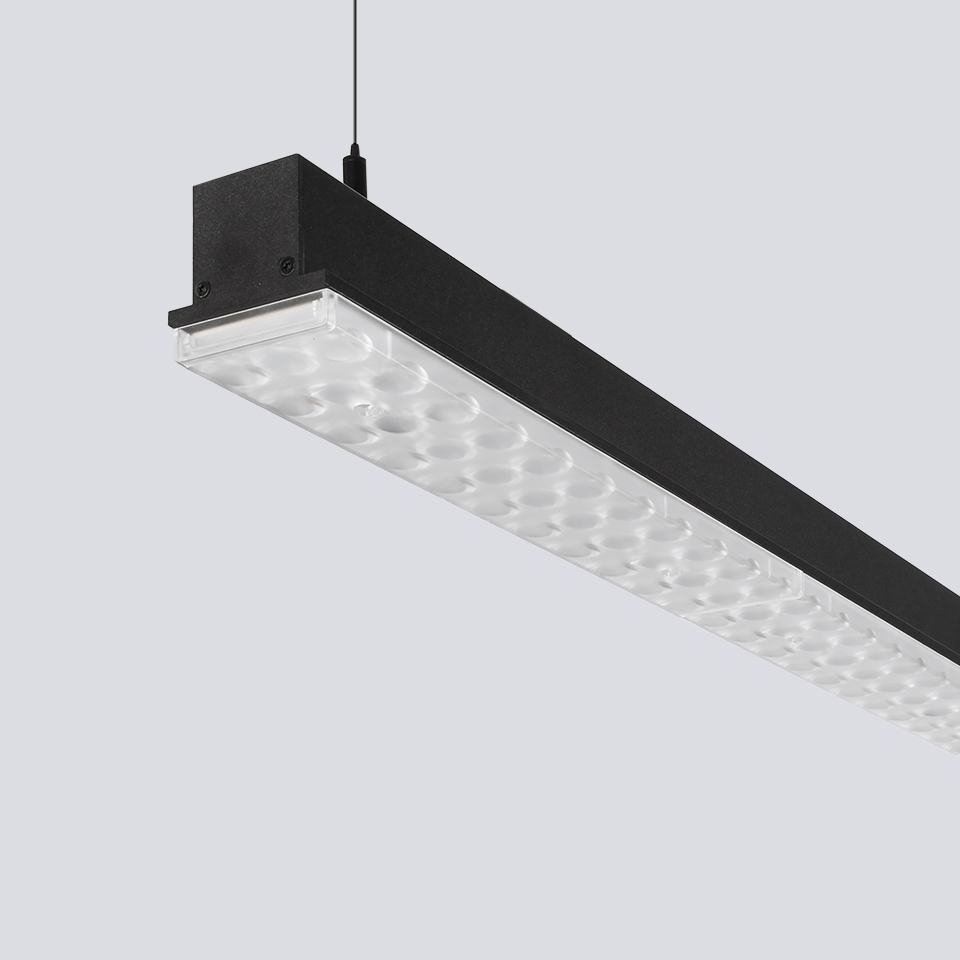

Aluminium profile with optics available in different beam angles. High-performance LED integration for architectural applications

  • Socket
  • Output
  • Control
  • Colour Temperature
  • Beam Angle
  • Complements
  • Finish

This combination does not exist.

Contact Us
Pixel Pixel
Technical Datasheet Technical Catalogue Installation Instructions General Guarantee Conditions Extended Guarantee Conditions CE Declaration for Surface and Pendant CE Declaration for Recessed LED Efficiency Label Driver technical datasheet PIXEL - LDT files PIXEL - 3D model
Technical drawing
LED flux—
LED power consumption—
Luminous efficiency—
CRI—
Driver LED—
Light temperature—
Beam angle—
IP protection—
Modelo Ref. Color Fuente Potencia Regulación Flujo lum. Temp. Ángulo CRI Eficiencia
Pixel 4000K PIXXA05D46ABS Satin Black LED ≈ 23W / >3.500 lm Dali 3.780 lm 4000K >60º >90 173 lm/W
Pixel 4000K PIXXA05D46AWS Satin White LED ≈ 23W / >3.500 lm Dali 3.780 lm 4000K >60º >90 173 lm/W
Pixel 4000K PIXXA05D46BBS Satin Black LED ≈ 23W / >3.500 lm Dali 3.780 lm 4000K >60º >90 173 lm/W
Pixel 4000K PIXXA05D46BWS Satin White LED ≈ 23W / >3.500 lm Dali 3.780 lm 4000K >60º >90 173 lm/W
Pixel 4000K PIXXA05D47ABS Satin Black LED ≈ 23W / >3.500 lm Dali 3.780 lm 4000K RSº >90 173 lm/W
Pixel 4000K PIXXA05D47AWS Satin White LED ≈ 23W / >3.500 lm Dali 3.780 lm 4000K RSº >90 173 lm/W
Pixel 4000K PIXXA05D47BBS Satin Black LED ≈ 23W / >3.500 lm Dali — 4000K Retail Symmetricº >90 —
Pixel 4000K PIXXA05D47BWS Satin White LED ≈ 23W / >3.500 lm Dali — 4000K Retail Symmetricº >90 —
Pixel 4000K PIXXA05D49ABS Satin Black LED ≈ 23W / >3.500 lm Dali 3.780 lm 4000K >90º >90 173 lm/W
Pixel 4000K PIXXA05D49AWS Satin White LED ≈ 23W / >3.500 lm Dali 3.780 lm 4000K >90º >90 173 lm/W
Pixel 4000K PIXXA05D49BBS Satin Black LED ≈ 23W / >3.500 lm Dali — 4000K >90º >90 —
Pixel 4000K PIXXA05D49BWS Satin White LED ≈ 23W / >3.500 lm Dali — 4000K >90º >90 —
Pixel 4000K PIXXA05N46ABS Satin Black LED ≈ 23W / >3.500 lm No Dimmable 3.780 lm 4000K >60º >90 173 lm/W
Pixel 4000K PIXXA05N46AWS Satin White LED ≈ 23W / >3.500 lm No Dimmable 3.780 lm 4000K >60º >90 173 lm/W
Pixel 4000K PIXXA05N46BBS Satin Black LED ≈ 23W / >3.500 lm No Dimmable 3.780 lm 4000K >60º >90 173 lm/W
Pixel 4000K PIXXA05N46BWS Satin White LED ≈ 23W / >3.500 lm No Dimmable 3.780 lm 4000K >60º >90 173 lm/W
Pixel 4000K PIXXA05N47ABS Satin Black LED ≈ 23W / >3.500 lm No Dimmable 3.780 lm 4000K RSº >90 173 lm/W
Pixel 4000K PIXXA05N47AWS Satin White LED ≈ 23W / >3.500 lm No Dimmable 3.780 lm 4000K RSº >90 173 lm/W
Pixel 4000K PIXXA05N47BBS Satin Black LED ≈ 23W / >3.500 lm No Dimmable — 4000K Retail Symmetricº >90 —
Pixel 4000K PIXXA05N47BWS Satin White LED ≈ 23W / >3.500 lm No Dimmable — 4000K Retail Symmetricº >90 —
Pixel 4000K PIXXA05N49ABS Satin Black LED ≈ 23W / >3.500 lm No Dimmable 3.780 lm 4000K >90º >90 173 lm/W
Pixel 4000K PIXXA05N49AWS Satin White LED ≈ 23W / >3.500 lm No Dimmable 3.780 lm 4000K >90º >90 173 lm/W
Pixel 4000K PIXXA05N49BBS Satin Black LED ≈ 23W / >3.500 lm No Dimmable — 4000K >90º >90 —
Pixel 4000K PIXXA05N49BWS Satin White LED ≈ 23W / >3.500 lm No Dimmable — 4000K >90º >90 —
Pixel 4000K PIXXA11D46ABS Satin Black LED ≈ 46W / >7.000 lm Dali 7.560 lm 4000K >60º >90 173 lm/W
Pixel 4000K PIXXA11D46AWS Satin White LED ≈ 46W / >7.000 lm Dali 7.560 lm 4000K >60º >90 173 lm/W
Pixel 4000K PIXXA11D46BBS Satin Black LED ≈ 46W / >7.000 lm Dali 7.560 lm 4000K >60º >90 173 lm/W
Pixel 4000K PIXXA11D46BWS Satin White LED ≈ 46W / >7.000 lm Dali 7.560 lm 4000K >60º >90 173 lm/W
Pixel 4000K PIXXA11D47ABS Satin Black LED ≈ 46W / >7.000 lm Dali 7.560 lm 4000K RSº >90 173 lm/W
Pixel 4000K PIXXA11D47AWS Satin White LED ≈ 46W / >7.000 lm Dali 7.560 lm 4000K RSº >90 173 lm/W
Pixel 4000K PIXXA11D47BBS Satin Black LED ≈ 46W / >7.000 lm Dali — 4000K Retail Symmetricº >90 —
Pixel 4000K PIXXA11D47BWS Satin White LED ≈ 46W / >7.000 lm Dali — 4000K Retail Symmetricº >90 —
Pixel 4000K PIXXA11D49ABS Satin Black LED ≈ 46W / >7.000 lm Dali 7.560 lm 4000K >90º >90 173 lm/W
Pixel 4000K PIXXA11D49AWS Satin White LED ≈ 46W / >7.000 lm Dali 7.560 lm 4000K >90º >90 173 lm/W
Pixel 4000K PIXXA11D49BBS Satin Black LED ≈ 46W / >7.000 lm Dali — 4000K >90º >90 —
Pixel 4000K PIXXA11D49BWS Satin White LED ≈ 46W / >7.000 lm Dali — 4000K >90º >90 —
Pixel 4000K PIXXA11N46ABS Satin Black LED ≈ 46W / >7.000 lm No Dimmable 7.560 lm 4000K >60º >90 173 lm/W
Pixel 4000K PIXXA11N46AWS Satin White LED ≈ 46W / >7.000 lm No Dimmable 7.560 lm 4000K >60º >90 173 lm/W
Pixel 4000K PIXXA11N46BBS Satin Black LED ≈ 46W / >7.000 lm No Dimmable 7.560 lm 4000K >60º >90 173 lm/W
Pixel 4000K PIXXA11N46BWS Satin White LED ≈ 46W / >7.000 lm No Dimmable 7.560 lm 4000K >60º >90 173 lm/W
Pixel 4000K PIXXA11N47ABS Satin Black LED ≈ 46W / >7.000 lm No Dimmable 7.560 lm 4000K RSº >90 173 lm/W
Pixel 4000K PIXXA11N47AWS Satin White LED ≈ 46W / >7.000 lm No Dimmable 7.560 lm 4000K RSº >90 173 lm/W
Pixel 4000K PIXXA11N47BBS Satin Black LED ≈ 46W / >7.000 lm No Dimmable — 4000K Retail Symmetricº >90 —
Pixel 4000K PIXXA11N47BWS Satin White LED ≈ 46W / >7.000 lm No Dimmable — 4000K Retail Symmetricº >90 —
Pixel 4000K PIXXA11N49ABS Satin Black LED ≈ 46W / >7.000 lm No Dimmable 7.560 lm 4000K >90º >90 173 lm/W
Pixel 4000K PIXXA11N49AWS Satin White LED ≈ 46W / >7.000 lm No Dimmable 7.560 lm 4000K >90º >90 173 lm/W
Pixel 4000K PIXXA11N49BBS Satin Black LED ≈ 46W / >7.000 lm No Dimmable — 4000K >90º >90 —
Pixel 4000K PIXXA11N49BWS Satin White LED ≈ 46W / >7.000 lm No Dimmable — 4000K >90º >90 —
Pixel 4000K PIXXA17D46ABS Satin Black LED ≈ 69W / >10.500 lm Dali 11.340 lm 4000K >60º >90 173 lm/W
Pixel 4000K PIXXA17D46AWS Satin White LED ≈ 69W / >10.500 lm Dali 11.340 lm 4000K >60º >90 173 lm/W
Pixel 4000K PIXXA17D46BBS Satin Black LED ≈ 69W / >10.500 lm Dali 11.340 lm 4000K >60º >90 173 lm/W
Pixel 4000K PIXXA17D46BWS Satin White LED ≈ 69W / >10.500 lm Dali 11.340 lm 4000K >60º >90 173 lm/W
Pixel 4000K PIXXA17D47ABS Satin Black LED ≈ 69W / >10.500 lm Dali 11.340 lm 4000K RSº >90 173 lm/W
Pixel 4000K PIXXA17D47AWS Satin White LED ≈ 69W / >10.500 lm Dali 11.340 lm 4000K RSº >90 173 lm/W
Pixel 4000K PIXXA17D47BBS Satin Black LED ≈ 69W / >10.500 lm Dali — 4000K Retail Symmetricº >90 —
Pixel 4000K PIXXA17D47BWS Satin White LED ≈ 69W / >10.500 lm Dali — 4000K Retail Symmetricº >90 —
Pixel 4000K PIXXA17D49ABS Satin Black LED ≈ 69W / >10.500 lm Dali 11.340 lm 4000K >90º >90 173 lm/W
Pixel 4000K PIXXA17D49AWS Satin White LED ≈ 69W / >10.500 lm Dali 11.340 lm 4000K >90º >90 173 lm/W
Pixel 4000K PIXXA17D49BBS Satin Black LED ≈ 69W / >10.500 lm Dali — 4000K >90º >90 —
Pixel 4000K PIXXA17D49BWS Satin White LED ≈ 69W / >10.500 lm Dali — 4000K >90º >90 —
Pixel 4000K PIXXA17N46ABS Satin Black LED ≈ 69W / >10.500 lm No Dimmable 11.340 lm 4000K >60º >90 173 lm/W
Pixel 4000K PIXXA17N46AWS Satin White LED ≈ 69W / >10.500 lm No Dimmable 11.340 lm 4000K >60º >90 173 lm/W
Pixel 4000K PIXXA17N46BBS Satin Black LED ≈ 69W / >10.500 lm No Dimmable 11.340 lm 4000K >60º >90 173 lm/W
Pixel 4000K PIXXA17N46BWS Satin White LED ≈ 69W / >10.500 lm No Dimmable 11.340 lm 4000K >60º >90 173 lm/W
Pixel 4000K PIXXA17N47ABS Satin Black LED ≈ 69W / >10.500 lm No Dimmable 11.340 lm 4000K RSº >90 173 lm/W
Pixel 4000K PIXXA17N47AWS Satin White LED ≈ 69W / >10.500 lm No Dimmable 11.340 lm 4000K RSº >90 173 lm/W
Pixel 4000K PIXXA17N47BBS Satin Black LED ≈ 69W / >10.500 lm No Dimmable — 4000K Retail Symmetricº >90 —
Pixel 4000K PIXXA17N47BWS Satin White LED ≈ 69W / >10.500 lm No Dimmable — 4000K Retail Symmetricº >90 —
Pixel 4000K PIXXA17N49ABS Satin Black LED ≈ 69W / >10.500 lm No Dimmable 11.340 lm 4000K >90º >90 173 lm/W
Pixel 4000K PIXXA17N49AWS Satin White LED ≈ 69W / >10.500 lm No Dimmable 11.340 lm 4000K >90º >90 173 lm/W
Pixel 4000K PIXXA17N49BBS Satin Black LED ≈ 69W / >10.500 lm No Dimmable — 4000K >90º >90 —
Pixel 4000K PIXXA17N49BWS Satin White LED ≈ 69W / >10.500 lm No Dimmable — 4000K >90º >90 —
