Oval 24V Roll
Oval 24V Roll
Oval 24V Roll

Oval 24V Roll

https://onoklighting.com/web/image/product.template/10742/image_1920?unique=a4bc23f

Continuous linear profile for uniform lighting. Configurable system for integration in architectural applications

  • Socket
  • Output
  • Control
  • Colour Temperature
  • Beam Angle
  • Installation
  • Finish

This combination does not exist.

Contact Us
Oval 24V Roll Oval 24V Roll
Technical Data Sheet Technical Catalogue Installation Instructions DRIVER Technical Datasheet General Guarantee Conditions Extended Guarantee Conditions CE Declaration LED Efficiency Label OVAL 24V ROLL - LDT files OVAL 24V ROLL - 3D model

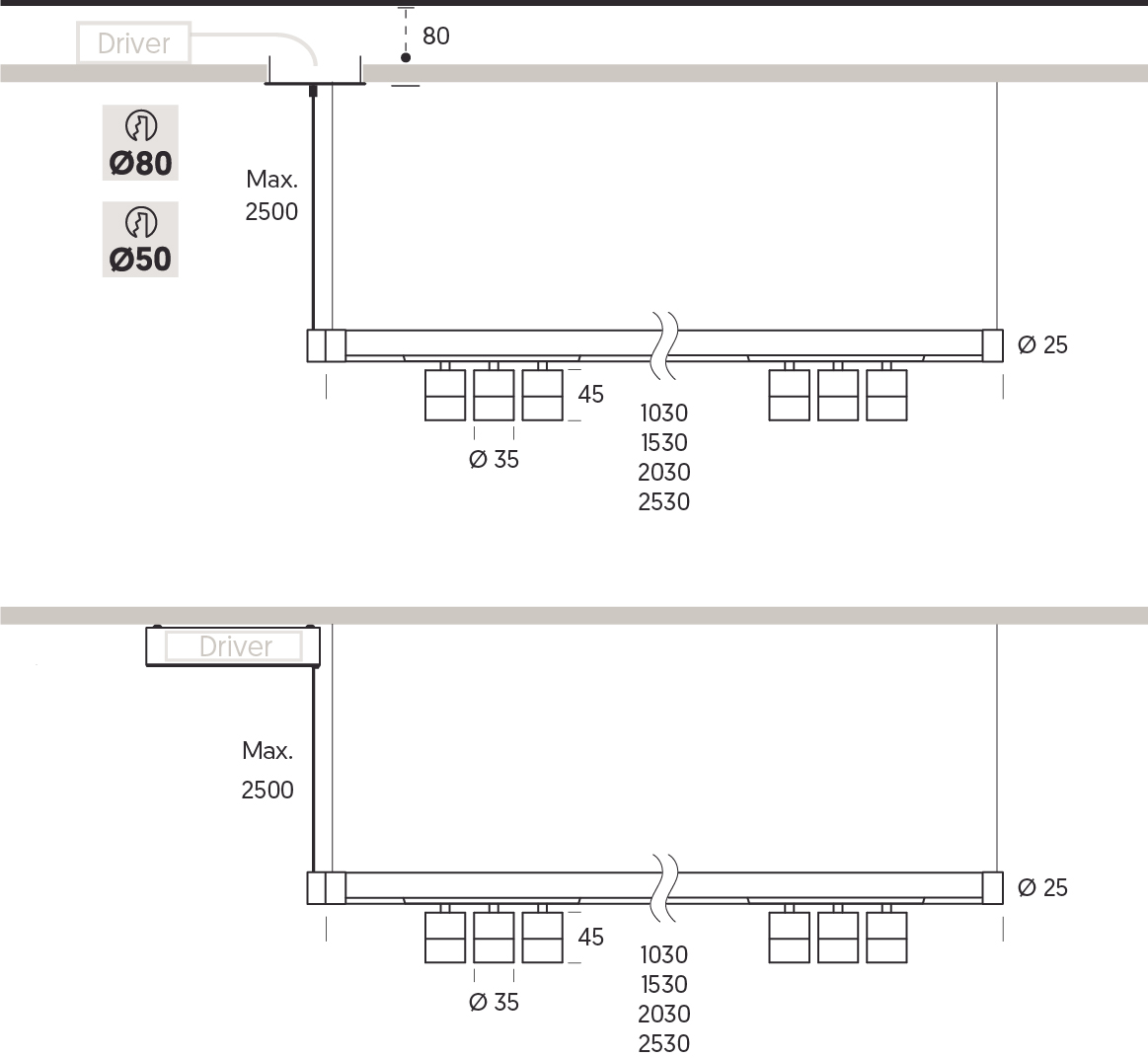

Technical drawing
LED flux—
LED power consumption—
Luminous efficiency—
CRI—
Driver LED—
Light temperature—
Beam angle—
IP protection—
Oval 24V Roll
Oval 24V Roll
Modelo Ref. Color Fuente Potencia Regulación Flujo lum. Temp. Ángulo CRI Eficiencia
Oval 24V Roll 2700K OVLRA10D24GBS Satin Black LED 1000mm Dali 2 x 1012lm 2700K 40º >90 —
Oval 24V Roll 2700K OVLRA10D24RBS Satin Black LED 1000mm Dali 2 x 1012lm 2700K 40º >90 —
Oval 24V Roll 3000K OVLRA10D34GBS Satin Black LED 1000mm Dali 2 x 1057lm 3000K 40º >90 —
Oval 24V Roll 3000K OVLRA10D34RBS Satin Black LED 1000mm Dali 2 x 1057lm 3000K 40º >90 —
Oval 24V Roll 4000K OVLRA10D44GBS Satin Black LED 1000mm Dali 2 x 1125lm 4000K 40º >90 —
Oval 24V Roll 4000K OVLRA10D44RBS Satin Black LED 1000mm Dali 2 x 1125lm 4000K 40º >90 —
Oval 24V Roll 2700K OVLRA10K24GBS Satin Black LED 1000mm Casambi 2 x 1012lm 2700K 40º >90 —
Oval 24V Roll 2700K OVLRA10K24RBS Satin Black LED 1000mm Casambi — 2700K 40º — —
Oval 24V Roll 3000K OVLRA10K34GBS Satin Black LED 1000mm Casambi 2 x 1057lm 3000K 40º >90 —
Oval 24V Roll 3000K OVLRA10K34RBS Satin Black LED 1000mm Casambi — 3000K 40º — —
Oval 24V Roll 4000K OVLRA10K44GBS Satin Black LED 1000mm Casambi 2 x 1125lm 4000K 40º >90 —
Oval 24V Roll 4000K OVLRA10K44RBS Satin Black LED 1000mm Casambi — 4000K 40º — —
Oval 24V Roll 2700K OVLRA10N24GBS Satin Black LED 1000mm No Dim 2 x 1012lm 2700K 40º >90 —
Oval 24V Roll 2700K OVLRA10N24RBS Satin Black LED 1000mm No Dim 2 x 1012lm 2700K 40º >90 —
Oval 24V Roll 2700K OVLRA10N24SBS Satin Black LED 1000mm No Dim 2 x 1012lm 2700K 40º >90 —
Oval 24V Roll 3000K OVLRA10N34GBS Satin Black LED 1000mm No Dim 2 x 1057lm 3000K 40º >90 —
Oval 24V Roll 3000K OVLRA10N34RBS Satin Black LED 1000mm No Dim 2 x 1057lm 3000K 40º >90 —
Oval 24V Roll 3000K OVLRA10N34SBS Satin Black LED 1000mm No Dim 2 x 1057lm 3000K 40º >90 —
Oval 24V Roll 4000K OVLRA10N44GBS Satin Black LED 1000mm No Dim 2 x 1125lm 4000K 40º >90 —
Oval 24V Roll 4000K OVLRA10N44RBS Satin Black LED 1000mm No Dim 2 x 1125lm 4000K 40º >90 —
Oval 24V Roll 4000K OVLRA10N44SBS Satin Black LED 1000mm No Dim 2 x 1125lm 4000K 40º >90 —
Oval 24V Roll 2700K OVLRA15D24GBS Satin Black LED 1500mm Dali 3 x 1012lm 2700K 40º >90 —
Oval 24V Roll 2700K OVLRA15D24RBS Satin Black LED 1500mm Dali 3 x 1012lm 2700K 40º >90 —
Oval 24V Roll 3000K OVLRA15D34GBS Satin Black LED 1500mm Dali 3 x 1057lm 3000K 40º >90 —
Oval 24V Roll 3000K OVLRA15D34RBS Satin Black LED 1500mm Dali 3 x 1057lm 3000K 40º >90 —
Oval 24V Roll 4000K OVLRA15D44GBS Satin Black LED 1500mm Dali 3 x 1125lm 4000K 40º >90 —
Oval 24V Roll 4000K OVLRA15D44RBS Satin Black LED 1500mm Dali 2 x 1125lm 4000K 40º >90 —
Oval 24V Roll 2700K OVLRA15K24GBS Satin Black LED 1500mm Casambi 3 x 1012lm 2700K 40º >90 —
Oval 24V Roll 2700K OVLRA15K24RBS Satin Black LED 1500mm Casambi — 2700K 40º — —
Oval 24V Roll 3000K OVLRA15K34GBS Satin Black LED 1500mm Casambi 3 x 1057lm 3000K 40º >90 —
Oval 24V Roll 3000K OVLRA15K34RBS Satin Black LED 1500mm Casambi — 3000K 40º — —
Oval 24V Roll 4000K OVLRA15K44GBS Satin Black LED 1500mm Casambi 3 x 1125lm 4000K 40º >90 —
Oval 24V Roll 4000K OVLRA15K44RBS Satin Black LED 1500mm Casambi — 4000K 40º — —
Oval 24V Roll 2700K OVLRA15N24GBS Satin Black LED 1500mm No Dim 3 x 1012lm 2700K 40º >90 —
Oval 24V Roll 2700K OVLRA15N24RBS Satin Black LED 1500mm No Dim 3 x 1012lm 2700K 40º >90 —
Oval 24V Roll 2700K OVLRA15N24SBS Satin Black LED 1500mm No Dim 3 x 1012lm 2700K 40º >90 —
Oval 24V Roll 3000K OVLRA15N34GBS Satin Black LED 1500mm No Dim 3 x 1057lm 3000K 40º >90 —
Oval 24V Roll 3000K OVLRA15N34RBS Satin Black LED 1500mm No Dim 3 x 1057lm 3000K 40º >90 —
Oval 24V Roll 3000K OVLRA15N34SBS Satin Black LED 1500mm No Dim 3 x 1057lm 3000K 40º >90 —
Oval 24V Roll 4000K OVLRA15N44GBS Satin Black LED 1500mm No Dim 3 x 1125lm 4000K 40º >90 —
Oval 24V Roll 4000K OVLRA15N44RBS Satin Black LED 1500mm No Dim 3 X 1125lm 4000K 40º >90 —
Oval 24V Roll 4000K OVLRA15N44SBS Satin Black LED 1500mm No Dim 3 x 1125lm 4000K 40º >90 —
Oval 24V Roll 2700K OVLRA20D24GBS Satin Black LED 2000mm Dali 4 x 1012lm 2700K 40º >90 —
Oval 24V Roll 2700K OVLRA20D24RBS Satin Black LED 2000mm Dali 4 x 1012lm 2700K 40º >90 —
Oval 24V Roll 3000K OVLRA20D34GBS Satin Black LED 2000mm Dali 4 x 1057lm 3000K 40º >90 —
Oval 24V Roll 3000K OVLRA20D34RBS Satin Black LED 2000mm Dali 4 x 1057lm 3000K 40º >90 —
Oval 24V Roll 4000K OVLRA20D44GBS Satin Black LED 2000mm Dali 4 x 1125lm 4000K 40º >90 —
Oval 24V Roll 4000K OVLRA20D44RBS Satin Black LED 2000mm Dali 4 x 1125lm 4000K 40º >90 —
Oval 24V Roll 2700K OVLRA20K24GBS Satin Black LED 2000mm Casambi 4 x 1012lm 2700K 40º >90 —
Oval 24V Roll 2700K OVLRA20K24RBS Satin Black LED 2000mm Casambi — 2700K 40º — —
Oval 24V Roll 3000K OVLRA20K34GBS Satin Black LED 2000mm Casambi 4 x 1057lm 3000K 40º >90 —
Oval 24V Roll 3000K OVLRA20K34RBS Satin Black LED 2000mm Casambi — 3000K 40º — —
Oval 24V Roll 4000K OVLRA20K44GBS Satin Black LED 2000mm Casambi 4 x 1125lm 4000K 40º >90 —
Oval 24V Roll 4000K OVLRA20K44RBS Satin Black LED 2000mm Casambi — 4000K 40º — —
Oval 24V Roll 2700K OVLRA20N24GBS Satin Black LED 2000mm No Dim 4 x 1012lm 2700K 40º >90 —
Oval 24V Roll 2700K OVLRA20N24RBS Satin Black LED 2000mm No Dim 4 x 1012lm 2700K 40º >90 —
Oval 24V Roll 2700K OVLRA20N24SBS Satin Black LED 2000mm No Dim 4 x 1012lm 2700K 40º >90 —
Oval 24V Roll 3000K OVLRA20N34GBS Satin Black LED 2000mm No Dim 4 x 1057lm 3000K 40º >90 —
Oval 24V Roll 3000K OVLRA20N34RBS Satin Black LED 2000mm No Dim 4 x 1057lm 3000K 40º >90 —
Oval 24V Roll 3000K OVLRA20N34SBS Satin Black LED 2000mm No Dim 4 x 1057lm 3000K 40º >90 —
Oval 24V Roll 4000K OVLRA20N44GBS Satin Black LED 2000mm No Dim 4 x 1125lm 4000K 40º >90 —
Oval 24V Roll 4000K OVLRA20N44RBS Satin Black LED 2000mm No Dim 4 x 1125lm 4000K 40º >90 —
Oval 24V Roll 4000K OVLRA20N44SBS Satin Black LED 2000mm No Dim 4 x 1125lm 4000K 40º >90 —
Oval 24V Roll 2700K OVLRA25D24GBS Satin Black LED 2500mm Dali 5 x 1012lm 2700K 40º >90 —
Oval 24V Roll 2700K OVLRA25D24RBS Satin Black LED 2500mm Dali 5 x 1012lm 2700K 40º >90 —
Oval 24V Roll 3000K OVLRA25D34GBS Satin Black LED 2500mm Dali 5 x 1057lm 3000K 40º >90 —
Oval 24V Roll 3000K OVLRA25D34RBS Satin Black LED 2500mm Dali 5 x 1057lm 3000K 40º >90 —
Oval 24V Roll 4000K OVLRA25D44GBS Satin Black LED 2500mm Dali 4 x 1125lm 4000K 40º >90 —
Oval 24V Roll 4000K OVLRA25D44RBS Satin Black LED 2500mm Dali 5 x 1125lm 4000K 40º >90 —
Oval 24V Roll 2700K OVLRA25K24GBS Satin Black LED 2500mm Casambi 5 x 1012lm 2700K 40º >90 —
Oval 24V Roll 2700K OVLRA25K24RBS Satin Black LED 2500mm Casambi — 2700K 40º — —
Oval 24V Roll 3000K OVLRA25K34GBS Satin Black LED 2500mm Casambi 5 x 1057lm 3000K 40º >90 —
Oval 24V Roll 3000K OVLRA25K34RBS Satin Black LED 2500mm Casambi — 3000K 40º — —
Oval 24V Roll 4000K OVLRA25K44GBS Satin Black LED 2500mm Casambi 5 x 1125lm 4000K 40º >90 —
Oval 24V Roll 4000K OVLRA25K44RBS Satin Black LED 2500mm Casambi — 4000K 40º — —
Oval 24V Roll 2700K OVLRA25N24GBS Satin Black LED 2500mm No Dim 5 x 1012lm 2700K 40º >90 —
Oval 24V Roll 2700K OVLRA25N24RBS Satin Black LED 2500mm No Dim 5 x 1012lm 2700K 40º >90 —
Oval 24V Roll 2700K OVLRA25N24SBS Satin Black LED 2500mm No Dim 5 x 1012lm 2700K 40º >90 —
Oval 24V Roll 3000K OVLRA25N34GBS Satin Black LED 2500mm No Dim 5 x 1057lm 3000K 40º >90 —
Oval 24V Roll 3000K OVLRA25N34RBS Satin Black LED 2500mm No Dim 5 x 1057lm 3000K 40º >90 —
Oval 24V Roll 3000K OVLRA25N34SBS Satin Black LED 2500mm No Dim 5 x 1057lm 3000K 40º >90 —
Oval 24V Roll 4000K OVLRA25N44GBS Satin Black LED 2500mm No Dim 5 x 1125lm 4000K 40º >90 —
Oval 24V Roll 4000K OVLRA25N44RBS Satin Black LED 2500mm No Dim 5 x 1125lm 4000K 40º >90 —
Oval 24V Roll 4000K OVLRA25N44SBS Satin Black LED 2500mm No Dim 5 x 1125lm 4000K 40º >90 —
