Orbit
Orbit

Orbit

https://onoklighting.com/web/image/product.template/10666/image_1920?unique=f820c4a

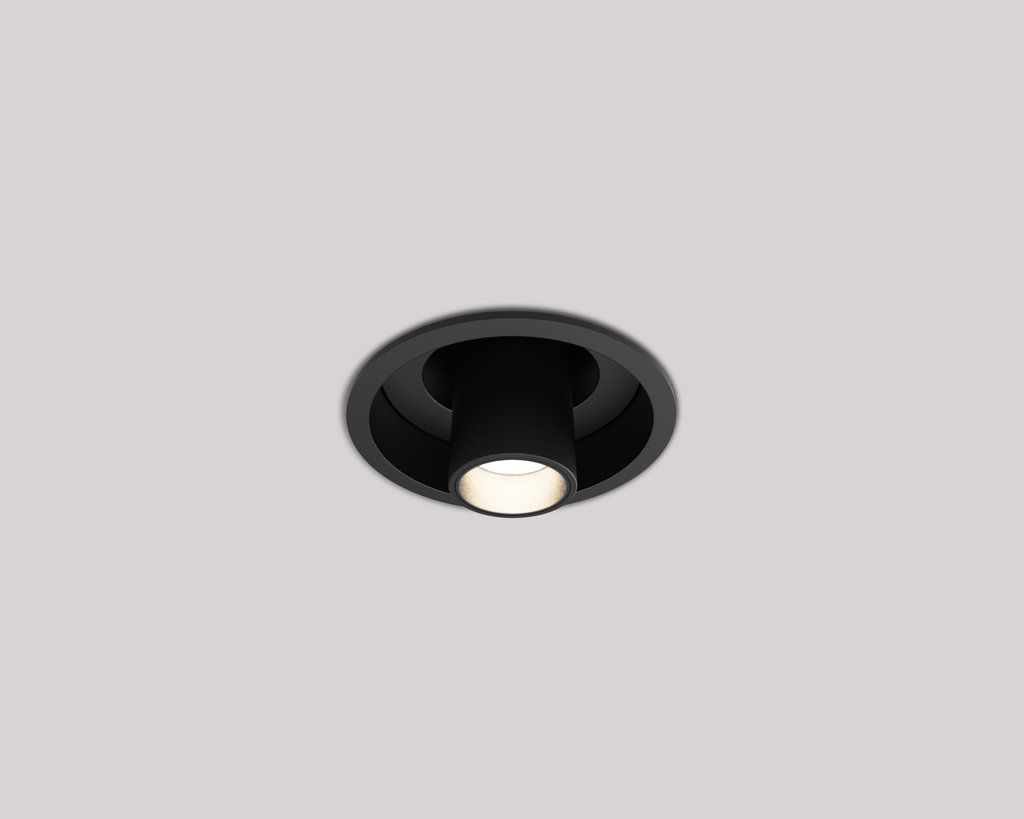

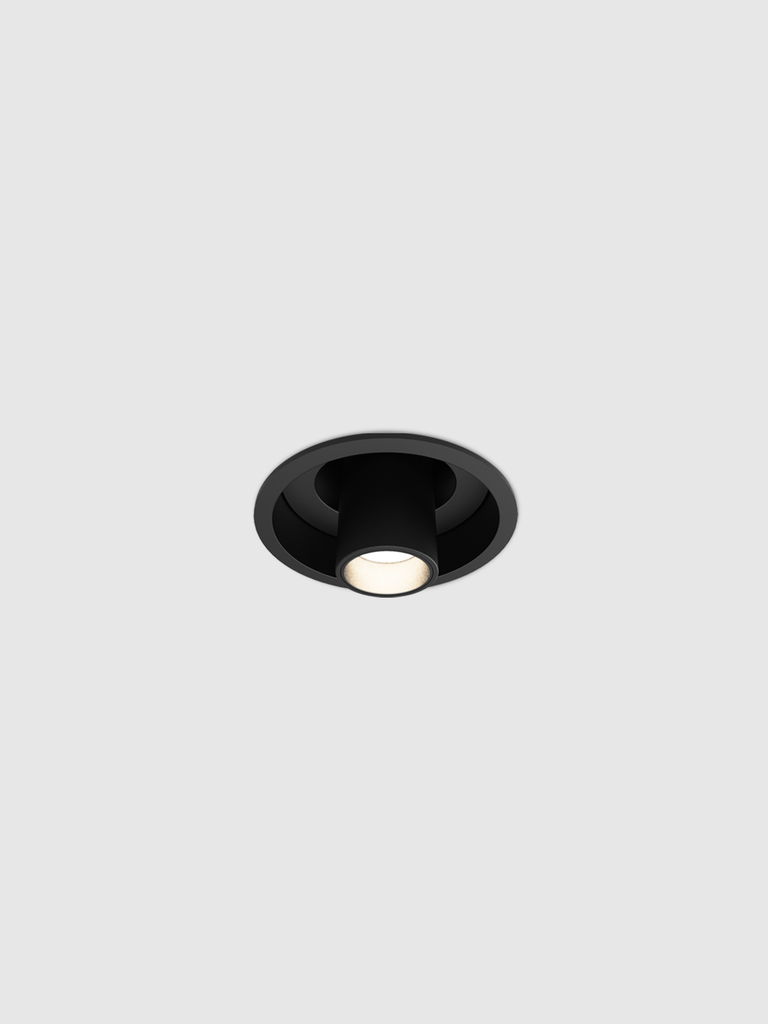

Configurable Orbit lighting system. Designed for modular compositions and architectural applications

  • Socket
  • Output
  • Control
  • Colour Temperature
  • Beam Angle
  • Complements
  • Finish

This combination does not exist.

Contact Us
Orbit Orbit
Technical datasheet General Guarantee Conditions CE declaration Efficiency label Extended Guarantee Conditions LED technical datasheet Driver technical datasheet Installation instructions ORBIT - LDT files
Technical drawing
LED flux—
LED power consumption—
Luminous efficiency—
CRI—
Driver LED—
Light temperature—
Beam angle—
IP protection—
Orbit
Modelo Ref. Color Fuente Potencia Regulación Flujo lum. Temp. Ángulo CRI Eficiencia
Orbit 2700K ORBTA01D22ABS Satin Black LED 01/4W 53mm Dali 373 lm 2700K 24º >90 107 lm/W
Orbit 2700K ORBTA01D22AWS Satin White LED 01/4W 53mm Dali 373 lm 2700K 24º >90 107 lm/W
Orbit 3000K ORBTA01D32ABS Satin Black LED 01/4W 53mm Dali 390 lm 3000K 24º >90 111 lm/W
Orbit 3000K ORBTA01D32AWS Satin White LED 01/4W 53mm Dali 390 lm 3000K 24º >90 111 lm/W
Orbit 4000K ORBTA01D42ABS Satin Black LED 01/4W 53mm Dali 412 lm 4000K 24º >90 118 lm/W
Orbit 4000K ORBTA01D42AWS Satin White LED 01/4W 53mm Dali 412 lm 4000K 24º >90 118 lm/W
Orbit 2700K ORBTA01N22ABS Satin Black LED 01/4W 53mm No Dimmable 373 lm 2700K 24º >90 107 lm/W
Orbit 2700K ORBTA01N22AWS Satin White LED 01/4W 53mm No Dimmable 373 lm 2700K 24º >90 107 lm/W
Orbit 3000K ORBTA01N32ABS Satin Black LED 01/4W 53mm No Dimmable 390 lm 3000K 24º >90 111 lm/W
Orbit 3000K ORBTA01N32AWS Satin White LED 01/4W 53mm No Dimmable 390 lm 3000K 24º >90 111 lm/W
Orbit 4000K ORBTA01N42ABS Satin Black LED 01/4W 53mm No Dimmable 412 lm 4000K 24º >90 118 lm/W
Orbit 4000K ORBTA01N42AWS Satin White LED 01/4W 53mm No Dimmable 412 lm 4000K 24º >90 118 lm/W
Orbit 2700K ORBTA02D22ABS Satin Black LED 02/5W 500mm Dali 560 lm 2700K 24º >90 104 lm/W
Orbit 2700K ORBTA02D22AWS Satin White LED 02/5W 500mm Dali 560 lm 2700K 24º >90 104 lm/W
Orbit 3000K ORBTA02D32ABS Satin Black LED 02/5W 500mm Dali 585 lm 3000K 24º >90 108 lm/W
Orbit 3000K ORBTA02D32AWS Satin White LED 02/5W 500mm Dali 585 lm 3000K 24º >90 108 lm/W
Orbit 4000K ORBTA02D42ABS Satin Black LED 02/5W 500mm Dali 618 lm 4000K 24º >90 114 lm/W
Orbit 4000K ORBTA02D42AWS Satin White LED 02/5W 500mm Dali 618 lm 4000K 24º >90 114 lm/W
Orbit 2700K ORBTA02N22ABS Satin Black LED 02/5W 500mm No Dimmable 560 lm 2700K 24º >90 104 lm/W
Orbit 2700K ORBTA02N22AWS Satin White LED 02/5W 500mm No Dimmable 560 lm 2700K 24º >90 104 lm/W
Orbit 3000K ORBTA02N32ABS Satin Black LED 02/5W 500mm No Dimmable 585 lm 3000K 24º >90 108 lm/W
Orbit 3000K ORBTA02N32AWS Satin White LED 02/5W 500mm No Dimmable 585 lm 3000K 24º >90 108 lm/W
Orbit 4000K ORBTA02N42ABS Satin Black LED 02/5W 500mm No Dimmable 618 lm 4000K 24º >90 114 lm/W
Orbit 4000K ORBTA02N42AWS Satin White LED 02/5W 500mm No Dimmable 618 lm 4000K 24º >90 114 lm/W
Orbit 2700K ORBTA03D22ABS Satin Black LED 03/5W 700mm Dali 560 lm 2700K 24º >90 104 lm/W
Orbit 2700K ORBTA03D22AWS Satin White LED 03/5W 700mm Dali 560 lm 2700K 24º >90 104 lm/W
Orbit 3000K ORBTA03D32ABS Satin Black LED 03/5W 700mm Dali 585 lm 3000K 24º >90 108 lm/W
Orbit 3000K ORBTA03D32AWS Satin White LED 03/5W 700mm Dali 585 lm 3000K 24º >90 108 lm/W
Orbit 4000K ORBTA03D42ABS Satin Black LED 03/5W 700mm Dali 618 lm 4000K 24º >90 114 lm/W
Orbit 4000K ORBTA03D42AWS Satin White LED 03/5W 700mm Dali 618 lm 4000K 24º >90 114 lm/W
Orbit 2700K ORBTA03N22ABS Satin Black LED 03/5W 700mm No Dimmable 560 lm 2700K 24º >90 104 lm/W
Orbit 2700K ORBTA03N22AWS Satin White LED 03/5W 700mm No Dimmable 560 lm 2700K 24º >90 104 lm/W
Orbit 3000K ORBTA03N32ABS Satin Black LED 03/5W 700mm No Dimmable 585 lm 3000K 24º >90 108 lm/W
Orbit 3000K ORBTA03N32AWS Satin White LED 03/5W 700mm No Dimmable 585 lm 3000K 24º >90 108 lm/W
Orbit 4000K ORBTA03N42ABS Satin Black LED 03/5W 700mm No Dimmable 618 lm 4000K 24º >90 114 lm/W
Orbit 4000K ORBTA03N42AWS Satin White LED 03/5W 700mm No Dimmable 618 lm 4000K 24º >90 114 lm/W
Orbit 2700K ORBTA04D22ABS Satin Black LED 04/5W 1000mm Dali 560 lm 2700K 24º >90 104 lm/W
Orbit 2700K ORBTA04D22AWS Satin White LED 04/5W 1000mm Dali 560 lm 2700K 24º >90 104 lm/W
Orbit 3000K ORBTA04D32ABS Satin Black LED 04/5W 1000mm Dali 585 lm 3000K 24º >90 108 lm/W
Orbit 3000K ORBTA04D32AWS Satin White LED 04/5W 1000mm Dali 585 lm 3000K 24º >90 108 lm/W
Orbit 4000K ORBTA04D42ABS Satin Black LED 04/5W 1000mm Dali 618 lm 4000K 24º >90 114 lm/W
Orbit 4000K ORBTA04D42AWS Satin White LED 04/5W 1000mm Dali 618 lm 4000K 24º >90 114 lm/W
Orbit 2700K ORBTA04N22ABS Satin Black LED 04/5W 1000mm No Dimmable 560 lm 2700K 24º >90 104 lm/W
Orbit 2700K ORBTA04N22AWS Satin White LED 04/5W 1000mm No Dimmable 560 lm 2700K 24º >90 104 lm/W
Orbit 3000K ORBTA04N32ABS Satin Black LED 04/5W 1000mm No Dimmable 585 lm 3000K 24º >90 108 lm/W
Orbit 3000K ORBTA04N32AWS Satin White LED 04/5W 1000mm No Dimmable 585 lm 3000K 24º >90 108 lm/W
Orbit 4000K ORBTA04N42ABS Satin Black LED 04/5W 1000mm No Dimmable 618 lm 4000K 24º >90 114 lm/W
Orbit 4000K ORBTA04N42AWS Satin White LED 04/5W 1000mm No Dimmable 618 lm 4000K 24º >90 114 lm/W
