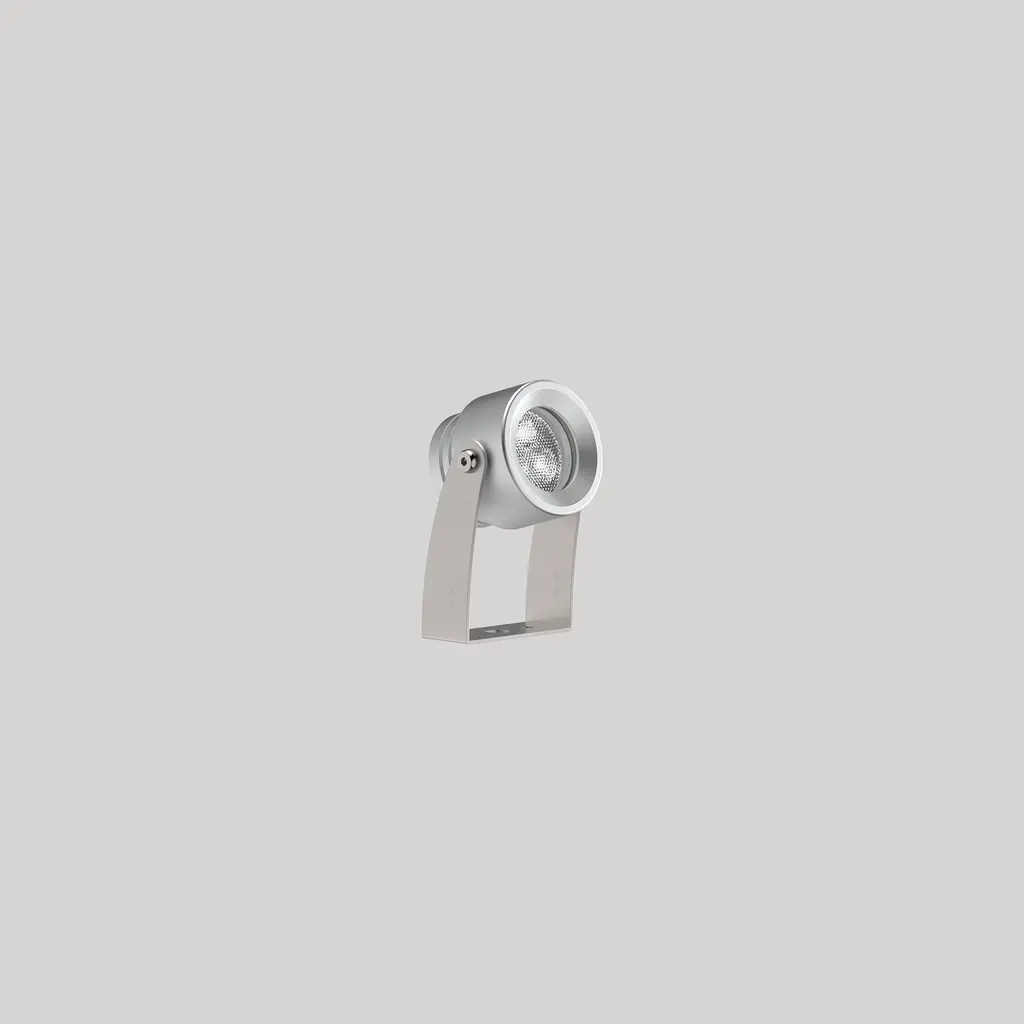

Adjustable projector for wall or ground installation. Interchangeable optics and mounting accessories for outdoor applications

  • Socket
  • Output
  • Control
  • Colour Temperature
  • Beam Angle
  • Complements
  • Finish

This combination does not exist.

Contact Us
Odak Odak
Technical datasheet General Guarantee Conditions Extended Guarantee Conditions CE Declaration LED Efficiency Label Installation Instructions ODAK - LDT files
Technical drawing
LED flux—
LED power consumption—
Luminous efficiency—
CRI—
Driver LED—
Light temperature—
Beam angle—
IP protection—
Odak
Odak
Odak
Modelo Ref. Color Fuente Potencia Regulación Flujo lum. Temp. Ángulo CRI Eficiencia
Odak 2700K ODAKA09N22CAA Anthracite - anthracite LED 9W No Dim 750 lm 2700K 20º >90 83 lm/W
Odak 2700K ODAKA09N22CBB Black - black LED 9W No Dim 750 lm 2700K 20º >90 83 lm/W
Odak 2700K ODAKA09N22CSA Stainless steel - aluminium LED 9W No Dim 750 lm 2700K 20º >90 83 lm/W
Odak 2700K ODAKA09N24CAA Anthracite - anthracite LED 9W No Dim 750 lm 2700K 40 extº >90 83 lm/W
Odak 2700K ODAKA09N24CBB Black - black LED 9W No Dim 750 lm 2700K 40 extº >90 83 lm/W
Odak 2700K ODAKA09N24CSA Stainless steel - aluminium LED 9W No Dim 750 lm 2700K 40 extº >90 83 lm/W
Odak 2700K ODAKA09N27CAA Anthracite - anthracite LED 9W No Dim 750 lm 2700K 70º >90 83 lm/W
Odak 2700K ODAKA09N27CBB Black - black LED 9W No Dim 750 lm 2700K 70º >90 83 lm/W
Odak 2700K ODAKA09N27CSA Stainless steel - aluminium LED 9W No Dim 750 lm 2700K 70º >90 83 lm/W
Odak 3000K ODAKA09N32CAA Anthracite - anthracite LED 9W No Dim 833 lm 3000K 20º >90 93 lm/W
Odak 3000K ODAKA09N32CBB Black - black LED 9W No Dim 833 lm 3000K 20º >90 93 lm/W
Odak 3000K ODAKA09N32CSA Stainless steel - aluminium LED 9W No Dim 833 lm 3000K 20º >90 93 lm/W
Odak 3000K ODAKA09N34CAA Anthracite - anthracite LED 9W No Dim 833 lm 3000K 40 extº >90 93 lm/W
Odak 3000K ODAKA09N34CBB Black - black LED 9W No Dim 833 lm 3000K 40 extº >90 93 lm/W
Odak 3000K ODAKA09N34CSA Stainless steel - aluminium LED 9W No Dim 833 lm 3000K 40 extº >90 93 lm/W
Odak 3000K ODAKA09N37CAA Anthracite - anthracite LED 9W No Dim 833 lm 3000K 70º >90 93 lm/W
Odak 3000K ODAKA09N37CBB Black - black LED 9W No Dim 833 lm 3000K 70º >90 93 lm/W
Odak 3000K ODAKA09N37CSA Stainless steel - aluminium LED 9W No Dim 833 lm 3000K 70º >90 93 lm/W
