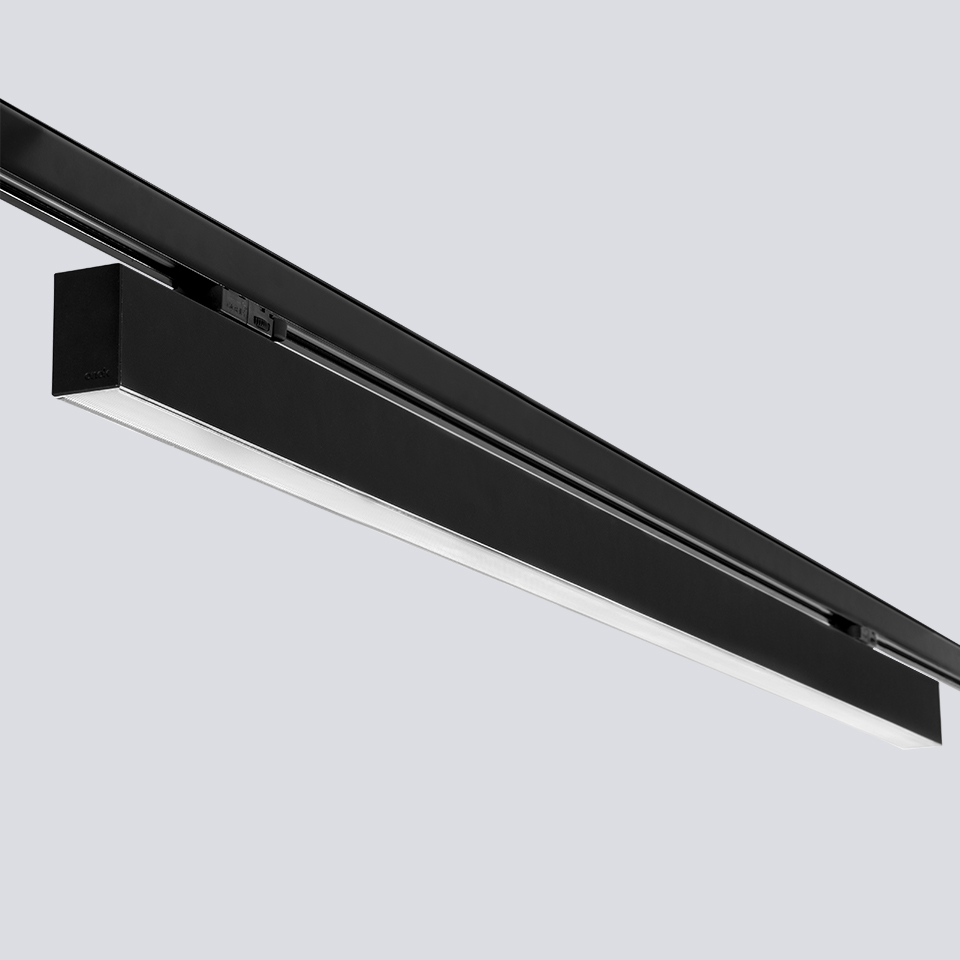

Linear profile with fixing system. Continuous and uniform lighting for architectural integration
  • Socket
  • Output
  • Control
  • Colour Temperature
  • Beam Angle
  • Complements
  • Finish

This combination does not exist.

Contact Us
Track Line Track Line
Technical Datasheet Line System Catalogue General Guarantee Conditions Extended Guarantee Conditions Installation Instructions CE Declaration LED Efficiency Label LED technical datasheet TW LED technical datasheet Driver 21W technical datasheet Driver 42W technical datasheet Test report certificate Test report TRACK LINE - LDT files
Technical drawing
LED flux—
LED power consumption—
Luminous efficiency—
CRI—
Driver LED—
Light temperature—
Beam angle—
IP protection—
Modelo Ref. Color Fuente Potencia Regulación Flujo lum. Temp. Ángulo CRI Eficiencia
Track Line 3000K LNETA11D39ABS Satin Black LED 112 cm / 22W Dali 3.720 lm 3000K >90º >90 167 lm/W
Track Line 3000K LNETA11D39AWS Satin White LED 112 cm / 22W Dali 3.720 lm 3000K >90º >90 167 lm/W
Track Line 3000K LNETA11D39CBS Satin Black LED 112 cm / 22W Dali 3.720 lm 3000K >90º >90 167 lm/W
Track Line 3000K LNETA11D39CWS Satin White LED 112 cm / 22W Dali 3.720 lm 3000K >90º >90 167 lm/W
Track Line 4000K LNETA11D49ABS Satin Black LED 112 cm / 22W Dali 3.999 lm 4000K >90º >90 179 lm/W
Track Line 4000K LNETA11D49AWS Satin White LED 112 cm / 22W Dali 3.999 lm 4000K >90º >90 179 lm/W
Track Line 4000K LNETA11D49CBS Satin Black LED 112 cm / 22W Dali 3.999 lm 4000K >90º >90 179 lm/W
Track Line 4000K LNETA11D49CWS Satin White LED 112 cm / 22W Dali 3.999 lm 4000K >90º >90 179 lm/W
Track Line 3000K LNETA11N39ABS Satin Black LED 112 cm / 22W No Dimmable 3.720 lm 3000K >90º >90 167 lm/W
Track Line 3000K LNETA11N39AWS Satin White LED 112 cm / 22W No Dimmable 3.720 lm 3000K >90º >90 167 lm/W
Track Line 3000K LNETA11N39CBS Satin Black LED 112 cm / 22W No Dimmable 3.720 lm 3000K >90º >90 167 lm/W
Track Line 3000K LNETA11N39CWS Satin White LED 112 cm / 22W No Dimmable 3.720 lm 3000K >90º >90 167 lm/W
Track Line 4000K LNETA11N49ABS Satin Black LED 112 cm / 22W No Dimmable 3.999 lm 4000K >90º >90 179 lm/W
Track Line 4000K LNETA11N49AWS Satin White LED 112 cm / 22W No Dimmable 3.999 lm 4000K >90º >90 179 lm/W
Track Line 4000K LNETA11N49CBS Satin Black LED 112 cm / 22W No Dimmable 3.999 lm 4000K >90º >90 179 lm/W
Track Line 4000K LNETA11N49CWS Satin White LED 112 cm / 22W No Dimmable 3.999 lm 4000K >90º >90 179 lm/W
Track Line 3000K LNETA14D39ABS Satin Black LED 140 cm / 28W Dali 4.650 lm 3000K >90º >90 167 lm/W
Track Line 3000K LNETA14D39AWS Satin White LED 140 cm / 28W Dali 4.650 lm 3000K >90º >90 167 lm/W
Track Line 3000K LNETA14D39CBS Satin Black LED 140 cm / 28W Dali 4.650 lm 3000K >90º >90 167 lm/W
Track Line 3000K LNETA14D39CWS Satin White LED 140 cm / 28W Dali 4.650 lm 3000K >90º >90 167 lm/W
Track Line 4000K LNETA14D49ABS Satin Black LED 140 cm / 28W Dali 4.998 lm 4000K >90º >90 179 lm/W
Track Line 4000K LNETA14D49AWS Satin White LED 140 cm / 28W Dali 4.998 lm 4000K >90º >90 179 lm/W
Track Line 4000K LNETA14D49CBS Satin Black LED 140 cm / 28W Dali 4.998 lm 4000K >90º >90 179 lm/W
Track Line 4000K LNETA14D49CWS Satin White LED 140 cm / 28W Dali 4.998 lm 4000K >90º >90 179 lm/W
Track Line 3000K LNETA14N39ABS Satin Black LED 140 cm / 28W No Dimmable 4.650 lm 3000K >90º >90 167 lm/W
Track Line 3000K LNETA14N39AWS Satin White LED 140 cm / 28W No Dimmable 4.650 lm 3000K >90º >90 167 lm/W
Track Line 3000K LNETA14N39CBS Satin Black LED 140 cm / 28W No Dimmable 4.650 lm 3000K >90º >90 167 lm/W
Track Line 3000K LNETA14N39CWS Satin White LED 140 cm / 28W No Dimmable 4.650 lm 3000K >90º >90 167 lm/W
Track Line 4000K LNETA14N49ABS Satin Black LED 140 cm / 28W No Dimmable 4.998 lm 4000K >90º >90 179 lm/W
Track Line 4000K LNETA14N49AWS Satin White LED 140 cm / 28W No Dimmable 4.998 lm 4000K >90º >90 179 lm/W
Track Line 4000K LNETA14N49CBS Satin Black LED 140 cm / 28W No Dimmable 4.998 lm 4000K >90º >90 179 lm/W
Track Line 4000K LNETA14N49CWS Satin White LED 140 cm / 28W No Dimmable 4.998 lm 4000K >90º >90 179 lm/W
Track Line 3000K LNETA18D39ABS Satin Black LED 182 cm / 36W Dali 6.045 lm 3000K >90º >90 167 lm/W
Track Line 3000K LNETA18D39AWS Satin White LED 182 cm / 36W Dali 6.045 lm 3000K >90º >90 167 lm/W
Track Line 3000K LNETA18D39CBS Satin Black LED 182 cm / 36W Dali 6.045 lm 3000K >90º >90 167 lm/W
Track Line 3000K LNETA18D39CWS Satin White LED 182 cm / 36W Dali 6.045 lm 3000K >90º >90 167 lm/W
Track Line 4000K LNETA18D49ABS Satin Black LED 182 cm / 36W Dali 6.498 lm 4000K >90º >90 179 lm/W
Track Line 4000K LNETA18D49AWS Satin White LED 182 cm / 36W Dali 6.498 lm 4000K >90º >90 179 lm/W
Track Line 4000K LNETA18D49CBS Satin Black LED 182 cm / 36W Dali 6.498 lm 4000K >90º >90 179 lm/W
Track Line 4000K LNETA18D49CWS Satin White LED 182 cm / 36W Dali 6.498 lm 4000K >90º >90 179 lm/W
Track Line 3000K LNETA18N39ABS Satin Black LED 182 cm / 36W No Dimmable 6.045 lm 3000K >90º >90 167 lm/W
Track Line 3000K LNETA18N39AWS Satin White LED 182 cm / 36W No Dimmable 6.045 lm 3000K >90º >90 167 lm/W
Track Line 3000K LNETA18N39CBS Satin Black LED 182 cm / 36W No Dimmable 6.045 lm 3000K >90º >90 167 lm/W
Track Line 3000K LNETA18N39CWS Satin White LED 182 cm / 36W No Dimmable 6.045 lm 3000K >90º >90 167 lm/W
Track Line 4000K LNETA18N49ABS Satin Black LED 182 cm / 36W No Dimmable 6.498 lm 4000K >90º >90 179 lm/W
Track Line 4000K LNETA18N49AWS Satin White LED 182 cm / 36W No Dimmable 6.498 lm 4000K >90º >90 179 lm/W
Track Line 4000K LNETA18N49CBS Satin Black LED 182 cm / 36W No Dimmable 6.498 lm 4000K >90º >90 179 lm/W
Track Line 4000K LNETA18N49CWS Satin White LED 182 cm / 36W No Dimmable 6.498 lm 4000K >90º >90 179 lm/W
Track Line 3000K LNETA22D39ABS Satin Black LED 224 cm / 45W Dali 7.440 lm 3000K >90º >90 167 lm/W
Track Line 3000K LNETA22D39AWS Satin White LED 224 cm / 45W Dali 7.440 lm 3000K >90º >90 167 lm/W
Track Line 3000K LNETA22D39CBS Satin Black LED 224 cm / 45W Dali 7.440 lm 3000K >90º >90 167 lm/W
Track Line 3000K LNETA22D39CWS Satin White LED 224 cm / 45W Dali 7.440 lm 3000K >90º >90 167 lm/W
Track Line 4000K LNETA22D49ABS Satin Black LED 224 cm / 45W Dali 7.998 lm 4000K >90º >90 179 lm/W
Track Line 4000K LNETA22D49AWS Satin White LED 224 cm / 45W Dali 7.998 lm 4000K >90º >90 179 lm/W
Track Line 4000K LNETA22D49CBS Satin Black LED 224 cm / 45W Dali 7.998 lm 4000K >90º >90 179 lm/W
Track Line 4000K LNETA22D49CWS Satin White LED 224 cm / 45W Dali 7.998 lm 4000K >90º >90 179 lm/W
Track Line 3000K LNETA22N39ABS Satin Black LED 224 cm / 45W No Dimmable 7.440 lm 3000K >90º >90 167 lm/W
Track Line 3000K LNETA22N39AWS Satin White LED 224 cm / 45W No Dimmable 7.440 lm 3000K >90º >90 167 lm/W
Track Line 3000K LNETA22N39CBS Satin Black LED 224 cm / 45W No Dimmable 7.440 lm 3000K >90º >90 167 lm/W
Track Line 3000K LNETA22N39CWS Satin White LED 224 cm / 45W No Dimmable 7.440 lm 3000K >90º >90 167 lm/W
Track Line 4000K LNETA22N49ABS Satin Black LED 224 cm / 45W No Dimmable 7.998 lm 4000K >90º >90 179 lm/W
Track Line 4000K LNETA22N49AWS Satin White LED 224 cm / 45W No Dimmable 7.998 lm 4000K >90º >90 179 lm/W
Track Line 4000K LNETA22N49CBS Satin Black LED 224 cm / 45W No Dimmable 7.998 lm 4000K >90º >90 179 lm/W
Track Line 4000K LNETA22N49CWS Satin White LED 224 cm / 45W No Dimmable 7.998 lm 4000K >90º >90 179 lm/W
Track Line 3000K LNETA28D39ABS Satin Black LED 281 cm / 56W Dali 9.300 lm 3000K >90º >90 167 lm/W
Track Line 3000K LNETA28D39AWS Satin White LED 281 cm / 56W Dali 9.300 lm 3000K >90º >90 167 lm/W
Track Line 3000K LNETA28D39CBS Satin Black LED 281 cm / 56W Dali 9.300 lm 3000K >90º >90 167 lm/W
Track Line 3000K LNETA28D39CWS Satin White LED 281 cm / 56W Dali 9.300 lm 3000K >90º >90 167 lm/W
Track Line 4000K LNETA28D49ABS Satin Black LED 281 cm / 56W Dali 9.997 lm 4000K >90º >90 179 lm/W
Track Line 4000K LNETA28D49AWS Satin White LED 281 cm / 56W Dali 9.997 lm 4000K >90º >90 179 lm/W
Track Line 4000K LNETA28D49CBS Satin Black LED 281 cm / 56W Dali 9.997 lm 4000K >90º >90 179 lm/W
Track Line 4000K LNETA28D49CWS Satin White LED 281 cm / 56W Dali 9.997 lm 4000K >90º >90 179 lm/W
Track Line 3000K LNETA28N39ABS Satin Black LED 281 cm / 56W No Dimmable 9.300 lm 3000K >90º >90 167 lm/W
Track Line 3000K LNETA28N39AWS Satin White LED 281 cm / 56W No Dimmable 9.300 lm 3000K >90º >90 167 lm/W
Track Line 3000K LNETA28N39CBS Satin Black LED 281 cm / 56W No Dimmable 9.300 lm 3000K >90º >90 167 lm/W
Track Line 3000K LNETA28N39CWS Satin White LED 281 cm / 56W No Dimmable 9.300 lm 3000K >90º >90 167 lm/W
Track Line 4000K LNETA28N49ABS Satin Black LED 281 cm / 56W No Dimmable 9.997 lm 4000K >90º >90 179 lm/W
Track Line 4000K LNETA28N49AWS Satin White LED 281 cm / 56W No Dimmable 9.997 lm 4000K >90º >90 179 lm/W
Track Line 4000K LNETA28N49CBS Satin Black LED 281 cm / 56W No Dimmable 9.997 lm 4000K >90º >90 179 lm/W
Track Line 4000K LNETA28N49CWS Satin White LED 281 cm / 56W No Dimmable 9.997 lm 4000K >90º >90 179 lm/W
Track Line 3000K LNETA70D39ABS Satin Black LED 70 cm / 14W Dali 2.325 lm 3000K >90º >90 167 lm/W
Track Line 3000K LNETA70D39AWS Satin White LED 70 cm / 14W Dali 2.325 lm 3000K >90º >90 167 lm/W
Track Line 3000K LNETA70D39CBS Satin Black LED 70 cm / 14W Dali 2.325 lm 3000K >90º >90 167 lm/W
Track Line 3000K LNETA70D39CWS Satin White LED 70 cm / 14W Dali 2.325 lm 3000K >90º >90 167 lm/W
Track Line 4000K LNETA70D49ABS Satin Black LED 70 cm / 14W Dali 2.499 lm 4000K >90º >90 179 lm/W
Track Line 4000K LNETA70D49AWS Satin White LED 70 cm / 14W Dali 2.499 lm 4000K >90º >90 179 lm/W
Track Line 4000K LNETA70D49CBS Satin Black LED 70 cm / 14W Dali 2.499 lm 4000K >90º >90 179 lm/W
Track Line 4000K LNETA70D49CWS Satin White LED 70 cm / 14W Dali 2.499 lm 4000K >90º >90 179 lm/W
Track Line 3000K LNETA70N39ABS Satin Black LED 70 cm / 14W No Dimmable 2.325 lm 3000K >90º >90 167 lm/W
Track Line 3000K LNETA70N39AWS Satin White LED 70 cm / 14W No Dimmable 2.325 lm 3000K >90º >90 167 lm/W
Track Line 3000K LNETA70N39CBS Satin Black LED 70 cm / 14W No Dimmable 2.325 lm 3000K >90º >90 167 lm/W
Track Line 3000K LNETA70N39CWS Satin White LED 70 cm / 14W No Dimmable 2.325 lm 3000K >90º >90 167 lm/W
Track Line 4000K LNETA70N49ABS Satin Black LED 70 cm / 14W No Dimmable 2.499 lm 4000K >90º >90 179 lm/W
Track Line 4000K LNETA70N49AWS Satin White LED 70 cm / 14W No Dimmable 2.499 lm 4000K >90º >90 179 lm/W
Track Line 4000K LNETA70N49CBS Satin Black LED 70 cm / 14W No Dimmable 2.499 lm 4000K >90º >90 179 lm/W
Track Line 4000K LNETA70N49CWS Satin White LED 70 cm / 14W No Dimmable 2.499 lm 4000K >90º >90 179 lm/W
