Track Line R

Track Line R

https://onoklighting.com/web/image/product.template/9311/image_1920?unique=8303669

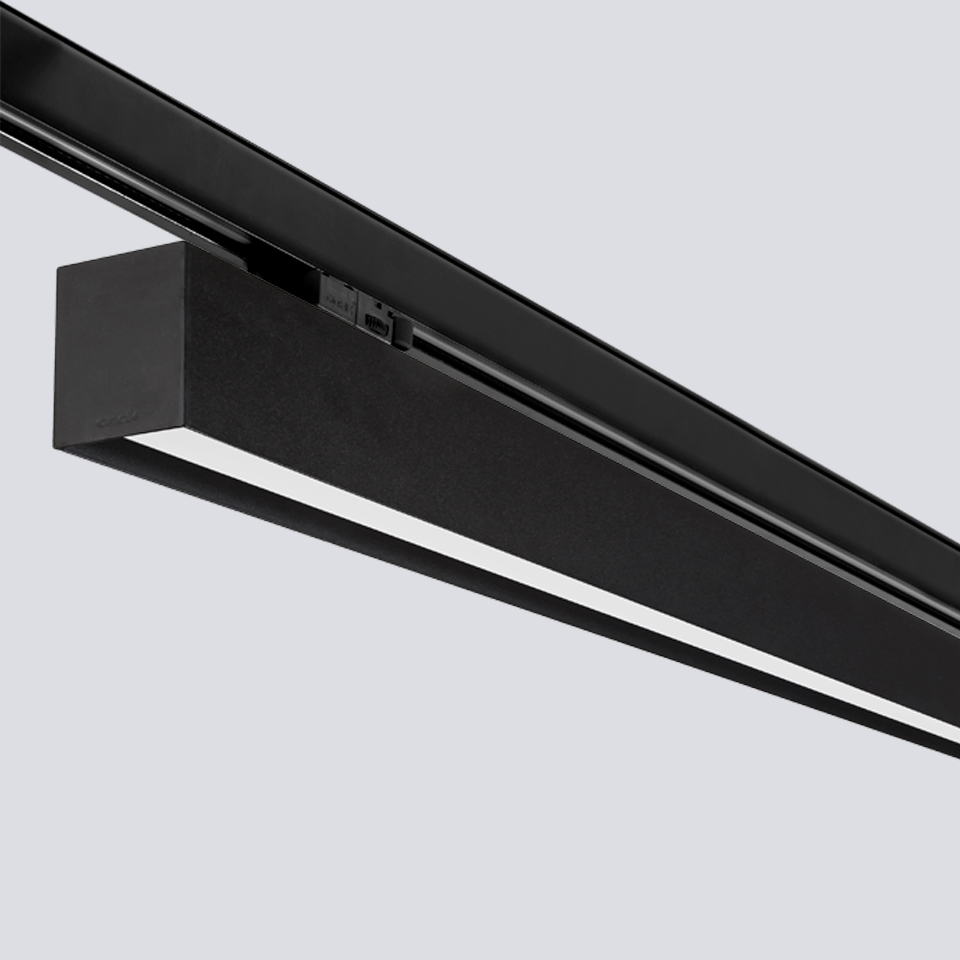

Linear profile with fixing system. Continuous and uniform lighting for architectural integration
  • Socket
  • Output
  • Control
  • Colour Temperature
  • Beam Angle
  • Complements
  • Finish

This combination does not exist.

Contact Us
Track Line R Track Line R
CE Declaration LED Efficiency Label Installation Instructions Extended Guarantee Conditions General Guarantee Conditions Line System Catalogue Technical Datasheet LED technical datasheet TW LED technical datasheet Driver 21W technical datasheet Driver 42W technical datasheet Test report certificate Test report TRACK LINE R - LDT files
Technical drawing
LED flux—
LED power consumption—
Luminous efficiency—
CRI—
Driver LED—
Light temperature—
Beam angle—
IP protection—
Modelo Ref. Color Fuente Potencia Regulación Flujo lum. Temp. Ángulo CRI Eficiencia
Track Line R 3000K LNRTA11D39ABS Satin Black LED 112 cm / 22W Dali 3.720 lm 3000K >90º >90 167 lm/W
Track Line R 3000K LNRTA11D39AWS Satin White LED 112 cm / 22W Dali 3.720 lm 3000K >90º >90 167 lm/W
Track Line R 3000K LNRTA11D39CBS Satin Black LED 112 cm / 22W Dali 3.720 lm 3000K >90º >90 167 lm/W
Track Line R 3000K LNRTA11D39CWS Satin White LED 112 cm / 22W Dali 3.720 lm 3000K >90º >90 167 lm/W
Track Line R 4000K LNRTA11D49ABS Satin Black LED 112 cm / 22W Dali 3.999 lm 4000K >90º >90 179 lm/W
Track Line R 4000K LNRTA11D49AWS Satin White LED 112 cm / 22W Dali 3.999 lm 4000K >90º >90 179 lm/W
Track Line R 4000K LNRTA11D49CBS Satin Black LED 112 cm / 22W Dali 3.999 lm 4000K >90º >90 179 lm/W
Track Line R 4000K LNRTA11D49CWS Satin White LED 112 cm / 22W Dali 3.999 lm 4000K >90º >90 179 lm/W
Track Line R 3000K LNRTA11N39ABS Satin Black LED 112 cm / 22W No Dimmable 3.720 lm 3000K >90º >90 167 lm/W
Track Line R 3000K LNRTA11N39AWS Satin White LED 112 cm / 22W No Dimmable 3.720 lm 3000K >90º >90 167 lm/W
Track Line R 3000K LNRTA11N39CBS Satin Black LED 112 cm / 22W No Dimmable 3.720 lm 3000K >90º >90 167 lm/W
Track Line R 3000K LNRTA11N39CWS Satin White LED 112 cm / 22W No Dimmable 3.720 lm 3000K >90º >90 167 lm/W
Track Line R 4000K LNRTA11N49ABS Satin Black LED 112 cm / 22W No Dimmable 3.999 lm 4000K >90º >90 179 lm/W
Track Line R 4000K LNRTA11N49AWS Satin White LED 112 cm / 22W No Dimmable 3.999 lm 4000K >90º >90 179 lm/W
Track Line R 4000K LNRTA11N49CBS Satin Black LED 112 cm / 22W No Dimmable 3.999 lm 4000K >90º >90 179 lm/W
Track Line R 4000K LNRTA11N49CWS Satin White LED 112 cm / 22W No Dimmable 3.999 lm 4000K >90º >90 179 lm/W
Track Line R 3000K LNRTA14D39ABS Satin Black LED 140 cm / 28W Dali 4.650 lm 3000K >90º >90 167 lm/W
Track Line R 3000K LNRTA14D39AWS Satin White LED 140 cm / 28W Dali 4.650 lm 3000K >90º >90 167 lm/W
Track Line R 3000K LNRTA14D39CBS Satin Black LED 140 cm / 28W Dali 4.650 lm 3000K >90º >90 167 lm/W
Track Line R 3000K LNRTA14D39CWS Satin White LED 140 cm / 28W Dali 4.650 lm 3000K >90º >90 167 lm/W
Track Line R 4000K LNRTA14D49ABS Satin Black LED 140 cm / 28W Dali 4.998 lm 4000K >90º >90 179 lm/W
Track Line R 4000K LNRTA14D49AWS Satin White LED 140 cm / 28W Dali 4.998 lm 4000K >90º >90 179 lm/W
Track Line R 4000K LNRTA14D49CBS Satin Black LED 140 cm / 28W Dali 4.998 lm 4000K >90º >90 179 lm/W
Track Line R 4000K LNRTA14D49CWS Satin White LED 140 cm / 28W Dali 4.998 lm 4000K >90º >90 179 lm/W
Track Line R 3000K LNRTA14N39ABS Satin Black LED 140 cm / 28W No Dimmable 4.650 lm 3000K >90º >90 167 lm/W
Track Line R 3000K LNRTA14N39AWS Satin White LED 140 cm / 28W No Dimmable 4.650 lm 3000K >90º >90 167 lm/W
Track Line R 3000K LNRTA14N39CBS Satin Black LED 140 cm / 28W No Dimmable 4.650 lm 3000K >90º >90 167 lm/W
Track Line R 3000K LNRTA14N39CWS Satin White LED 140 cm / 28W No Dimmable 4.650 lm 3000K >90º >90 167 lm/W
Track Line R 4000K LNRTA14N49ABS Satin Black LED 140 cm / 28W No Dimmable 4.998 lm 4000K >90º >90 179 lm/W
Track Line R 4000K LNRTA14N49AWS Satin White LED 140 cm / 28W No Dimmable 4.998 lm 4000K >90º >90 179 lm/W
Track Line R 4000K LNRTA14N49CBS Satin Black LED 140 cm / 28W No Dimmable 4.998 lm 4000K >90º >90 179 lm/W
Track Line R 4000K LNRTA14N49CWS Satin White LED 140 cm / 28W No Dimmable 4.998 lm 4000K >90º >90 179 lm/W
Track Line R 3000K LNRTA18D39ABS Satin Black LED 182 cm / 36W Dali 6.045 lm 3000K >90º >90 167 lm/W
Track Line R 3000K LNRTA18D39AWS Satin White LED 182 cm / 36W Dali 6.045 lm 3000K >90º >90 167 lm/W
Track Line R 3000K LNRTA18D39CBS Satin Black LED 182 cm / 36W Dali 6.045 lm 3000K >90º >90 167 lm/W
Track Line R 3000K LNRTA18D39CWS Satin White LED 182 cm / 36W Dali 6.045 lm 3000K >90º >90 167 lm/W
Track Line R 4000K LNRTA18D49ABS Satin Black LED 182 cm / 36W Dali 6.498 lm 4000K >90º >90 179 lm/W
Track Line R 4000K LNRTA18D49AWS Satin White LED 182 cm / 36W Dali 6.498 lm 4000K >90º >90 179 lm/W
Track Line R 4000K LNRTA18D49CBS Satin Black LED 182 cm / 36W Dali 6.498 lm 4000K >90º >90 179 lm/W
Track Line R 4000K LNRTA18D49CWS Satin White LED 182 cm / 36W Dali 6.498 lm 4000K >90º >90 179 lm/W
Track Line R 3000K LNRTA18N39ABS Satin Black LED 182 cm / 36W No Dimmable 6.045 lm 3000K >90º >90 167 lm/W
Track Line R 3000K LNRTA18N39AWS Satin White LED 182 cm / 36W No Dimmable 6.045 lm 3000K >90º >90 167 lm/W
Track Line R 3000K LNRTA18N39CBS Satin Black LED 182 cm / 36W No Dimmable 6.045 lm 3000K >90º >90 167 lm/W
Track Line R 3000K LNRTA18N39CWS Satin White LED 182 cm / 36W No Dimmable 6.045 lm 3000K >90º >90 167 lm/W
Track Line R 4000K LNRTA18N49ABS Satin Black LED 182 cm / 36W No Dimmable 6.498 lm 4000K >90º >90 179 lm/W
Track Line R 4000K LNRTA18N49AWS Satin White LED 182 cm / 36W No Dimmable 6.498 lm 4000K >90º >90 179 lm/W
Track Line R 4000K LNRTA18N49CBS Satin Black LED 182 cm / 36W No Dimmable 6.498 lm 4000K >90º >90 179 lm/W
Track Line R 4000K LNRTA18N49CWS Satin White LED 182 cm / 36W No Dimmable 6.498 lm 4000K >90º >90 179 lm/W
Track Line R 3000K LNRTA22D39ABS Satin Black LED 224 cm / 45W Dali 7.440 lm 3000K >90º >90 167 lm/W
Track Line R 3000K LNRTA22D39AWS Satin White LED 224 cm / 45W Dali 7.440 lm 3000K >90º >90 167 lm/W
Track Line R 3000K LNRTA22D39CBS Satin Black LED 224 cm / 45W Dali 7.440 lm 3000K >90º >90 167 lm/W
Track Line R 3000K LNRTA22D39CWS Satin White LED 224 cm / 45W Dali 7.440 lm 3000K >90º >90 167 lm/W
Track Line R 4000K LNRTA22D49ABS Satin Black LED 224 cm / 45W Dali 7.998 lm 4000K >90º >90 179 lm/W
Track Line R 4000K LNRTA22D49AWS Satin White LED 224 cm / 45W Dali 7.998 lm 4000K >90º >90 179 lm/W
Track Line R 4000K LNRTA22D49CBS Satin Black LED 224 cm / 45W Dali 7.998 lm 4000K >90º >90 179 lm/W
Track Line R 4000K LNRTA22D49CWS Satin White LED 224 cm / 45W Dali 7.998 lm 4000K >90º >90 179 lm/W
Track Line R 3000K LNRTA22N39ABS Satin Black LED 224 cm / 45W No Dimmable 7.440 lm 3000K >90º >90 167 lm/W
Track Line R 3000K LNRTA22N39AWS Satin White LED 224 cm / 45W No Dimmable 7.440 lm 3000K >90º >90 167 lm/W
Track Line R 3000K LNRTA22N39CBS Satin Black LED 224 cm / 45W No Dimmable 7.440 lm 3000K >90º >90 167 lm/W
Track Line R 3000K LNRTA22N39CWS Satin White LED 224 cm / 45W No Dimmable 7.440 lm 3000K >90º >90 167 lm/W
Track Line R 4000K LNRTA22N49ABS Satin Black LED 224 cm / 45W No Dimmable 7.998 lm 4000K >90º >90 179 lm/W
Track Line R 4000K LNRTA22N49AWS Satin White LED 224 cm / 45W No Dimmable 7.998 lm 4000K >90º >90 179 lm/W
Track Line R 4000K LNRTA22N49CBS Satin Black LED 224 cm / 45W No Dimmable 7.998 lm 4000K >90º >90 179 lm/W
Track Line R 4000K LNRTA22N49CWS Satin White LED 224 cm / 45W No Dimmable 7.998 lm 4000K >90º >90 179 lm/W
Track Line R 3000K LNRTA28D39ABS Satin Black LED 281 cm / 56W Dali 9.300 lm 3000K >90º >90 167 lm/W
Track Line R 3000K LNRTA28D39AWS Satin White LED 281 cm / 56W Dali 9.300 lm 3000K >90º >90 167 lm/W
Track Line R 3000K LNRTA28D39CBS Satin Black LED 281 cm / 56W Dali 9.300 lm 3000K >90º >90 167 lm/W
Track Line R 3000K LNRTA28D39CWS Satin White LED 281 cm / 56W Dali 9.300 lm 3000K >90º >90 167 lm/W
Track Line R 4000K LNRTA28D49ABS Satin Black LED 281 cm / 56W Dali 9.997 lm 4000K >90º >90 179 lm/W
Track Line R 4000K LNRTA28D49AWS Satin White LED 281 cm / 56W Dali 9.997 lm 4000K >90º >90 179 lm/W
Track Line R 4000K LNRTA28D49CBS Satin Black LED 281 cm / 56W Dali 9.997 lm 4000K >90º >90 179 lm/W
Track Line R 4000K LNRTA28D49CWS Satin White LED 281 cm / 56W Dali 9.997 lm 4000K >90º >90 179 lm/W
Track Line R 3000K LNRTA28N39ABS Satin Black LED 281 cm / 56W No Dimmable 9.300 lm 3000K >90º >90 167 lm/W
Track Line R 3000K LNRTA28N39AWS Satin White LED 281 cm / 56W No Dimmable 9.300 lm 3000K >90º >90 167 lm/W
Track Line R 3000K LNRTA28N39CBS Satin Black LED 281 cm / 56W No Dimmable 9.300 lm 3000K >90º >90 167 lm/W
Track Line R 3000K LNRTA28N39CWS Satin White LED 281 cm / 56W No Dimmable 9.300 lm 3000K >90º >90 167 lm/W
Track Line R 4000K LNRTA28N49ABS Satin Black LED 281 cm / 56W No Dimmable 9.997 lm 4000K >90º >90 179 lm/W
Track Line R 4000K LNRTA28N49AWS Satin White LED 281 cm / 56W No Dimmable 9.997 lm 4000K >90º >90 179 lm/W
Track Line R 4000K LNRTA28N49CBS Satin Black LED 281 cm / 56W No Dimmable 9.997 lm 4000K >90º >90 179 lm/W
Track Line R 4000K LNRTA28N49CWS Satin White LED 281 cm / 56W No Dimmable 9.997 lm 4000K >90º >90 179 lm/W
Track Line R 3000K LNRTA70D39ABS Satin Black LED 70 cm / 14W Dali 2.325 lm 3000K >90º >90 167 lm/W
Track Line R 3000K LNRTA70D39AWS Satin White LED 70 cm / 14W Dali 2.325 lm 3000K >90º >90 167 lm/W
Track Line R 3000K LNRTA70D39CBS Satin Black LED 70 cm / 14W Dali 2.325 lm 3000K >90º >90 167 lm/W
Track Line R 3000K LNRTA70D39CWS Satin White LED 70 cm / 14W Dali 2.325 lm 3000K >90º >90 167 lm/W
Track Line R 4000K LNRTA70D49ABS Satin Black LED 70 cm / 14W Dali 2.499 lm 4000K >90º >90 179 lm/W
Track Line R 4000K LNRTA70D49AWS Satin White LED 70 cm / 14W Dali 2.499 lm 4000K >90º >90 179 lm/W
Track Line R 4000K LNRTA70D49CBS Satin Black LED 70 cm / 14W Dali 2.499 lm 4000K >90º >90 179 lm/W
Track Line R 4000K LNRTA70D49CWS Satin White LED 70 cm / 14W Dali 2.499 lm 4000K >90º >90 179 lm/W
Track Line R 3000K LNRTA70N39ABS Satin Black LED 70 cm / 14W No Dimmable 2.325 lm 3000K >90º >90 167 lm/W
Track Line R 3000K LNRTA70N39AWS Satin White LED 70 cm / 14W No Dimmable 2.325 lm 3000K >90º >90 167 lm/W
Track Line R 3000K LNRTA70N39CBS Satin Black LED 70 cm / 14W No Dimmable 2.325 lm 3000K >90º >90 167 lm/W
Track Line R 3000K LNRTA70N39CWS Satin White LED 70 cm / 14W No Dimmable 2.325 lm 3000K >90º >90 167 lm/W
Track Line R 4000K LNRTA70N49ABS Satin Black LED 70 cm / 14W No Dimmable 2.499 lm 4000K >90º >90 179 lm/W
Track Line R 4000K LNRTA70N49AWS Satin White LED 70 cm / 14W No Dimmable 2.499 lm 4000K >90º >90 179 lm/W
Track Line R 4000K LNRTA70N49CBS Satin Black LED 70 cm / 14W No Dimmable 2.499 lm 4000K >90º >90 179 lm/W
Track Line R 4000K LNRTA70N49CWS Satin White LED 70 cm / 14W No Dimmable 2.499 lm 4000K >90º >90 179 lm/W
