Lluna
Lluna
Lluna
Lluna
Lluna
Lluna

Lluna

https://onoklighting.com/web/image/product.template/9447/image_1920?unique=808ea3e

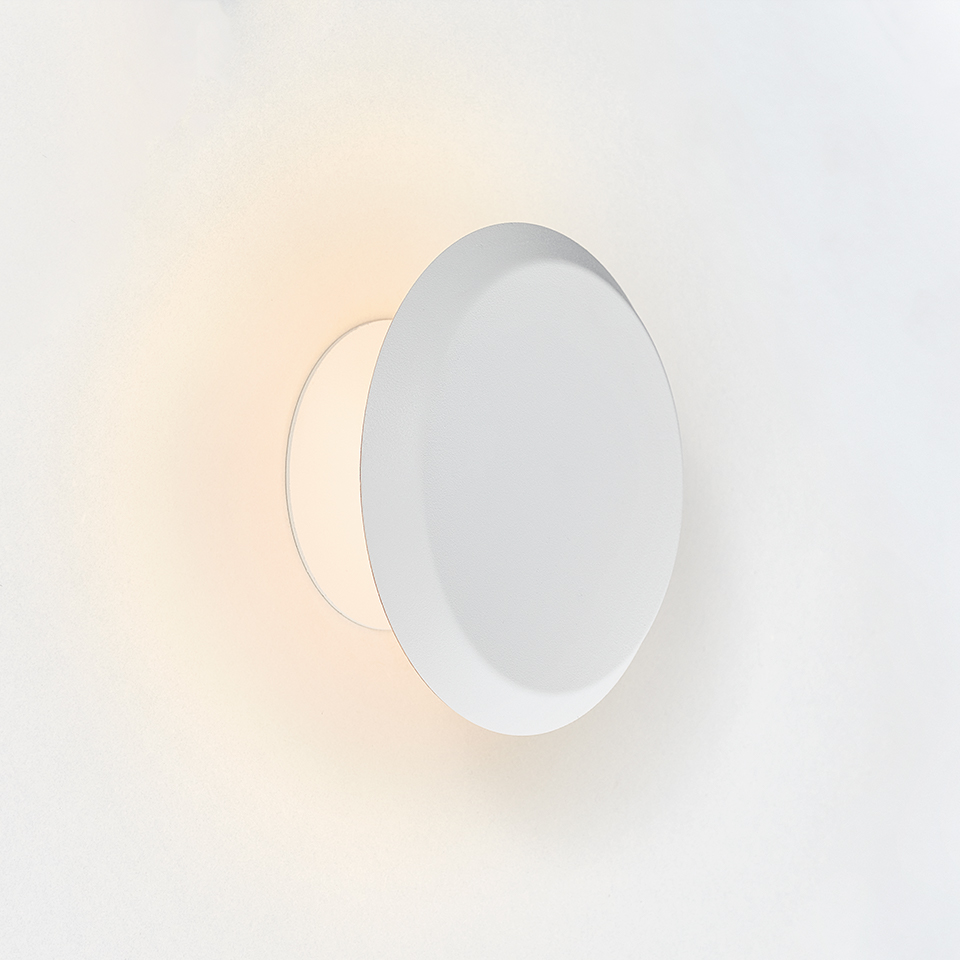

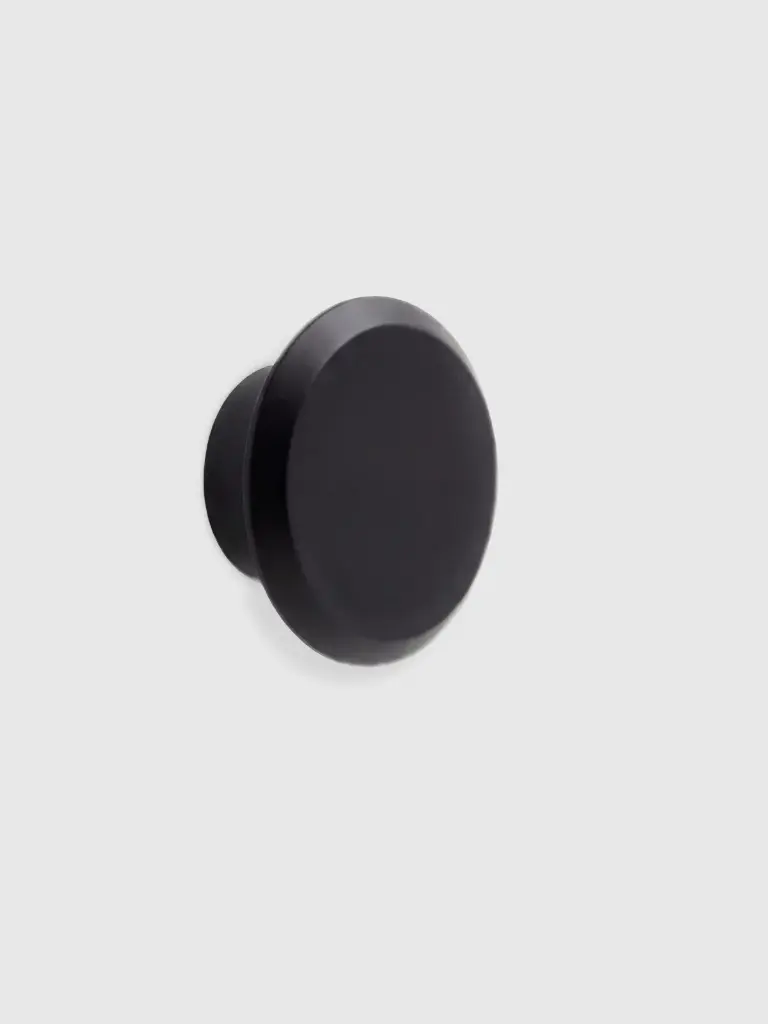

Ceiling or wall-mounted luminaire with modular configuration. Allows grouping three diameters under a single power supply

  • Socket
  • Output
  • Control
  • Colour Temperature
  • Beam Angle
  • Installation
  • Finish

This combination does not exist.

Contact Us
Lluna Lluna
Technical Datasheet General Guarantee Conditions CE Declaration for LED Extended Guarantee Conditions Installation Instructions LED Efficiency Label Driver technical datasheet LED technical datasheet
Technical drawing
LED flux—
LED power consumption—
Luminous efficiency—
CRI—
Driver LED—
Light temperature—
Beam angle—
IP protection—
Lluna
Lluna
Lluna
Modelo Ref. Color Fuente Potencia Regulación Flujo lum. Temp. Ángulo CRI Eficiencia
Lluna 2700K LUNAA05N21RBS Satin Black LED ≈ 1W / Ø79mm No Dimmable 83 lm 2700K 120º >90 83 lm/W
Lluna 2700K LUNAA05N21RWS Satin White LED ≈ 1W / Ø79mm No Dimmable 83 lm 2700K 120º >90 83 lm/W
Lluna 3000K LUNAA05N31RBS Satin Black LED ≈ 1W / Ø79mm No Dimmable 96 lm 3000K 120º >90 96 lm/W
Lluna 3000K LUNAA05N31RWS Satin White LED ≈ 1W / Ø79mm No Dimmable 96 lm 3000K 120º >90 96 lm/W
Lluna 2700K LUNAA08N21RBS Satin Black LED ≈ 2.5W / Ø110mm No Dimmable 208 lm 2700K 120º >90 83 lm/W
Lluna 2700K LUNAA08N21RWS Satin White LED ≈ 2.5W / Ø110mm No Dimmable 208 lm 2700K 120º >90 83 lm/W
Lluna 3000K LUNAA08N31RBS Satin Black LED ≈ 2.5W / Ø110mm No Dimmable 240 lm 3000K 120º >90 96 lm/W
Lluna 3000K LUNAA08N31RWS Satin White LED ≈ 2.5W / Ø110mm No Dimmable 240 lm 3000K 120º >90 96 lm/W
Lluna 2700K LUNAA12N21RBS Satin Black LED ≈ 5W / Ø149mm No Dimmable 415 lm 2700K 120º >90 83 lm/W
Lluna 2700K LUNAA12N21RWS Satin White LED ≈ 5W / Ø149mm No Dimmable 415 lm 2700K 120º >90 83 lm/W
Lluna 3000K LUNAA12N31RBS Satin Black LED ≈ 5W / Ø149mm No Dimmable 480 lm 3000K 120º >90 96 lm/W
Lluna 3000K LUNAA12N31RWS Satin White LED ≈ 5W / Ø149mm No Dimmable 480 lm 3000K 120º >90 96 lm/W
