Hoop Vertical Interior
Hoop Vertical Interior

Hoop Vertical Interior

https://onoklighting.com/web/image/product.template/8413/image_1920?unique=d873c55

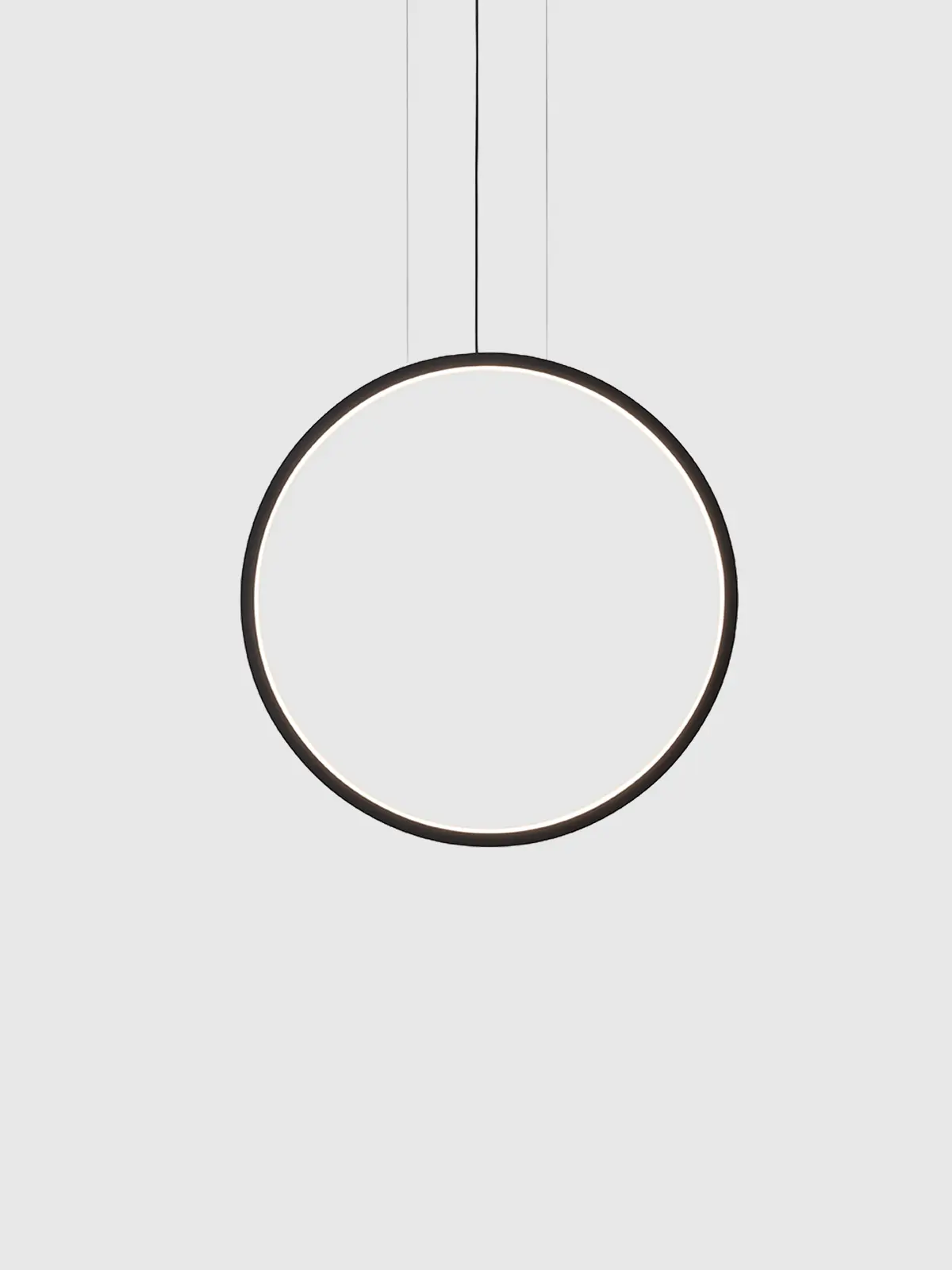

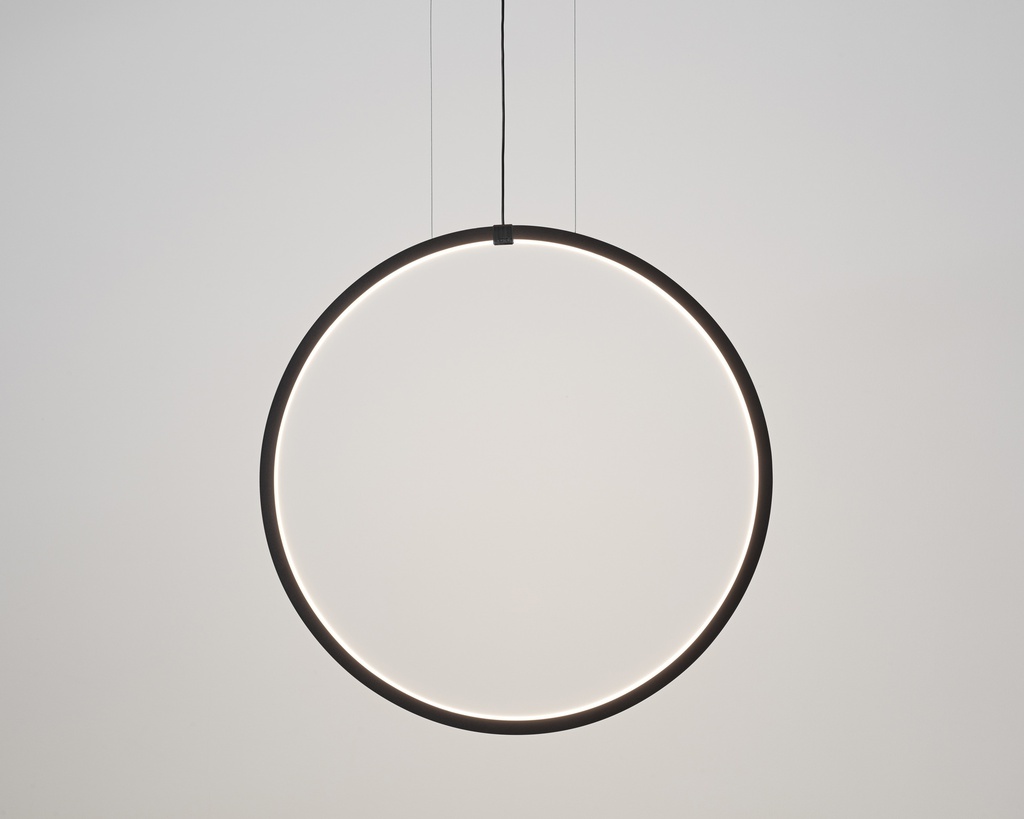

Suspended circular LED luminaire with uniform perimeter emission. Available in different diameters and power outputs

  • Socket
  • Output
  • Control
  • Colour Temperature
  • Beam Angle
  • Installation
  • Finish

This combination does not exist.

Contact Us
Hoop Vertical Interior Hoop Vertical Interior
General Guarantee Conditions Extended Guarantee Conditions LED Efficiency Label Technical Datasheet CE Declaration Installation Instructions Driver 36W technical datasheet Driver 60W technical datasheet LED technical datasheet Test report certificate Test report HOOP VERTICAL INTERIOR - LDT files HOOP VERTICAL INTERIOR - 3D Model
Technical drawing
LED flux—
LED power consumption—
Luminous efficiency—
CRI—
Driver LED—
Light temperature—
Beam angle—
IP protection—
Hoop Vertical Interior
Modelo Ref. Color Fuente Potencia Regulación Flujo lum. Temp. Ángulo CRI Eficiencia
Hoop Vertical Interior 2700K HPVIA50D29RBS Satin Black LED Ø50 / ≈ 27W / >4335 lm Dali 3035 lm 2700K >90º >90 112 lm/W
Hoop Vertical Interior 2700K HPVIA50D29RWS Satin White LED Ø50 / ≈ 27W / >4335 lm Dali 3035 lm 2700K >90º >90 112 lm/W
Hoop Vertical Interior 2700K HPVIA50D29SBS Satin Black LED Ø50 / ≈ 27W / >4335 lm Dali 3035 lm 2700K >90º >90 112 lm/W
Hoop Vertical Interior 2700K HPVIA50D29SWS Satin White LED Ø50 / ≈ 27W / >4335 lm Dali 3035 lm 2700K >90º >90 112 lm/W
Hoop Vertical Interior 3000K HPVIA50D39RBS Satin Black LED Ø50 / ≈ 27W / >4335 lm Dali 3081 lm 3000K >90º >90 114 lm/W
Hoop Vertical Interior 3000K HPVIA50D39RWS Satin White LED Ø50 / ≈ 27W / >4335 lm Dali 3081 lm 3000K >90º >90 114 lm/W
Hoop Vertical Interior 3000K HPVIA50D39SBS Satin Black LED Ø50 / ≈ 27W / >4335 lm Dali 3081 lm 3000K >90º >90 114 lm/W
Hoop Vertical Interior 3000K HPVIA50D39SWS Satin White LED Ø50 / ≈ 27W / >4335 lm Dali 3081 lm 3000K >90º >90 114 lm/W
Hoop Vertical Interior 4000K HPVIA50D49RBS Satin Black LED Ø50 / ≈ 27W / >4335 lm Dali 3186 lm 4000K >90º >90 118 lm/W
Hoop Vertical Interior 4000K HPVIA50D49RWS Satin White LED Ø50 / ≈ 27W / >4335 lm Dali 3186 lm 4000K >90º >90 118 lm/W
Hoop Vertical Interior 4000K HPVIA50D49SBS Satin Black LED Ø50 / ≈ 27W / >4335 lm Dali 3186 lm 4000K >90º >90 118 lm/W
Hoop Vertical Interior 4000K HPVIA50D49SWS Satin White LED Ø50 / ≈ 27W / >4335 lm Dali 3186 lm 4000K >90º >90 118 lm/W
Hoop Vertical Interior 2700K HPVIA50N29RBS Satin Black LED Ø50 / ≈ 27W / >4335 lm No Dimmable 3035 lm 2700K >90º >90 112 lm/W
Hoop Vertical Interior 2700K HPVIA50N29RWS Satin White LED Ø50 / ≈ 27W / >4335 lm No Dimmable 3035 lm 2700K >90º >90 112 lm/W
Hoop Vertical Interior 2700K HPVIA50N29SBS Satin Black LED Ø50 / ≈ 27W / >4335 lm No Dimmable 3035 lm 2700K >90º >90 112 lm/W
Hoop Vertical Interior 2700K HPVIA50N29SWS Satin White LED Ø50 / ≈ 27W / >4335 lm No Dimmable 3035 lm 2700K >90º >90 112 lm/W
Hoop Vertical Interior 3000K HPVIA50N39RBS Satin Black LED Ø50 / ≈ 27W / >4335 lm No Dimmable 3081 lm 3000K >90º >90 114 lm/W
Hoop Vertical Interior 3000K HPVIA50N39RWS Satin White LED Ø50 / ≈ 27W / >4335 lm No Dimmable 3081 lm 3000K >90º >90 114 lm/W
Hoop Vertical Interior 3000K HPVIA50N39SBS Satin Black LED Ø50 / ≈ 27W / >4335 lm No Dimmable 3081 lm 3000K >90º >90 114 lm/W
Hoop Vertical Interior 3000K HPVIA50N39SWS Satin White LED Ø50 / ≈ 27W / >4335 lm No Dimmable 3081 lm 3000K >90º >90 114 lm/W
Hoop Vertical Interior 4000K HPVIA50N49RBS Satin Black LED Ø50 / ≈ 27W / >4335 lm No Dimmable 3186 lm 4000K >90º >90 118 lm/W
Hoop Vertical Interior 4000K HPVIA50N49RWS Satin White LED Ø50 / ≈ 27W / >4335 lm No Dimmable 3186 lm 4000K >90º >90 118 lm/W
Hoop Vertical Interior 4000K HPVIA50N49SBS Satin Black LED Ø50 / ≈ 27W / >4335 lm No Dimmable 3186 lm 4000K >90º >90 118 lm/W
Hoop Vertical Interior 4000K HPVIA50N49SWS Satin White LED Ø50 / ≈ 27W / >4335 lm No Dimmable 3186 lm 4000K >90º >90 118 lm/W
Hoop Vertical Interior 2700K HPVIA70D29RBS Satin Black LED Ø70 / ≈ 40W / >6358 lm Dali 4451 lm 2700K >90º >90 112 lm/W
Hoop Vertical Interior 2700K HPVIA70D29RWS Satin White LED Ø70 / ≈ 40W / >6358 lm Dali 4451 lm 2700K >90º >90 112 lm/W
Hoop Vertical Interior 2700K HPVIA70D29SBS Satin Black LED Ø70 / ≈ 40W / >6358 lm Dali 4451 lm 2700K >90º >90 112 lm/W
Hoop Vertical Interior 2700K HPVIA70D29SWS Satin White LED Ø70 / ≈ 40W / >6358 lm Dali 4451 lm 2700K >90º >90 112 lm/W
Hoop Vertical Interior 3000K HPVIA70D39RBS Satin Black LED Ø70 / ≈ 40W / >6358 lm Dali 4518 lm 3000K >90º >90 114 lm/W
Hoop Vertical Interior 3000K HPVIA70D39RWS Satin White LED Ø70 / ≈ 40W / >6358 lm Dali 4518 lm 3000K >90º >90 114 lm/W
Hoop Vertical Interior 3000K HPVIA70D39SBS Satin Black LED Ø70 / ≈ 40W / >6358 lm Dali 4518 lm 3000K >90º >90 114 lm/W
Hoop Vertical Interior 3000K HPVIA70D39SWS Satin White LED Ø70 / ≈ 40W / >6358 lm Dali 4518 lm 3000K >90º >90 114 lm/W
Hoop Vertical Interior 4000K HPVIA70D49RBS Satin Black LED Ø70 / ≈ 40W / >6358 lm Dali 4672 lm 4000K >90º >90 118 lm/W
Hoop Vertical Interior 4000K HPVIA70D49RWS Satin White LED Ø70 / ≈ 40W / >6358 lm Dali 4672 lm 4000K >90º >90 118 lm/W
Hoop Vertical Interior 4000K HPVIA70D49SBS Satin Black LED Ø70 / ≈ 40W / >6358 lm Dali 4672 lm 4000K >90º >90 118 lm/W
Hoop Vertical Interior 4000K HPVIA70D49SWS Satin White LED Ø70 / ≈ 40W / >6358 lm Dali 4672 lm 4000K >90º >90 118 lm/W
Hoop Vertical Interior 2700K HPVIA70N29RBS Satin Black LED Ø70 / ≈ 40W / >6358 lm No Dimmable 4451 lm 2700K >90º >90 112 lm/W
Hoop Vertical Interior 2700K HPVIA70N29RWS Satin White LED Ø70 / ≈ 40W / >6358 lm No Dimmable 4451 lm 2700K >90º >90 112 lm/W
Hoop Vertical Interior 2700K HPVIA70N29SBS Satin Black LED Ø70 / ≈ 40W / >6358 lm No Dimmable 4451 lm 2700K >90º >90 112 lm/W
Hoop Vertical Interior 2700K HPVIA70N29SWS Satin White LED Ø70 / ≈ 40W / >6358 lm No Dimmable 4451 lm 2700K >90º >90 112 lm/W
Hoop Vertical Interior 3000K HPVIA70N39RBS Satin Black LED Ø70 / ≈ 40W / >6358 lm No Dimmable 4518 lm 3000K >90º >90 114 lm/W
Hoop Vertical Interior 3000K HPVIA70N39RWS Satin White LED Ø70 / ≈ 40W / >6358 lm No Dimmable 4518 lm 3000K >90º >90 114 lm/W
Hoop Vertical Interior 3000K HPVIA70N39SBS Satin Black LED Ø70 / ≈ 40W / >6358 lm No Dimmable 4518 lm 3000K >90º >90 114 lm/W
Hoop Vertical Interior 3000K HPVIA70N39SWS Satin White LED Ø70 / ≈ 40W / >6358 lm No Dimmable 4518 lm 3000K >90º >90 114 lm/W
Hoop Vertical Interior 4000K HPVIA70N49RBS Satin Black LED Ø70 / ≈ 40W / >6358 lm No Dimmable 4672 lm 4000K >90º >90 118 lm/W
Hoop Vertical Interior 4000K HPVIA70N49RWS Satin White LED Ø70 / ≈ 40W / >6358 lm No Dimmable 4672 lm 4000K >90º >90 118 lm/W
Hoop Vertical Interior 4000K HPVIA70N49SBS Satin Black LED Ø70 / ≈ 40W / >6358 lm No Dimmable 4672 lm 4000K >90º >90 118 lm/W
Hoop Vertical Interior 4000K HPVIA70N49SWS Satin White LED Ø70 / ≈ 40W / >6358 lm No Dimmable 4672 lm 4000K >90º >90 118 lm/W
Hoop Vertical Interior 2700K HPVIA90D29RBS Satin Black LED Ø90 / ≈ 50W / >8092 lm Dali 5664 lm 2700K >90º >90 112 lm/W
Hoop Vertical Interior 2700K HPVIA90D29RWS Satin White LED Ø90 / ≈ 50W / >8092 lm Dali 5664 lm 2700K >90º >90 112 lm/W
Hoop Vertical Interior 2700K HPVIA90D29SBS Satin Black LED Ø90 / ≈ 50W / >8092 lm Dali 5664 lm 2700K >90º >90 112 lm/W
Hoop Vertical Interior 2700K HPVIA90D29SWS Satin White LED Ø90 / ≈ 50W / >8092 lm Dali 5664 lm 2700K >90º >90 112 lm/W
Hoop Vertical Interior 3000K HPVIA90D39RBS Satin Black LED Ø90 / ≈ 50W / >8092 lm Dali 5751 lm 3000K >90º >90 114 lm/W
Hoop Vertical Interior 3000K HPVIA90D39RWS Satin White LED Ø90 / ≈ 50W / >8092 lm Dali 5751 lm 3000K >90º >90 114 lm/W
Hoop Vertical Interior 3000K HPVIA90D39SBS Satin Black LED Ø90 / ≈ 50W / >8092 lm Dali 5751 lm 3000K >90º >90 114 lm/W
Hoop Vertical Interior 3000K HPVIA90D39SWS Satin White LED Ø90 / ≈ 50W / >8092 lm Dali 5751 lm 3000K >90º >90 114 lm/W
Hoop Vertical Interior 4000K HPVIA90D49RBS Satin Black LED Ø90 / ≈ 50W / >8092 lm Dali 5947 lm 4000K >90º >90 118 lm/W
Hoop Vertical Interior 4000K HPVIA90D49RWS Satin White LED Ø90 / ≈ 50W / >8092 lm Dali 5947 lm 4000K >90º >90 118 lm/W
Hoop Vertical Interior 4000K HPVIA90D49SBS Satin Black LED Ø90 / ≈ 50W / >8092 lm Dali 5947 lm 4000K >90º >90 118 lm/W
Hoop Vertical Interior 4000K HPVIA90D49SWS Satin White LED Ø90 / ≈ 50W / >8092 lm Dali 5947 lm 4000K >90º >90 118 lm/W
Hoop Vertical Interior 2700K HPVIA90N29RBS Satin Black LED Ø90 / ≈ 50W / >8092 lm No Dimmable 5664 lm 2700K >90º >90 112 lm/W
Hoop Vertical Interior 2700K HPVIA90N29RWS Satin White LED Ø90 / ≈ 50W / >8092 lm No Dimmable 5664 lm 2700K >90º >90 112 lm/W
Hoop Vertical Interior 2700K HPVIA90N29SBS Satin Black LED Ø90 / ≈ 50W / >8092 lm No Dimmable 5664 lm 2700K >90º >90 112 lm/W
Hoop Vertical Interior 2700K HPVIA90N29SWS Satin White LED Ø90 / ≈ 50W / >8092 lm No Dimmable 5664 lm 2700K >90º >90 112 lm/W
Hoop Vertical Interior 3000K HPVIA90N39RBS Satin Black LED Ø90 / ≈ 50W / >8092 lm No Dimmable 5751 lm 3000K >90º >90 114 lm/W
Hoop Vertical Interior 3000K HPVIA90N39RWS Satin White LED Ø90 / ≈ 50W / >8092 lm No Dimmable 5751 lm 3000K >90º >90 114 lm/W
Hoop Vertical Interior 3000K HPVIA90N39SBS Satin Black LED Ø90 / ≈ 50W / >8092 lm No Dimmable 5751 lm 3000K >90º >90 114 lm/W
Hoop Vertical Interior 3000K HPVIA90N39SWS Satin White LED Ø90 / ≈ 50W / >8092 lm No Dimmable 5751 lm 3000K >90º >90 114 lm/W
Hoop Vertical Interior 4000K HPVIA90N49RBS Satin Black LED Ø90 / ≈ 50W / >8092 lm No Dimmable 5947 lm 4000K >90º >90 118 lm/W
Hoop Vertical Interior 4000K HPVIA90N49RWS Satin White LED Ø90 / ≈ 50W / >8092 lm No Dimmable 5947 lm 4000K >90º >90 118 lm/W
Hoop Vertical Interior 4000K HPVIA90N49SBS Satin Black LED Ø90 / ≈ 50W / >8092 lm No Dimmable 5947 lm 4000K >90º >90 118 m/W lm/W
Hoop Vertical Interior 4000K HPVIA90N49SWS Satin White LED Ø90 / ≈ 50W / >8092 lm No Dimmable 5947 lm 4000K >90º >90 118 lm/W
