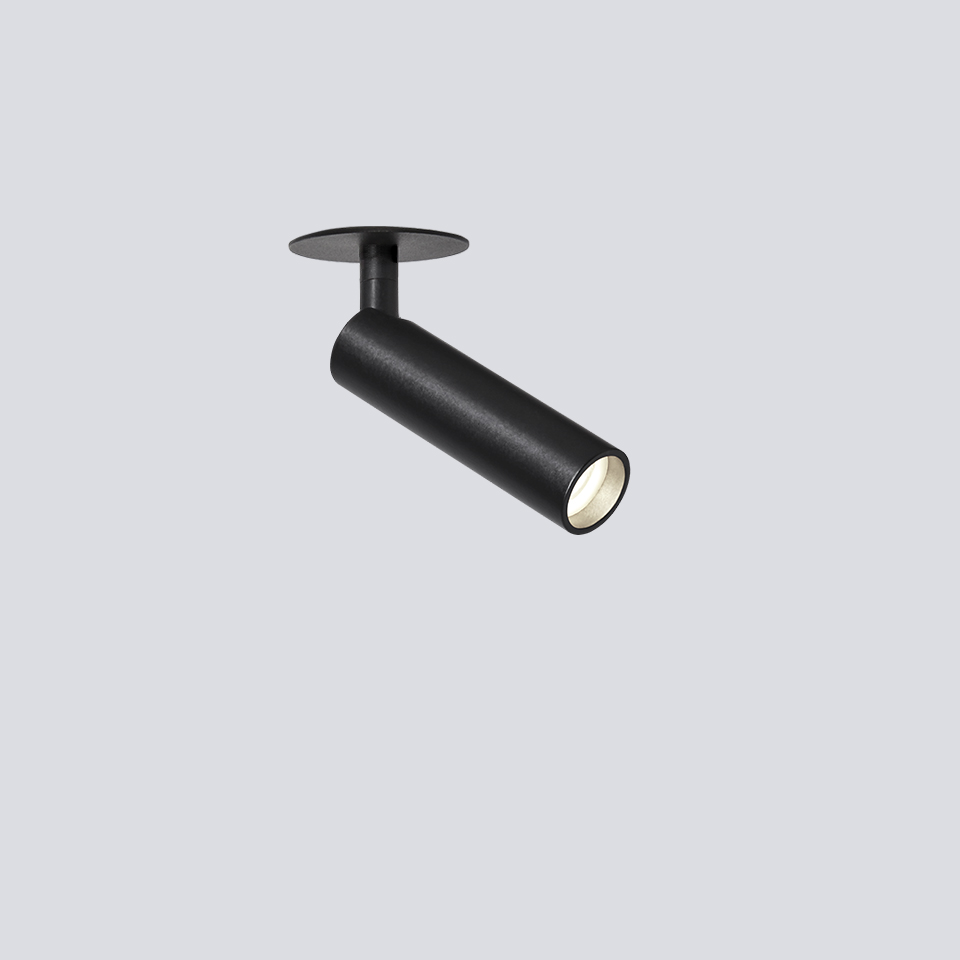

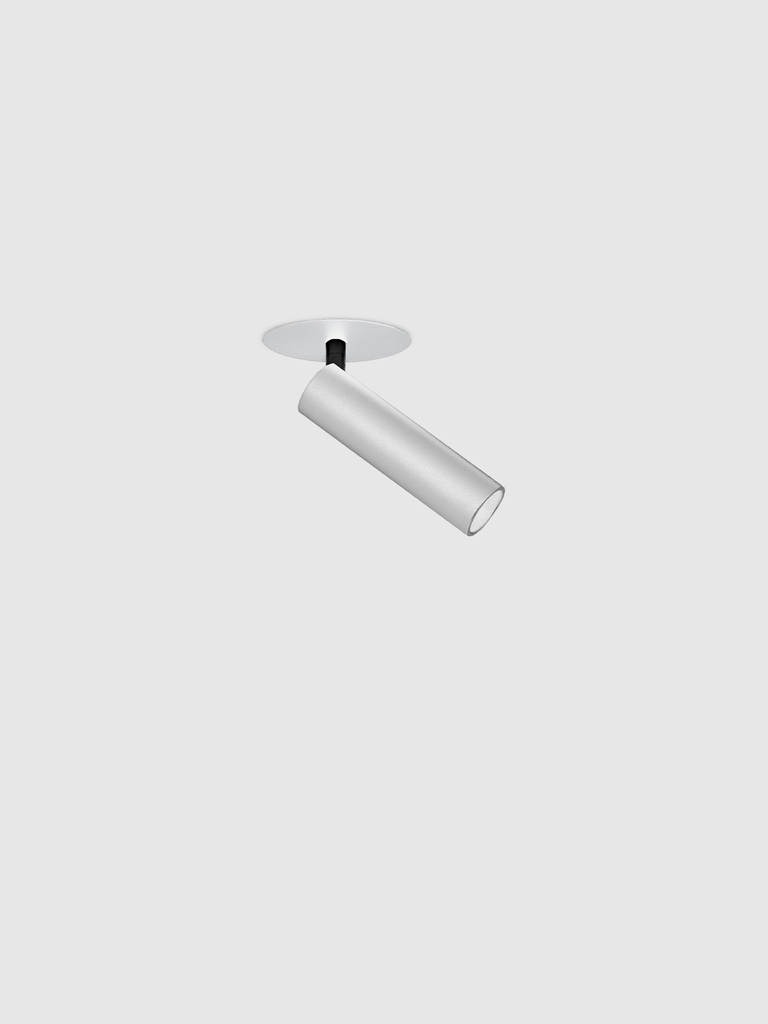

Focus 25 R
Focus 25 R
Focus 25 R

Focus 25 R

https://onoklighting.com/web/image/product.template/7001/image_1920?unique=e9c7e80

Range of projectors with precision optics. Glare control for interior applications

  • Socket
  • Output
  • Control
  • Colour Temperature
  • Beam Angle
  • Complements
  • Finish

This combination does not exist.

Contact Us
Focus 25 R Focus 25 R
Technical Datasheet CE Declaration Technical Catalogue Installation Instructions General Guarantee Conditions Extended Guarantee Conditions LED Efficiency Label LED technical datasheet Driver technical datasheet Test report certificate Test report FOCUS 25 R - LDT files
Technical drawing
LED flux—
LED power consumption—
Luminous efficiency—
CRI—
Driver LED—
Light temperature—
Beam angle—
IP protection—
Focus 25 R
Focus 25 R
Modelo Ref. Color Fuente Potencia Regulación Flujo lum. Temp. Ángulo CRI Eficiencia
Focus 25 R 2700K FCS2A25D22ABS Satin Black LED Ø25 / ≈ 6W / >500 lm Dali 521 lm 2700K 25º >90 87 lm/W
Focus 25 R 2700K FCS2A25D22AWB White - black LED Ø25 / ≈ 6W / >500 lm Dali 521 lm 2700K 25º >90 87 lm/W
Focus 25 R 3000K FCS2A25D32ABS Satin Black LED Ø25 / ≈ 6W / >500 lm Dali 559 lm 3000K 25º >90 93 lm/W
Focus 25 R 3000K FCS2A25D32AWB White - black LED Ø25 / ≈ 6W / >500 lm Dali 559 lm 3000K 25º >90 93 lm/W
Focus 25 R 4000K FCS2A25D42ABS Satin Black LED Ø25 / ≈ 6W / >500 lm Dali 597 lm 4000K 25º >90 100 lm/W
Focus 25 R 4000K FCS2A25D42AWB White - black LED Ø25 / ≈ 6W / >500 lm Dali 597 lm 4000K 25º >90 100 lm/W
Focus 25 R 2700K FCS2A25K22ABS Satin Black LED Ø25 / ≈ 6W / >500 lm Casambi — 2700K 24º — —
Focus 25 R 2700K FCS2A25K22AWB White - black LED Ø25 / ≈ 6W / >500 lm Casambi — 2700K 24º — —
Focus 25 R 3000K FCS2A25K32ABS Satin Black LED Ø25 / ≈ 6W / >500 lm Casambi — 3000K 24º — —
Focus 25 R 3000K FCS2A25K32AWB White - black LED Ø25 / ≈ 6W / >500 lm Casambi — 3000K 24º — —
Focus 25 R 4000K FCS2A25K42ABS Satin Black LED Ø25 / ≈ 6W / >500 lm Casambi — 4000K 24º — —
Focus 25 R 4000K FCS2A25K42AWB White - black LED Ø25 / ≈ 6W / >500 lm Casambi — 4000K 24º — —
Focus 25 R 2700K FCS2A25N22ABS Satin Black LED Ø25 / ≈ 6W / >500 lm No Dimmable 521 lm 2700K 25º >90 87 lm/W
Focus 25 R 2700K FCS2A25N22AWB White - black LED Ø25 / ≈ 6W / >500 lm No Dimmable 521 lm 2700K 25º >90 87 lm/W
Focus 25 R 3000K FCS2A25N32ABS Satin Black LED Ø25 / ≈ 6W / >500 lm No Dimmable 559 lm 3000K 25º >90 93 lm/W
Focus 25 R 3000K FCS2A25N32AWB White - black LED Ø25 / ≈ 6W / >500 lm No Dimmable 559 lm 3000K 25º >90 93 lm/W
Focus 25 R 4000K FCS2A25N42ABS Satin Black LED Ø25 / ≈ 6W / >500 lm No Dimmable 597 lm 4000K 25º >90 100 lm/W
Focus 25 R 4000K FCS2A25N42AWB White - black LED Ø25 / ≈ 6W / >500 lm No Dimmable 597 lm 4000K 25º >90 100 lm/W
