Track Tube 55

Track Tube 55

https://onoklighting.com/web/image/product.template/7440/image_1920?unique=e9cc9f5

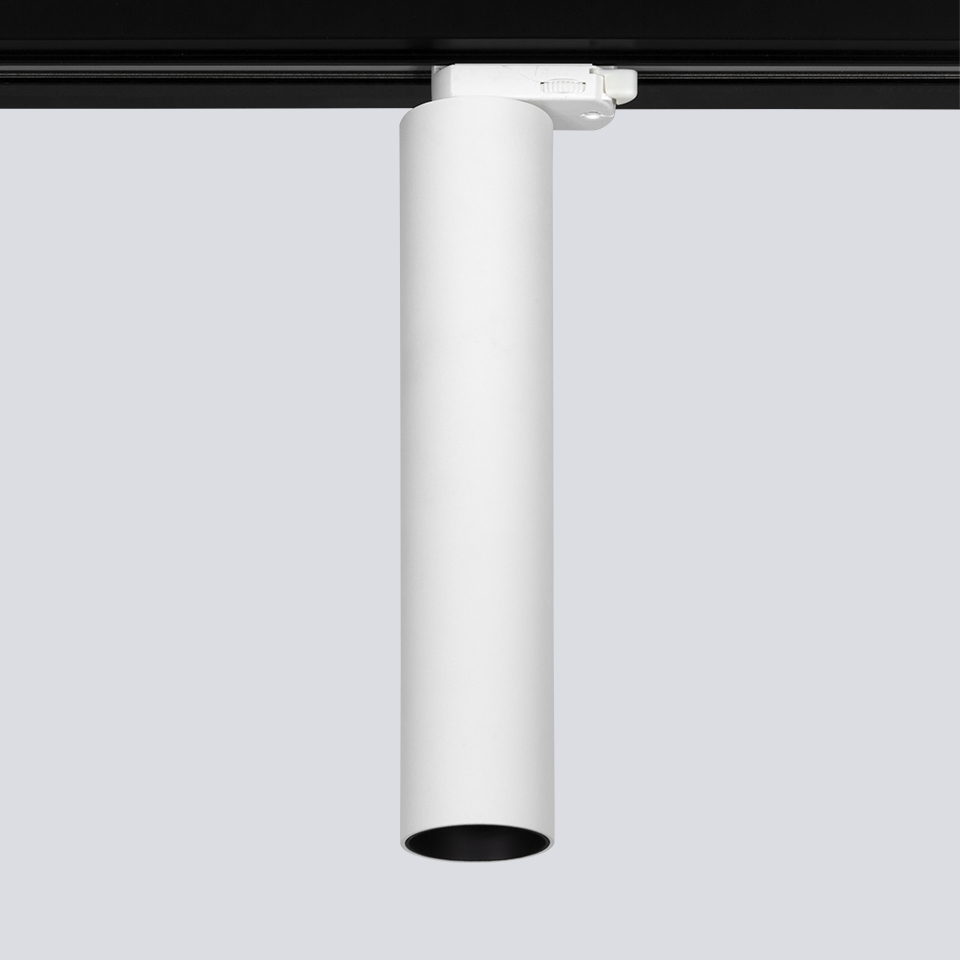

Tubular luminaire in extruded aluminium. Available in three sizes with different wattages and beam angles
  • Socket
  • Output
  • Control
  • Colour Temperature
  • Beam Angle
  • Complements
  • Finish

This combination does not exist.

Contact Us
Track Tube 55 Track Tube 55
Technical Catalogue CE Declaration Technical Datasheet Installation Instructions General Guarantee Conditions Extended Guarantee Conditions LED Efficiency Label Driver technical datasheet LED technical datasheet Test report certificate Test report TRACK TUBE 55 - LDT files
Technical drawing
LED flux—
LED power consumption—
Luminous efficiency—
CRI—
Driver LED—
Light temperature—
Beam angle—
IP protection—
Modelo Ref. Color Fuente Potencia Regulación Flujo lum. Temp. Ángulo CRI Eficiencia
Track Tube 55 2700K TBT5A55D21BBS Satin Black LED Ø55 / ≈ 12W / >1300 lm Dali 1.165 lm 2700K 16º 92 96 lm/W
Track Tube 55 2700K TBT5A55D21BCO Copper LED Ø55 / ≈ 12W / >1300 lm Dali 1.165 lm 2700K 16º 92 96 lm/W
Track Tube 55 2700K TBT5A55D21BPB Polished - black LED Ø55 / ≈ 12W / >1300 lm Dali 1.165 lm 2700K 16º 92 96 lm/W
Track Tube 55 2700K TBT5A55D21BWB White - black LED Ø55 / ≈ 12W / >1300 lm Dali 1.165 lm 2700K 16º 92 96 lm/W
Track Tube 55 2700K TBT5A55D21PBS Satin Black LED Ø55 / ≈ 12W / >1300 lm Dali 1.165 lm 2700K 16º 92 96 lm/W
Track Tube 55 2700K TBT5A55D21PCO Copper LED Ø55 / ≈ 12W / >1300 lm Dali 1.165 lm 2700K 16º 92 96 lm/W
Track Tube 55 2700K TBT5A55D21PPB Polished - black LED Ø55 / ≈ 12W / >1300 lm Dali 1.165 lm 2700K 16º 92 96 lm/W
Track Tube 55 2700K TBT5A55D21PWB White - black LED Ø55 / ≈ 12W / >1300 lm Dali 1.165 lm 2700K 16º 92 96 lm/W
Track Tube 55 2700K TBT5A55D23BBS Satin Black LED Ø55 / ≈ 12W / >1300 lm Dali 1.165 lm 2700K 36º 92 96 lm/W
Track Tube 55 2700K TBT5A55D23BCO Copper LED Ø55 / ≈ 12W / >1300 lm Dali 1.165 lm 2700K 36º 92 96 lm/W
Track Tube 55 2700K TBT5A55D23BPB Polished - black LED Ø55 / ≈ 12W / >1300 lm Dali 1.165 lm 2700K 36º 92 96 lm/W
Track Tube 55 2700K TBT5A55D23BWB White - black LED Ø55 / ≈ 12W / >1300 lm Dali 1.165 lm 2700K 36º 92 96 lm/W
Track Tube 55 2700K TBT5A55D23PBS Satin Black LED Ø55 / ≈ 12W / >1300 lm Dali 1.165 lm 2700K 36º 92 96 lm/W
Track Tube 55 2700K TBT5A55D23PCO Copper LED Ø55 / ≈ 12W / >1300 lm Dali 1.165 lm 2700K 36º 92 96 lm/W
Track Tube 55 2700K TBT5A55D23PPB Polished - black LED Ø55 / ≈ 12W / >1300 lm Dali 1.165 lm 2700K 36º 92 96 lm/W
Track Tube 55 2700K TBT5A55D23PWB White - black LED Ø55 / ≈ 12W / >1300 lm Dali 1.165 lm 2700K 36º 92 96 lm/W
Track Tube 55 3000K TBT5A55D31BBS Satin Black LED Ø55 / ≈ 12W / >1300 lm Dali 1.245 lm 3000K 16º 92 102 lm/W
Track Tube 55 3000K TBT5A55D31BCO Copper LED Ø55 / ≈ 12W / >1300 lm Dali 1.245 lm 3000K 16º 92 102 lm/W
Track Tube 55 3000K TBT5A55D31BPB Polished - black LED Ø55 / ≈ 12W / >1300 lm Dali 1.245 lm 3000K 16º 92 102 lm/W
Track Tube 55 3000K TBT5A55D31BWB White - black LED Ø55 / ≈ 12W / >1300 lm Dali 1.245 lm 3000K 16º 92 102 lm/W
Track Tube 55 3000K TBT5A55D31PBS Satin Black LED Ø55 / ≈ 12W / >1300 lm Dali 1.245 lm 3000K 16º 92 102 lm/W
Track Tube 55 3000K TBT5A55D31PCO Copper LED Ø55 / ≈ 12W / >1300 lm Dali 1.245 lm 3000K 16º 92 102 lm/W
Track Tube 55 3000K TBT5A55D31PPB Polished - black LED Ø55 / ≈ 12W / >1300 lm Dali 1.245 lm 3000K 16º 92 102 lm/W
Track Tube 55 3000K TBT5A55D31PWB White - black LED Ø55 / ≈ 12W / >1300 lm Dali 1.245 lm 3000K 16º 92 102 lm/W
Track Tube 55 3000K TBT5A55D33BBS Satin Black LED Ø55 / ≈ 12W / >1300 lm Dali 1.245 lm 3000K 36º 92 102 lm/W
Track Tube 55 3000K TBT5A55D33BCO Copper LED Ø55 / ≈ 12W / >1300 lm Dali 1.245 lm 3000K 36º 92 102 lm/W
Track Tube 55 3000K TBT5A55D33BPB Polished - black LED Ø55 / ≈ 12W / >1300 lm Dali 1.245 lm 3000K 36º 92 102 lm/W
Track Tube 55 3000K TBT5A55D33BWB White - black LED Ø55 / ≈ 12W / >1300 lm Dali 1.245 lm 3000K 36º 92 102 lm/W
Track Tube 55 3000K TBT5A55D33PBS Satin Black LED Ø55 / ≈ 12W / >1300 lm Dali 1.245 lm 3000K 36º 92 102 lm/W
Track Tube 55 3000K TBT5A55D33PCO Copper LED Ø55 / ≈ 12W / >1300 lm Dali 1.245 lm 3000K 36º 92 102 lm/W
Track Tube 55 3000K TBT5A55D33PPB Polished - black LED Ø55 / ≈ 12W / >1300 lm Dali 1.245 lm 3000K 36º 92 102 lm/W
Track Tube 55 3000K TBT5A55D33PWB White - black LED Ø55 / ≈ 12W / >1300 lm Dali 1.245 lm 3000K 36º 92 102 lm/W
Track Tube 55 4000K TBT5A55D41BBS Satin Black LED Ø55 / ≈ 12W / >1300 lm Dali 1.380 lm 4000K 16º 92 116 lm/W
Track Tube 55 4000K TBT5A55D41BCO Copper LED Ø55 / ≈ 12W / >1300 lm Dali 1.380 lm 4000K 16º 92 116 lm/W
Track Tube 55 4000K TBT5A55D41BPB Polished - black LED Ø55 / ≈ 12W / >1300 lm Dali 1.380 lm 4000K 16º 92 116 lm/W
Track Tube 55 4000K TBT5A55D41BWB White - black LED Ø55 / ≈ 12W / >1300 lm Dali 1.380 lm 4000K 16º 92 116 lm/W
Track Tube 55 4000K TBT5A55D41PBS Satin Black LED Ø55 / ≈ 12W / >1300 lm Dali 1.380 lm 4000K 16º 92 116 lm/W
Track Tube 55 4000K TBT5A55D41PCO Copper LED Ø55 / ≈ 12W / >1300 lm Dali 1.380 lm 4000K 16º 92 116 lm/W
Track Tube 55 4000K TBT5A55D41PPB Polished - black LED Ø55 / ≈ 12W / >1300 lm Dali 1.380 lm 4000K 16º 92 116 lm/W
Track Tube 55 4000K TBT5A55D41PWB White - black LED Ø55 / ≈ 12W / >1300 lm Dali 1.380 lm 4000K 16º 92 116 lm/W
Track Tube 55 4000K TBT5A55D43BBS Satin Black LED Ø55 / ≈ 12W / >1300 lm Dali 1.380 lm 4000K 36º 92 113 lm/W
Track Tube 55 4000K TBT5A55D43BCO Copper LED Ø55 / ≈ 12W / >1300 lm Dali 1.380 lm 4000K 36º 92 113 lm/W
Track Tube 55 4000K TBT5A55D43BPB Polished - black LED Ø55 / ≈ 12W / >1300 lm Dali 1.380 lm 4000K 36º 92 113 lm/W
Track Tube 55 4000K TBT5A55D43BWB White - black LED Ø55 / ≈ 12W / >1300 lm Dali 1.380 lm 4000K 36º 92 113 lm/W
Track Tube 55 4000K TBT5A55D43PBS Satin Black LED Ø55 / ≈ 12W / >1300 lm Dali 1.380 lm 4000K 36º 92 113 lm/W
Track Tube 55 4000K TBT5A55D43PCO Copper LED Ø55 / ≈ 12W / >1300 lm Dali 1.380 lm 4000K 36º 92 113 lm/W
Track Tube 55 4000K TBT5A55D43PPB Polished - black LED Ø55 / ≈ 12W / >1300 lm Dali 1.380 lm 4000K 36º 92 113 lm/W
Track Tube 55 4000K TBT5A55D43PWB White - black LED Ø55 / ≈ 12W / >1300 lm Dali 1.380 lm 4000K 36º 92 113 lm/W
Track Tube 55 2700K TBT5A55N21BBS Satin Black LED Ø55 / ≈ 12W / >1300 lm No Dimmable 1.165 lm 2700K 40º 92 96 lm/W
Track Tube 55 2700K TBT5A55N21BCO Copper LED Ø55 / ≈ 12W / >1300 lm No Dimmable 1.165 lm 2700K 40º 92 96 lm/W
Track Tube 55 2700K TBT5A55N21BPB Polished - black LED Ø55 / ≈ 12W / >1300 lm No Dimmable 1.165 lm 2700K 40º 92 96 lm/W
Track Tube 55 2700K TBT5A55N21BWB White - black LED Ø55 / ≈ 12W / >1300 lm No Dimmable 1.165 lm 2700K 40º 92 96 lm/W
Track Tube 55 2700K TBT5A55N21PBS Satin Black LED Ø55 / ≈ 12W / >1300 lm No Dimmable 1.165 lm 2700K 40º 92 96 lm/W
Track Tube 55 2700K TBT5A55N21PCO Copper LED Ø55 / ≈ 12W / >1300 lm No Dimmable 1.165 lm 2700K 40º 92 96 lm/W
Track Tube 55 2700K TBT5A55N21PPB Polished - black LED Ø55 / ≈ 12W / >1300 lm No Dimmable 1.165 lm 2700K No lampº 92 96 lm/W
Track Tube 55 2700K TBT5A55N21PWB White - black LED Ø55 / ≈ 12W / >1300 lm No Dimmable 1.165 lm 2700K 40º 92 96 lm/W
Track Tube 55 2700K TBT5A55N23BBS Satin Black LED Ø55 / ≈ 12W / >1300 lm No Dimmable 1.165 lm 2700K 40º 92 96 lm/W
Track Tube 55 2700K TBT5A55N23BCO Copper LED Ø55 / ≈ 12W / >1300 lm No Dimmable 1.165 lm 2700K 40º 92 96 lm/W
Track Tube 55 2700K TBT5A55N23BPB Polished - black LED Ø55 / ≈ 12W / >1300 lm No Dimmable 1.165 lm 2700K 40º 92 96 lm/W
Track Tube 55 2700K TBT5A55N23BWB White - black LED Ø55 / ≈ 12W / >1300 lm No Dimmable 1.165 lm 2700K 40º 92 96 lm/W
Track Tube 55 2700K TBT5A55N23PBS Satin Black LED Ø55 / ≈ 12W / >1300 lm No Dimmable 1.165 lm 2700K 40º 92 96 lm/W
Track Tube 55 2700K TBT5A55N23PCO Copper LED Ø55 / ≈ 12W / >1300 lm No Dimmable 1.165 lm 2700K 40º 92 96 lm/W
Track Tube 55 2700K TBT5A55N23PPB Polished - black LED Ø55 / ≈ 12W / >1300 lm No Dimmable 1.165 lm 2700K 40º 92 96 lm/W
Track Tube 55 2700K TBT5A55N23PWB White - black LED Ø55 / ≈ 12W / >1300 lm No Dimmable 1.165 lm 2700K 40º 92 96 lm/W
Track Tube 55 3000K TBT5A55N31BBS Satin Black LED Ø55 / ≈ 12W / >1300 lm No Dimmable 1.245 lm 3000K 40º 92 102 lm/W
Track Tube 55 3000K TBT5A55N31BCO Copper LED Ø55 / ≈ 12W / >1300 lm No Dimmable 1.245 lm 3000K 40º 92 102 lm/W
Track Tube 55 3000K TBT5A55N31BPB Polished - black LED Ø55 / ≈ 12W / >1300 lm No Dimmable 1.245 lm 3000K 40º 92 102 lm/W
Track Tube 55 3000K TBT5A55N31BWB White - black LED Ø55 / ≈ 12W / >1300 lm No Dimmable 1.245 lm 3000K 40º 92 102 lm/W
Track Tube 55 3000K TBT5A55N31PBS Satin Black LED Ø55 / ≈ 12W / >1300 lm No Dimmable 1.245 lm 3000K 40º 92 102 lm/W
Track Tube 55 3000K TBT5A55N31PCO Copper LED Ø55 / ≈ 12W / >1300 lm No Dimmable 1.245 lm 3000K 40º 92 102 lm/W
Track Tube 55 3000K TBT5A55N31PPB Polished - black LED Ø55 / ≈ 12W / >1300 lm No Dimmable 1.245 lm 3000K 40º 92 102 lm/W
Track Tube 55 3000K TBT5A55N31PWB White - black LED Ø55 / ≈ 12W / >1300 lm No Dimmable 1.245 lm 3000K 40º 92 102 lm/W
Track Tube 55 3000K TBT5A55N33BBS Satin Black LED Ø55 / ≈ 12W / >1300 lm No Dimmable 1.245 lm 3000K 40º 92 102 lm/W
Track Tube 55 3000K TBT5A55N33BCO Copper LED Ø55 / ≈ 12W / >1300 lm No Dimmable 1.245 lm 3000K 40º 92 102 lm/W
Track Tube 55 3000K TBT5A55N33BPB Polished - black LED Ø55 / ≈ 12W / >1300 lm No Dimmable 1.245 lm 3000K 40º 92 102 lm/W
Track Tube 55 3000K TBT5A55N33BWB White - black LED Ø55 / ≈ 12W / >1300 lm No Dimmable 1.245 lm 3000K 40º 92 102 lm/W
Track Tube 55 3000K TBT5A55N33PBS Satin Black LED Ø55 / ≈ 12W / >1300 lm No Dimmable 1.245 lm 3000K 40º 92 102 lm/W
Track Tube 55 3000K TBT5A55N33PCO Copper LED Ø55 / ≈ 12W / >1300 lm No Dimmable 1.245 lm 3000K 40º 92 102 lm/W
Track Tube 55 3000K TBT5A55N33PPB Polished - black LED Ø55 / ≈ 12W / >1300 lm No Dimmable 1.245 lm 3000K 40º 92 102 lm/W
Track Tube 55 3000K TBT5A55N33PWB White - black LED Ø55 / ≈ 12W / >1300 lm No Dimmable 1.245 lm 3000K 40º 92 102 lm/W
Track Tube 55 4000K TBT5A55N41BBS Satin Black LED Ø55 / ≈ 12W / >1300 lm No Dimmable 1.380 lm 4000K 40º 92 113 lm/W
Track Tube 55 4000K TBT5A55N41BCO Copper LED Ø55 / ≈ 12W / >1300 lm No Dimmable 1.380 lm 4000K 40º 92 113 lm/W
Track Tube 55 4000K TBT5A55N41BPB Polished - black LED Ø55 / ≈ 12W / >1300 lm No Dimmable 1.380 lm 4000K 40º 92 113 lm/W
Track Tube 55 4000K TBT5A55N41BWB White - black LED Ø55 / ≈ 12W / >1300 lm No Dimmable 1.380 lm 4000K 40º 92 113 lm/W
Track Tube 55 4000K TBT5A55N41PBS Satin Black LED Ø55 / ≈ 12W / >1300 lm No Dimmable 1.380 lm 4000K 40º 92 113 lm/W
Track Tube 55 4000K TBT5A55N41PCO Copper LED Ø55 / ≈ 12W / >1300 lm No Dimmable 1.380 lm 4000K 40º 92 113 lm/W
Track Tube 55 4000K TBT5A55N41PPB Polished - black LED Ø55 / ≈ 12W / >1300 lm No Dimmable 1.380 lm 4000K No lampº 92 113 lm/W
Track Tube 55 4000K TBT5A55N41PWB White - black LED Ø55 / ≈ 12W / >1300 lm No Dimmable 1.380 lm 4000K 40º 92 113 lm/W
Track Tube 55 4000K TBT5A55N43BBS Satin Black LED Ø55 / ≈ 12W / >1300 lm No Dimmable 1.380 lm 4000K 40º 92 113 lm/W
Track Tube 55 4000K TBT5A55N43BCO Copper LED Ø55 / ≈ 12W / >1300 lm No Dimmable 1.380 lm 4000K 40º 92 113 lm/W
Track Tube 55 4000K TBT5A55N43BPB Polished - black LED Ø55 / ≈ 12W / >1300 lm No Dimmable 1.380 lm 4000K 40º 92 113 lm/W
Track Tube 55 4000K TBT5A55N43BWB White - black LED Ø55 / ≈ 12W / >1300 lm No Dimmable 1.380 lm 4000K 40º 92 113 lm/W
Track Tube 55 4000K TBT5A55N43PBS Satin Black LED Ø55 / ≈ 12W / >1300 lm No Dimmable 1.380 lm 4000K 40º 92 113 lm/W
Track Tube 55 4000K TBT5A55N43PCO Copper LED Ø55 / ≈ 12W / >1300 lm No Dimmable 1.380 lm 4000K 40º 92 113 lm/W
Track Tube 55 4000K TBT5A55N43PPB Polished - black LED Ø55 / ≈ 12W / >1300 lm No Dimmable 1.380 lm 4000K 40º 92 113 lm/W
Track Tube 55 4000K TBT5A55N43PWB White - black LED Ø55 / ≈ 12W / >1300 lm No Dimmable 1.380 lm 4000K 40º 92 113 lm/W
