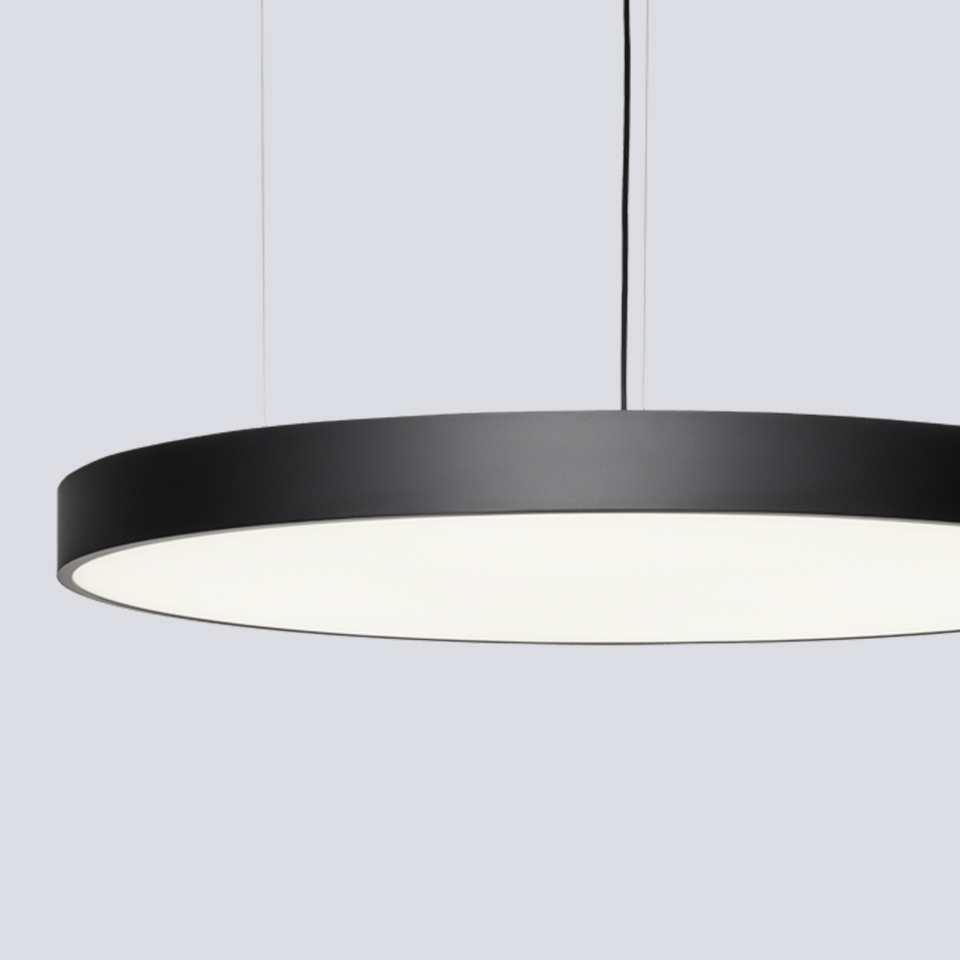

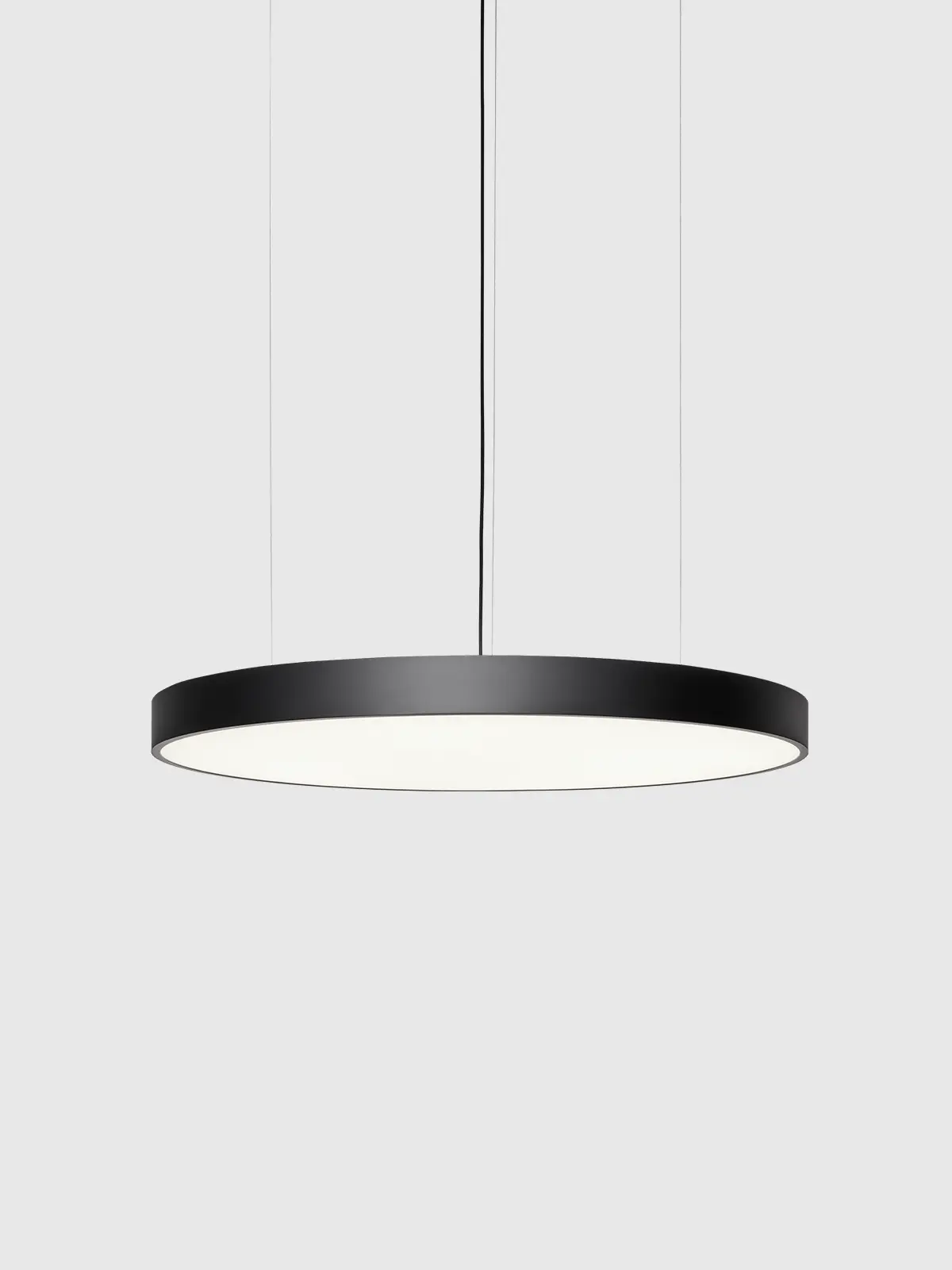

Circular luminaire in extruded aluminium with PMMA diffuser. UGR ≤ 19 with integrated LED driver and dimming options

  • Socket
  • Output
  • Control
  • Colour Temperature
  • Beam Angle
  • Complements
  • Finish

This combination does not exist.

Contact Us
Drone P Drone P
Installation Instructions General Guarantee Conditions CE Declaration Technical Datasheet Extended Guarantee Conditions LED Efficiency Label Driver 25W technical datasheet Driver 65W technical datasheet Driver 100W technical datasheet LED technical datasheet DRONE P - LDT files DRONE P - 3D Model
Technical drawing
LED flux—
LED power consumption—
Luminous efficiency—
CRI—
Driver LED—
Light temperature—
Beam angle—
IP protection—
Drone P
Modelo Ref. Color Fuente Potencia Regulación Flujo lum. Temp. Ángulo CRI Eficiencia
Drone P 3000K DRNPA39D39ABS Satin Black LED Ø39 / ≈ 16W / >2800 lm Dali 2.820 lm 3000K 90º >90 173 lm/W
Drone P 3000K DRNPA39D39AWS Satin White LED Ø39 / ≈ 16W / >2800 lm Dali 2.820 lm 3000K 90º >90 173 lm/W
Drone P 4000K DRNPA39D49ABS Satin Black LED Ø39 / ≈ 16W / >2800 lm Dali 2.910 lm 4000K 90º >90 179 lm/W
Drone P 4000K DRNPA39D49AWS Satin White LED Ø39 / ≈ 16W / >2800 lm Dali 2.910 lm 4000K 90º >90 179 lm/W
Drone P 3000K DRNPA39N39ABS Satin Black LED Ø39 / ≈ 16W / >2800 lm No Dimmable 2.820 lm 3000K 90º >90 173 lm/W
Drone P 3000K DRNPA39N39AWS Satin White LED Ø39 / ≈ 16W / >2800 lm No Dimmable 2.820 lm 3000K 90º >90 173 lm/W
Drone P 4000K DRNPA39N49ABS Satin Black LED Ø39 / ≈ 16W / >2800 lm No Dimmable 2.910 lm 4000K 90º >90 179 lm/W
Drone P 4000K DRNPA39N49AWS Satin White LED Ø39 / ≈ 16W / >2800 lm No Dimmable 2.910 lm 4000K 90º >90 179 lm/W
Drone P 3000K DRNPA64D39ABS Satin Black LED Ø60 / ≈ 39W / >6600 lm Dali 6.680 lm 3000K 90º >90 170 lm/W
Drone P 3000K DRNPA64D39AWS Satin White LED Ø60 / ≈ 39W / >6600 lm Dali 6.680 lm 3000K 90º >90 170 lm/W
Drone P 4000K DRNPA64D49ABS Satin Black LED Ø60 / ≈ 39W / >6600 lm Dali 6.960 lm 4000K 90º >90 178 lm/W
Drone P 4000K DRNPA64D49AWS Satin White LED Ø60 / ≈ 39W / >6600 lm Dali 6.960 lm 4000K 90º >90 178 lm/W
Drone P 3000K DRNPA64N39ABS Satin Black LED Ø60 / ≈ 39W / >6600 lm No Dimmable 6.680 lm 3000K 90º >90 170 lm/W
Drone P 3000K DRNPA64N39AWS Satin White LED Ø60 / ≈ 39W / >6600 lm No Dimmable 6.680 lm 3000K 90º >90 170 lm/W
Drone P 4000K DRNPA64N49ABS Satin Black LED Ø60 / ≈ 39W / >6600 lm No Dimmable 6.960 lm 4000K 90º >90 178 lm/W
Drone P 4000K DRNPA64N49AWS Satin White LED Ø60 / ≈ 39W / >6600 lm No Dimmable 6.960 lm 4000K 90º >90 178 lm/W
Drone P 3000K DRNPA88D39ABS Satin Black LED Ø88 / ≈ 84W / >14600 lm Dali 14.600 lm 3000K 90º >90 172 lm/W
Drone P 3000K DRNPA88D39AWS Satin White LED Ø88 / ≈ 84W / >14600 lm Dali 14.600 lm 3000K 90º >90 172 lm/W
Drone P 4000K DRNPA88D49ABS Satin Black LED Ø88 / ≈ 84W / >14600 lm Dali 15.120 lm 4000K 90º >90 178 lm/W
Drone P 4000K DRNPA88D49AWS Satin White LED Ø88 / ≈ 84W / >14600 lm Dali 15.120 lm 4000K 90º >90 178 lm/W
Drone P 3000K DRNPA88N39ABS Satin Black LED Ø88 / ≈ 84W / >14600 lm No Dimmable 14.600 lm 3000K 90º >90 172 lm/W
Drone P 3000K DRNPA88N39AWS Satin White LED Ø88 / ≈ 84W / >14600 lm No Dimmable 14.600 lm 3000K 90º >90 172 lm/W
Drone P 4000K DRNPA88N49ABS Satin Black LED Ø88 / ≈ 84W / >14600 lm No Dimmable 15.120 lm 4000K 90º >90 178 lm/W
Drone P 4000K DRNPA88N49AWS Satin White LED Ø88 / ≈ 84W / >14600 lm No Dimmable 15.120 lm 4000K 90º >90 178 lm/W
