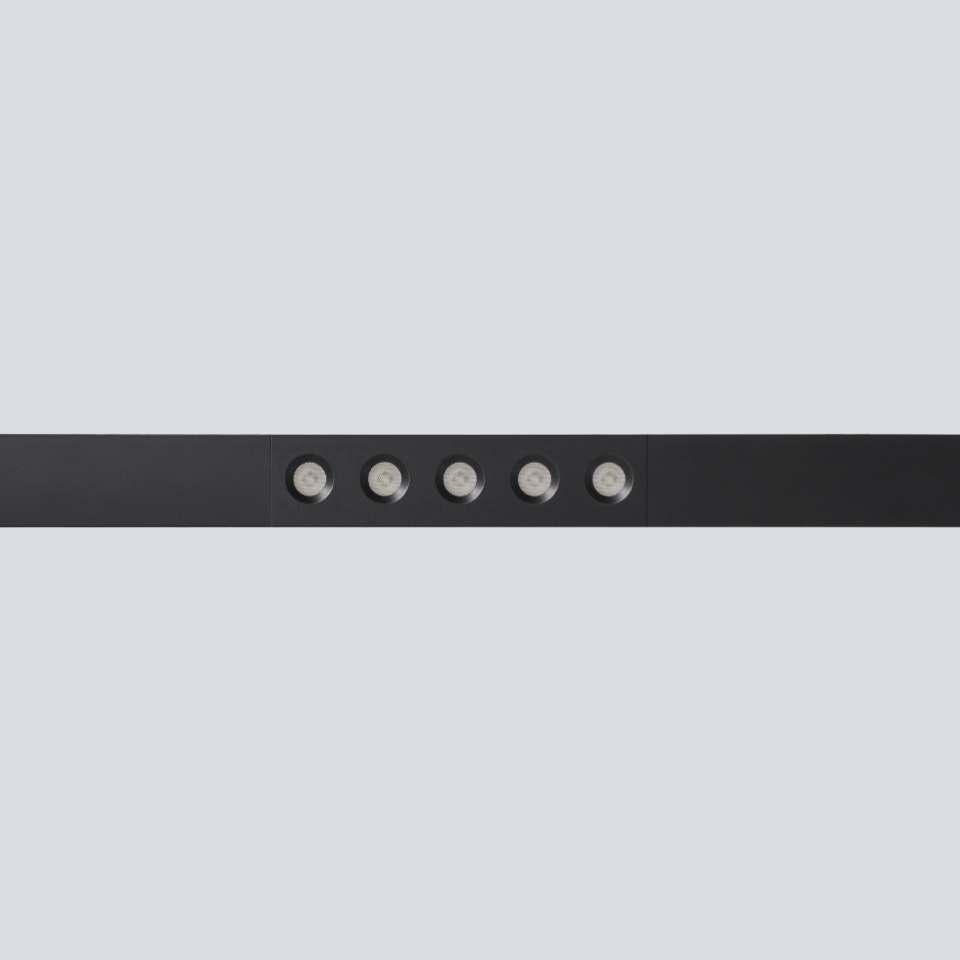

One-metre linear profile with two five-point modules at the ends. Uniform emission with architectural integration.
  • Socket
  • Output
  • Control
  • Colour Temperature
  • Beam Angle
  • Position
  • Finish

This combination does not exist.

Contact Us
Click Dot 5 Click Dot 5
Technical Datasheet Click Catalogue CE Declaration for Recessed CE Declaration for Surface and Pendant Bluetooth Catalogue Installation Instructions General Guarantee Conditions EXTENDED Guarantee Conditions LED Efficiency Label Driver technical datasheet LED technical datasheet Test report certificate (Recessed profile) Test report (Recessed profile) Test report certificate (Surface profile) Test report (Surface profile) CLICK DOT 5 - LDT files
Technical drawing
LED flux—
LED power consumption—
Luminous efficiency—
CRI—
Driver LED—
Light temperature—
Beam angle—
IP protection—
Modelo Ref. Color Fuente Potencia Regulación Flujo lum. Temp. Ángulo CRI Eficiencia
Click Dot 5 2700K KDT5A05D23CBS Satin Black LED 5P / ≈ 10W / >1.000 lm Dali 1.000 lm 2700K 30 / CENTRALº >90 100 lm/W
Click Dot 5 2700K KDT5A05D23CWS Satin White LED 5P / ≈ 10W / >1.000 lm Dali 1.000 lm 2700K 30 / CENTRALº >90 100 lm/W
Click Dot 5 2700K KDT5A05D23DBS Satin Black LED 5P / ≈ 10W / >1.000 lm Dali 1.000 lm 2700K 30 / DERECHOº >90 100 lm/W
Click Dot 5 2700K KDT5A05D23DWS Satin White LED 5P / ≈ 10W / >1.000 lm Dali 1.000 lm 2700K 30 / DERECHOº >90 100 lm/W
Click Dot 5 3000K KDT5A05D33CBS Satin Black LED 5P / ≈ 10W / >1.000 lm Dali 1.097 lm 3000K 30 / CENTRALº >90 110 lm/W
Click Dot 5 3000K KDT5A05D33CWS Satin White LED 5P / ≈ 10W / >1.000 lm Dali 1.097 lm 3000K 30 / CENTRALº >90 110 lm/W
Click Dot 5 3000K KDT5A05D33DBS Satin Black LED 5P / ≈ 10W / >1.000 lm Dali 1.097 lm 3000K 30 / DERECHOº >90 110 lm/W
Click Dot 5 3000K KDT5A05D33DWS Satin White LED 5P / ≈ 10W / >1.000 lm Dali 1.097 lm 3000K 30 / DERECHOº >90 110 lm/W
Click Dot 5 4000K KDT5A05D43CBS Satin Black LED 5P / ≈ 10W / >1.000 lm Dali 1.155 lm 4000K 30 / CENTRALº >90 116 lm/W
Click Dot 5 4000K KDT5A05D43CWS Satin White LED 5P / ≈ 10W / >1.000 lm Dali 1.155 lm 4000K 30 / CENTRALº >90 116 lm/W
Click Dot 5 4000K KDT5A05D43DBS Satin Black LED 5P / ≈ 10W / >1.000 lm Dali 1.155 lm 4000K 30 / DERECHOº >90 116 lm/W
Click Dot 5 4000K KDT5A05D43DWS Satin White LED 5P / ≈ 10W / >1.000 lm Dali 1.155 lm 4000K 30 / DERECHOº >90 116 lm/W
Click Dot 5 2700K KDT5A05K23CBS Satin Black LED 5P / ≈ 10W / >1.000 lm Casambi 1.000 lm 2700K 30 / CENTRALº >90 100 lm/W
Click Dot 5 2700K KDT5A05K23CWS Satin White LED 5P / ≈ 10W / >1.000 lm Casambi 1.000 lm 2700K 30 / CENTRALº >90 100 lm/W
Click Dot 5 2700K KDT5A05K23DBS Satin Black LED 5P / ≈ 10W / >1.000 lm Casambi 1.000 lm 2700K 30 / DERECHOº >90 100 lm/W
Click Dot 5 2700K KDT5A05K23DWS Satin White LED 5P / ≈ 10W / >1.000 lm Casambi 1.000 lm 2700K 30 / DERECHOº >90 100 lm/W
Click Dot 5 3000K KDT5A05K33CBS Satin Black LED 5P / ≈ 10W / >1.000 lm Casambi 1.097 lm 3000K 30 / CENTRALº >90 110 lm/W
Click Dot 5 3000K KDT5A05K33CWS Satin White LED 5P / ≈ 10W / >1.000 lm Casambi 1.097 lm 3000K 30 / CENTRALº >90 110 lm/W
Click Dot 5 3000K KDT5A05K33DBS Satin Black LED 5P / ≈ 10W / >1.000 lm Casambi 1.097 lm 3000K 30 / DERECHOº >90 110 lm/W
Click Dot 5 3000K KDT5A05K33DWS Satin White LED 5P / ≈ 10W / >1.000 lm Casambi 1.097 lm 3000K 30 / DERECHOº >90 110 lm/W
Click Dot 5 4000K KDT5A05K43CBS Satin Black LED 5P / ≈ 10W / >1.000 lm Casambi 1.155 lm 4000K 30 / CENTRALº >90 116 lm/W
Click Dot 5 4000K KDT5A05K43CWS Satin White LED 5P / ≈ 10W / >1.000 lm Casambi 1.155 lm 4000K 30 / CENTRALº >90 116 lm/W
Click Dot 5 4000K KDT5A05K43DBS Satin Black LED 5P / ≈ 10W / >1.000 lm Casambi 1.155 lm 4000K 30 / DERECHOº >90 116 lm/W
Click Dot 5 4000K KDT5A05K43DWS Satin White LED 5P / ≈ 10W / >1.000 lm Casambi 1.155 lm 4000K 30 / DERECHOº >90 116 lm/W
Click Dot 5 2700K KDT5A05N23CBS Satin Black LED 5P / ≈ 10W / >1.000 lm No Dimmable 1.000 lm 2700K 30 / CENTRALº >90 100 lm/W
Click Dot 5 2700K KDT5A05N23CWS Satin White LED 5P / ≈ 10W / >1.000 lm No Dimmable 1.000 lm 2700K 30 / CENTRALº >90 100 lm/W
Click Dot 5 2700K KDT5A05N23DBS Satin Black LED 5P / ≈ 10W / >1.000 lm No Dimmable 1.000 lm 2700K 30 / DERECHOº >90 100 lm/W
Click Dot 5 2700K KDT5A05N23DWS Satin White LED 5P / ≈ 10W / >1.000 lm No Dimmable 1.000 lm 2700K 30 / DERECHOº >90 100 lm/W
Click Dot 5 3000K KDT5A05N33CBS Satin Black LED 5P / ≈ 10W / >1.000 lm No Dimmable 1.097 lm 3000K 30 / CENTRALº >90 110 lm/W
Click Dot 5 3000K KDT5A05N33CWS Satin White LED 5P / ≈ 10W / >1.000 lm No Dimmable 1.097 lm 3000K 30 / CENTRALº >90 110 lm/W
Click Dot 5 3000K KDT5A05N33DBS Satin Black LED 5P / ≈ 10W / >1.000 lm No Dimmable 1.097 lm 3000K 30 / DERECHOº >90 110 lm/W
Click Dot 5 3000K KDT5A05N33DWS Satin White LED 5P / ≈ 10W / >1.000 lm No Dimmable 1.097 lm 3000K 30 / DERECHOº >90 110 lm/W
Click Dot 5 4000K KDT5A05N43CBS Satin Black LED 5P / ≈ 10W / >1.000 lm No Dimmable 1.155 lm 4000K 30 / CENTRALº >90 116 lm/W
Click Dot 5 4000K KDT5A05N43CWS Satin White LED 5P / ≈ 10W / >1.000 lm No Dimmable 1.155 lm 4000K 30 / CENTRALº >90 116 lm/W
Click Dot 5 4000K KDT5A05N43DBS Satin Black LED 5P / ≈ 10W / >1.000 lm No Dimmable 1.155 lm 4000K 30 / DERECHOº >90 116 lm/W
Click Dot 5 4000K KDT5A05N43DWS Satin White LED 5P / ≈ 10W / >1.000 lm No Dimmable 1.155 lm 4000K 30 / DERECHOº >90 116 lm/W
