530 Plus

530 Plus

https://onoklighting.com/web/image/product.template/55/image_1920?unique=2be4a09

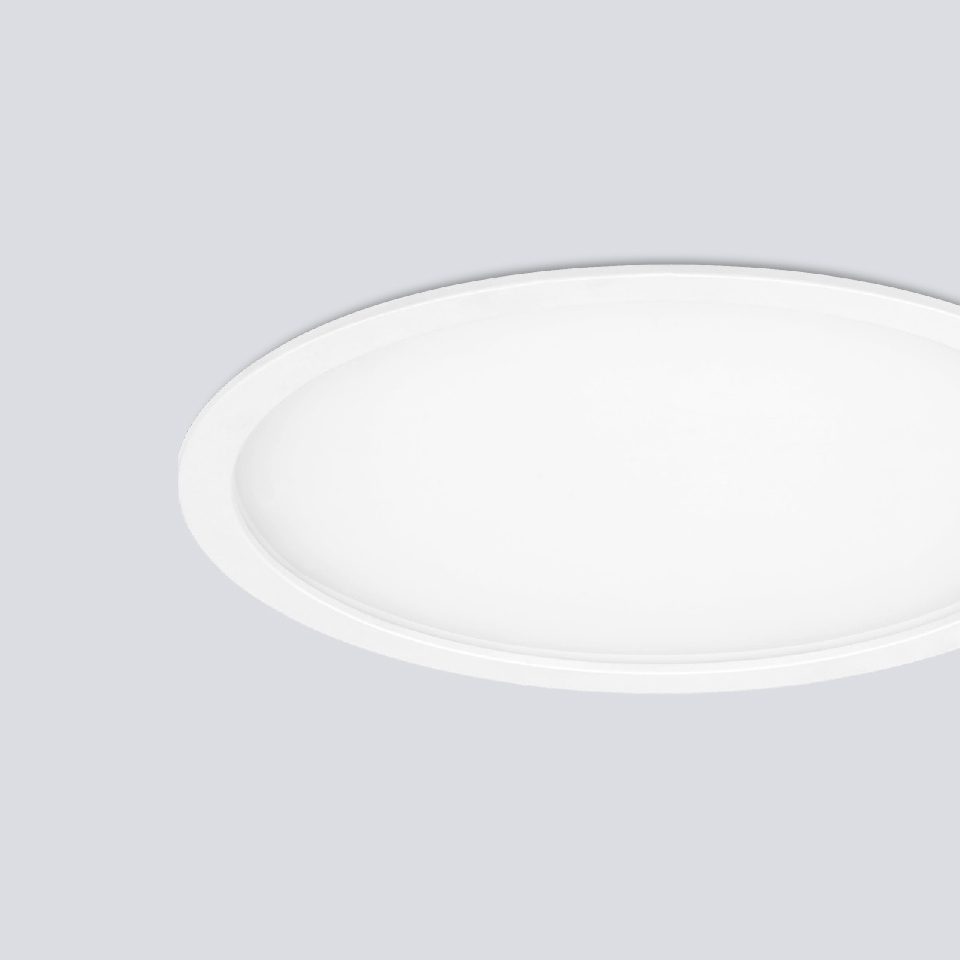

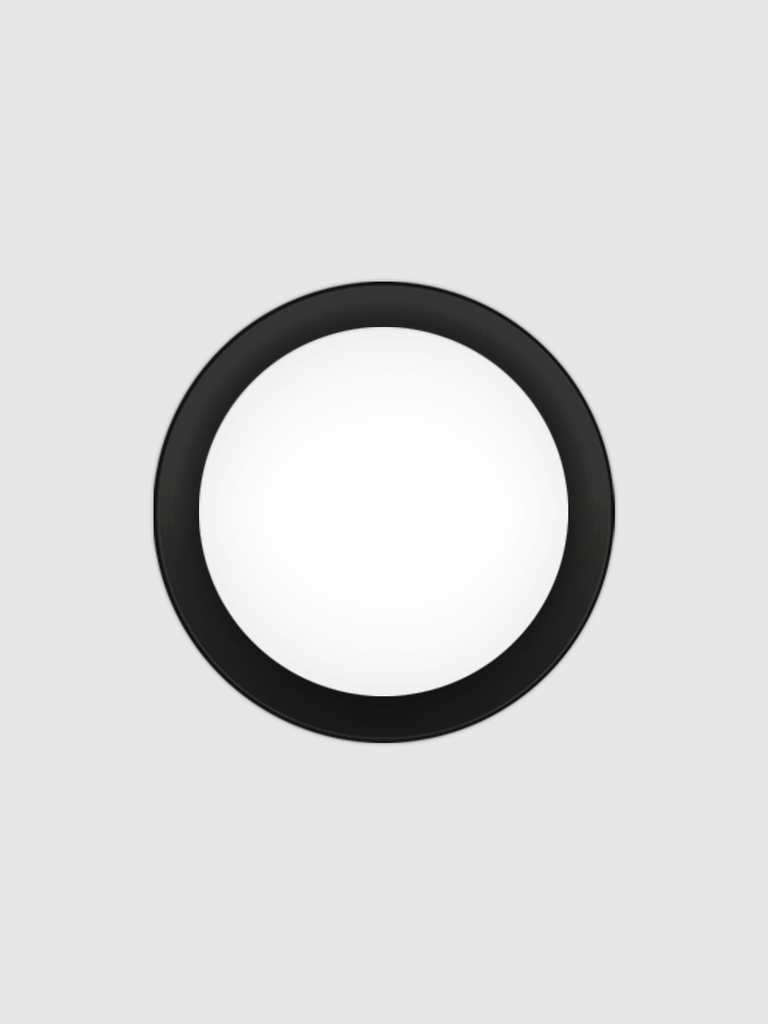

Circular luminaire with IP54 protection and three available power options. Ice-effect diffuser to reduce glare.
  • Socket
  • Output
  • Control
  • Colour Temperature
  • Beam Angle
  • Complements
  • Finish

This combination does not exist.

Contact Us
530 Plus 530 Plus
Technical Datasheet Installation Instructions LED Efficiency Label General Guarantee Conditions Extended Guarantee Conditions CE Declaration for LED Driver 20W technical datasheet Driver 30W technical datasheet LED technical datasheet Test report certificate 530 PLUS - LDT files
Technical drawing
LED flux—
LED power consumption—
Luminous efficiency—
CRI—
Driver LED—
Light temperature—
Beam angle—
IP protection—
Modelo Ref. Color Fuente Potencia Regulación Flujo lum. Temp. Ángulo CRI Eficiencia
530 Plus 2700K 530PA10D29ABS Satin Black LED ≈ 11W / >1800lm Dali 1.675 lm 2700K >90º 92 142 lm/W
530 Plus 2700K 530PA10D29AWS Satin White LED ≈ 11W / >1800lm Dali 1.675 lm 2700K >90º 92 142 lm/W
530 Plus 3000K 530PA10D39ABS Satin Black LED ≈ 11W / >1800lm Dali 1.870 lm 3000K >90º 92 158 lm/W
530 Plus 3000K 530PA10D39AWS Satin White LED ≈ 11W / >1800lm Dali 1.870 lm 3000K >90º 92 158 lm/W
530 Plus 4000K 530PA10D49ABS Satin Black LED ≈ 11W / >1800lm Dali 1.940 lm 4000K >90º 92 164 lm/W
530 Plus 4000K 530PA10D49AWS Satin White LED ≈ 11W / >1800lm Dali 1.940 lm 4000K >90º 92 164 lm/W
530 Plus 2700K 530PA10F29ABS Satin Black LED ≈ 11W / >1800lm PUSH 1.675 lm 2700K >90º 92 142 lm/W
530 Plus 2700K 530PA10F29AWS Satin White LED ≈ 11W / >1800lm PUSH 1.675 lm 2700K >90º 92 142 lm/W
530 Plus 3000K 530PA10F39ABS Satin Black LED ≈ 11W / >1800lm PUSH 1.870 lm 3000K >90º 92 158 lm/W
530 Plus 3000K 530PA10F39AWS Satin White LED ≈ 11W / >1800lm PUSH 1.870 lm 3000K >90º 92 158 lm/W
530 Plus 4000K 530PA10F49ABS Satin Black LED ≈ 11W / >1800lm PUSH 1.940 lm 4000K >90º 92 164 lm/W
530 Plus 4000K 530PA10F49AWS Satin White LED ≈ 11W / >1800lm PUSH 1.940 lm 4000K >90º 92 164 lm/W
530 Plus 2700K 530PA10N29ABS Satin Black LED ≈ 11W / >1800lm No Dimmable 1.675 lm 2700K >90º 92 142 lm/W
530 Plus 2700K 530PA10N29AWS Satin White LED ≈ 11W / >1800lm No Dimmable 1.675 lm 2700K >90º 92 142 lm/W
530 Plus 3000K 530PA10N39ABS Satin Black LED ≈ 11W / >1800lm No Dimmable 1.870 lm 3000K >90º 92 158 lm/W
530 Plus 3000K 530PA10N39AWS Satin White LED ≈ 11W / >1800lm No Dimmable 1.870 lm 3000K >90º 92 158 lm/W
530 Plus 4000K 530PA10N49ABS Satin Black LED ≈ 11W / >1800lm No Dimmable 1.940 lm 4000K >90º 92 164 lm/W
530 Plus 4000K 530PA10N49AWS Satin White LED ≈ 11W / >1800lm No Dimmable 1.940 lm 4000K >90º 92 164 lm/W
530 Plus 2700K 530PA20D29ABS Satin Black LED ≈ 17W / >2500 lm Dali 2.455 lm 2700K >90º 92 142 lm/W
530 Plus 2700K 530PA20D29AWS Satin White LED ≈ 17W / >2500 lm Dali 2.455 lm 2700K >90º 92 142 lm/W
530 Plus 3000K 530PA20D39ABS Satin Black LED ≈ 17W / >2500 lm Dali 2.640 lm 3000K >90º 92 153 lm/W
530 Plus 3000K 530PA20D39AWS Satin White LED ≈ 17W / >2500 lm Dali 2.640 lm 3000K >90º 92 153 lm/W
530 Plus 4000K 530PA20D49ABS Satin Black LED ≈ 17W / >2500 lm Dali 2.730 lm 4000K >90º 92 157 lm/W
530 Plus 4000K 530PA20D49AWS Satin White LED ≈ 17W / >2500 lm Dali 2.730 lm 4000K >90º 92 157 lm/W
530 Plus 2700K 530PA20F29ABS Satin Black LED ≈ 17W / >2500 lm PUSH 2.455 lm 2700K >90º 92 142 lm/W
530 Plus 2700K 530PA20F29AWS Satin White LED ≈ 17W / >2500 lm PUSH 2.455 lm 2700K >90º 92 142 lm/W
530 Plus 3000K 530PA20F39ABS Satin Black LED ≈ 17W / >2500 lm PUSH 2.640 lm 3000K >90º 92 153 lm/W
530 Plus 3000K 530PA20F39AWS Satin White LED ≈ 17W / >2500 lm PUSH 2.640 lm 3000K >90º 92 153 lm/W
530 Plus 4000K 530PA20F49ABS Satin Black LED ≈ 17W / >2500 lm PUSH 2.730 lm 4000K >90º 92 157 lm/W
530 Plus 4000K 530PA20F49AWS Satin White LED ≈ 17W / >2500 lm PUSH 2.730 lm 4000K >90º 92 157 lm/W
530 Plus 2700K 530PA20N29ABS Satin Black LED ≈ 17W / >2500 lm No Dimmable 2.455 lm 2700K >90º 92 142 lm/W
530 Plus 2700K 530PA20N29AWS Satin White LED ≈ 17W / >2500 lm No Dimmable 2.455 lm 2700K >90º 92 142 lm/W
530 Plus 3000K 530PA20N39ABS Satin Black LED ≈ 17W / >2500 lm No Dimmable 2.640 lm 3000K >90º 92 153 lm/W
530 Plus 3000K 530PA20N39AWS Satin White LED ≈ 17W / >2500 lm No Dimmable 2.640 lm 3000K >90º 92 153 lm/W
530 Plus 4000K 530PA20N49ABS Satin Black LED ≈ 17W / >2500 lm No Dimmable 2.730 lm 4000K >90º 92 157 lm/W
530 Plus 4000K 530PA20N49AWS Satin White LED ≈ 17W / >2500 lm No Dimmable 2.730 lm 4000K >90º 92 157 lm/W
530 Plus 2700K 530PA30D29ABS Satin Black LED ≈ 23W / >3000 lm Dali 3.260 lm 2700K >90º 92 130 lm/W
530 Plus 2700K 530PA30D29AWS Satin White LED ≈ 23W / >3000 lm Dali 3.260 lm 2700K >90º 92 130 lm/W
530 Plus 3000K 530PA30D39ABS Satin Black LED ≈ 23W / >3000 lm Dali 3.505 lm 3000K >90º 92 140 lm/W
530 Plus 3000K 530PA30D39AWS Satin White LED ≈ 23W / >3000 lm Dali 3.505 lm 3000K >90º 92 140 lm/W
530 Plus 4000K 530PA30D49ABS Satin Black LED ≈ 23W / >3000 lm Dali 3.625 lm 4000K >90º 92 145 lm/W
530 Plus 4000K 530PA30D49AWS Satin White LED ≈ 23W / >3000 lm Dali 3.625 lm 4000K >90º 92 145 lm/W
530 Plus 2700K 530PA30F29ABS Satin Black LED ≈ 23W / >3000 lm PUSH 3.260 lm 2700K >90º 92 130 lm/W
530 Plus 2700K 530PA30F29AWS Satin White LED ≈ 23W / >3000 lm PUSH 3.260 lm 2700K >90º 92 130 lm/W
530 Plus 3000K 530PA30F39ABS Satin Black LED ≈ 23W / >3000 lm PUSH 3.505 lm 3000K >90º 92 140 lm/W
530 Plus 3000K 530PA30F39AWS Satin White LED ≈ 23W / >3000 lm PUSH 3.505 lm 3000K >90º 92 140 lm/W
530 Plus 4000K 530PA30F49ABS Satin Black LED ≈ 23W / >3000 lm PUSH 3.625 lm 4000K >90º 92 145 lm/W
530 Plus 4000K 530PA30F49AWS Satin White LED ≈ 23W / >3000 lm PUSH 3.625 lm 4000K >90º 92 145 lm/W
530 Plus 2700K 530PA30N29ABS Satin Black LED ≈ 23W / >3000 lm No Dimmable 3.260 lm 2700K >90º 92 130 lm/W
530 Plus 2700K 530PA30N29AWS Satin White LED ≈ 23W / >3000 lm No Dimmable 3.260 lm 2700K >90º 92 130 lm/W
530 Plus 3000K 530PA30N39ABS Satin Black LED ≈ 23W / >3000 lm No Dimmable 3.505 lm 3000K >90º 92 140 lm/W
530 Plus 3000K 530PA30N39AWS Satin White LED ≈ 23W / >3000 lm No Dimmable 3.505 lm 3000K >90º 92 140 lm/W
530 Plus 4000K 530PA30N49ABS Satin Black LED ≈ 23W / >3000 lm No Dimmable 3.625 lm 4000K >90º 92 145 lm/W
530 Plus 4000K 530PA30N49AWS Satin White LED ≈ 23W / >3000 lm No Dimmable 3.625 lm 4000K >90º 92 145 lm/W
