RINGO BOX 1.2
Ringo Box, available in two dimensions that adjust to different light flow. With this luminaire we seek to expand the Ringo Family, this family will always keep the aesthetic line.
Socket
GU10
,
LED
Output
≈ 6W / >600 lm
,
≈ 10W / >1000 lm
,
Max. 10W
Control
PUSH
,
Dali
,
Driver not included
,
No Dimmable
Colour Temperature
2700K
,
3000K
,
4000K
,
ºK not available
Beam Angle
40º
,
16º
,
Å not available (lamp not included)
,
24º
Complements
Clear Diffuser
,
Ice Diffuser
,
No Diffuser
Finish
| W | mA | Temp. | Lum. | CRI | |
|---|---|---|---|---|---|
| RINGO BOX 1.2 | 6W | 150 mA | 2.7K | 2x570 lm | 92 |
| 6W | 150 mA | 3K | 2x595 lm | 92 | |
| 6W | 150 mA | 4K | 2x635 lm | 92 | |
| RINGO BOX 1.2 | 10W | 300 mA | 2.7K | 2x1.005 lm | 92 |
| 10W | 300 mA | 3K | 2x1.070 lm | 92 | |
| 10W | 300 mA | 4K | 2x1.135 lm | 92 | |
| RINGO BOX 1.2 | Max. 10W | No Lamp | X | No Lamp | No Lamp |
To help customizing this product, we have created a simple step by step configurator. Click on the button to start.
-
Technical Datasheet
-
Technical Catalogue
-
General Guarantee Conditions
-
2D - dwg
-
2D - dxf
-
3D - step
-
Extended Guarantee Conditions
-
Installation Instructions
-
CE Declaration for GU 10
-
CE Declaration for LED
-
Test report
-
LED 6W technical datasheet
-
LED 10W technical datasheet
-
Driver 6W technical datasheet
-
Driver 10W technical datasheet
-
Efficiency Label
-
LED Efficiency Label
-
Test report certificate
LDT File

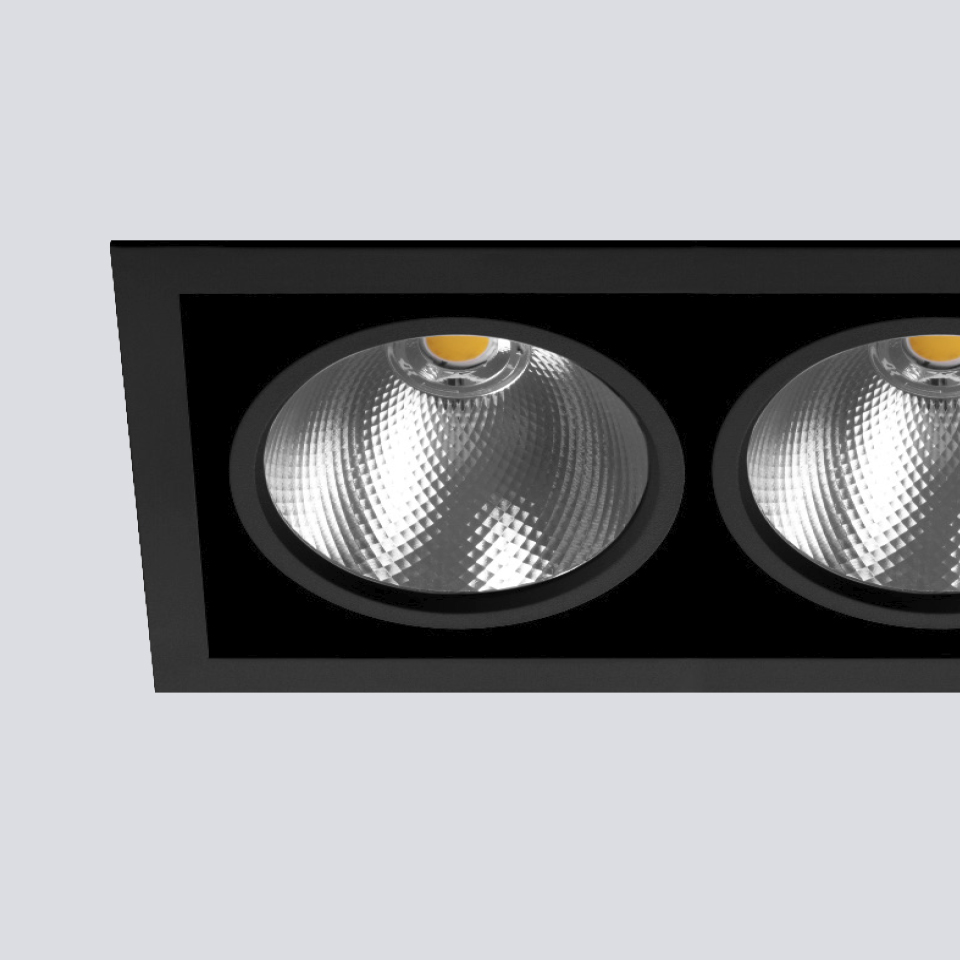

![[CR92A20D25BBS] CARDAN 90.2 LED Dali 50º Clear Diffuser 2700K Satin Black ≈ 17W / >2500 lm](/web/image/product.product/439911/image_512/%5BCR92A20D25BBS%5D%20CARDAN%2090.2%20LED%20Dali%2050%C2%BA%20Clear%20Diffuser%202700K%20Satin%20Black%20%E2%89%88%2017W%20-%20%3E2500%20lm?unique=a7ec2db)

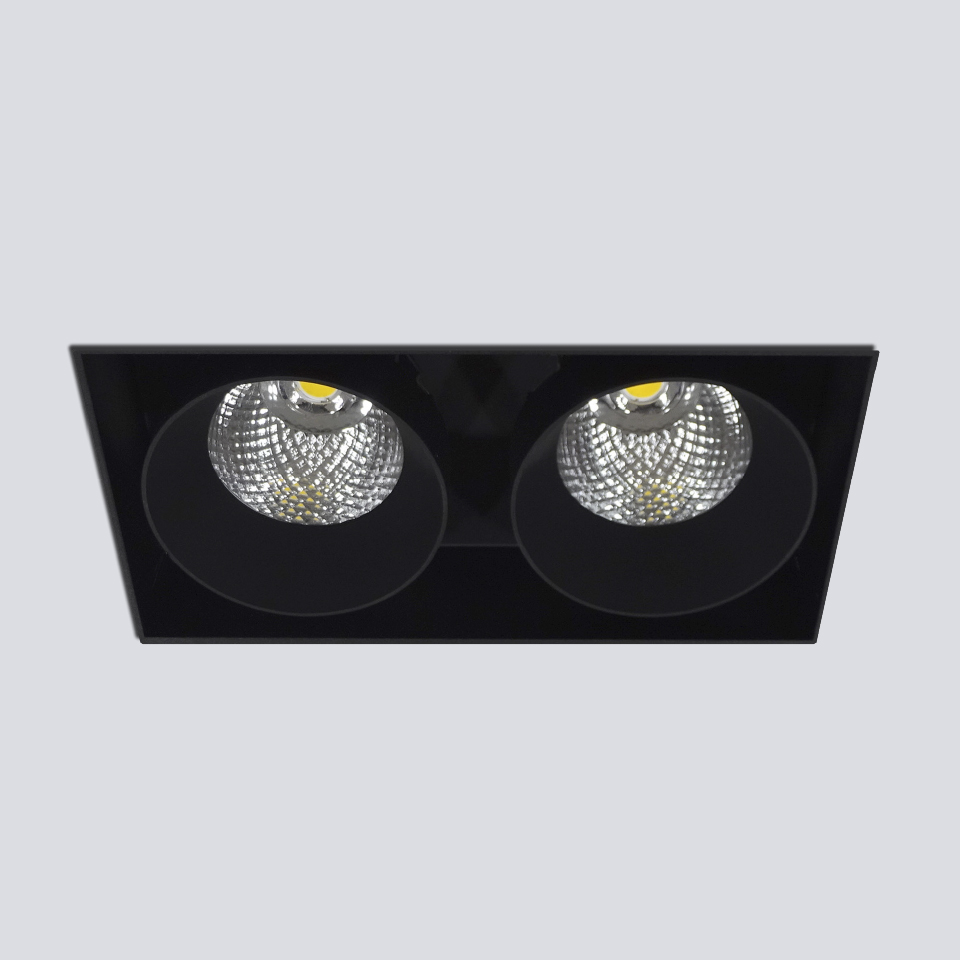

![[RS21A20F25BBS] KUBIK 2 LED PUSH 50º Clear Diffuser 2700K Satin Black ≈ 17W / >2500 lm](/web/image/product.product/395113/image_512/%5BRS21A20F25BBS%5D%20KUBIK%202%20LED%20PUSH%2050%C2%BA%20Clear%20Diffuser%202700K%20Satin%20Black%20%E2%89%88%2017W%20-%20%3E2500%20lm?unique=9a7e131)
![[RF22A20F25BBS] RINGO BOX 2.2 F LED PUSH 50º Clear Diffuser 2700K Satin Black ≈ 17W / >2500 lm](/web/image/product.product/389710/image_512/%5BRF22A20F25BBS%5D%20RINGO%20BOX%202.2%20F%20LED%20PUSH%2050%C2%BA%20Clear%20Diffuser%202700K%20Satin%20Black%20%E2%89%88%2017W%20-%20%3E2500%20lm?unique=a7ec2db)

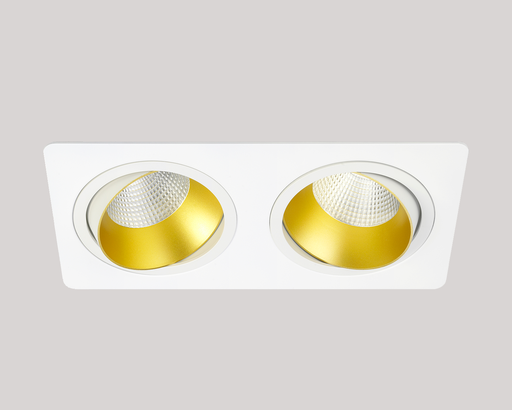

![[RT22A20F25BBG] RINGO TILT 2.2 LED PUSH 50º Clear Diffuser 2700K Satin Black + Gold ≈ 17W / >2500 lm](/web/image/product.product/390654/image_512/%5BRT22A20F25BBG%5D%20RINGO%20TILT%202.2%20LED%20PUSH%2050%C2%BA%20Clear%20Diffuser%202700K%20Satin%20Black%20%2B%20Gold%20%E2%89%88%2017W%20-%20%3E2500%20lm?unique=8244975)
