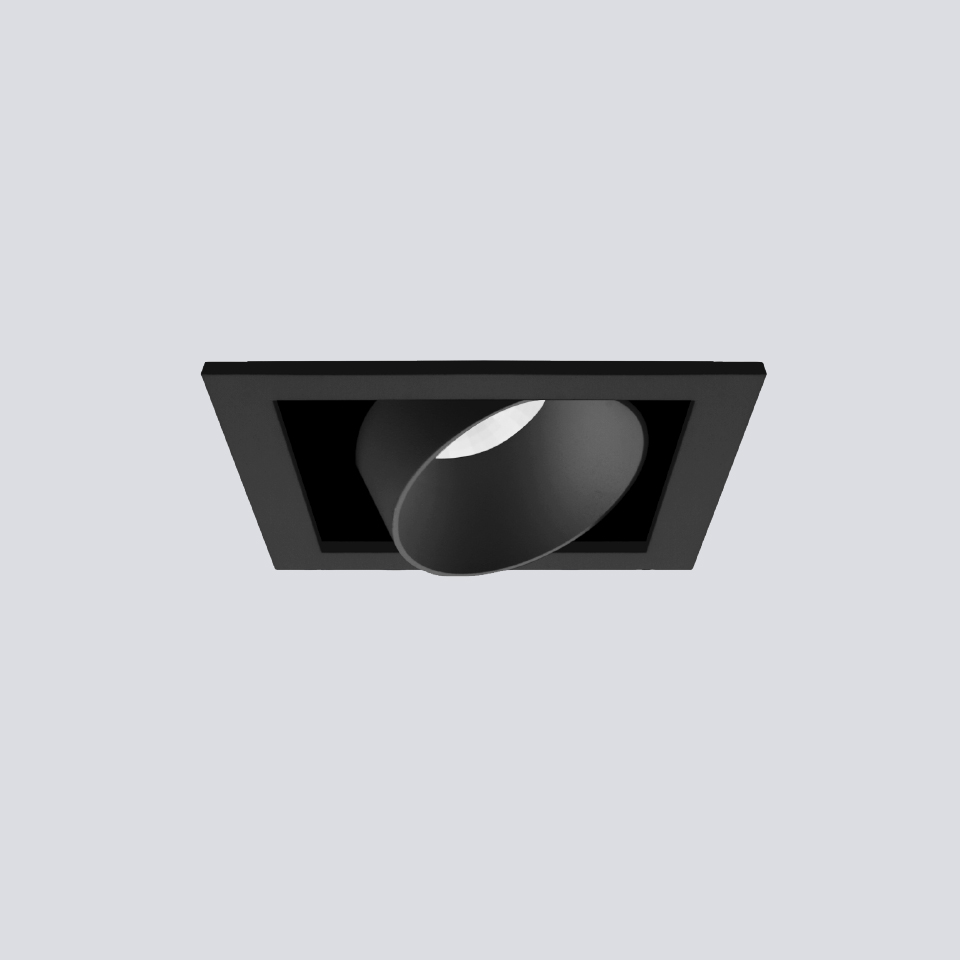

RINGO BOX 1.1
Ringo Box, available in two dimensions that adjust to different light flow. With this luminaire we seek to expand the Ringo Family, this family will always keep the aesthetic line.
Socket
GU10
,
LED
Output
≈ 6W / >600 lm
,
≈ 10W / >1000 lm
,
Max. 10W
Control
PUSH
,
Dali
,
Driver not included
,
No Dimmable
Colour Temperature
2700K
,
3000K
,
4000K
,
ºK not available
Beam Angle
40º
,
16º
,
Å not available (lamp not included)
,
24º
Complements
Clear Diffuser
,
Ice Diffuser
,
No Diffuser
Finish
W | mA | Temp. | Lum. | CRI | |
---|---|---|---|---|---|
RINGO BOX 1.1 | 6W | 150 mA | 2.7K | 570 lm | >92 |
6W | 150 mA | 3K | 595 lm | >92 | |
6W | 150 mA | 4K | 635 lm | >92 | |
RINGO BOX 1.1 | 10W | 300 mA | 2.7K | 1.005 lm | 92 |
10W | 300 mA | 3K | 1.070 lm | 92 | |
10W | 300 mA | 4K | 1.135 lm | 92 | |
RINGO BOX 1.1 | Max. 10W | No Lamp | X | No Lamp | No Lamp |
